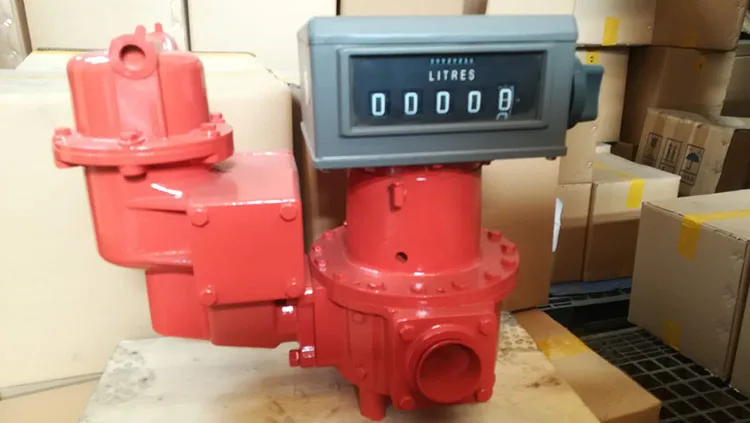

Bestfueling positive displacement tank truck unloading fuel station crude oil flow meter
- Category: >>>
- Supplier: Wenzhou Bestfueling Machinery Co. Ltd.
Share on (62007502809):
Product Overview
Description

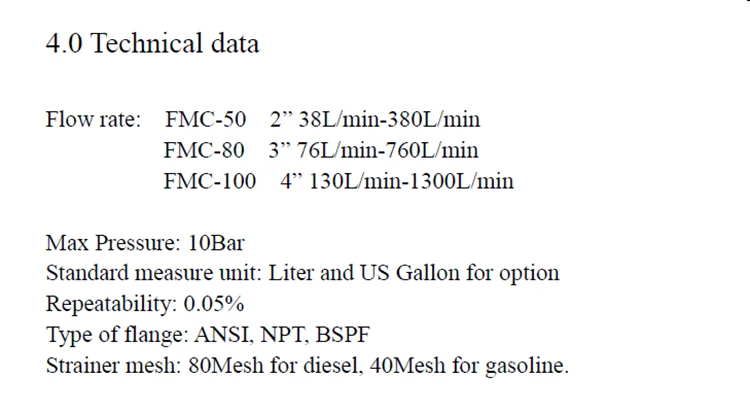

| Technical specification | |||

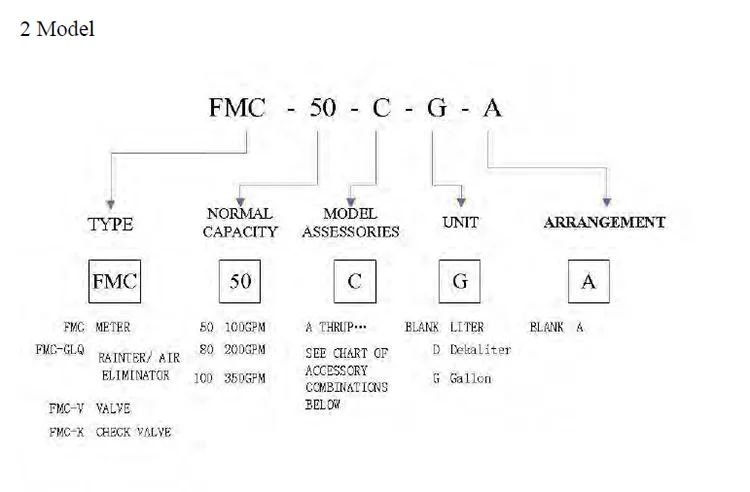

| Model | FMC-50 | FMC-80 | FMC-100 |
| Size | 50mm/2” | 80mm/3” | 100mm/4” |
| Flow range | 38-380 L/min | 75-750 L/min | 130-1300L/min |
| Max.pressure | 10 Bar/150PSI | ||
| Accuracy | +-0.2% | ||
| Repeatability | 0.05% | ||
| Standard measurement | Unit liter / US gallon for optional | ||
| Meter body | Aluminum,Cast iron,Steel,stainless steel available | ||

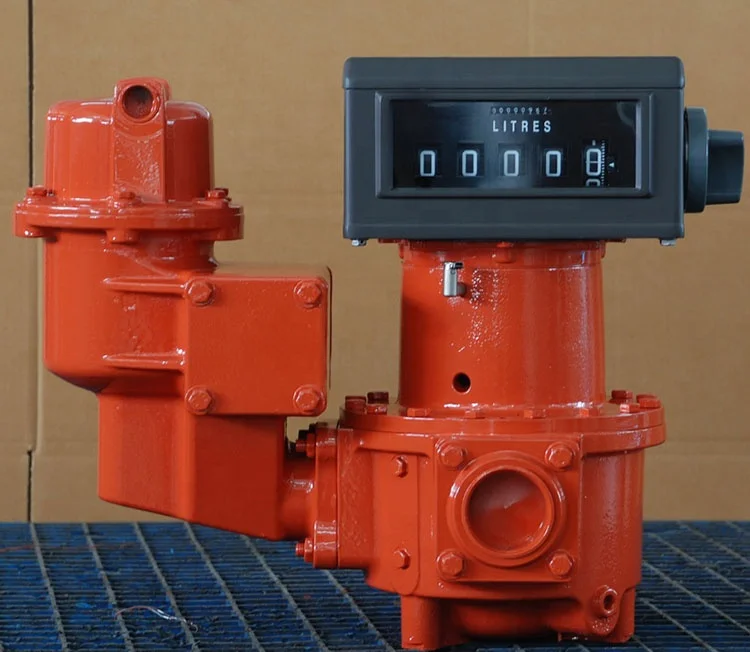

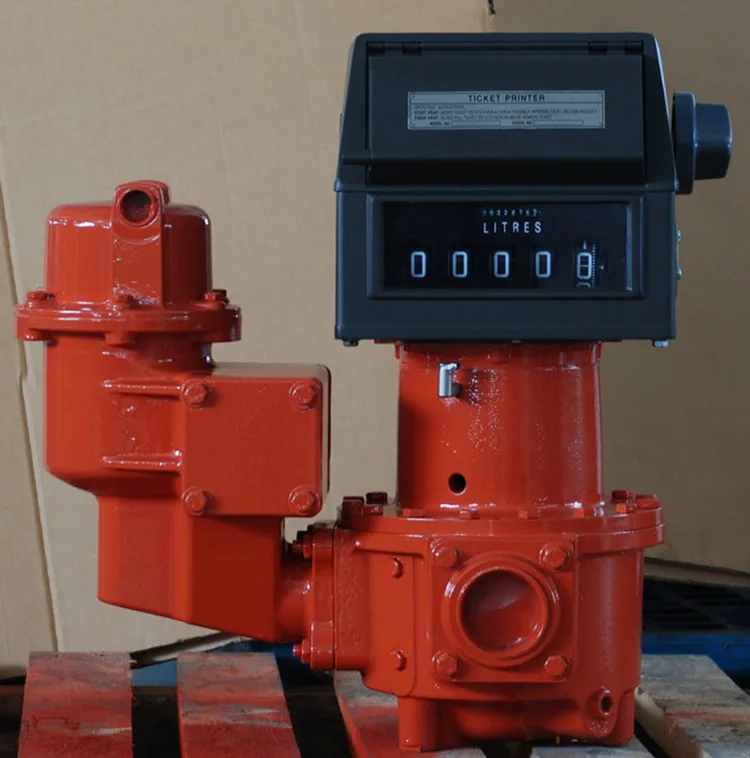

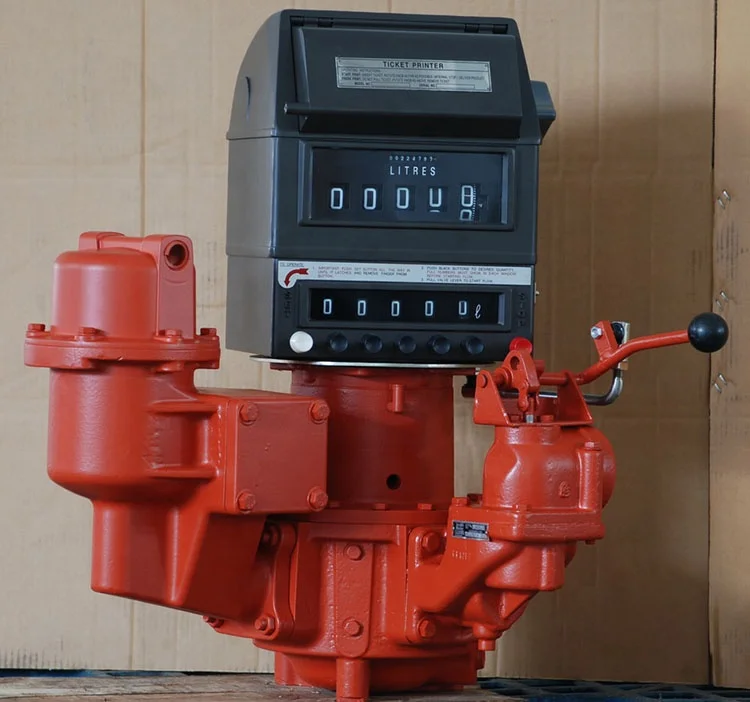

FMC Series PD Rotary Vane Flow Meter
Advantage:

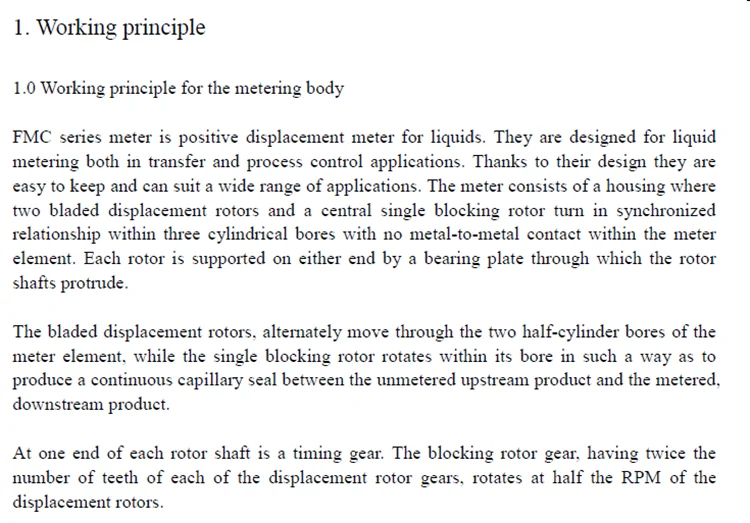

FMC series PD rotary vane meters are single case, angle-type, rotary vane, positive displacement meters.
Superior accuracy and a wide range of products from gasoline to kerosene to fuel oils can be metered.
Compact, versatile design can be readily fit into nearly all installations.
Low pressure drop meter results in low meter slippage and thus superior meter accuracy.
Long service life, low friction ball bearings, fixed cam-type timing, and rugged construction give sustained accuracy and long time operation.

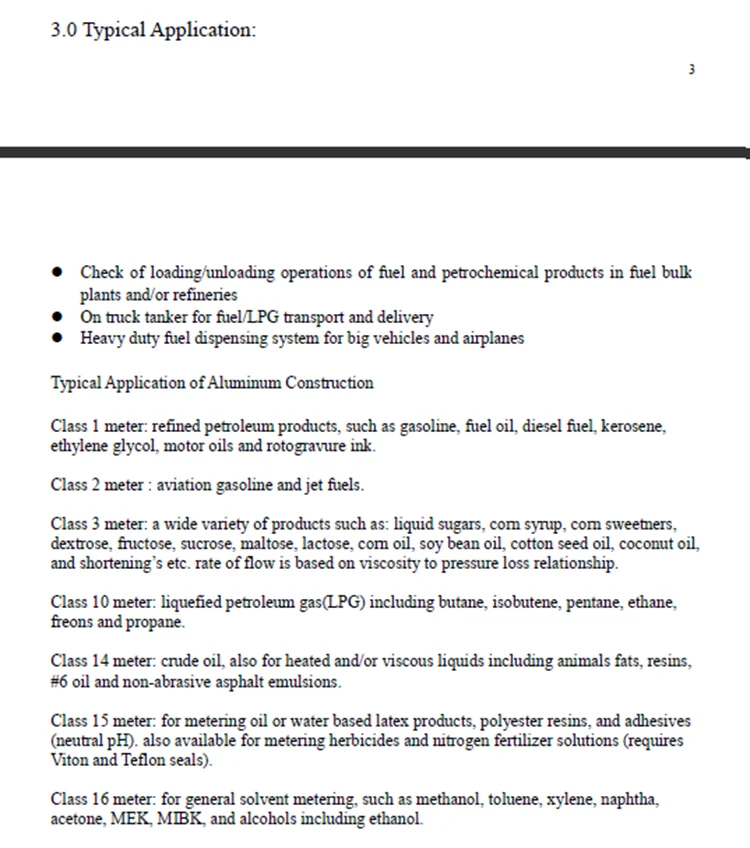

Application includes: blending, batching, dispensing, inventory control, and custody transfer of oils, solvents, chemicals, paints, fats and fertilizers.
