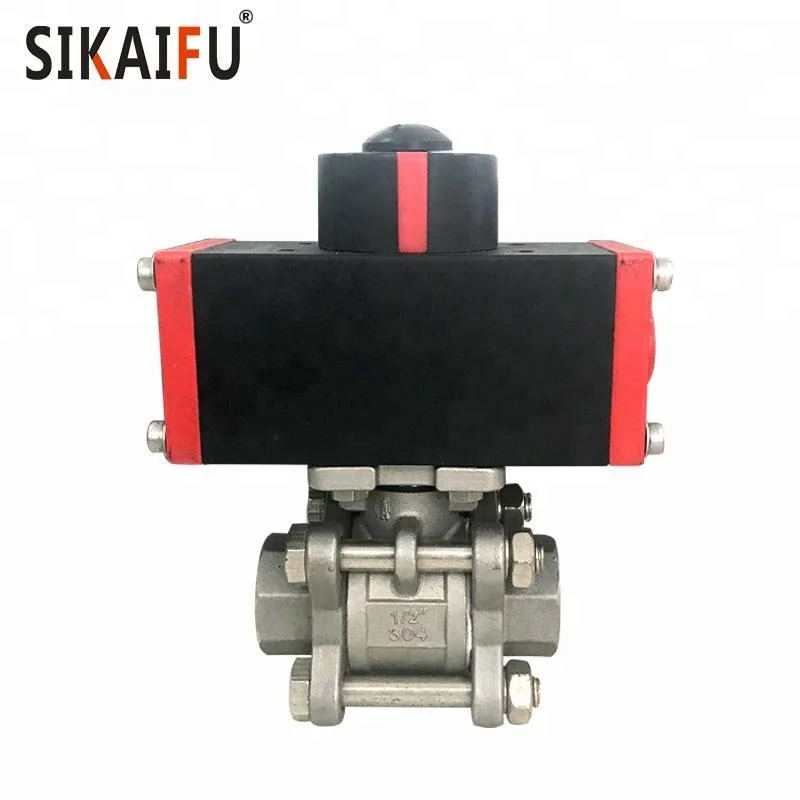

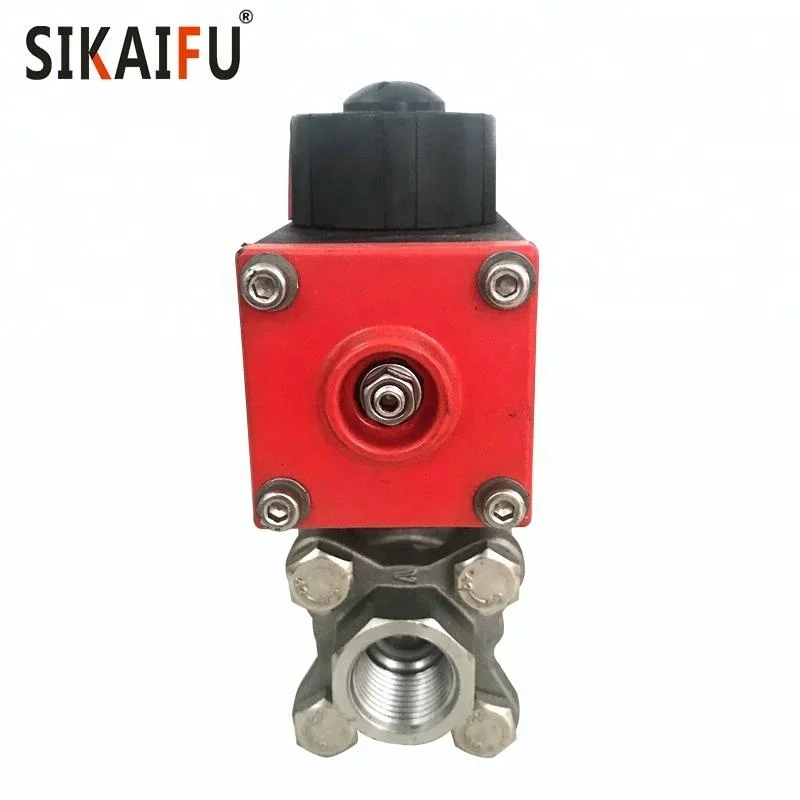

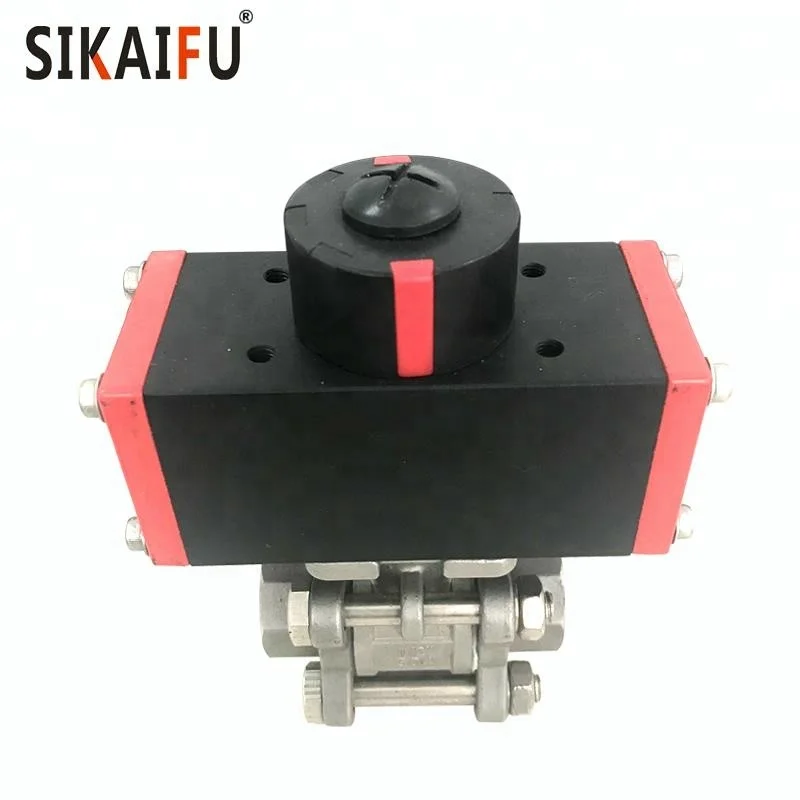

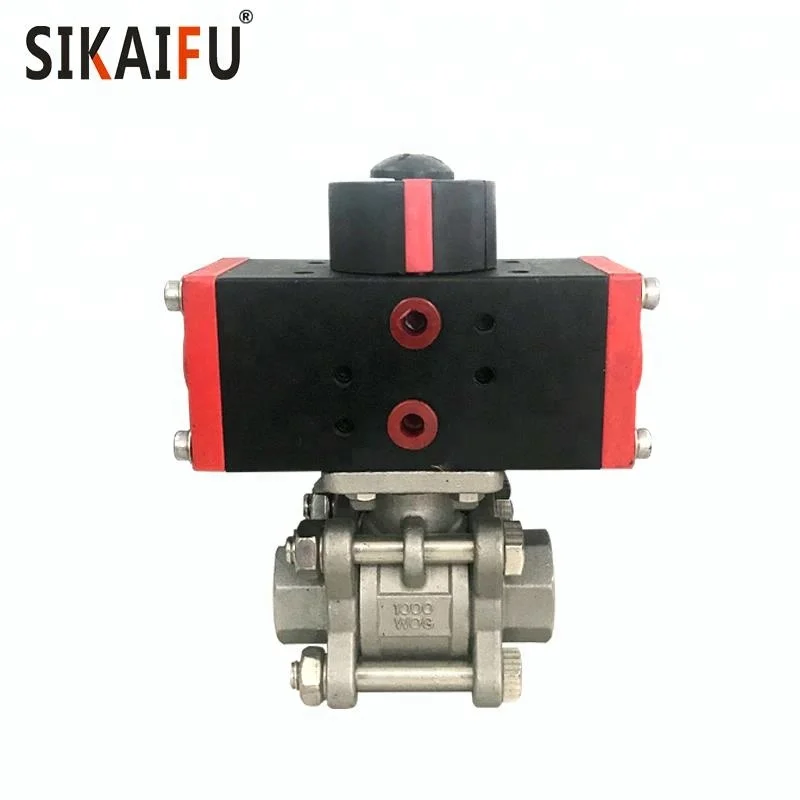

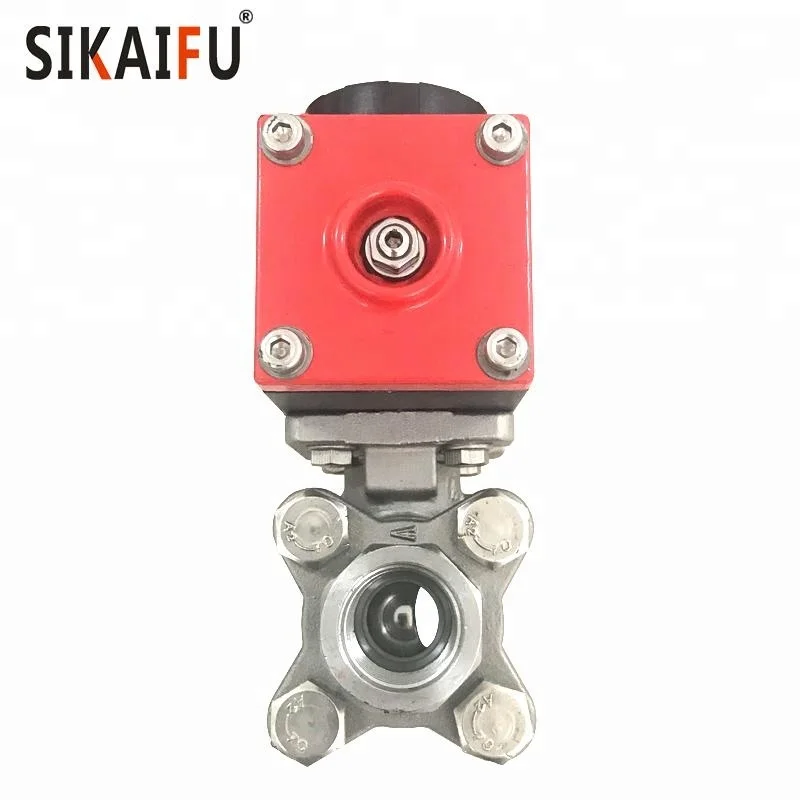

DN15 Stainless Steel 304 Pneumatic Actuator 3pc Ball Valve
- Category: >>>
- Supplier: Wuxi Sikaifu Machinery Manufacturing Co. Ltd.
Share on (62007521098):
Product Overview
Description
Product Description
Stainless ball valve overall dimension

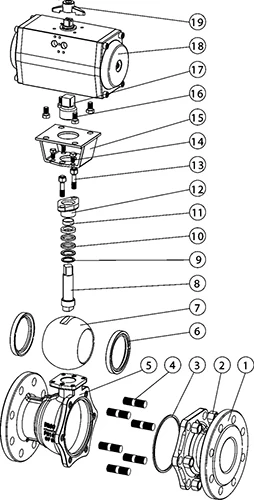

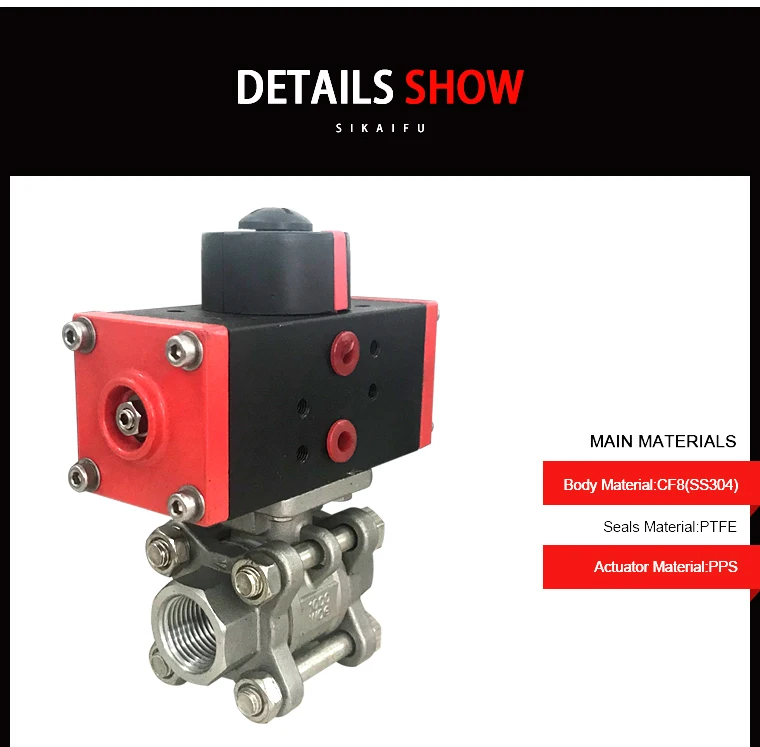

Stainless ball valve main parts materials
Part | Material |
body | WCB , CF8M(316), CF8 (304), CF3M (316L), |
Ball,stem | 2Cr13, 0Cr19Ni9 (304), 1Cr18Ni12Mo2Ti |
Seal ring | PTFE |

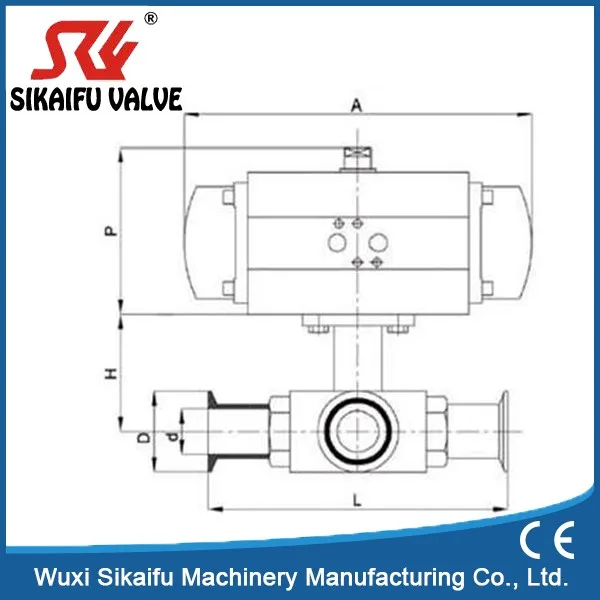

Stainless ball valve overall dimension
Nominal DN mm | inch | Size(mm) | |||||||
L | D | D1 | D2 | H | b-f | ZΦd | Do | ||
15 | 1/2 | 130 | 95 | 65 | 45 | 60 | 14-2 | 4-14 | 108 |
20 | 3/4" | 140 | 105 | 75 | 55 | 64 | 14-2 | 4-14 | 120 |
25 | 1" | 150 | 115 | 85 | 65 | 90 | 16-2 | 4-14 | 165 |
32 | 1 1/4" | 165 | 135 | 100 | 78 | 105 | 16-2 | 4-18 | 180 |
40 | 1 1/2" | 180 | 145 | 110 | 85 | 150 | 16-3 | 4-18 | 240 |
50 | 2" | 200 | 160 | 125 | 100 | 190 | 16-3 | 4-18 | 240 |
65 | 2 1/2" | 220 | 180 | 145 | 120 | 195 | 18-3 | 4-18 | 320 |
80 | 3" | 250 | 195 | 160 | 135 | 215 | 20-3 | 8-18 | 350 |
100 | 4" | 280 | 215 | 180 | 155 | 250 | 20-3 | 8-18 | 400 |
125 | 5" | 320 | 245 | 210 | 185 | 280 | 22-3 | 8-18 | 500 |
150 | 6" | 360 | 280 | 240 | 210 | 320 | 24-3 | 8-23 | 600 |
200 | 8" | 400 | 335 | 295 | 265 | 370 | 26-3 | 12-23 | 800 |

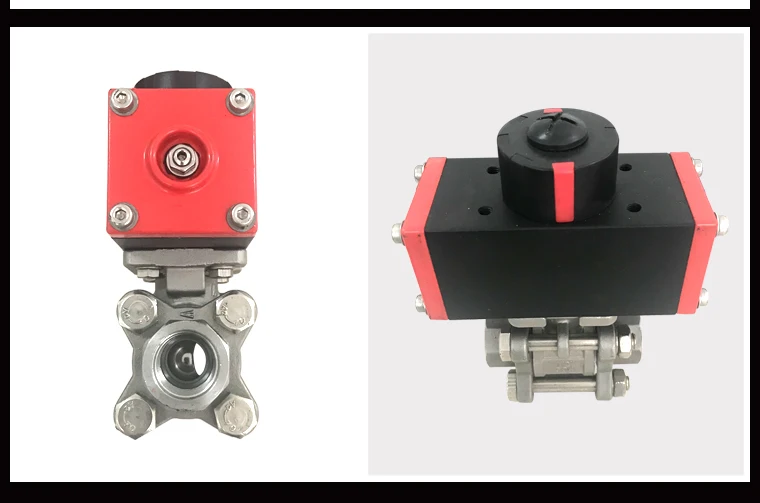

Product Display
Feedback

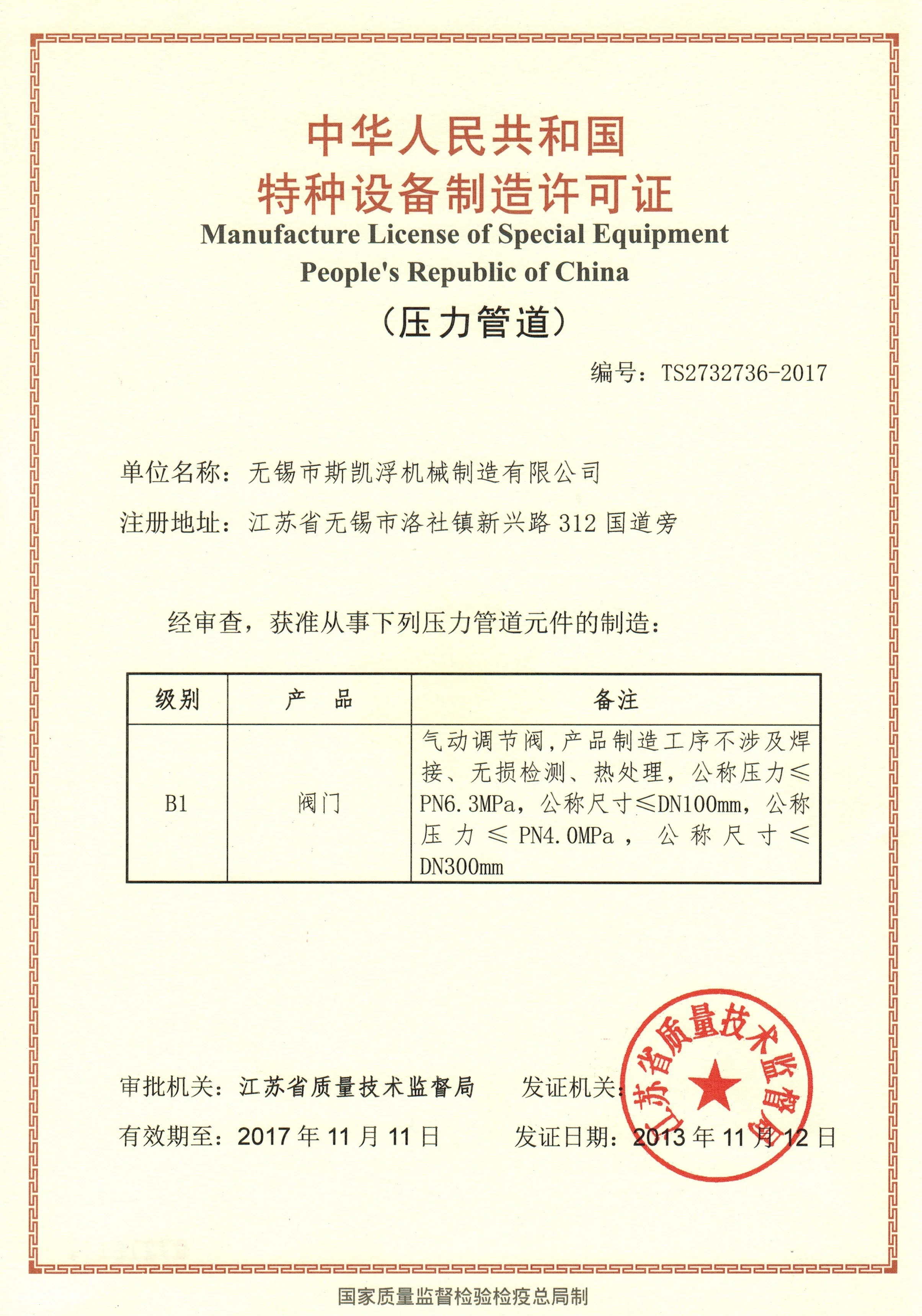

Certificate
 |  |  |
| CE 0036 | ISO9001:2008 | TS No.: TS2732736-2017 |
Valves Packaging
1. Inner Packing: opp bag, then small carton box for each product.
2. Outside Packing: standard exporting carton box or wooden box or as you required,
Foam outside protecting the valves against damage
Our Services
1.OEM service is welcomed
2.we will provide all the detailes to you during the mass production
3.Necessary test and certificate can be obtained as you request
4.your requirement are highly respected
FAQ
1. Q: Is sample order acceptable?
A: Yes.
2. Q: When will make delivery ?
A: We have stock for standard products.
As usual, after payment, within 7 working days.
3. Q: After-sales Service
A: 1 year warranty for all kinds of products;
As an experienced manufacturer, you can rest assured of the quality and after- sales service.
4. Q: Payment
A: L/C, T/T, Western Union, Paypal, Alipay, Cash.
5. Q: Transportation
A: Transported by DHL, UPS, EMS, Fedex, SF, by Air, by sea.
