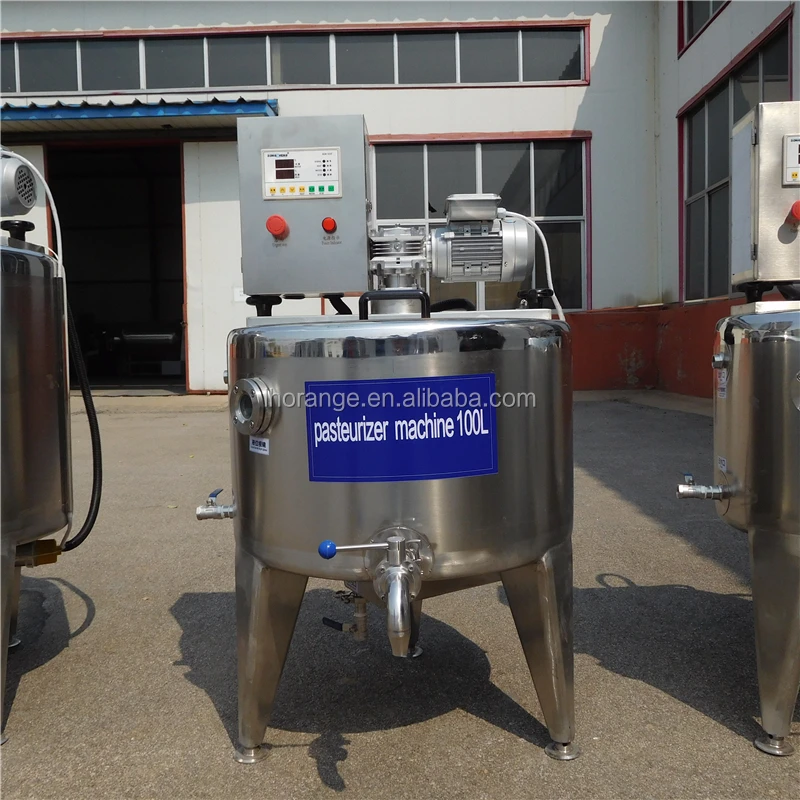

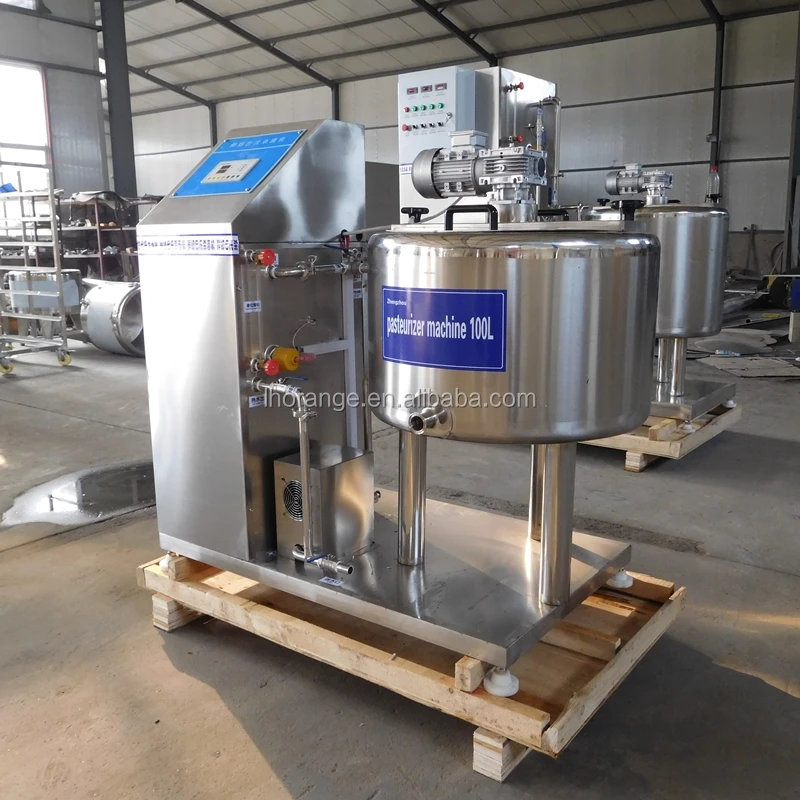

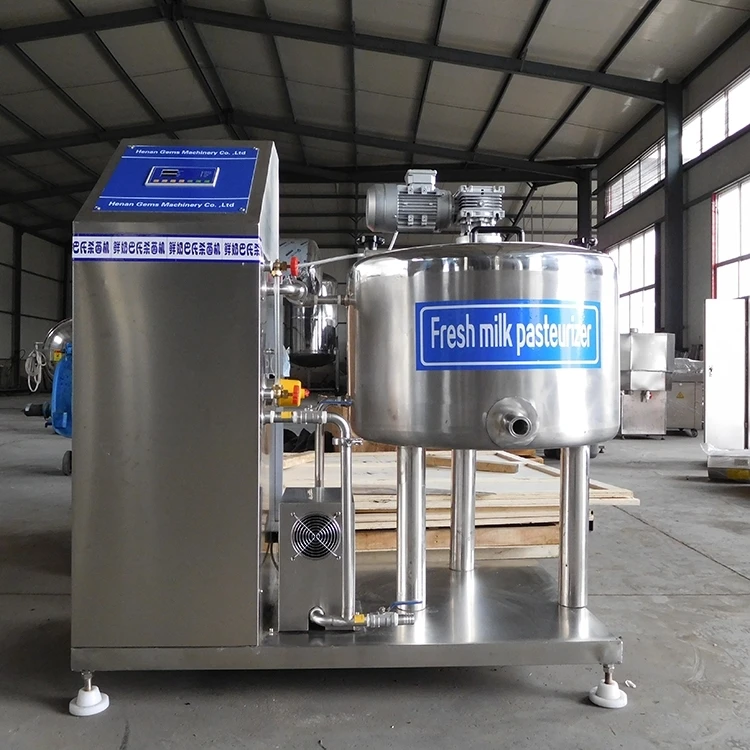

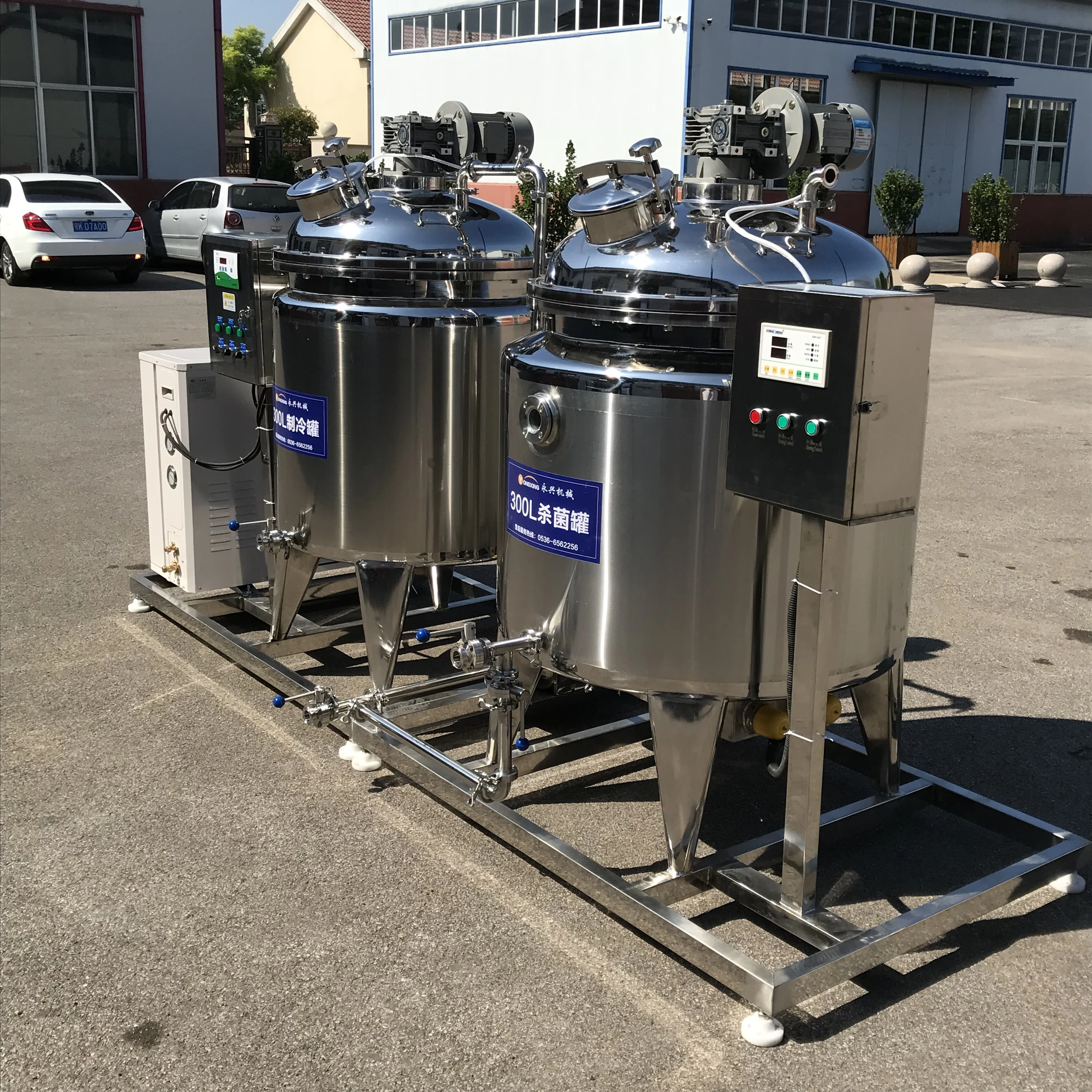

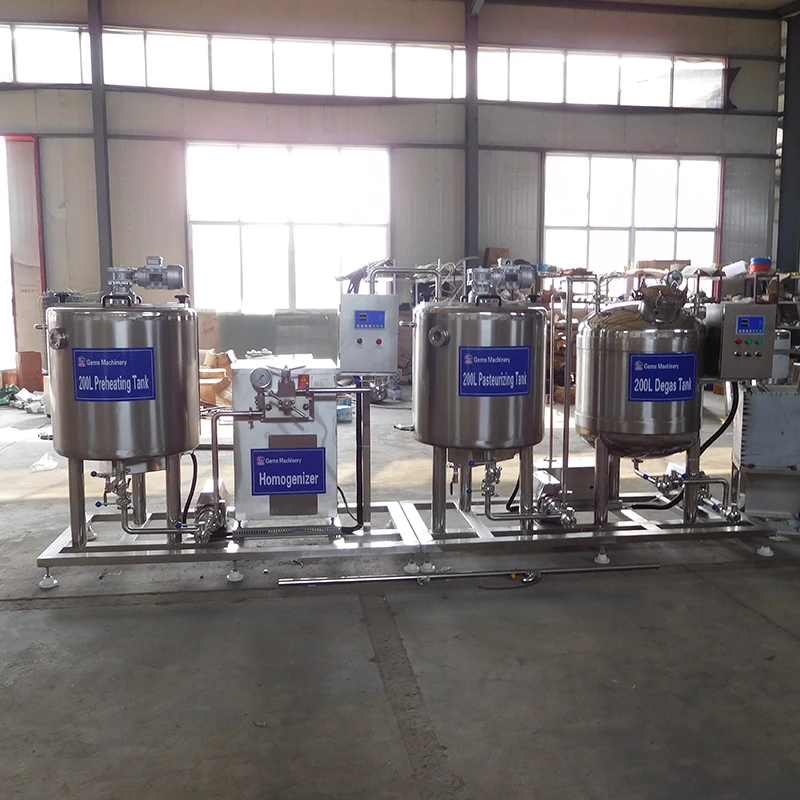

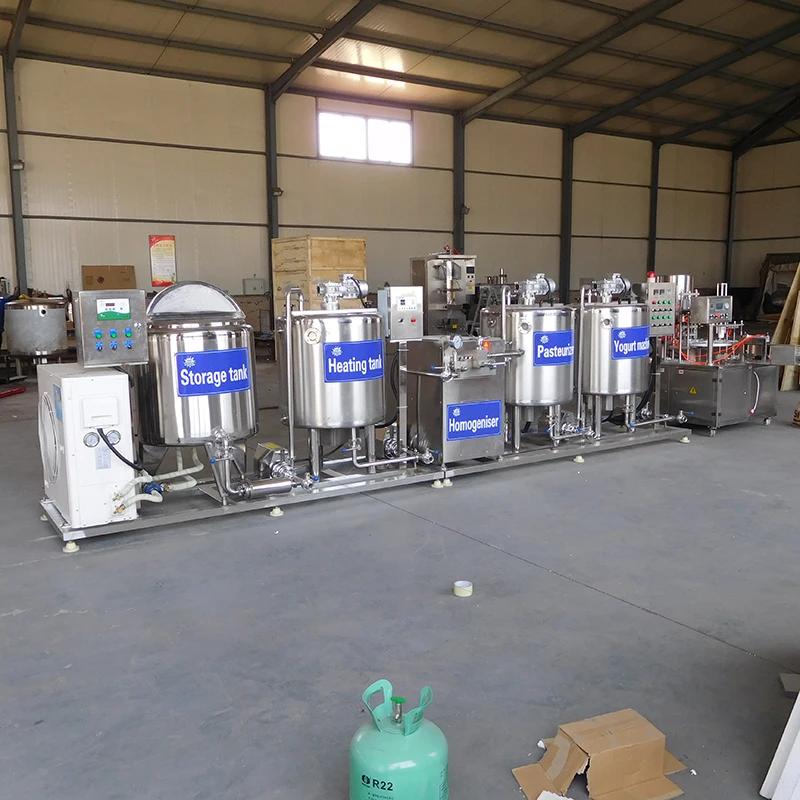

High quality pasteurizer machine for milk / milk pasteurizer and homogenizer

Product Overview

Description

 High quality pasteurizer machine for milk / milk pasteurizer and homogenizer





1.This series fresh milk pasteurized machine is made of high quality SUS304 stainless steel material, and its sterilization temperature and speed can be set according to the technical requirement.

2. This series fresh milk pasteurized machine consists of water tank and milk tank. Water cycle consists of two layers, the cold water and lower hot water. Through the refrigeration compressor precooling, the water cycle through the circulating pump inlet and outlet water.

3 Milk tank is divided into three layers. The most outer layer is the thermal insulation layer, and the middle is hot water sterilization layer, the inner layer is milk.



Technical Parameters:



Model	OR-M100	OR-M150
Internal diameter	500mm	640mm
Output	100kg/time	150kg/time
Material	SUS304	SUS304
Thickness	1.5 mm	1.5 mm
Height	1650mm	1650mm
Sterilization time	5-40min(adjustable)	5-40min(adjustable)
Sterilization temperature	50-99°C	50-99°C
Voltage	380V/50Hz	380V/50Hz
Rate of refrigeration compressor	3kw	3kw
Heat source	electric heating	electric heating
Heat up	25-35minute	25-35minute
Power	13kw	16kw
Contour dimension	1700x1000x1710mm	1700x1000x1710mm
