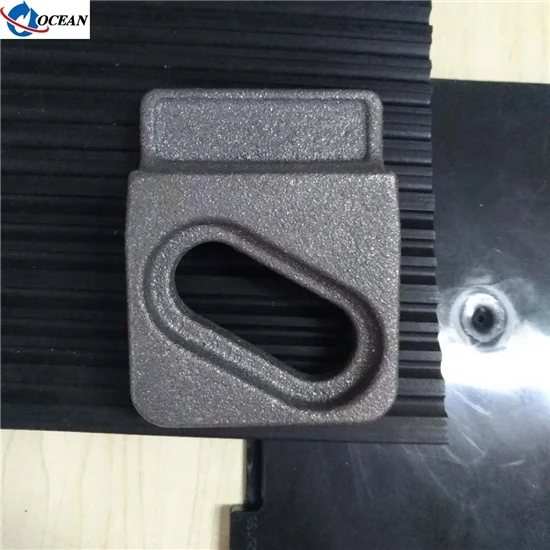

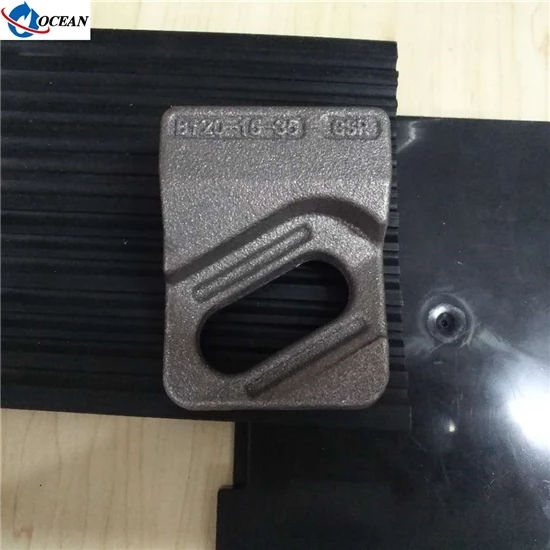

GSR B120 15 35 Clip For Crane Rail Construction
- Category: >>>
- Supplier: Tianjin Ocean Mechanical & Electrical Equipment Co. Ltd.
Share on (62007610962):
Product Overview
Description
Product Description

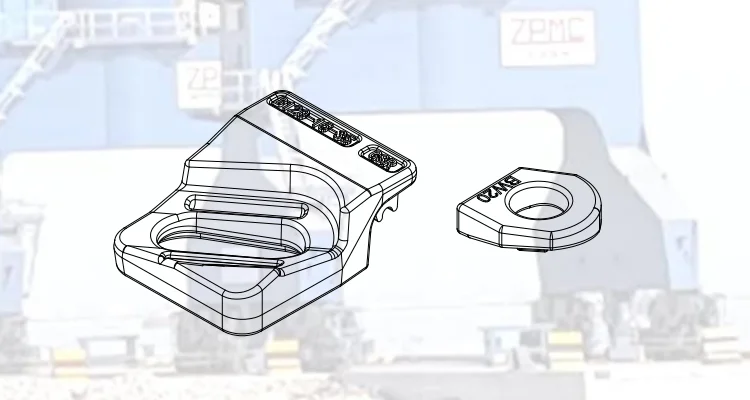

B120-15
GSR Bolted Fixing
GSR B120-15 adjustable crane rail clip is designed to fix heavy rails in the most arduous applications. Its low profile allows it to be used with cranes that are fitted with guide rollers.
GSR Bolted Fixing
GSR B120-15 adjustable crane rail clip is designed to fix heavy rails in the most arduous applications. Its low profile allows it to be used with cranes that are fitted with guide rollers.
Specification
MAX SIDE LOAD using Grade 8.8 bolt: 80kN
MAX SIDE LOAD using Grade 10.9 bolt: 105kN
HORIZONTAL RAIL ADJUSTMENT: 15mm
Minimum assembly width (W) = Rail width(F)+147mm

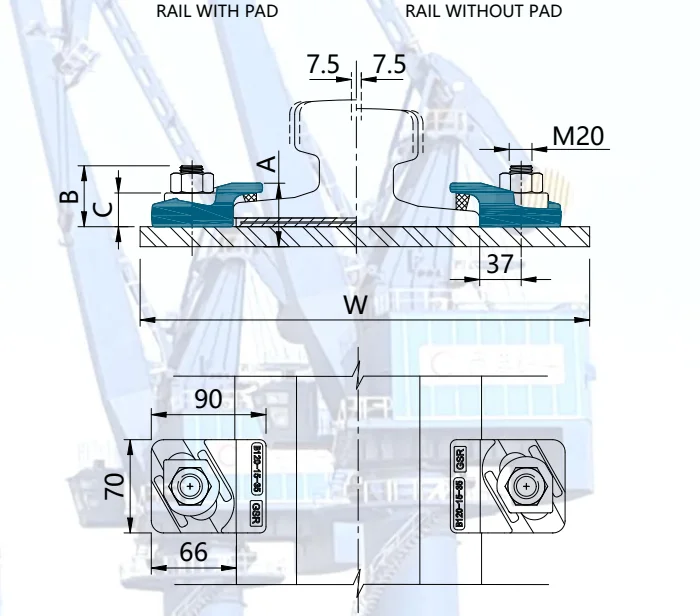

Dimension:
MAX SIDE LOAD using Grade 10.9 bolt: 105kN
HORIZONTAL RAIL ADJUSTMENT: 15mm
Minimum assembly width (W) = Rail width(F)+147mm
Dimension:
REF NO. | A | B(FULL NUT) | C | WEIGHT kg |
B120-15-35 | 35 | 45 | 25 | 0.70kg |
B120-15-40 | 40 | 50 | 30 | 0.84kg |
TIGHTENING TORQUE：
Grade 8.8 bolt 390Nm; Grade10.9 bolt 600Nm
Grade 8.8 bolt 390Nm; Grade10.9 bolt 600Nm
Packing & Delivery
Company Profile
Tianjin Ocean Mechanical & Electrical Equipment Co., Ltd
We, as a council member of China Port Association and Chinese Machinery Association of port machinery branch, also is the exclusive agent of British GSR crane rail system products in China. It is a professional technological company specializing in designing, manufacturing, sales and installation of rail fixing systems for cranes and other transport machinery and rail related products.
Our business scopes:
1. Supply GSR clips/pads, it is equivalent to the clips and pads of other brands.
2. Supply all series of cements and epoxy grout and repair materials.
3. Supply various domestic and international rails and service for rail cutting, drilling and bending.
4. Supply rail aluminum heat welding materials and aluminum heat welding service for rails.
5. Process and make all kinds of rail fittings, soleplates, anchor bolts and rubber pads.
6. Supply anchorage connection device for small steel structure and steel structure crane beam.
7. Supply Anchor box,compressible joint filler,force transmission plate,jacking points,storm pin.
8. Supply bollard, cable trench, rubber fenders, buffer stops and a variety of embedded parts for wharves.
9. Supply all kinds of stainless steel products.
10.Technical service for rail systems design and installation.
Our business scopes:
1. Supply GSR clips/pads, it is equivalent to the clips and pads of other brands.
2. Supply all series of cements and epoxy grout and repair materials.
3. Supply various domestic and international rails and service for rail cutting, drilling and bending.
4. Supply rail aluminum heat welding materials and aluminum heat welding service for rails.
5. Process and make all kinds of rail fittings, soleplates, anchor bolts and rubber pads.
6. Supply anchorage connection device for small steel structure and steel structure crane beam.
7. Supply Anchor box,compressible joint filler,force transmission plate,jacking points,storm pin.
8. Supply bollard, cable trench, rubber fenders, buffer stops and a variety of embedded parts for wharves.
9. Supply all kinds of stainless steel products.
10.Technical service for rail systems design and installation.
Major Projects
Project: Railway container yard in Guiyang
Supply: 508 meters of QU80 rail adopted GSR clips, pads and grout.
Supply: 508 meters of QU80 rail adopted GSR clips, pads and grout.
Supply: 15500 meters of QU100 rail adopted GSR adjustable chairs and provided 15,500meters of rail installation.
