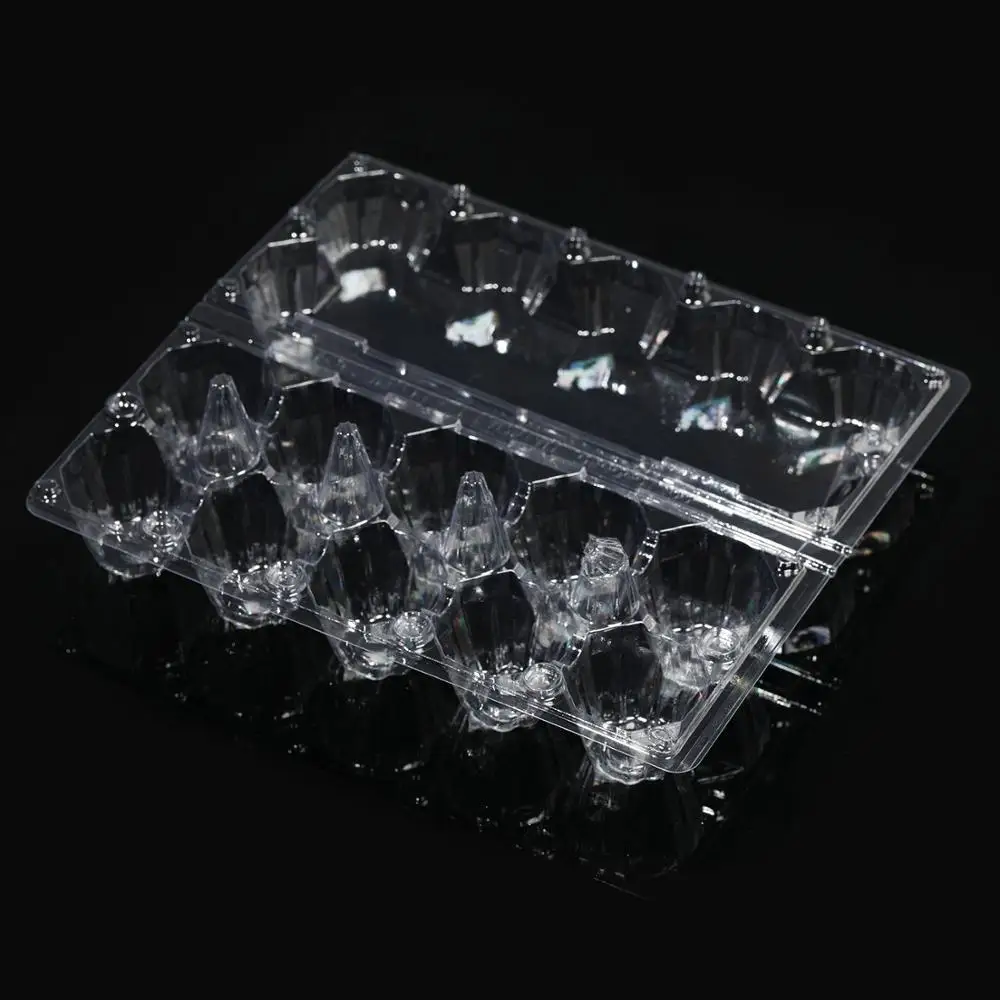

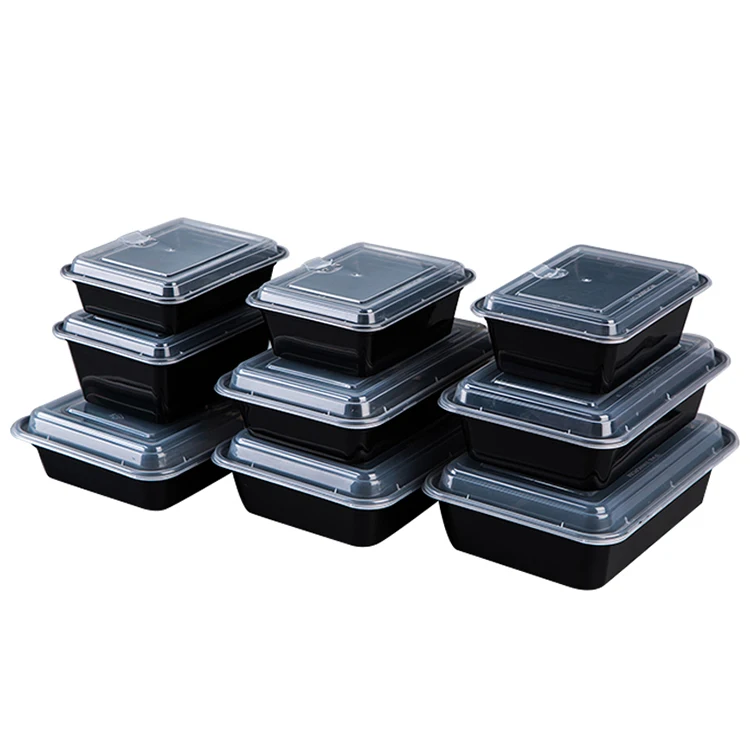

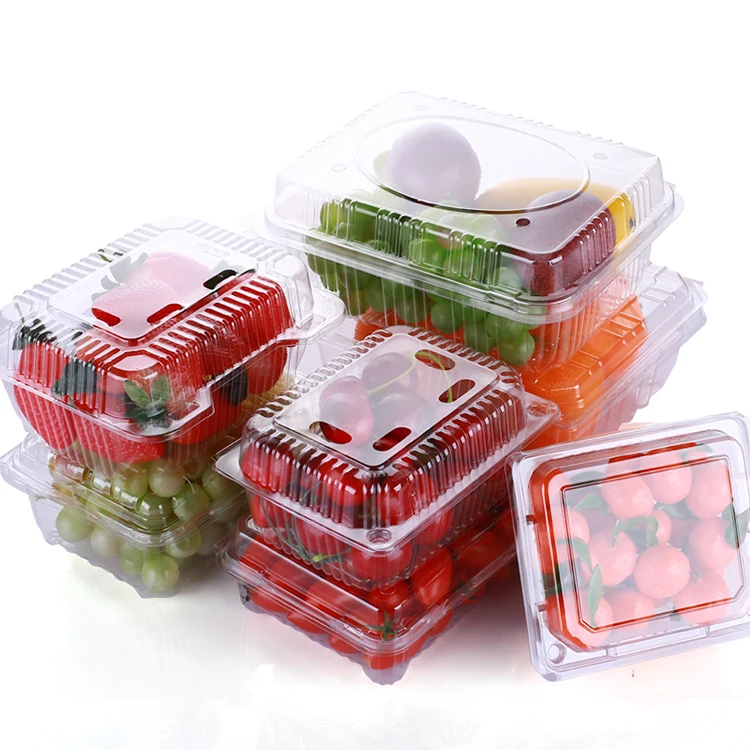

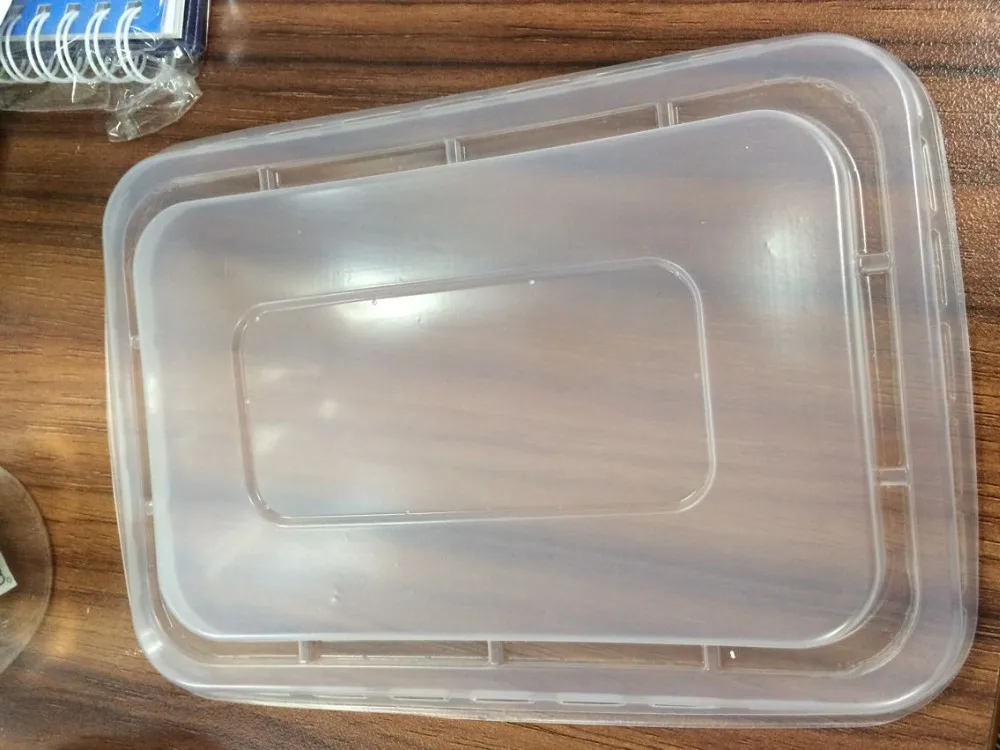

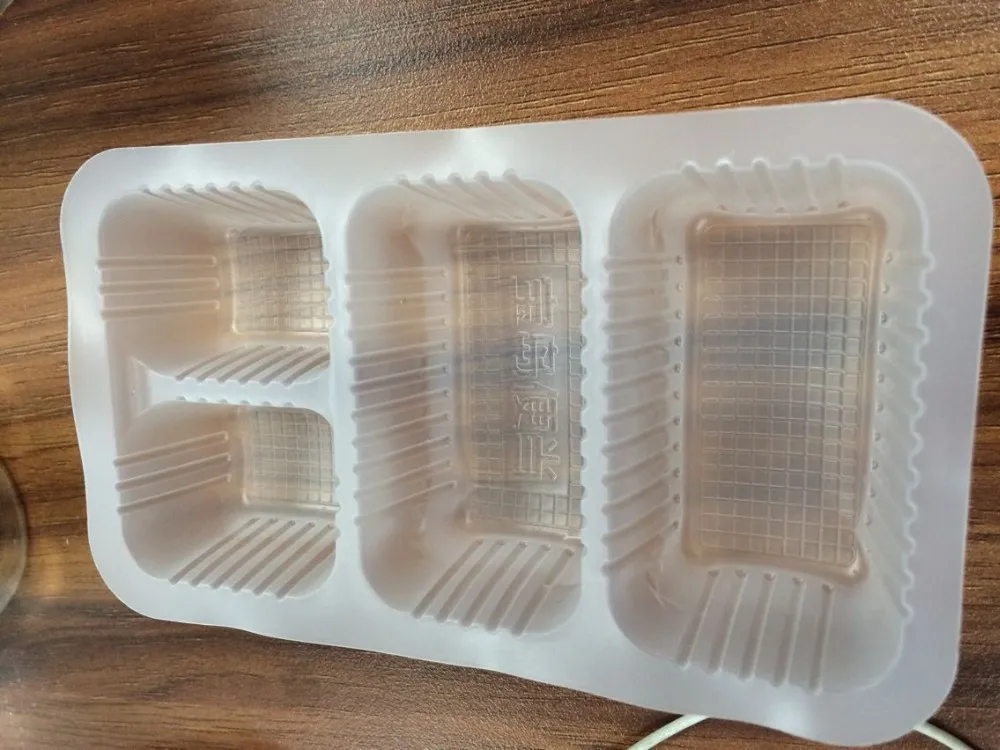

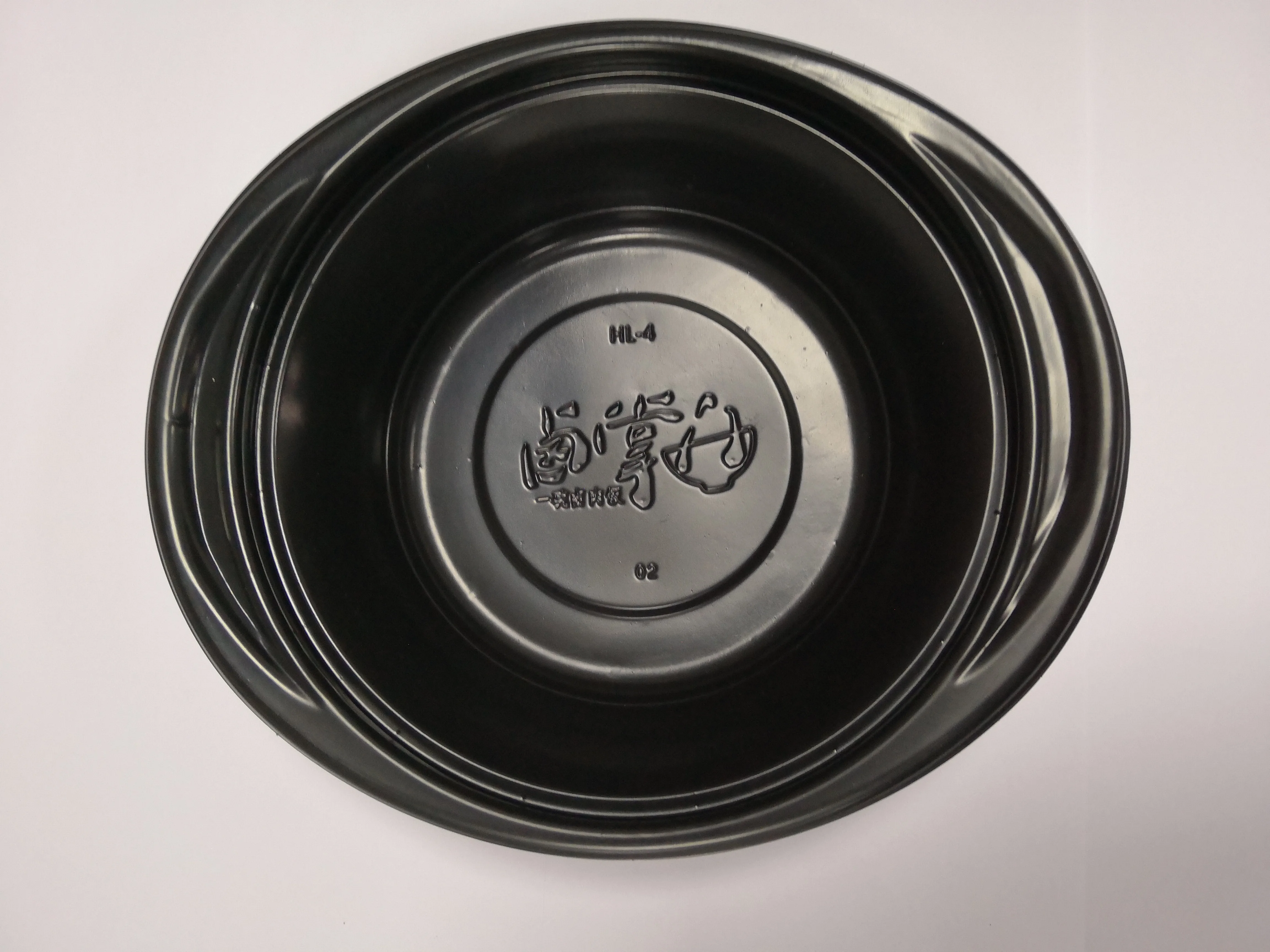

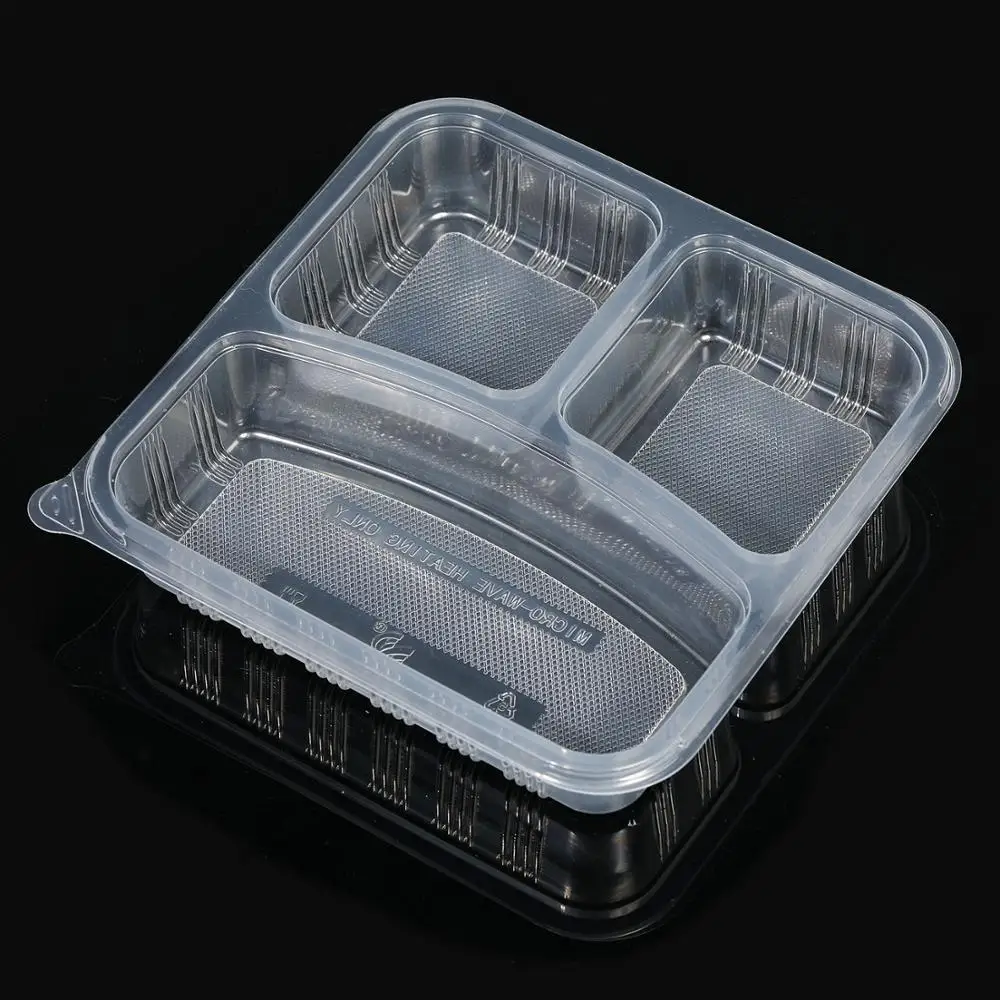

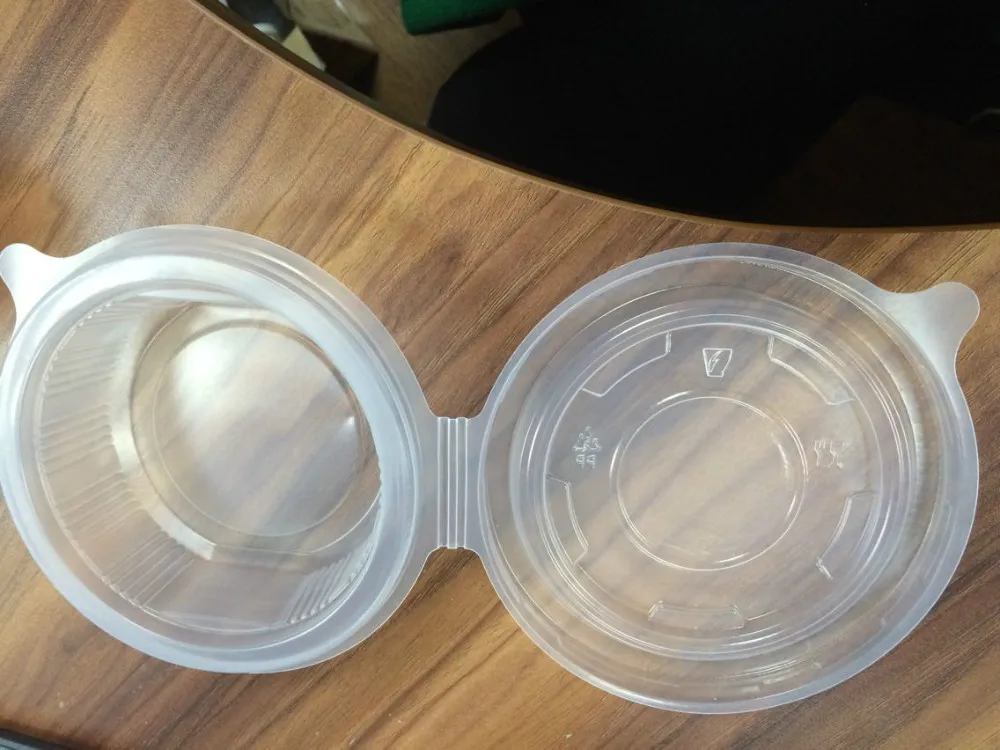

DB-450PP automatic blow molding and plastic sucking lids forming machine are developed by our research and development personnel according to the demand of packing market. In combination with the advantages of aluminum-plastic blister packing machine and plastic sucking forming machine, this machine is a new type product developed in light of pharmaceutical standard GMP and food standard QS. This machine adopts a fully automatic flow covering blow molding or plastic suction molding, punching and diet cutting as the special properties of products required by the users. It is with advanced technology, safe and simple operation, which will avoid the consumption of labor on the manual punching and contamination from the touch with the employee. Therefore, the quality requirement is secured during the production. Aligned heating is employed by the equipment, and it enjoys low power consumption, small covering of land. It is applicable to the plastic ware such as PP, PVC, PET, PS medicine trays, and cup lids, thermoforming boxes.
2. Performance features
1. Speed reducer, main-rotating connection, main shaft are on line (to decrease driving error) for mechanical transmission.
2. Sensor controls are adopted in pneumatic system .PLC control makes the whole machine run smoothly, keeps synchronous stability during the products are to be packed in multi-labor, long- distance .
3. Main motor non-stop speed regulating, the travel adjustable at will, simple and convenient to change the mold, manipulator traction, stable running.
4. Positive pressure formation in the equipment. (Puffing forming)
3. Main technical parameters
Model
DB-470A
DB-470B
Punch Frequency
15-35punch/min
10-35punch/min
Material
PP, PS, PET, PVC, PLA,EPS, etc.
Max. Forming Length
260mm
260mm
Max. Forming Width
470mm
470mm
Max. Forming depth
50mm
70mm
Upper and Lower Forming Power
16KW
22KW
Motor Power
6KW
10KW
Total Power
3-phase 4-line 380V 50Hz (220V 60Hz) 22kw
Water Consumption
0.3m³/h (Tap water or recycle water)
0.3m³/h (Tap water or recycle water)
Air Pressure
0.5-0.8(mpa)
0.6-0.8(mpa)
Exhaust Volume
≥0.6 m³/min
≥0.6 m³/min
Pressure of water supply
0.2MPa
0.2MPa
Machine overall size(L×W×H)
5000×1600×2000mm
5000×1600×2100mm
Packing Size(L×W×H)
5200×1800×2300mm
4700×1680×2300mm
The maximum width of material
510mm
510mm
Weight
3500KG
4000KG
