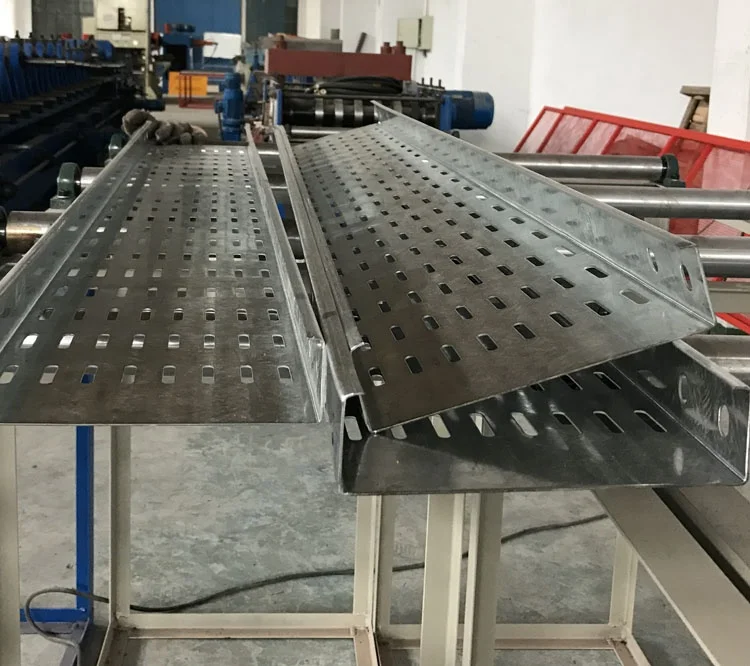

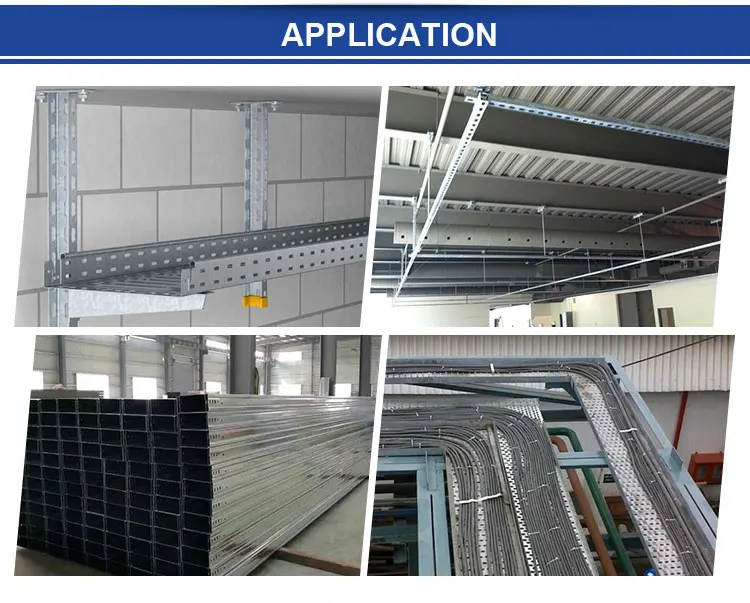

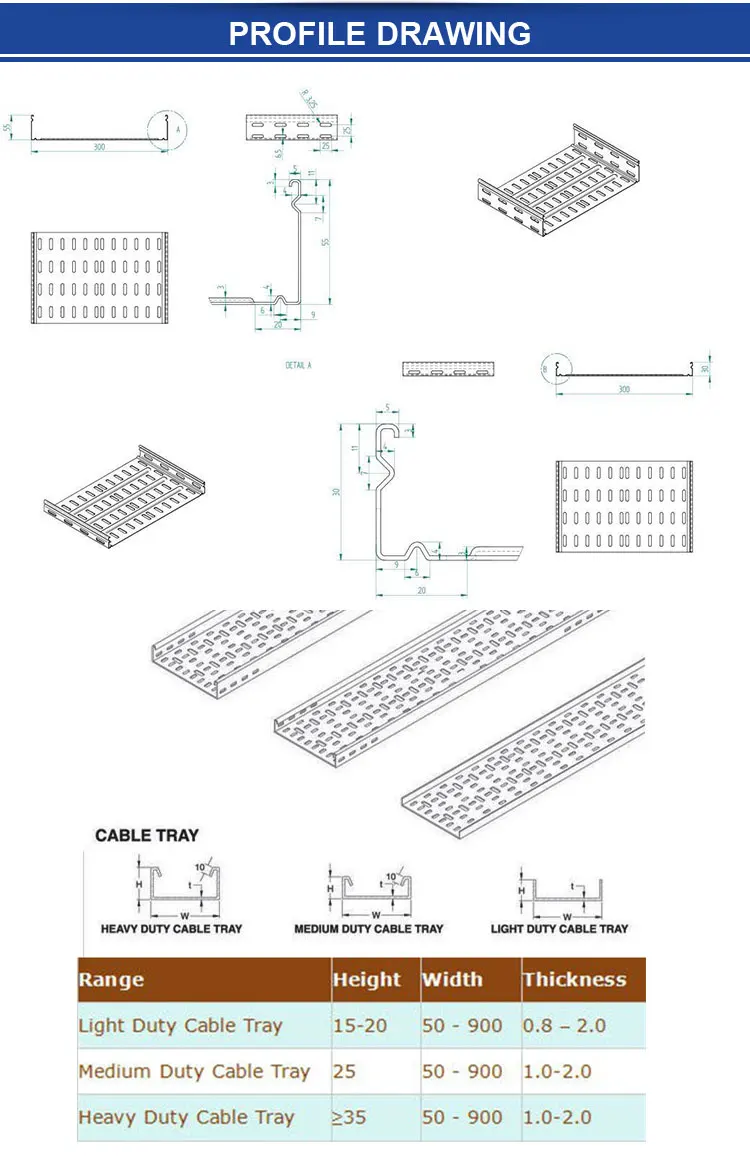

Горячеоцинкованная машина для пробивки кабельных лотков, автоматическая замена, 100 600 мм, C образный профильный станок для кабельных лотков

5 ton hydraulic De-coiler

Diameter: 420-560mm hydraulic expansion. Pictures for reference

Expansion: Hydraulic de-coiler

Capacity: 5000kg per mandrel

Max Coil Width: 1250mm

Leveling device

1.7 rolls leveling, 3 rolls up and 4 rolls down

2.Diameter is Ø 80mm, chrome and HRC60 heat treatment to secure the smooth surface

3.Leveling Raw Material thickness:1.5-2.5mm

4.Max Leveling Raw Material width: 1000mm

Feeding device

Feeding Servo feeding motor: about 4.4KW,Yaskawa
Description: servo feeding can control the punching distance in precision, controlled by PLC, and the feeding tolerance can
be+-0.05mm, the servo motor can control the speed, and can accept the input signal, and react quickly, and performance well, the
touch screen can display the rotating speed, the length and the quantity, it can be controlled by the manual and auto modes.

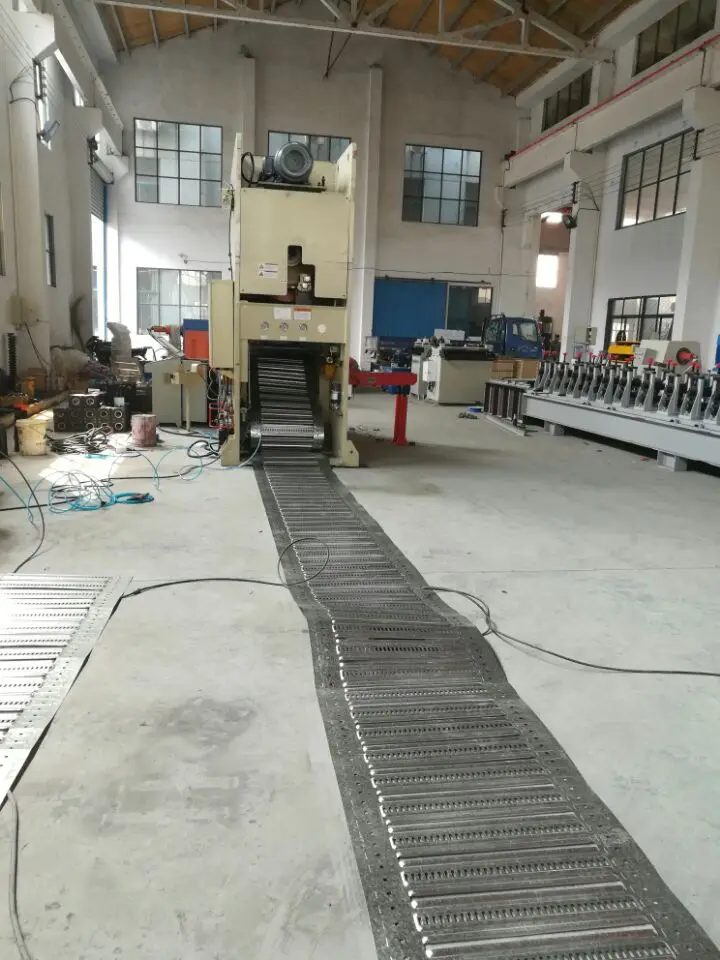

Punching press machine

1 Series JH21-160

Brand name: Yangli

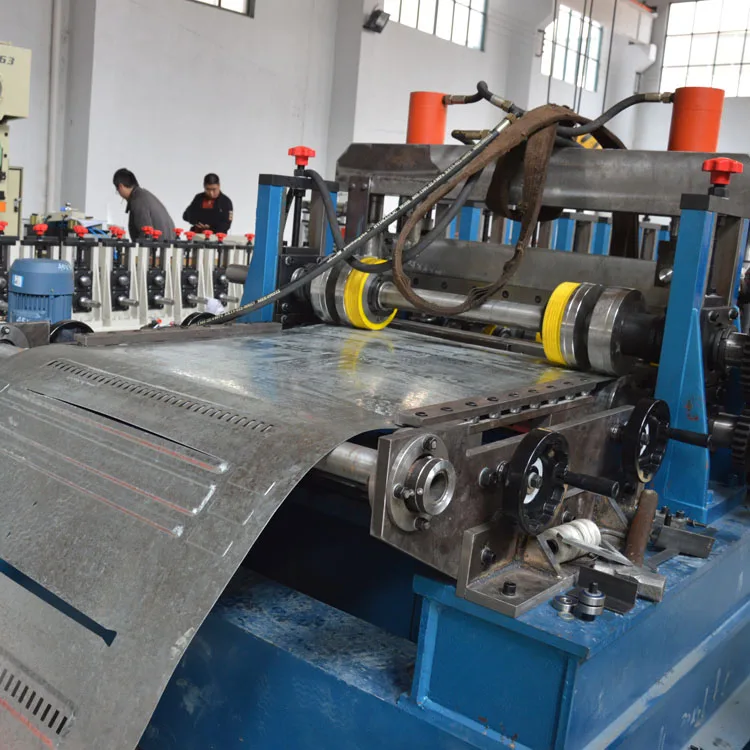

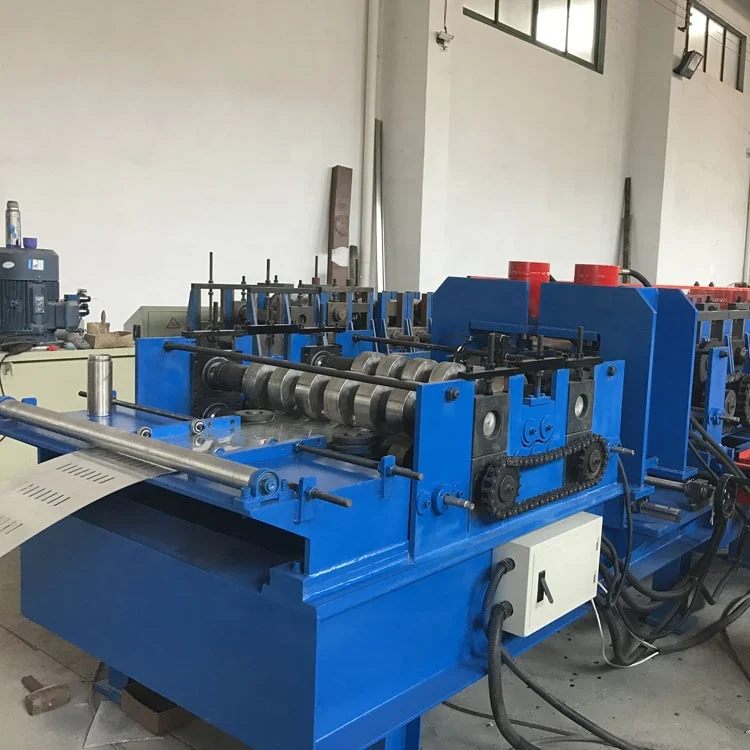

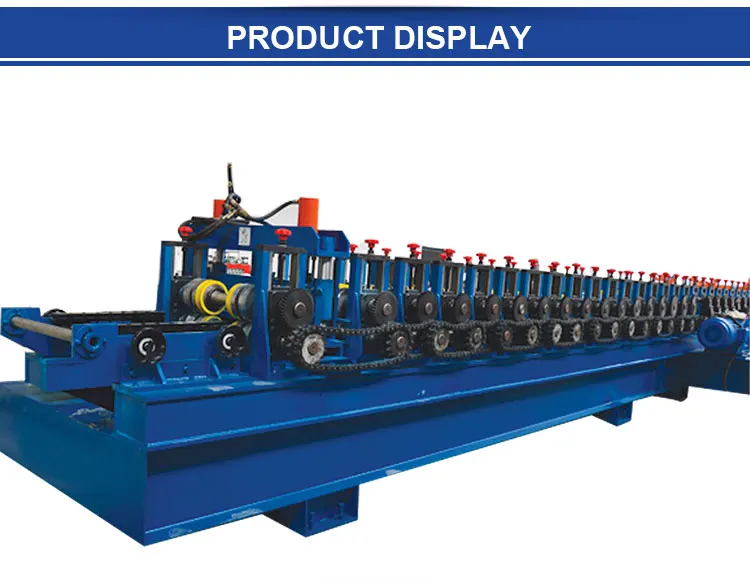

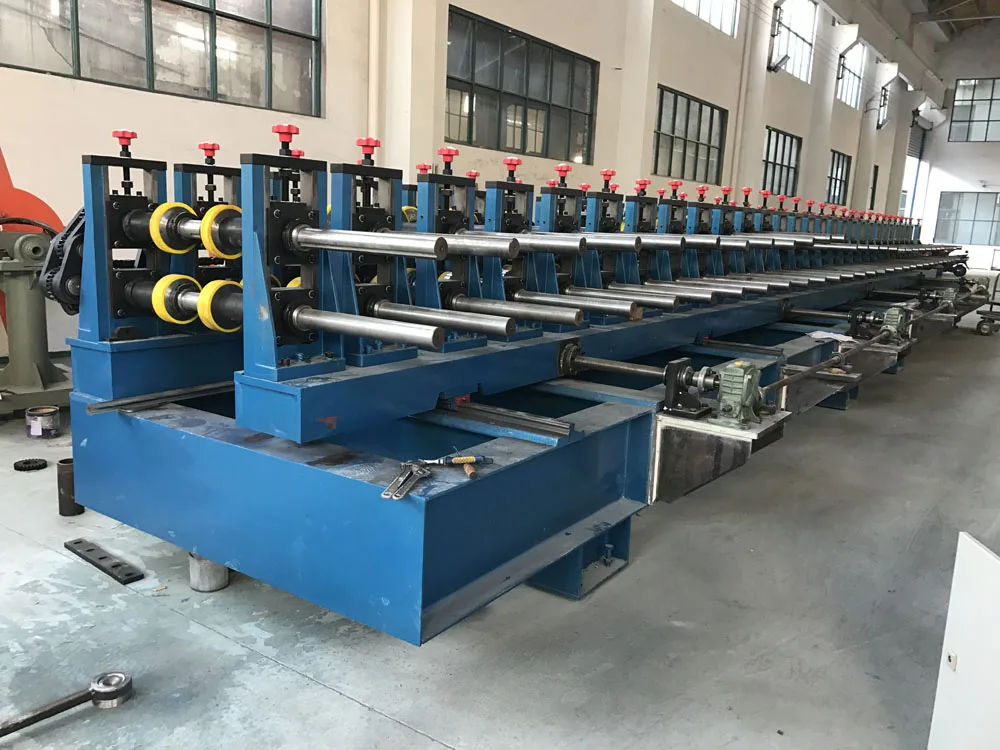

Main roll forming machine

Suitable Plate Material:Material thickness:1.0-2.5mm

Raw material: Galvanized steel and black steel sheets

Working Speed: 18-9meters / min

Forming Steps: 20 stations

Material of Roller: Gcr15, Quench HRC58-62 Plated Chrome

Material of Shaft: 45# Advanced Steel (Diameter: *90mm), thermal refining

Driven system: chain driven, shafts diameter 90mm

Main Power with reducer: 18.5KW WH Chinese Famous

Cutting: Hydraulic Cutting Cr12mov

Material of Cutting Knife: Cr12Mov, Quench HRC58-62

Hydraulic Station Power: 7.5KW Wuxi Wanshen Famous Chinese Brand

The whole machine is controlled by industry computer-PLC.

Adjust the height by the motors and the rails, controlled by the PLC

Hydraulic cutting system

The cutter blade material: Cr12mov HRC58-62 degree

Cutting after forming: Cut the sheet after roll forming to required length

Cutting motion: The main machine automatically stops and the cutting will take place. After the cutting, the main machine will
automatically start.

Material of blade: CR12with heat treatment

Length measuring: Automatic length measuring

Tolerance of length: 6m+/- 1.5mm

Control panel

(1) Power supplier: 380V, 50 Hz, 3Phase (adjusted with the requestment)
(2) Length & quantity measurement automatically;
(3) Length & quantity controlled by PLC
(4) Length inaccuracy can be amended easily.
(5). Control panel: Button-type switch and touch screen
(6) The language in the touch screen: English and Chinese
(7) Unit of length: millimeter (switched on the control panel)
