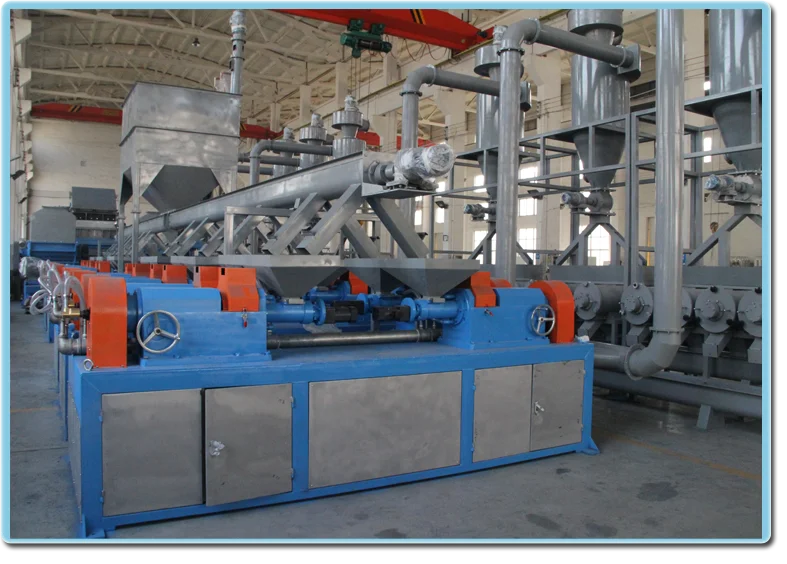

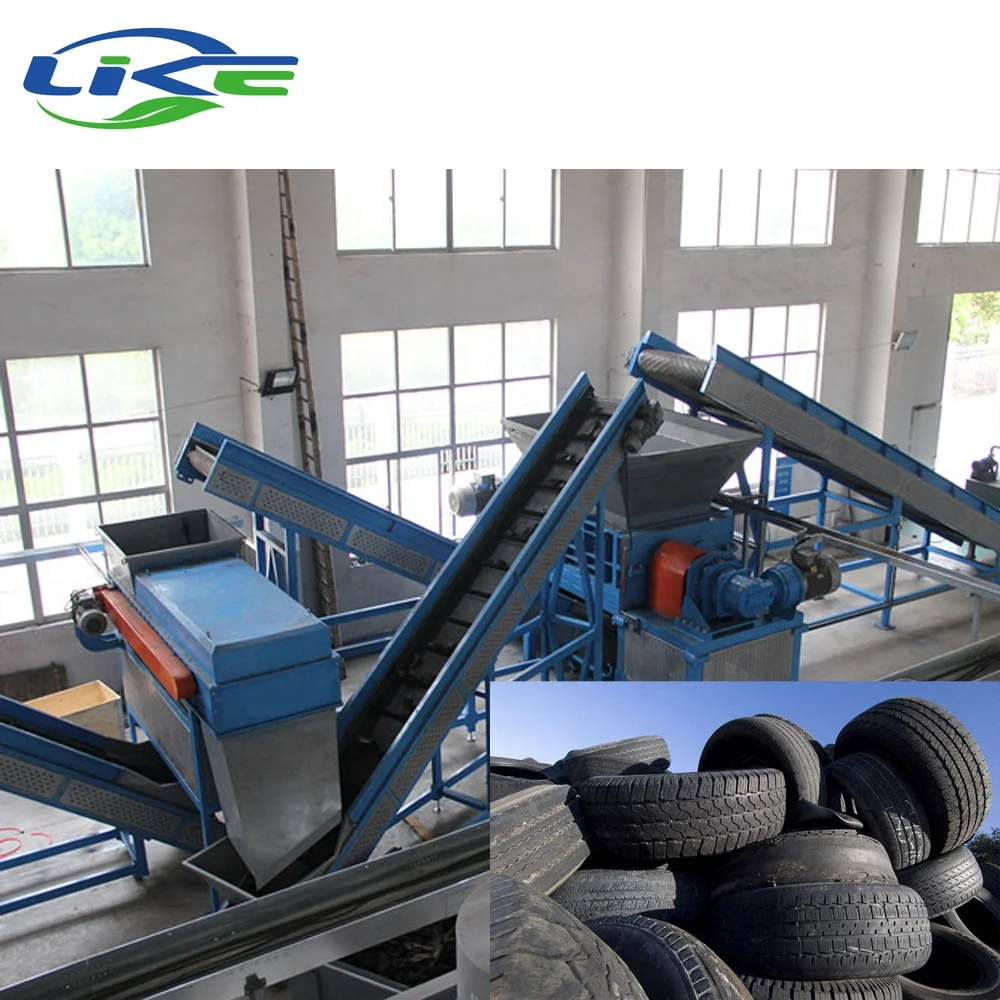

Used tyre rubber powder price tire shredder recycling line

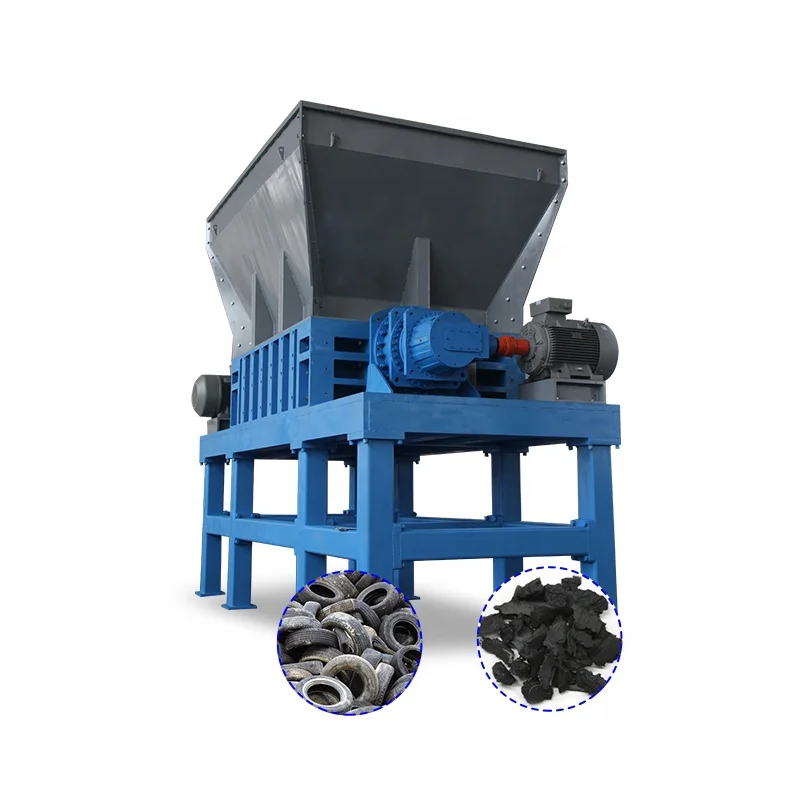

Double shafts tire shredder TS-1200

HVST group's two shaft shredders are specially designed for used tires, low speed, high torque operation minimize the noise and power consumption with high throughout rate. The shredder blades are made from best quality steel and heat treated by Bodycote for optimal shredding performance. All the shredder blades thickness ranges from 25mm-152mm depending on type of tires, output ,final product, the shredder can process OTR tires, big truck tires, passenger car tires at a rate of 1t-30t in one hour.

Model	Motor	Weight	Dimension
TS-1200 tire shredder	2x30kw	17000kgs	4800*2438*3500 mm

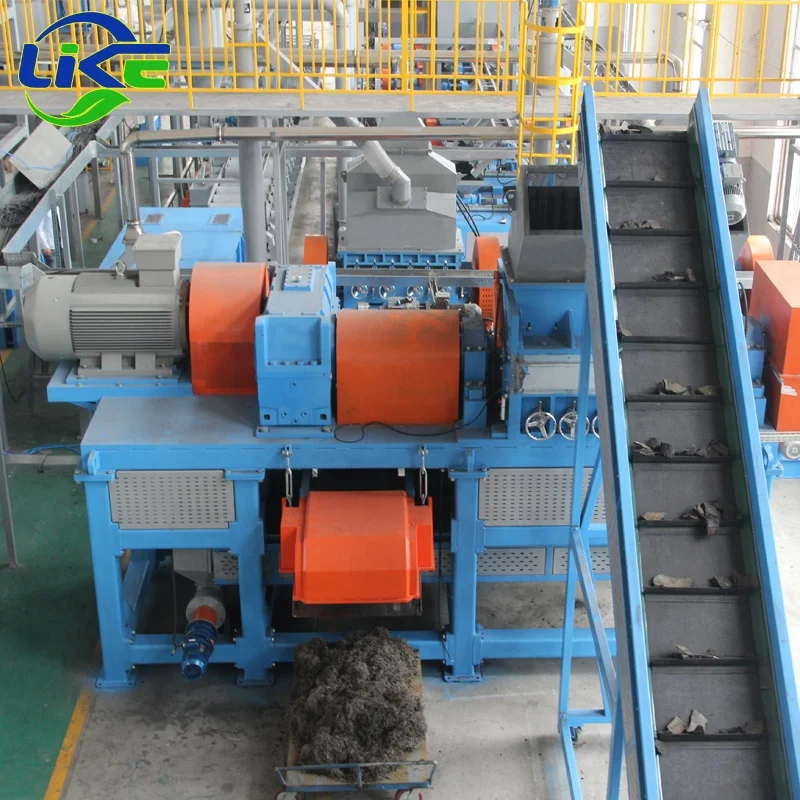

Tire rasper

Specially designed for tire secondary shred and steel separation. It can process and produce 10-30mm wire free chips, the steel wire will be separated by rasper and attracted by magnet.

Granulator

The Granulators are designed to grind the rubber mulch from the rasper into small granules as fine as 1mm. The granules are screened and re-circulated until the desired size is reached. Due to the design of the granulator and precise alignment of the blades, the granulator produces a very uniform cut and high quality granule. During the granulation process, 99% of the fiber is removed, leaving a contaminant free crumb rubber granulate ready to be further processed or sold.

Miller

Fine grinding machine	LK-F120
Motor	Electric-Siemens
Voltage	As per required
Equipment dimensions L*W*H	2404*1100*1093
Equipment weight	5000kg
Capacity	800-1200kg/h
Final product	30-120mesh rubber powder

Shipping

Auxiliary machines

Dust collector and Cooling system
