Product Overview
Description
Product Description
Gold panning equipment machine fiberglass gravity spiral chute spiral separator concentrator for sand placer alluvial gold China
Gravity Spiral Chute concentrator separator is our company’s concentrating experienced scientific product, which is the best concentrating equipment, especially for concentrating sand ore in beach, riverside, seashore and stream. Also has been used in to enrichment the particle size 0.3-4mm fine grain like iron, tin, chromite, ilmenite, tungsten, zinc, tantalum-niobium, gold, coal, monazite, rutile, zircon and other low-grade ores. The non-metallic minerals which have a big enough specific gravity difference.

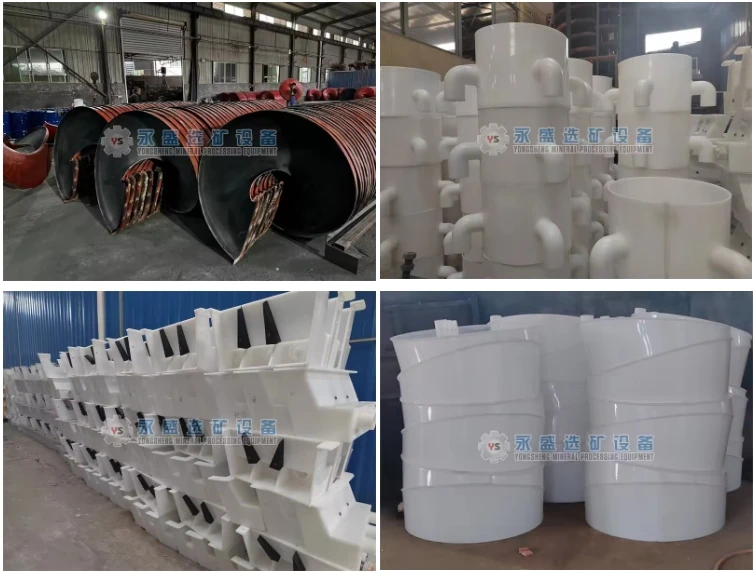

The product is made of the fiberglass lined with wear-resistant resin and cover emery; the advantages are light, moisture proof, anti-rust, wear proof, anti corrosion and no noise, properly suitable for the different feeding particle sizes and grades. It is the domestic advanced level, the new highly effective equipment.

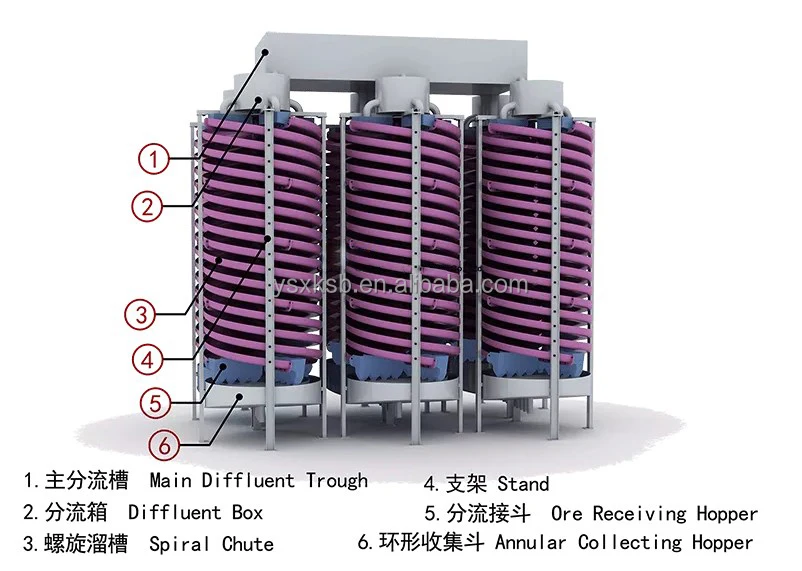

Gravity Spiral Chute concentrator separator is working under the the force of water flow, gravity, inertial centrifuge and
friction. Slurry is pumped to the top of the spiral , and it enters a feed distributor that evenly distributes the feed to each Spiral Chute. The design and shape of the spiral make it work, when combined with gravitational acceleration. As the slurry travels the spiraling path down the spiral, mineral grains settle and start sorting according to size, density and to a lesser extend shape. Low density particles are carried with the bulk of the water towards the outside of the spiral , while particles with the greatest density migrate towards the inside of the spiral.
Features of Price for Gravity Spiral chute concentrator separator:
1. Reasonable structure and small area occupation
2. High recovery, high efficiency, and precise separation
3. Non-required power
4. Light in weight, anti corrosion, rust and wear resistant
5. Simple installation and Minimal maintenance requirements
6. Low operating cost and long working life
7. Reliable running with minimal operator attention
8. Strong adaptability to fluctuation of feeding amount, density, size and grade

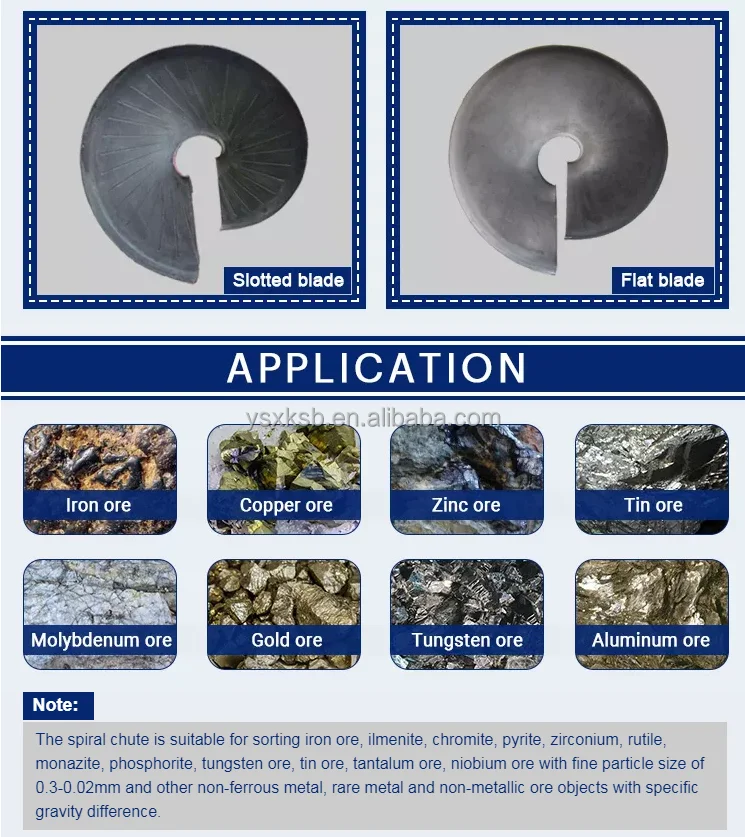

9. The surface of emery forms strong friction the concentration effect surpass plastic surface
The product is made of the fiberglass lined with wear-resistant resin and cover emery; the advantages are light, moisture proof, anti-rust, wear proof, anti corrosion and no noise, properly suitable for the different feeding particle sizes and grades. It is the domestic advanced level, the new highly effective equipment.
Gravity Spiral Chute concentrator separator is working under the the force of water flow, gravity, inertial centrifuge and
friction. Slurry is pumped to the top of the spiral , and it enters a feed distributor that evenly distributes the feed to each Spiral Chute. The design and shape of the spiral make it work, when combined with gravitational acceleration. As the slurry travels the spiraling path down the spiral, mineral grains settle and start sorting according to size, density and to a lesser extend shape. Low density particles are carried with the bulk of the water towards the outside of the spiral , while particles with the greatest density migrate towards the inside of the spiral.
Features of Price for Gravity Spiral chute concentrator separator:
1. Reasonable structure and small area occupation
2. High recovery, high efficiency, and precise separation
3. Non-required power
4. Light in weight, anti corrosion, rust and wear resistant
5. Simple installation and Minimal maintenance requirements
6. Low operating cost and long working life
7. Reliable running with minimal operator attention
8. Strong adaptability to fluctuation of feeding amount, density, size and grade
9. The surface of emery forms strong friction the concentration effect surpass plastic surface
Specification
Model | 5LL-2000 | 5LL-1500 | 5LL-1200 | 5LL-900 | 5LL-600 | 5LL-400 | ||
Outside Dia. (mm) | 2000 | 1500 | 1200 | 900 | 600 | 400 | ||
Pitch (mm) | 1200 | 800,680,540 | 720,540,360 | 660,540,400 | 450,360,270 | 240,180 | ||
Lateral slope | 9° | 9° | 9° | 9° | 9° | 9° | ||
External size | Length (mm) | 2300 | 1560 | 1360 | 1060 | 700 | 460 | |
Width (mm) | 2300 | 1560 | 1360 | 1060 | 700 | 460 | ||
Height (mm) | 6500 | 5230 | 5230 | 4000 | 2600 | 1500 | ||
Starts/Turns per column | 4-2 | 4-2 | 4-2 | 4-2 | 2 | 2 | ||
Feeding size (mm) | 4-0.04 | 0.8-0.037 | 0.3-0.03 | 0.3-0.03 | 0.2-0.02 | 0.2-0.02 | ||
Feeding density (%) | 20-45 | 30-60 | 25-55 | 25-55 | 25-55 | 25-55 | ||
Capacity (t/h) | 12-10 | 8-6 | 4-6 | 2-3 | 0.8-1.2 | 0.15-0.2 | ||
Weight (KG) | 1100 | 800 | 600 | 400 | 150 | 50 | ||
Packing & Delivery

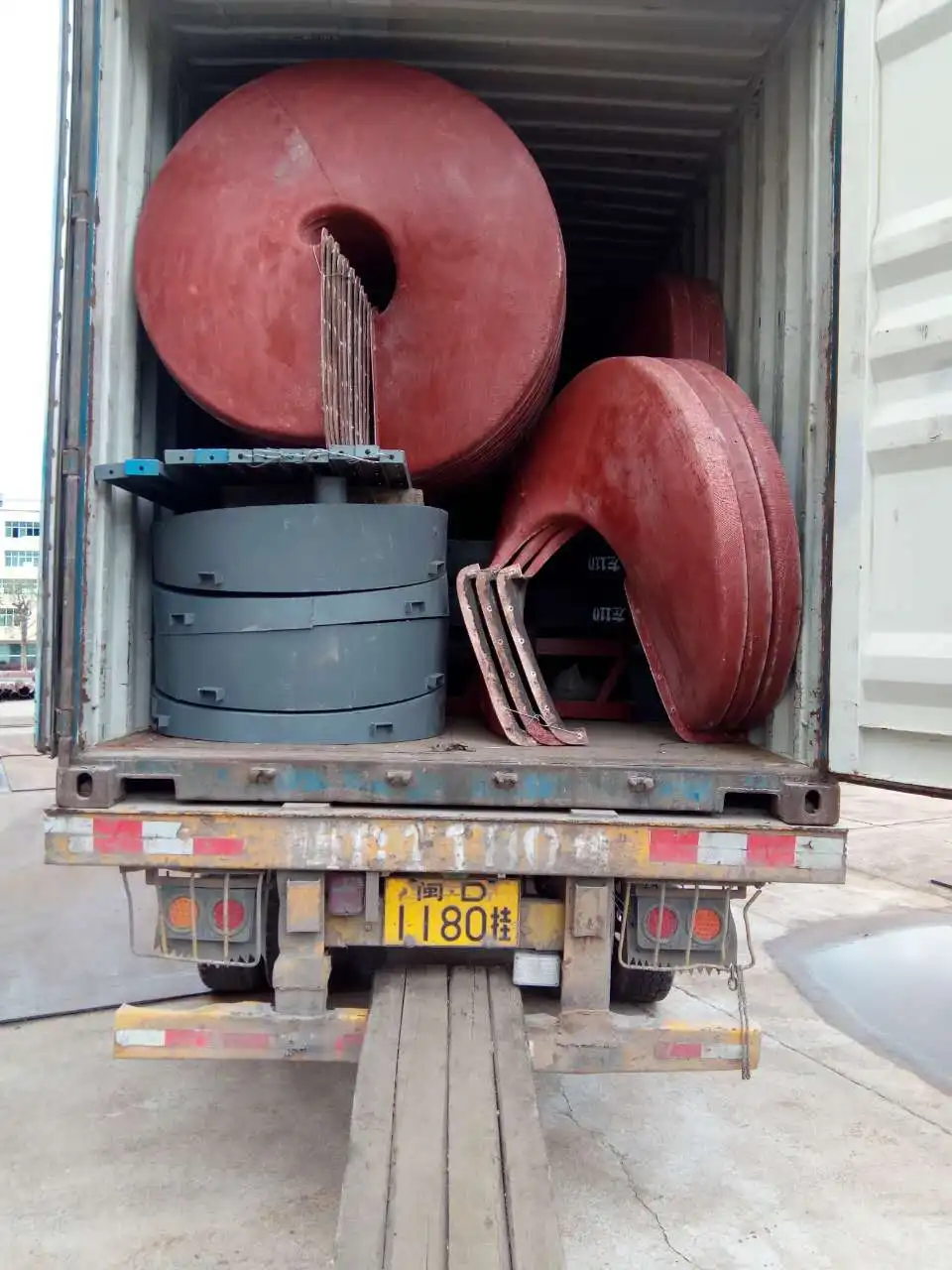

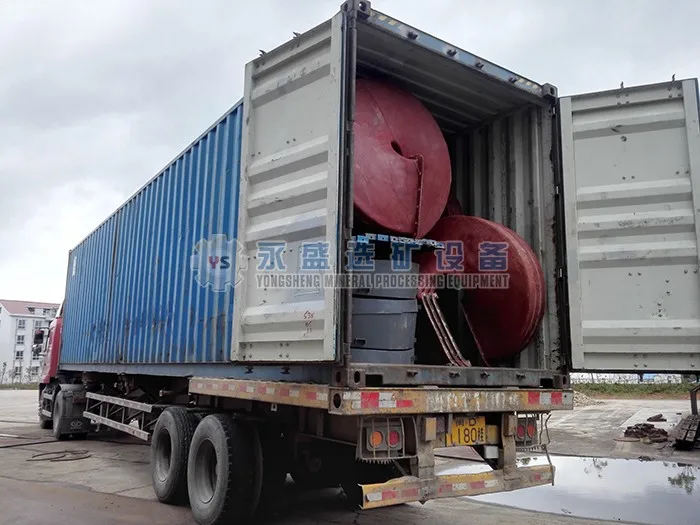

Packing : For Mineral Spiral Chute Separator.
If One 20ft container, can put 7 sets common type Model 5LL-1200 Spiral chute separator. 5 sets 5LL-1500.if one 40 HQ can loading in 20 sets Model 5LL-1200 Spiral chute Separator and 10 sets 5LL-1500.
Delivery : Within 10 days after recieved 30% advance payment.
Payment terms : Pay T/T 30% in advance, the balance 70% should be paid before the products delivery out of Factory.
If One 20ft container, can put 7 sets common type Model 5LL-1200 Spiral chute separator. 5 sets 5LL-1500.if one 40 HQ can loading in 20 sets Model 5LL-1200 Spiral chute Separator and 10 sets 5LL-1500.
Delivery : Within 10 days after recieved 30% advance payment.
Payment terms : Pay T/T 30% in advance, the balance 70% should be paid before the products delivery out of Factory.
Company Profile
Q: What is the payment terms ?
A: 1.30% prepayment by T/T , after the seller finish the production process and buyer verify the machine , 70% balance should paid before delivery.
2. .Alibaba trade assurance L/C is also acceptable in special conditions.
Q: How long is the delivery time of your machine?
A: 1. The delivery time is within 7-30 working days.
2. But if the project is very large and clients have some special requirement about the equipment, the delivery time will be
extend.
Q: How long will the shipment takes ? (roughly)
A: 1. Africa : 30-45 days
Asia : 5-25 days
America : 15-40 days
Europe : 30-40 days
Q: How long is the warranty period about machine?
A: 1. Our machine warranty period is 1 year.
2. Wearing parts and problem coursed by worker's wrong operation are not included.
Q: Can you provide me a solution and quotation?
A: Of course. Please give us your details about project, raw material, the capacity, max feeding size, the output size, the usage of final products, etc.
A: 1.30% prepayment by T/T , after the seller finish the production process and buyer verify the machine , 70% balance should paid before delivery.
2. .Alibaba trade assurance L/C is also acceptable in special conditions.
Q: How long is the delivery time of your machine?
A: 1. The delivery time is within 7-30 working days.
2. But if the project is very large and clients have some special requirement about the equipment, the delivery time will be
extend.
Q: How long will the shipment takes ? (roughly)
A: 1. Africa : 30-45 days
Asia : 5-25 days
America : 15-40 days
Europe : 30-40 days
Q: How long is the warranty period about machine?
A: 1. Our machine warranty period is 1 year.
2. Wearing parts and problem coursed by worker's wrong operation are not included.
Q: Can you provide me a solution and quotation?
A: Of course. Please give us your details about project, raw material, the capacity, max feeding size, the output size, the usage of final products, etc.
