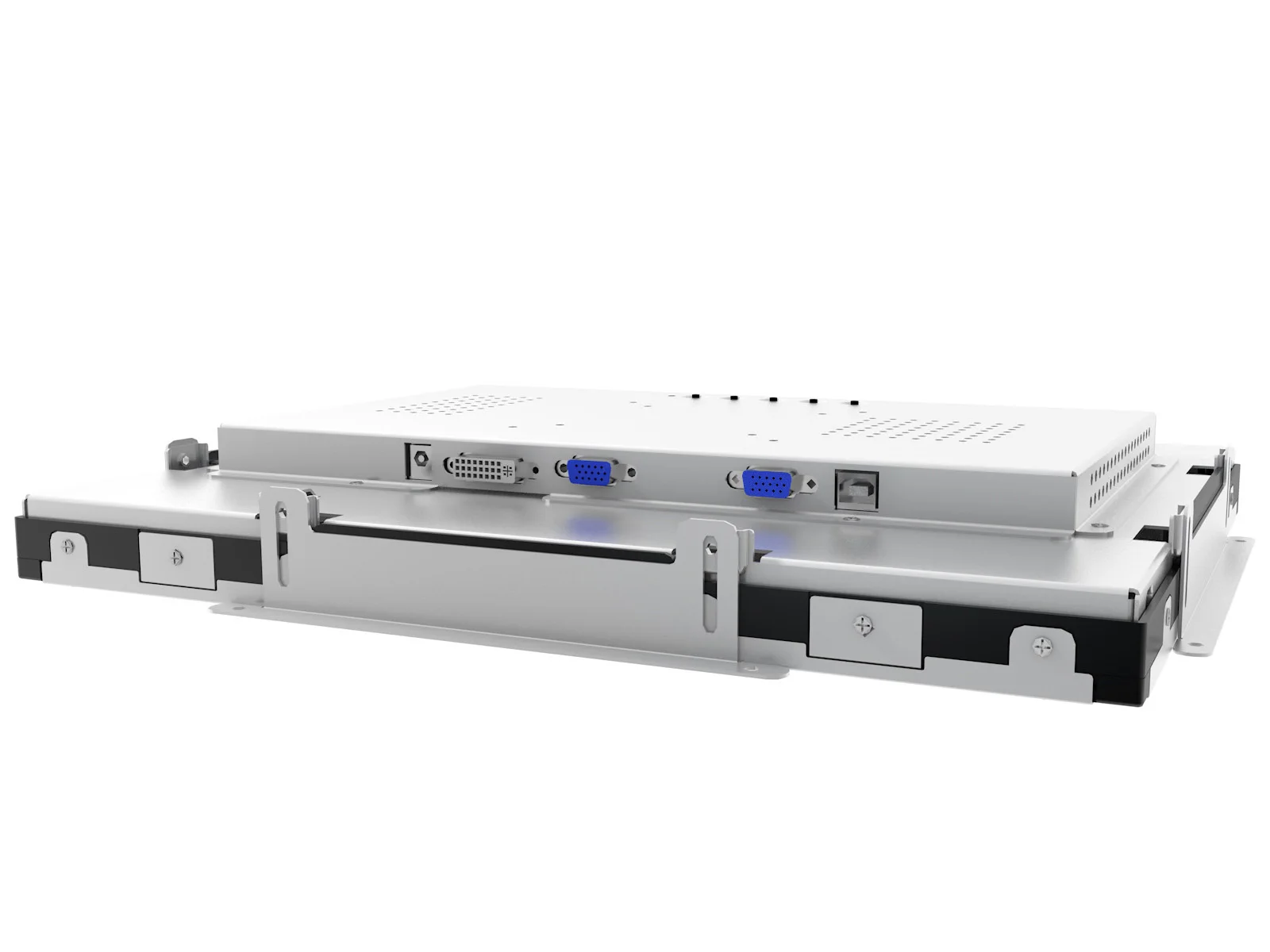

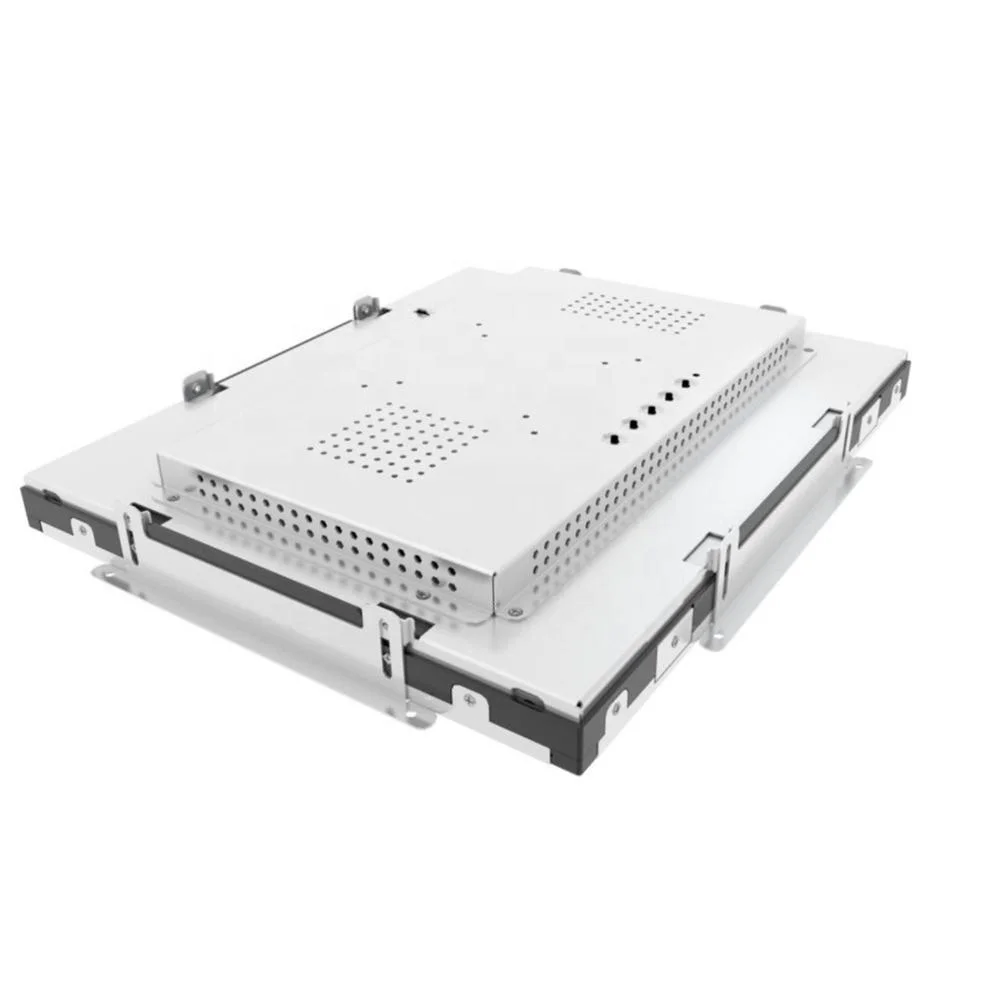

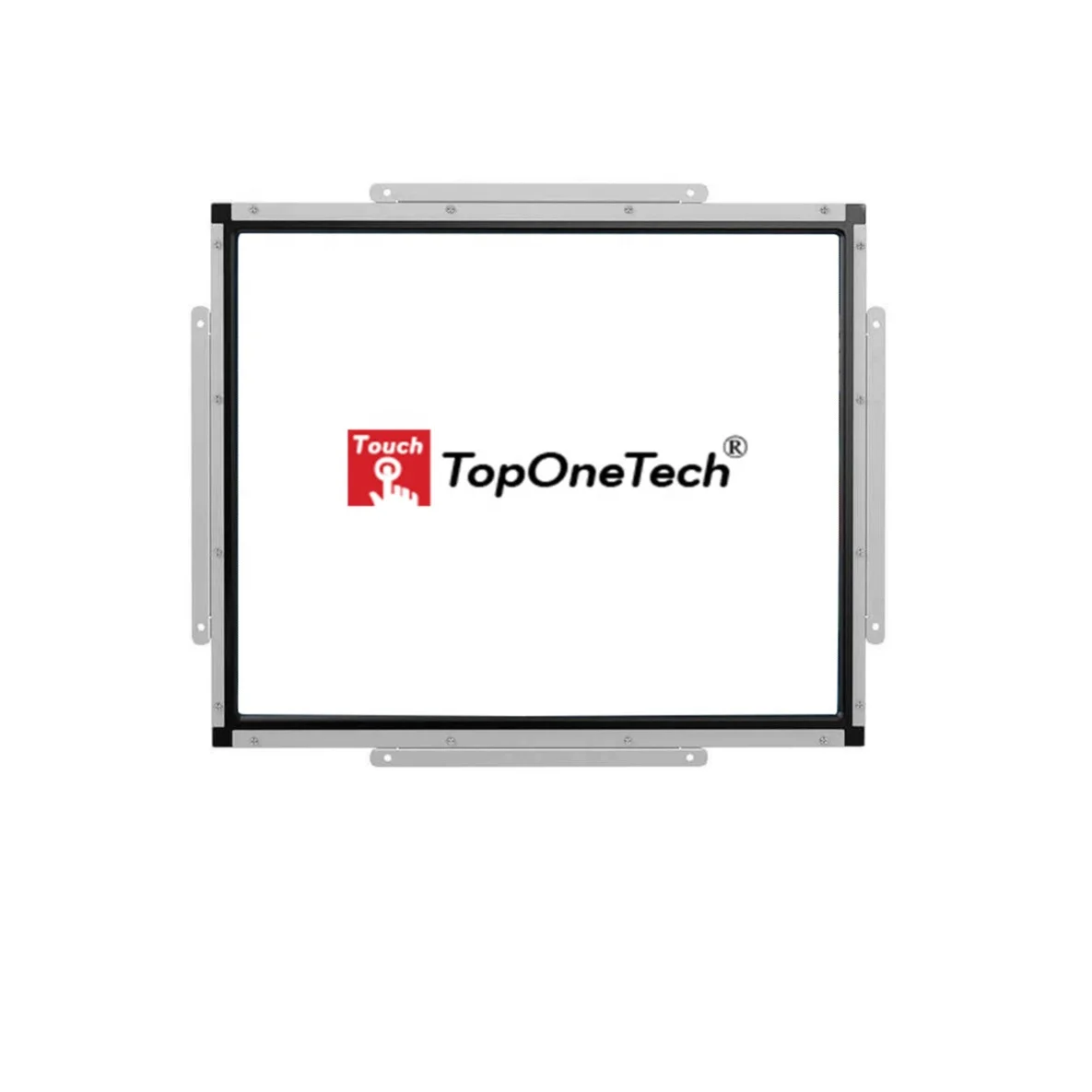

TOPONETECH 15 inch guantes para pantalla tactil with FCC CE certificate
- Category: >>>
- Supplier: Top One Tech Limited
Share on (62007696924):
Product Overview
Description
1-ODM&OEM Advantage
2-Why us?
3-Factory display
4-OEM&ODM
5-Our Exhibition
6-packing display
Product Parameter
Product Parameter
Model No. | TOT150USW001 | |
Series | OT,Water-proof and Compact | |
LCD Type | 15"Active matrix TFT-LCD | |
Active Area | 304.1×228.1mm | |
Monitor Dimensions | 336.4×264.4×45.9mm | |
Suggested Resolution | 1024×768 | |
Support Colors | 16.2M | |
Brightness(Typ.) | Pure LCD Panel | 300cd/m2 |
With SAW Glass Sensor | 275cd/m2 | |
Response Time(Typ.) | 5ms | |
Viewing Angle (Typ.at CR>10)) | Horizontal(left/right) | 80°/80° |
| Vertical(up/down) | 80°/80° | |
| Contrast Ratio(Typ.) 500:1 | 500:1 | |
| Video Input | Dual Analog RGB and DVI video format | |
| Frequency(H/V) | 30~80KHz / 60~75Hz | |
| Power Supply | Type: External brick Input (line) voltage: 100-240 VAC, 50-60 Hz Output voltage/current: 12 volts at 4 amps max | |
| Environment | Operating Temp. | 0~50°C |
Storage Temp. | -20~60°C | |
Operating RH: | 20%~80% | |
Storage RH: | 10%~90% | |
MTBF | 50,000 Hours | |
LCD Back light Life(Typ.) | 50,000 Hours | |
Weight(N.W/G.W) | 3.5Kg(1pcs net weight) / 11Kg (2pcs package) | |
Package Dimension | 429×183×356mm(2pcs per carton) | |
| Power Consumption | 40W Max. | |
| Mount Interface | 1)VESA 75mm and 100mm 2)Mount bracket, horizontal or vertical (Standard mount brackets are supplied) | |
| OSD Control | Buttons | AUTO,+,POWER,-,MENU |
| Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | |
| Touch screen Type | Top One Tech 15" SAW 6mm compact touch sensor, anti-glare is optional | |
| Touch System Interface | Having USB and Serial(RS232) interface | |
| Touch Response time | USB/Serial: 8.4/10.4ms | |
Agency Approval | FCC,CE,RoHS | |
| Regular Warranty | 1 year | |
