Roller glass coating machine
US $10000-$13000
High quality high precision best selling manual cnc glass cutting table machine
- Category: Glass Processing Machinery >>>
- Supplier: Luoyang,Disai,Mechanical,Equipment,Co.,Ltd.
Share on:
Product Overview
Description
Why Choose Us
Well-chosen parts
all the core components are from internationally renowned supplier.
Strict quality control
from material selection, to production, assembly, quality inspection, the whole process is under our supervision.
Excellent service
1 year warranty, lifelong Maintenance.
Product Display

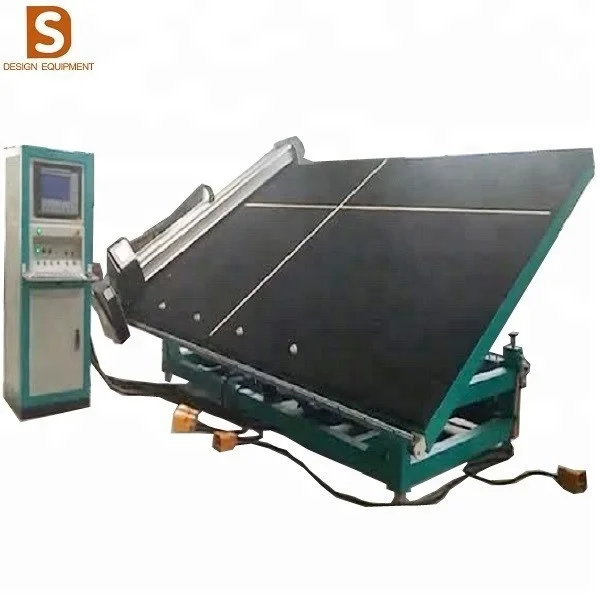

DS-TCT series semi-automatic tilting glass cutting table
DS-TCT series semi-automatic tilting glass cutting table is an advanced glass cutting equipment with multi-functions. It successfully combines three major functions of semi-automatic glass loading, automatic glass cutting and air-floating glass breaking together in one table, which is high-efficient, labor-saving and space-saving.
Product advantage
1.Independently developed Intelligent & Automatic Labeling Module →safe, high-efficient, time-saving and labour-saving.
2.Advanced function of Bi-directional cutting and shaped glass cutting→accurate and efficient.
3.Adopting Italian Optima/RO optimization software→ advanved and practical.
Main feature
* High speed, high precision, easy operation and maintenance
* Automatically optimization cutting plan via optima/R.O software
* Automatic glass cutting process to cut glass into all kinds of different shapes
* Integrating air-floating function and breaking bars in the cutting table
* High efficiency, long life span and attractive appearance
Product Details
Parameters Display
Technical Parameters of DS-TCT2520 Tilting glass cutting table with muti-functions | ||||||
Max.cutting. Glass size | 2500mm x 2000mm | |||||
Min.cutting Glass size | Square glass: 10mm x 10mm | |||||
Shaped glass: R5mm | ||||||
Cutting thickness | 2-19mm | |||||
Cutting precision | ±0.15mm | |||||
Max.cutting.speed | 200m/min | |||||
Dimension | 3800mm x2800mm x920mm | |||||
Maximum Tilt Angle | 80 degrees | |||||
Centrifugal Fan | 1 | |||||
Voltage (Customized) | 220V 50HZ/ 380V 50HZ | |||||
Power | 13kw | |||||
Labelling& Printing.
1. Labels→Water-proof functions
2. Labels →Adopting thermo-sensitive paper, which can print directly without printing ink
3. Labeling & Printing→Adopting automatic and intelligent module of Labeling& Printing, which is safe, efficient and precise
Automatic glass cutting function
1. Adopting American Delta Tau PMAC Controller
2. Adopting German Bohle Cutter wheel, which can realize 360 degrees' free rotation----- Accurate & efficient Bi-directional glass cutting.
3. Shaped glass cutting functions: can cut glass into all kinds of different shapes

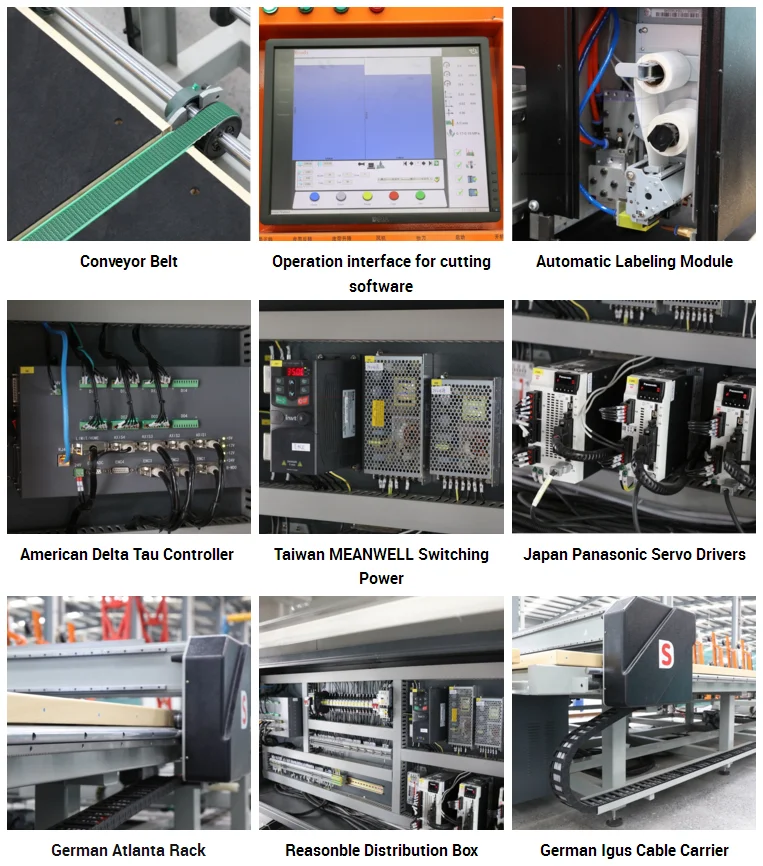

Detailed Pictures
Full-automatic Intelligent Glass Cutting Function / Accurate & Efficient Bi-directional Cutting Function
Shaped-glass Cutting Function: can cut glass into all kinds of different shapes.
General needs: In containers, to be packed with standard packing-materials which is suitable for long-distance ocean shipping.
Special needs: If you want a customized packaging service, we are very pleased to serve you.
About Us
Luoyang DISAI Mechanical Equipment Co., Ltd is a professional high-tech enterprise which is engaged in glass cutting equipment design, R&D, manufacturing, sales and after-sales service. With high R&D level and mature manufacturing technologies in the field of automatic glass cutting equipment, our company has been rising rapidly in the world glass cutting equipment industry.
Choosing DISAI, Choosing the future.
