Product Overview

Description

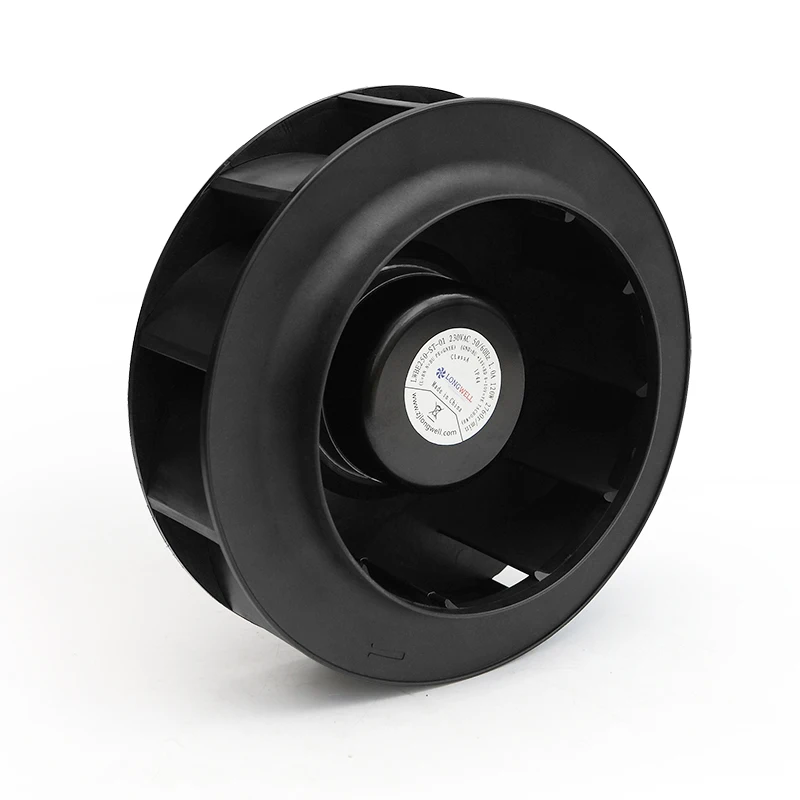

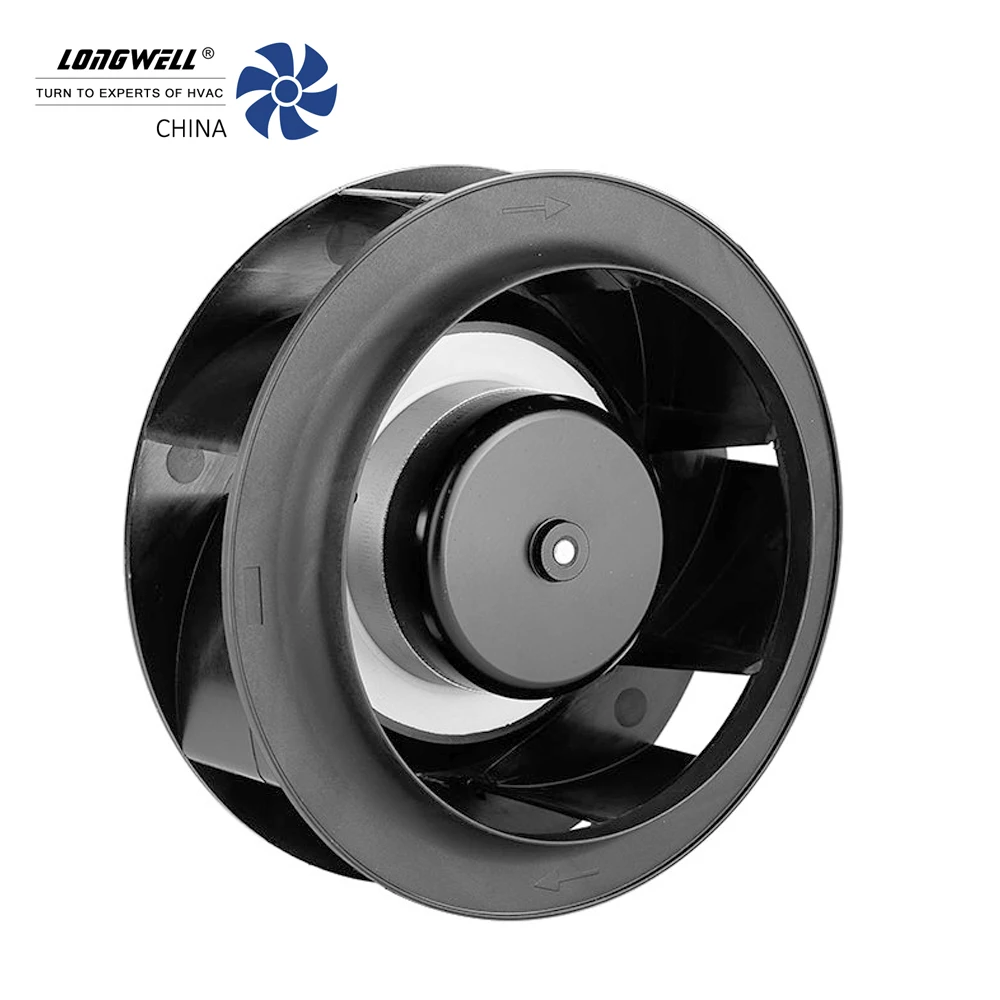

225mm high pressure ec air blower fans backward curved air ventilation fans for AHU ,HVAC System


Types :
225mm backward curved centrifugal fans ( EC Motor )

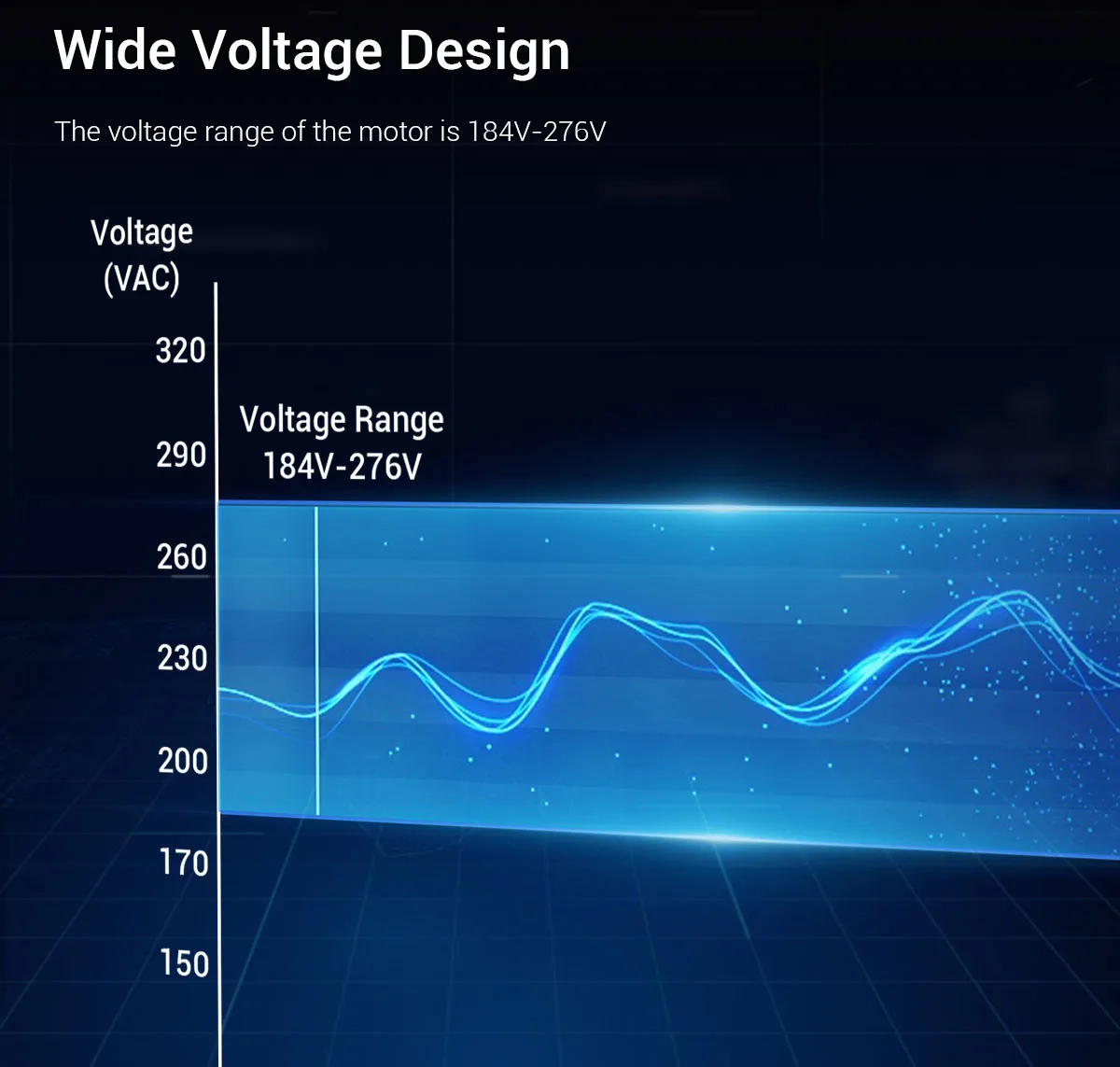

Voltage Ranges :
  115V,230V,~50/60 Hz ;
Diamter  :
225mm  ( impeller diameters )
Motor Types :
BLEC Motor
Fan Speeds :
0- 3010 rpm
Speed Control :
0-10V Signal / PWM
Amb.Temp:
-25℃～ +60℃
Materials :
Plastic + GF
Galvanized Metal Bracket( Optional)
Certificating :
All necessary certifications suitable for USA , Europe
Product Standards :
LVD EN60950-1 EMC EN61000-6-3,EN61000-4-2, EN61000-4-3
Mainly Applications
AUH/ AIR PURIFIER / Server Cooling & Ventilation / Grow Tent  / Medical equipments/
Ventilation SYSTEM/ Equipments Cooling / Refrigerator ,etc




















EC Fan Series -Product Ranges Overview
Norminal Sizes Ranges :

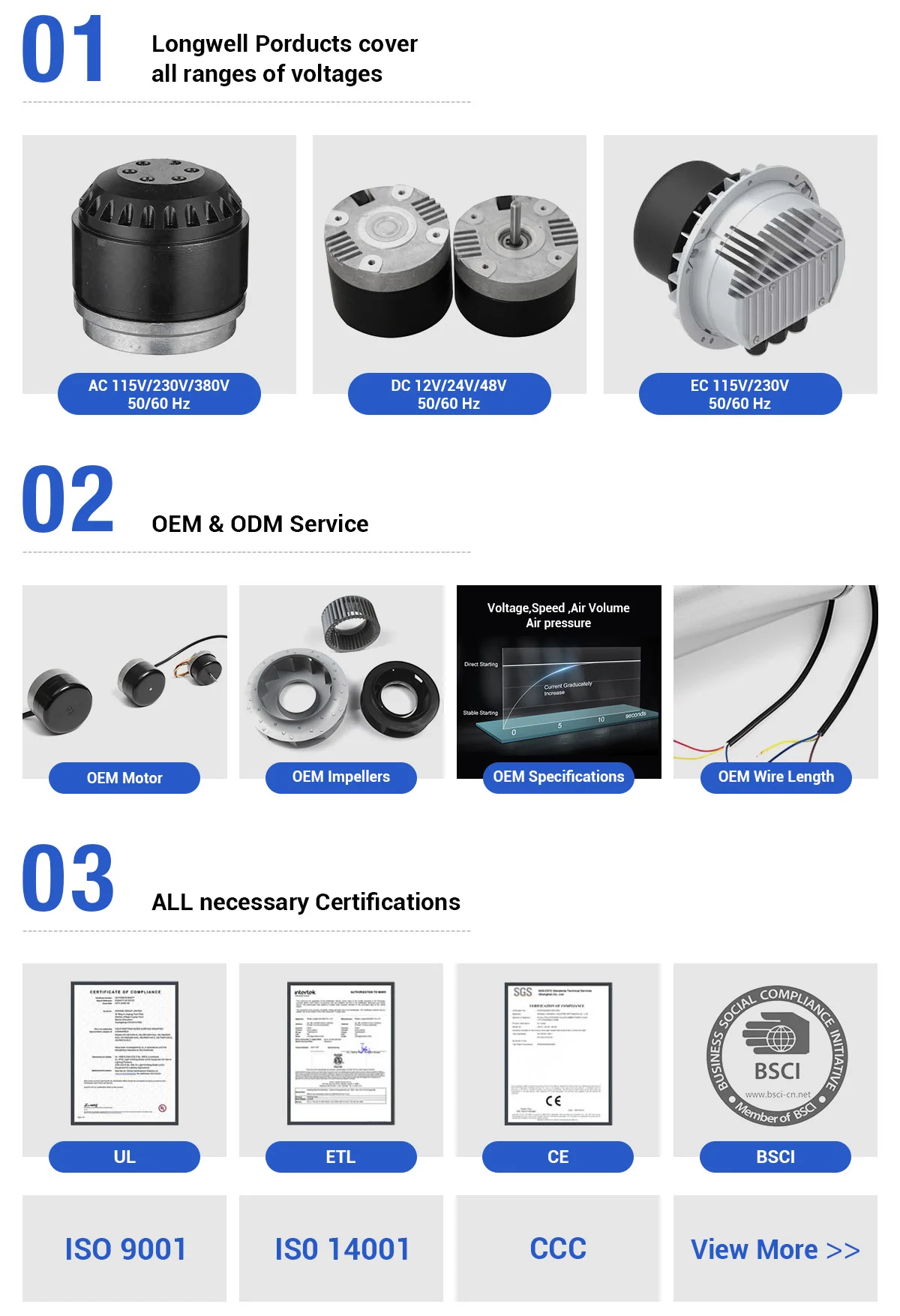

AC Motor - AC Input: 115v,220v,230v,380v,400v
BLDC Motor - DC Input: 12v,24v,48v,310v
ECM Motor - AC Input: 210v,220v,230v,380V
Power Input Ranges:
From 45W to 4.0 kW
Air Flow Ranges :
Up to 25000m³/h (or Customized)
Speed Ranges:
Up to 4000RPM (or Customized)
Protection Class :
IP44 ,IP54
Insulation Class :
B
Min. amb. temperature :
-25℃
Max. amb. temperature :
+60 ℃
Speed control options:
0-10V / PWM 、 MODBUS RTU485

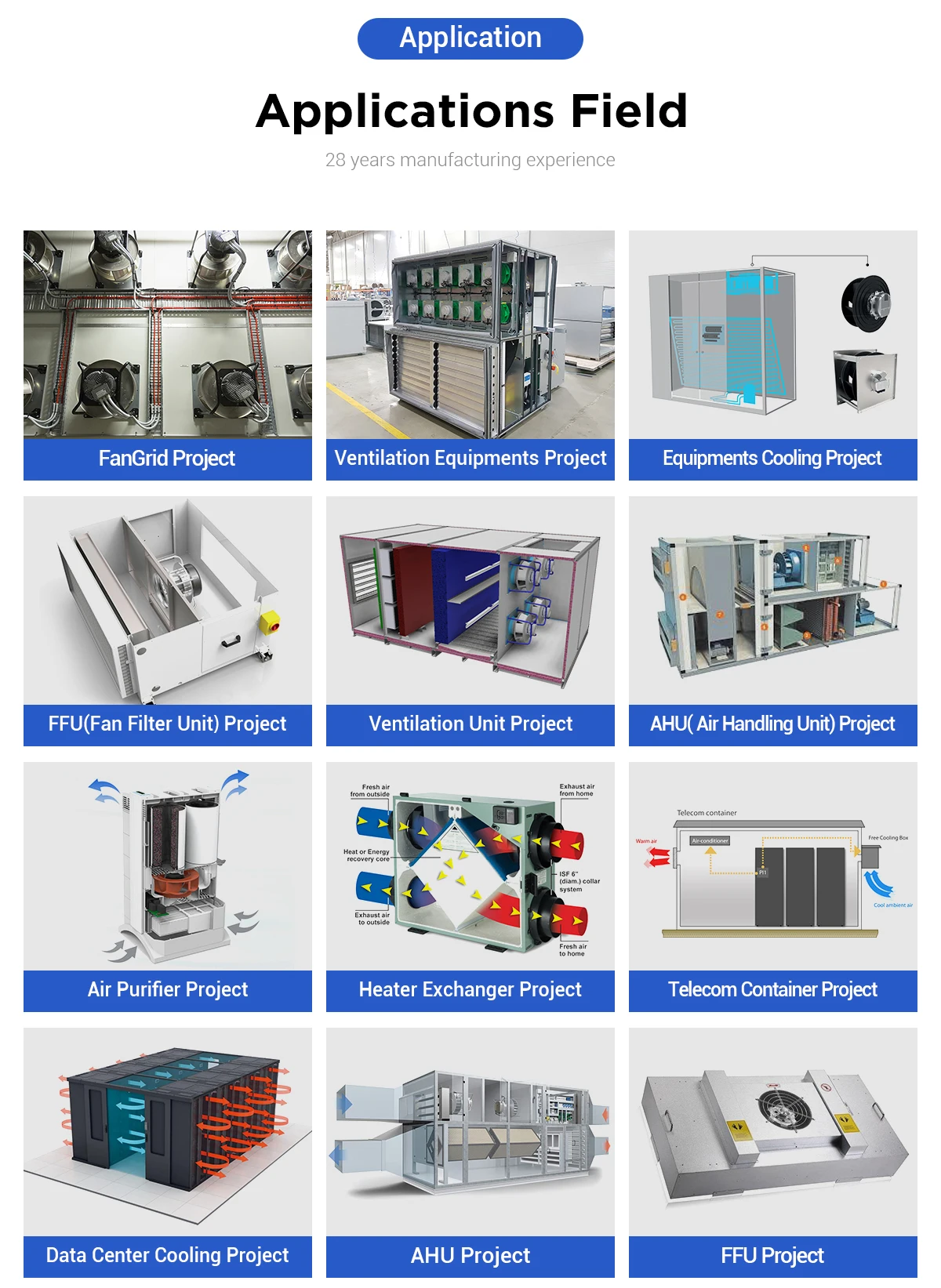

Mainly Applications ：
· EC fan array
· Electronic cabinet cooling
· Clean room modules
· Heat exchangers
· Air filtration systems
· Military HRAC
· Pharmaceutical/biological control systems
· Computer room air conditioning (CRAC) systems
· Air-handling units

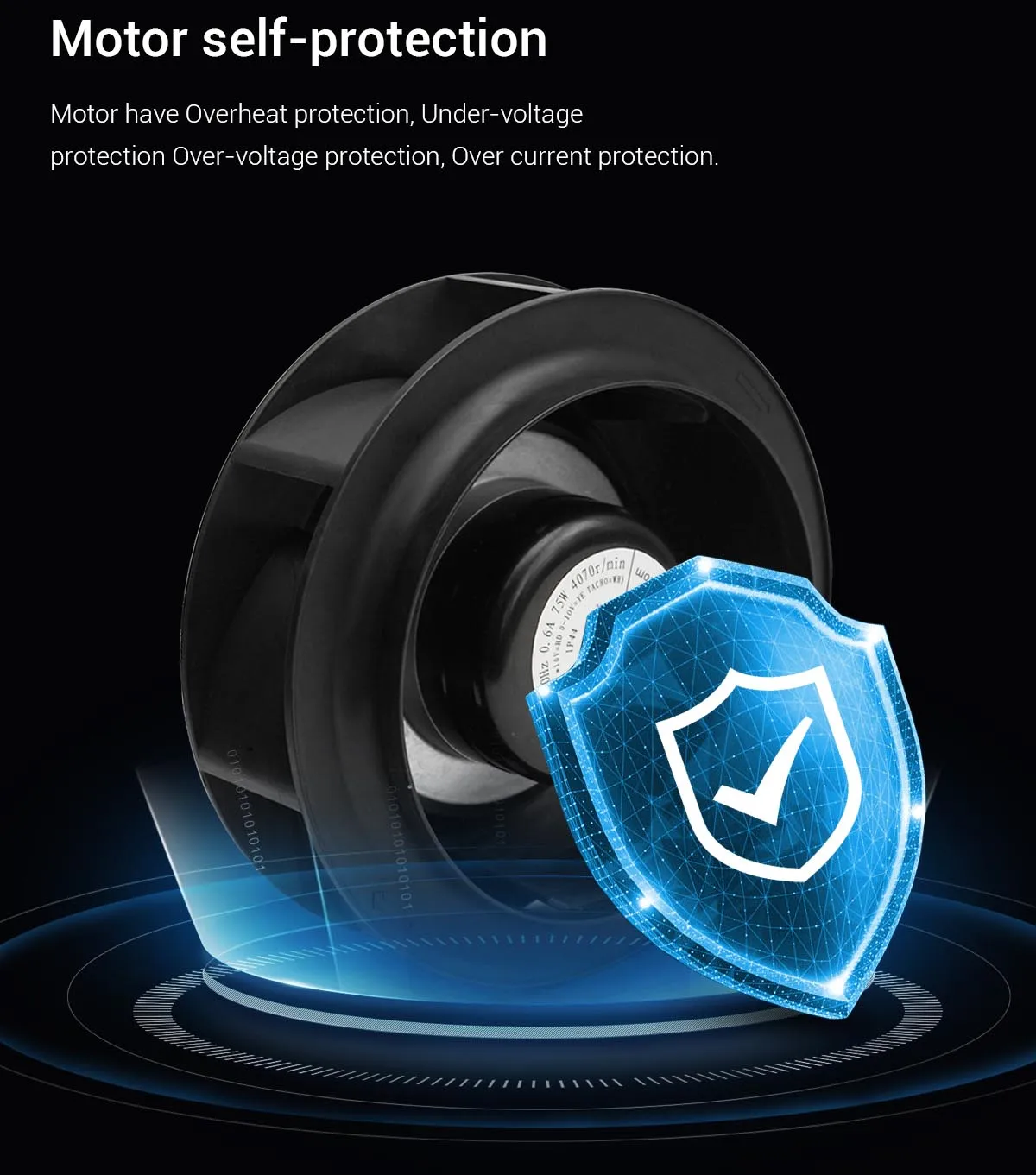

Electronic Protections:
- Soft Start ;-Locked-rotor Protectionn ;
- Tach output
-Reverse Polatity
