  • Haiwei H2160H H.264 16 channels HDMI to IP encoder loop out iptv encoder support udp rtsp hls multicast unicast encode

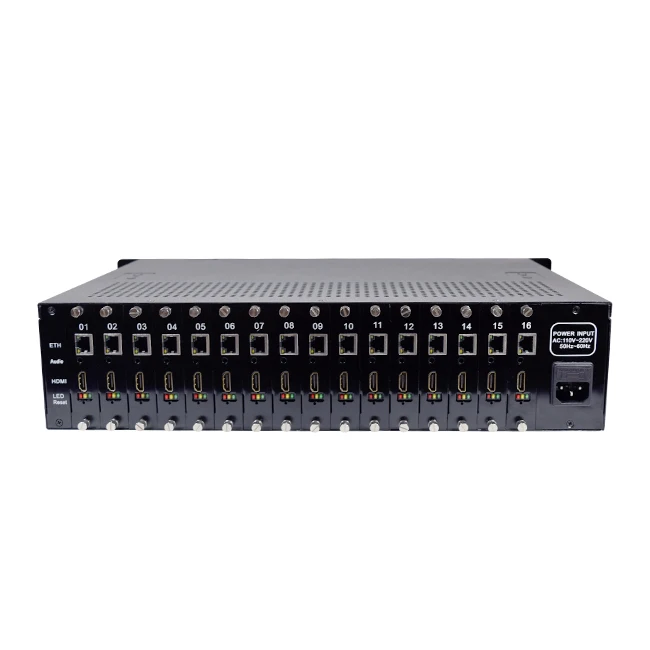

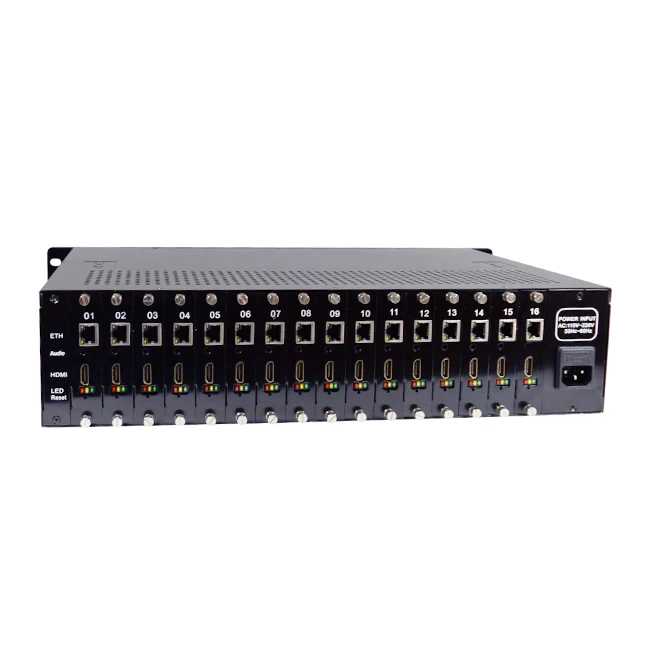

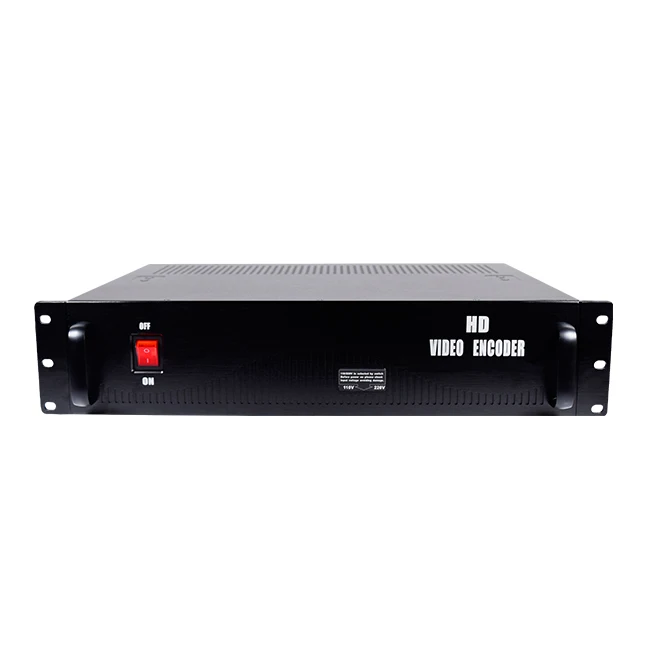

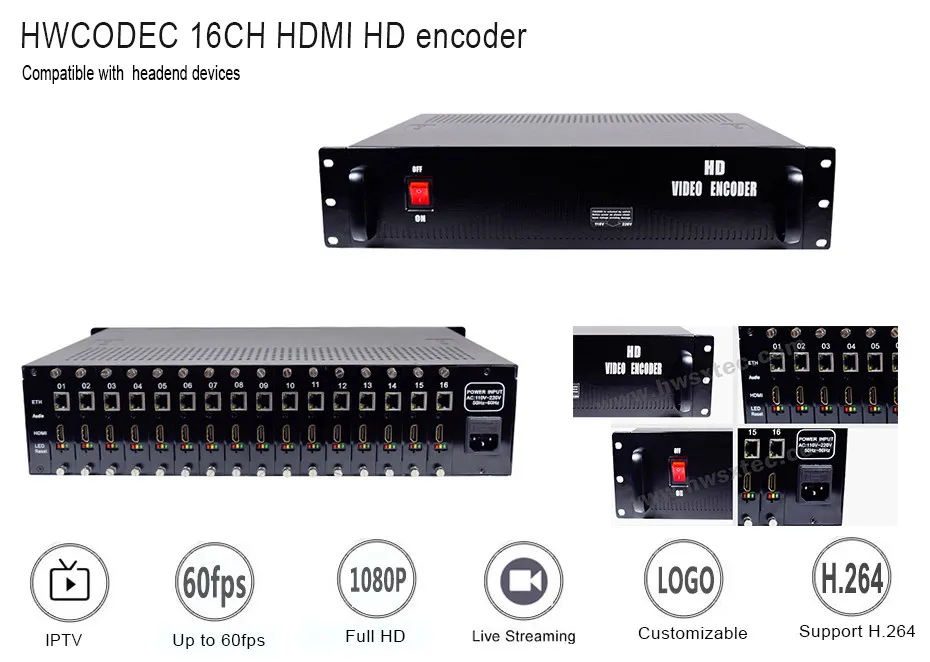

Haiwei H2160H H.264 16 channels HDMI to IP encoder loop out iptv encoder support udp rtsp hls multicast unicast encode
Haiwei H2160H H.264 16 channels HDMI to IP encoder loop out iptv encoder support udp rtsp hls multicast unicast encode
Haiwei H2160H H.264 16 channels HDMI to IP encoder loop out iptv encoder support udp rtsp hls multicast unicast encode
Haiwei H2160H H.264 16 channels HDMI to IP encoder loop out iptv encoder support udp rtsp hls multicast unicast encode
Haiwei H2160H H.264 16 channels HDMI to IP encoder loop out iptv encoder support udp rtsp hls multicast unicast encode
Haiwei H2160H H.264 16 channels HDMI to IP encoder loop out iptv encoder support udp rtsp hls multicast unicast encode

Haiwei H2160H H.264 16 channels HDMI to IP encoder loop out iptv encoder support udp rtsp hls multicast unicast encode

Share on (62007886469):


Price:

Quantity:


Product Overview

Description





Item
Details
Input
16 channel HDMI & Line-in Audio
Output
16 channel IP signal output. RJ45 100M / 1000M,Main TS stream and Sub TS stream, dual-stream
Resolution
Up to 1080p @60fps
Coding standard
H.264 AVC
Video Bit Rate
CBR/ VBR, 16kb-12Mbit/s
Audio Bit Rate
64kb/s-384kb/s
Video packaging
FFMPEG/ VLC
On Screen Display
Text ,images
Network protocol
HTTP/ RTSP/ RTMP/ RTMPS/ ONVIF/ RTP/ TCP/ UDP/HLS( Unicast/ multicast)
Available image settings
Contrast ratio, brightness, tones, saturation, noise detection, sharpness, filtering

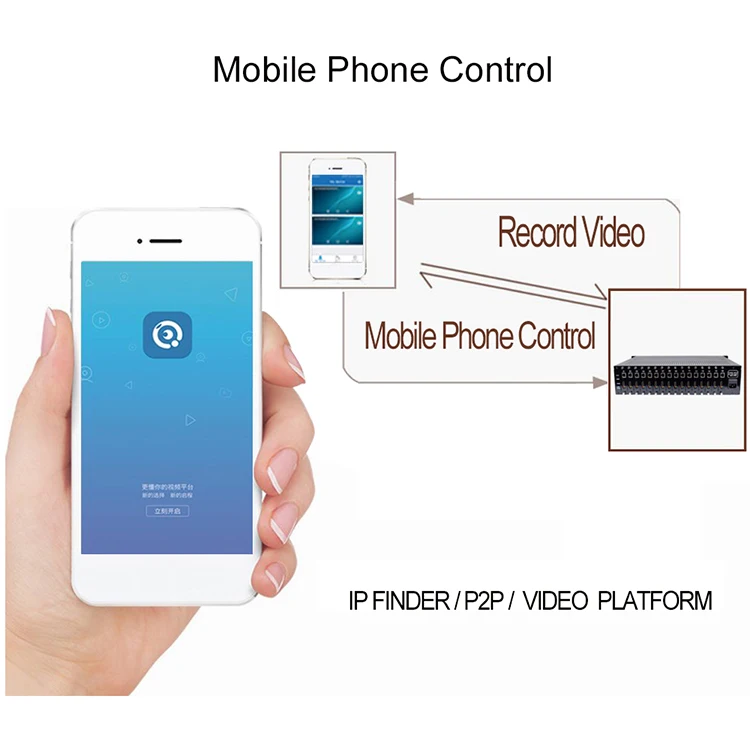

APP Remote Control

Support IOS & Android System.Download APP

Lixe X to connect encoder.Private with low latency.Real-time preview.






APP Control Panel
Support IOS & Android System,Set up simply, easily and conveniently




Web Interface
Support WEB,passwords Changing,WAN remote management(WEB)




Custom Resolution
Support 1920*1080/1680*1056/1280*720/1024*576/960*540
850*480/720*576/720*540/720*480 ect and other conventional resolution




Support OSD
Support OSD,support to add company logo,letters and symbols ect.
Also it can be displayed anywhere on the screen

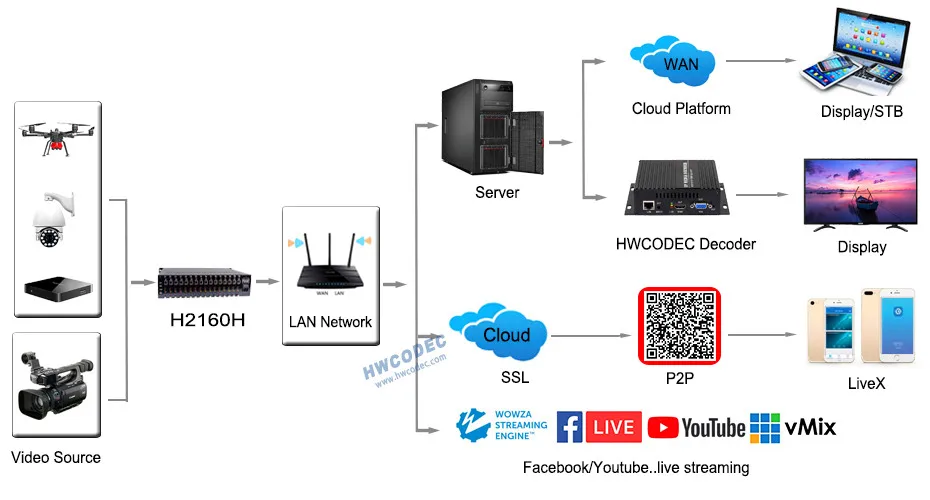

Connection Schematic Diagram

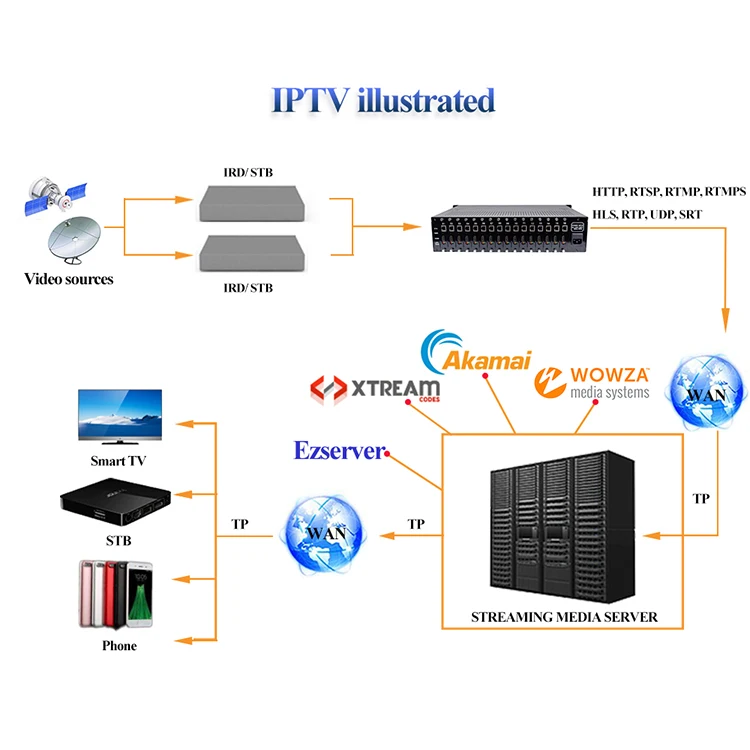

For IPTV/For Live streaming online. Point to Point (P2P) long distance video delivery solution







Application

Digital TV Broadcasting System/IPTV&OTT system/Internet TV

 Digital Signage /Video Conference/Live streaming/Hotel IPTV System





Certificate

Shenzhen HWCODEC has served HUAWEI,Wowza,Youtube

 Facebook,Alibaba Cloud and many companies around the world.











FAQ


Q1:What is your Payment Terms?
A1:We accept T/T Bank Transfer,Paypal ,Western Union,L/C,Alipay, Alibaba Trade Assurance,Unistream all major credit cards are accepted through secure payment processor ESCROW.

Q2:Do you support OEM?
A2:we can provide OEM service by replacing your company logo on Shell, software interface and carton.

Q3: Where is your Factory/company located?
A3:Haiwei Factory/company :605~609 B Building HuaFeng Financial Harbour Xinan 6 Road Baoan 82 District Shenzhen City Guangdong Province China.
Haiwei Guanzhou Branch:Room 403, Linglanduhui, NO18 Huaying road, Northern Airport Road, Jiahewanggang, Baiyun district, Guangzhou City Guangdong Province China.

Q4: What about your Warranty?
A4:All products has 2 years' warranty, we offer technical supports online/phone/send back, repair services by our experienced after-sales specialist, free charge within warranty.And provide Lifetime free technical supports.
