110w walkable anti slippery solar panel ETFE surface semi flexible solar panel for RVs boats campers and similar applications
- Category: >>>
- Supplier: Shenzhen Ahony Power Co. Ltd.
Share on (62007886858):
Product Overview
Description
Thank you for the interests in walkable anti slippery solar panel 110w surface semi flexible solar panel for RVs boats campers and similar applications.
Advantage
The eMarvel light marine solar panel uses top quality material and tested in inner lab,under actual sunshine,test in our factory machine,and in the 3rd party laboratory.
Now this light marine solar panel can bend a slightly angle,they are approved by CE,ROHS,sg s,certified under IEC standard.
AHONY uses high efficiency cell over 21.3% monocrystalline or back contact cells Gen III up to 23.7%.We offer a wide ranges of customize service,OEM,ODM,automatically producing line insures better workmanship,faster delivery and more stable quality.

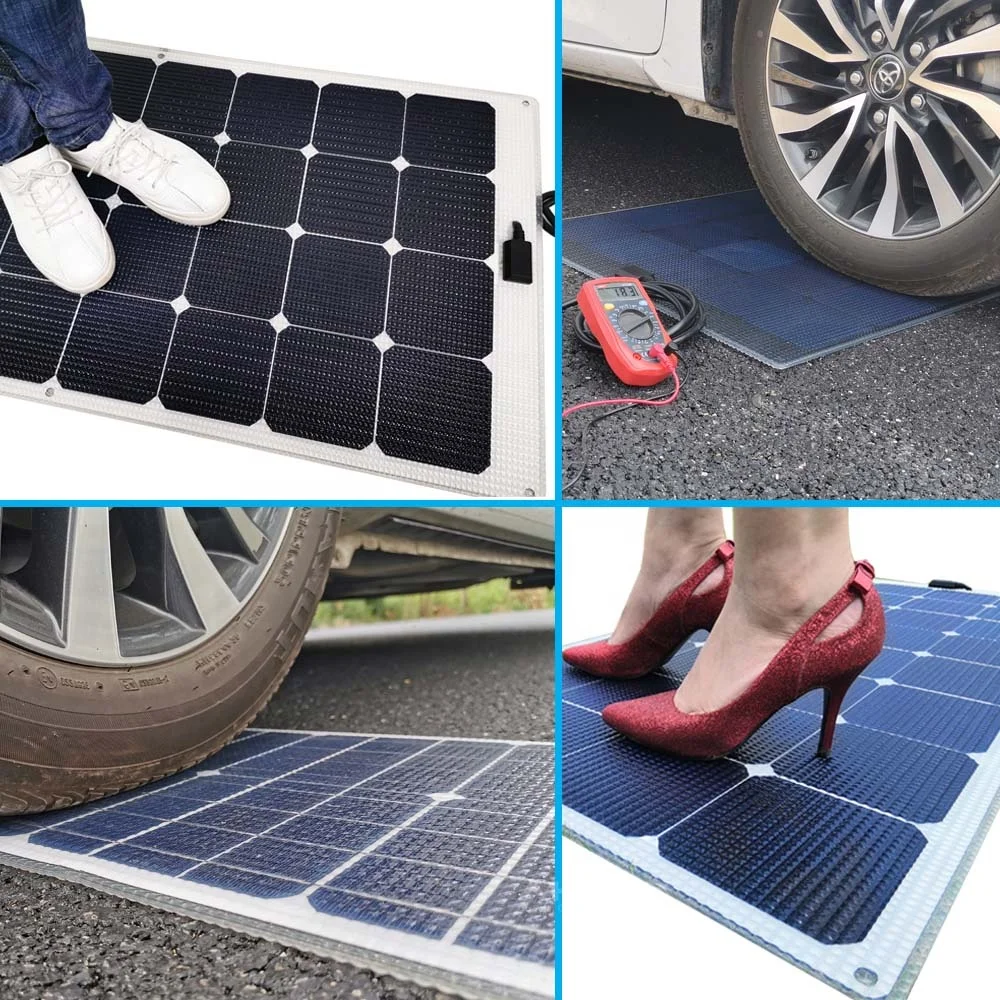

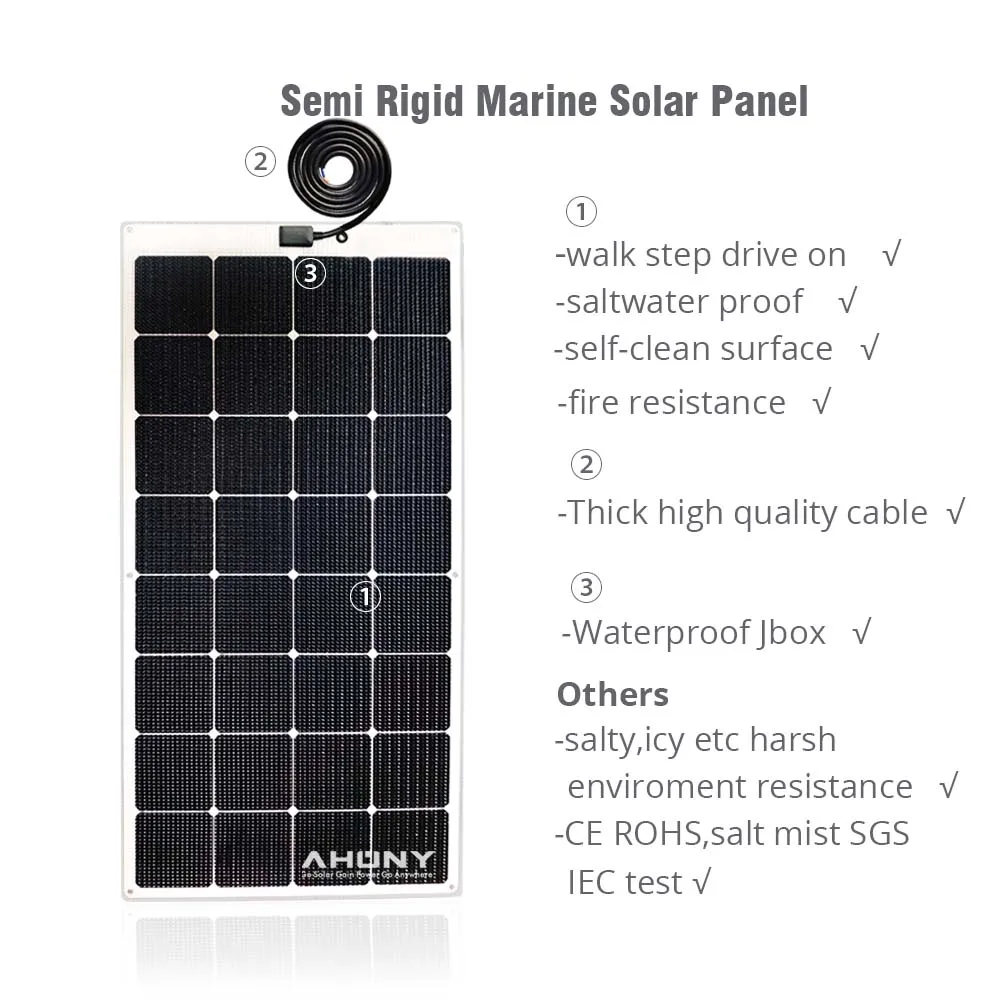

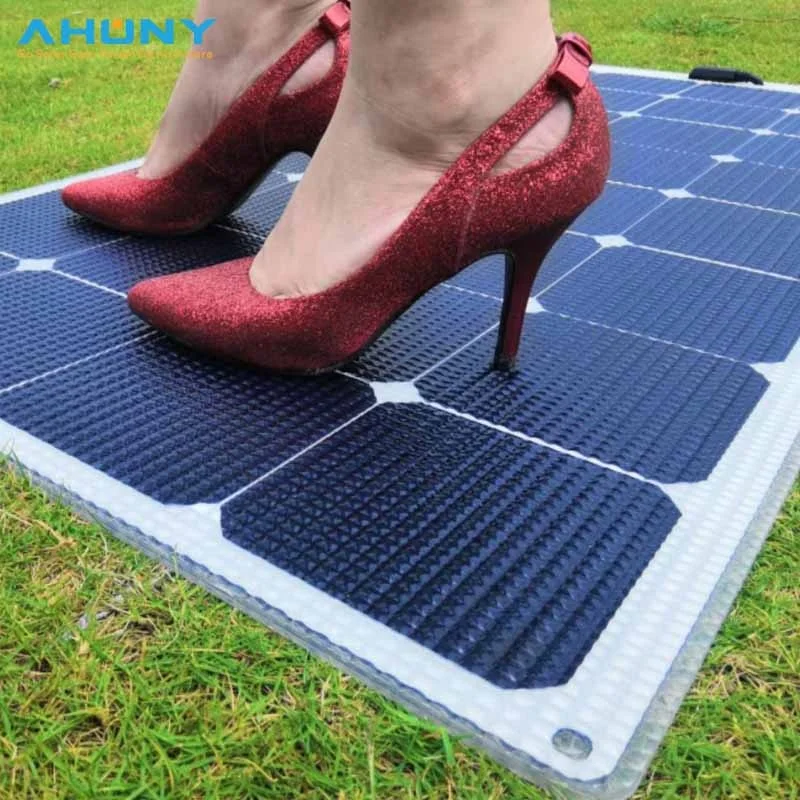

*Walkable and Anti-slippery
*Longer lifespan 15years guaranteed
*High temp resistance and little power loss
*Rigid,thin,light design for widely use
Solar cells can be:
Back contact cell;
Monocrystalline solar cell
Polycrystalline solar cell
Product Description
| Model No. | eMarvel 110w |
| Feature | solar panel can walk on step on with rough surface anti slippery |
| Product Name | walkable anti-slippery solar panel 110w anti slippery surface rough ETFE from Japan for marine riverside boat yacht |
| Maximum Power[Wp] | 110 |
| Solar Cell | SunPower Maxeon Gen III Back Contact Cell |
| Cell Array[Pcs] | 4*8 |
| Cell Efficiency | 22.60% |
| Size[mm] | 550*1090*5 |
| Max Power Voltage Vmp[V] | 18.56 |
| Max Power Current Imp[A] | 5.93 |
| Open Circuit Voltage Voc[V] | 21.90 |
| Short Circuit Current Isc[A] | 6.40 |
| Net.Weight[kg] | 5 |
| Power tolerance[%] | ±5% |
| NOCT[℃] | 45±2 |
| Operating Temperature[℃] | -40/+85 |
| Temperature Coefficient Pmax[%/K] | -0.3 |
| Temperature Coefficient Voc[[%/K] | -1.74mV |
| Temperature Coefficient Isc[[%/K] | 0.05 |
| Maximum System Voltage[V] | 100 V |
| Maximum Reverse Current[V] | 10A |
| Flame retardancy | UL94 VTM-0 |
| Certification and test | CE,ROHS,sg s,IEC,85°C& 85% humidity test |
| Maximum bend radius(θ) | 5° |
| Cables and Connectors | APJB010,2m dual cores cable 2.5mm2 bare at end |
| Standard Test Conditions | STC: 1000W/m², AM 1.5 and cell temp 25°C |
| Other notes | round corner R10,with installation hole |
Our Services
Before sale:
1.Our sales representative and engineer work together to answer your questions and offer solution for free;
2.Sales person choose the best walkable solar panel emarvel series for you to make sure it worth its real value;
3.We design the best solution with good perfomance for you,manwhile save every cent of your money.
4.Strict quality control,strict test for all solar products produce,insure the best quality produced.
5.Fast delivery and communication with customer,to let customer know goods status at the earliest.
After sale:
We provide 2 years Warranty for the marine solar panel,10 years warranty for 90% power production ,25 years warranty for 80% power production.
Gather feedback from customers,listen to customers and make new and better products.
Packaging & Shipping
Company Information
We specialized in ultralight solar panel technology,producing flexible solar panel,foldable solar kits,marine solar panel etc.
