Шасси 2U для промышленного сервера в стойку с 4 популярными разъемами SATA/SAS Drive Bay, MiniSAS /SATA

Product Overview

Description

Product Description

Model	NP-S204480
Form Factor	2U Rackmount Server case with 4 Hot-Swappable SATA/SAS Drive Bay, MiniSAS /SATA connector
Material	Metal material	SGCC
	Metal thickness	1.2mm
	Panel material	Metal
	Handle material	Metal
M/B support	EATX(12“ x 13"), CEB (12″ x 10.5″),ATX (12″ x 9.6″),microATX (9.6″ x 9.6″), Mini-ITX (6.7″ x 6.7″)
CPU support	DP Xeon(Intel)/DP Opteron(AMD)/Core(Intel)

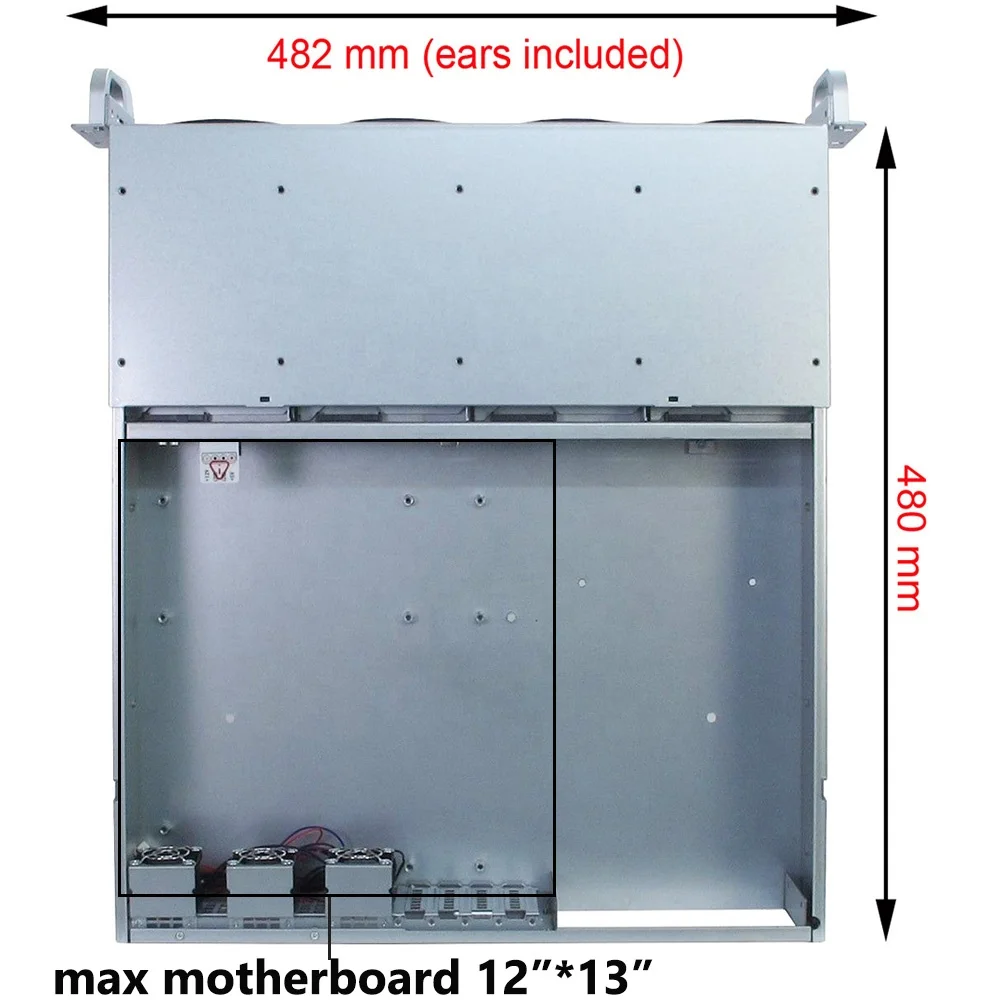

Size	D*W*H(mm)	480 x 482 x 88
	D*W*H(inch)	18.9  x 19 x 3.5
Drive Bay	3.5 "or 2.5" external (hot-swap)	4
Power Supply support	ATX power supply  / 1U power supply / 2U power supply

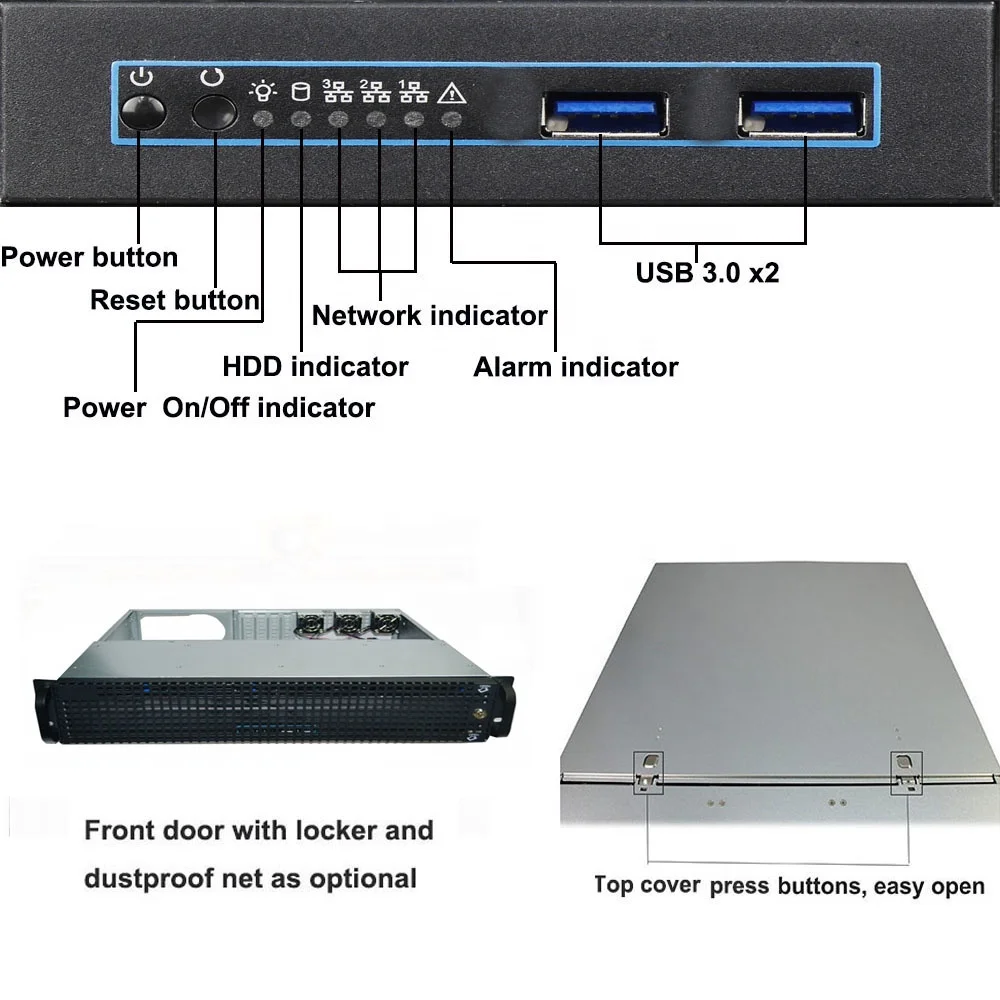

Front panel	Control button	Power ON/OFF x 1, system reset x 1
	Indicator	Power ON/OFF x 1, HDD x 1, NETWORK x 3, Alarm x 1
	Ports	USB3.0 x 2
Expansion	Riser Slot	4pc (low-profile) /7pcs(low-profile)

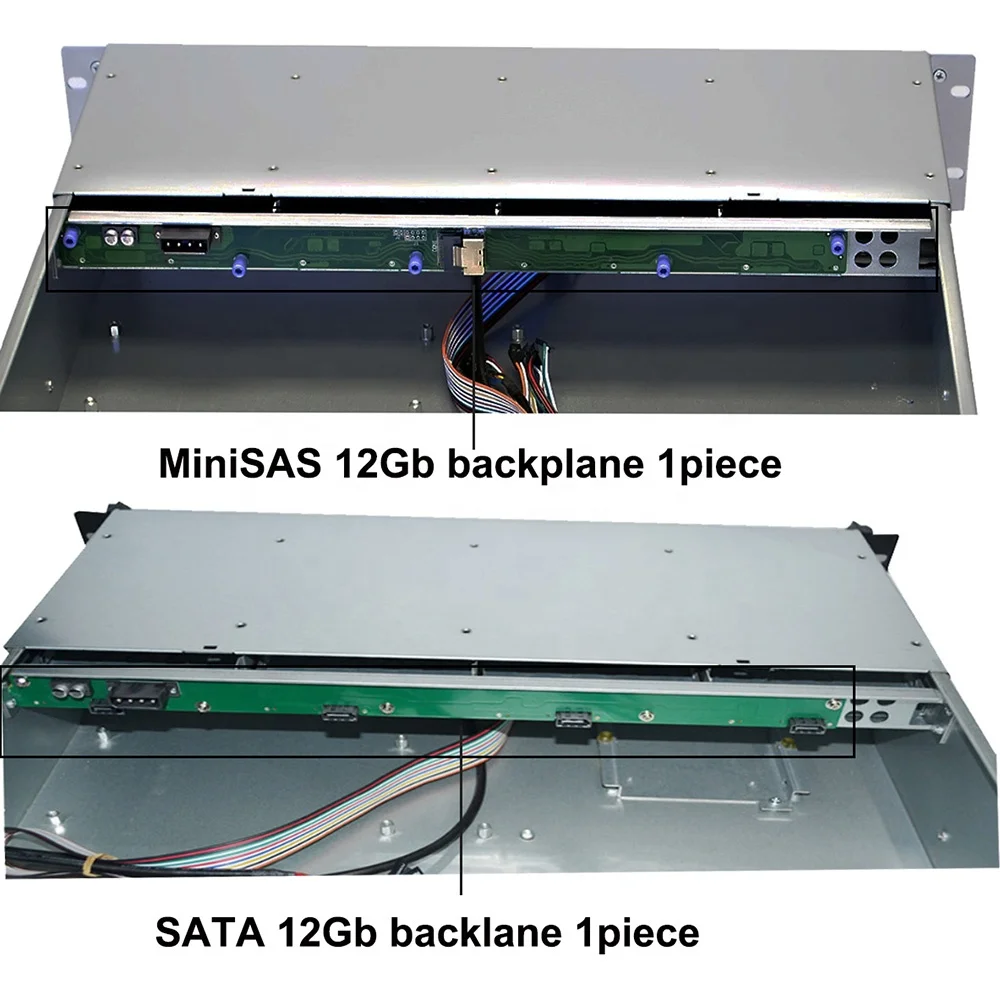

Hot-swap Backplane	S-ATA  or  SAS backplane (12Gbit / s max)
System cooling(optional)	Front	NO
	Middel	NO

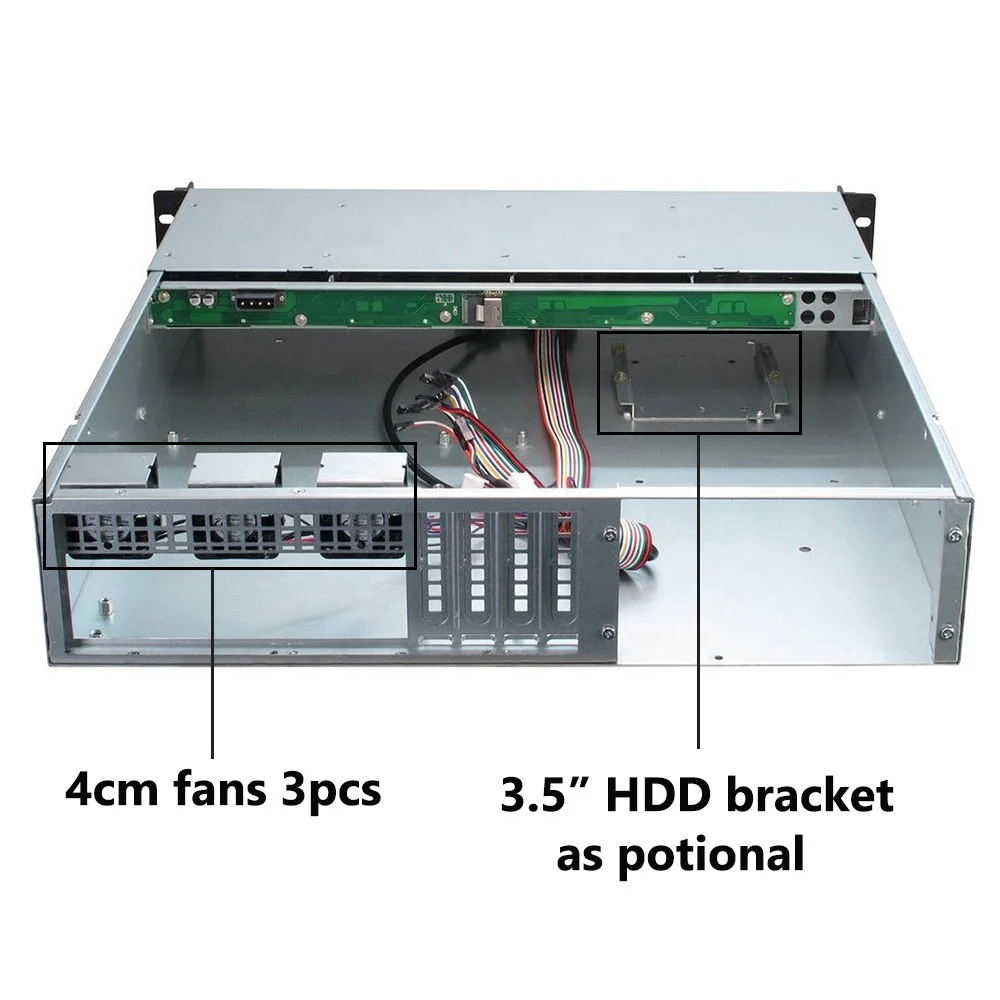

	Rear	3 x 40mm ball bearing fans
Net weight	6.7kg
Gross weight	8.7kg
Packing size	D*W*H(mm)	680*555*155
	D*W*H(inch)	26.7*21.8*6.1
Packing Material	Polyfoam with carton box
Environment Temperature	0/55 °C, 32/131 °F (Operating) -20/60 °C, -4/140 °F (Non-Operating)
Relative Humidity	5% to 95%,non-condensing
Vibration ( 5-500 Hz )	1 Grms (Operating), 2 G (Non-Operating)
Shock	10 G(with 11ms duration, half sine wave) (Operating), 30 G (Non-Operating)

Detailed Images
