Advantage: * 2.8-inch color screen,support 65K color display, good pictures. * 320X240 resolution, resisitive touch optional. * Using the SPI serial bus, it only takes a few IOs to illuminate the display * Easy to expand the experiment with SD card slot * Military-grade process standards, long-term stable work * Provide underlying driver technical support

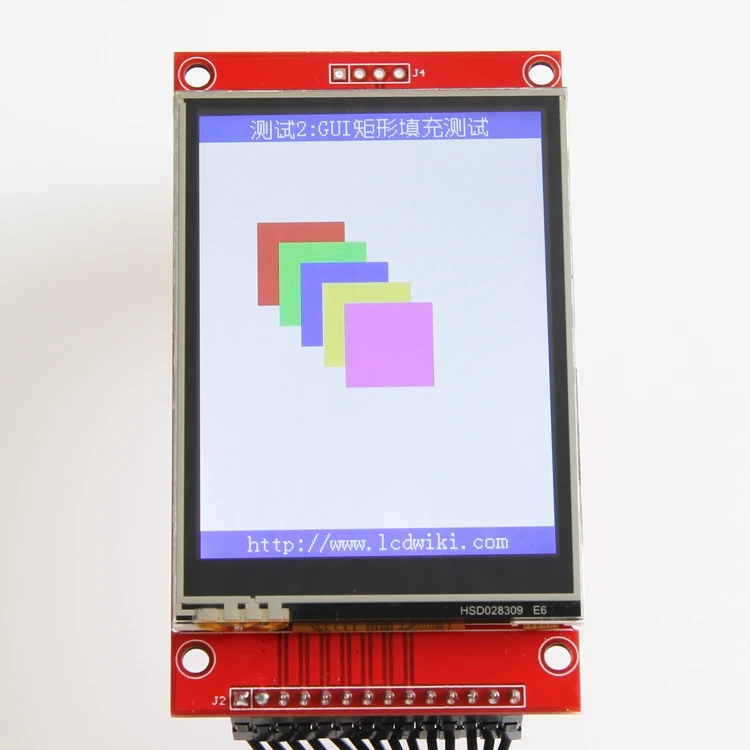

LCD Name
2.8inch SPI TFT LCD Module
Resolution
320x240

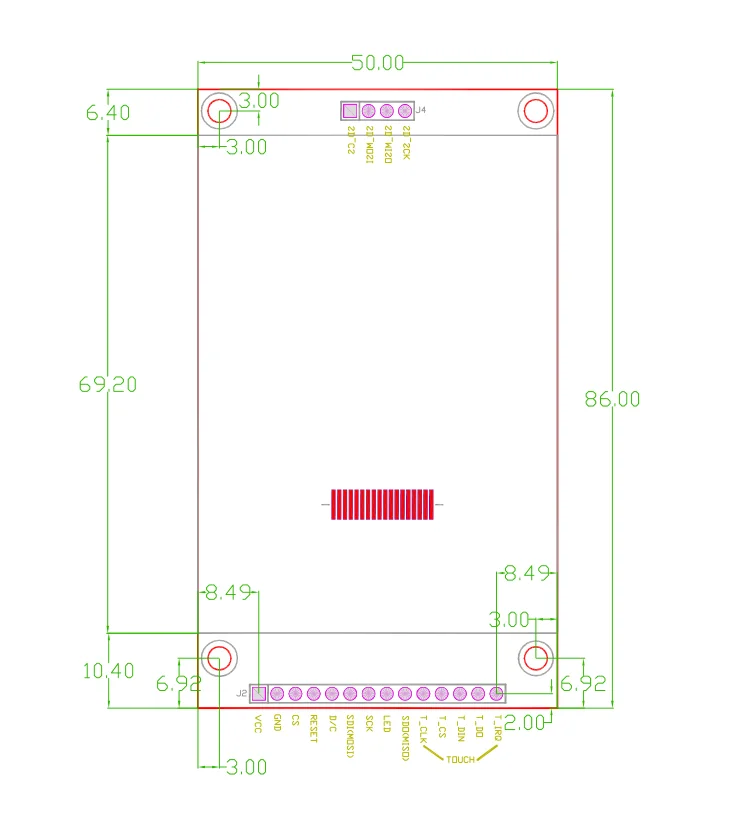

Outline size
50.0x86.0(mm)
Active Area
43.2x57.6(mm)
Module interface
4-wire SPI interface
Operating Temperature
-20℃~60℃
Storage Temperature
-30℃~70℃
VCC power voltage
3.3V~5V
Logic IO port voltage
3.3V(TTL)

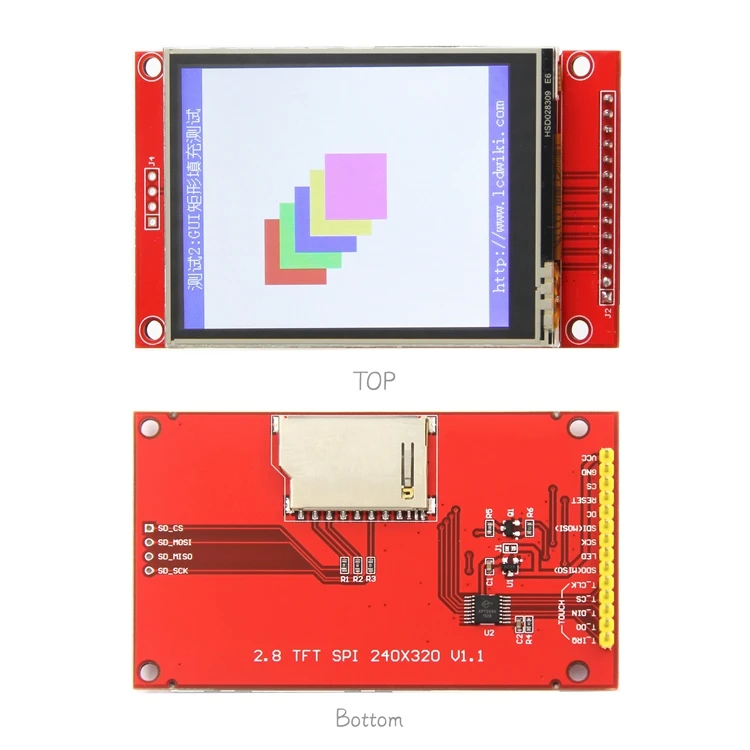

Pin
Description
1. VCC
5V/3.3V power input
2. GND
Ground
3. CS
LCD chip select signal, low level enable
4. RESET
LCD reset signal, low level reset
5. DC/RS
LCD register / data selection signal,high level: register, low level: data
6. SDI(MOSI)
SPI bus write data signal
7. SCK
SPI bus clock signal
8. LED
Backlight control, high level lighting,if not controlled, connect 3.3V always bright
9. SDO(MISO)
SPI bus read data signal, if you do not need to the read function, don't connect it
10. T_CLK
Touch SPI bus clock signal
11. T_CS
Touch screen chip select signal, low level enable
12. T_DIN
Touch SPI bus input
13. T_DO
Touch SPI bus output
14. T_IRQ
Touch screen interrupt signal, low level when touch is detected
