Product Overview
Description
Product Descriptionfiberglass composite I section H beam size
fiberglass composite I section H beam size
| Parameters | |||
| Type | fiberglass composite I section H beam size | ||
| Material | ECR Glass Fiber + Resin (ORTHO,ISO,VE,PHENOLIC)+Filling (ATH) | ||
| Size | can be customized (pls check detail as below form) | ||
| Color | According to RAL Book.Yellow, Orange, Blue, Green, Grey, etc. can be cutomized | ||
| Properties | |||
| Light Weight / High Strength | Low Density (about 1.8), 1/4 of steel ,2/3 of aluminum.Specific strength | ||
| Anti-Fire / Safety | Good performance of electric insulation,10KV no voltage breakdown. No electro-magnetic behavior. No electric spark. Oxygen index≥32, Anti-fire and Pass test of ASTM-E84. | ||
| Anti-Corrosion | No rust, resistance to acid, alkali, organic dissolvent and other gas and liquid mixture. | ||
| Anti-skid | Different process mode on surface, concave, gritted, increase friction factor. | ||
| Anti-aging | Have more than 20 years effective service life under normal outdoor working condition. | ||
| Anti-fatigue | Moderate flexibility reduces the workers` pressure on legs and waist | ||
| Easy maintenance | have alternative and bright colors. Non-fading. Easily for clean. | ||
| Excellent economic benifits | Excellent comprehensive economic benefits | ||

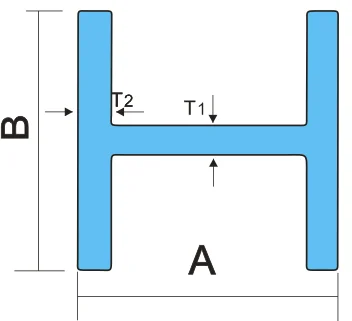

Size - H&I Beam
| Item | Size - H Beam AxBxT1xT2 (mm) |
| HB76 | 76x76x6.4x6.4 |
| HB102A | 102x102x6.4x6.4 |
| HB102B | 102x102x8.0x8.0 |
| HB152A | 152x152x6.4x6.4 |
| HB152B | 152x152x9.5x9.5 |
| HB203A | 203x203x9.5x9.5 |
| HB203B | 203x203x12.7x12.7 |
| HB203C | 203x203x6.4x6.4 |
| HB254A | 254x254x9.5x9.5 |
| HB254B | 254x254x12.7x12.7 |
| HB305 | 305x305x12.7x12.7 |
| Item | Size - H Beam AxBxT1xT2 (mm) |
| IB25 | 15x25x6.4x4.0 |
| IB32 | 15x32x6.4x4.0 |
| IB38A | 15x38x4.0x6.4 |
| IB38B | 30x38x3.0x3.0 |
| IB45A | 45x180x12.0x9.0 |
| IB45B | 45x180x12.7x12.7 |
| IB50A | 50x102x6.4x6.4 |
| IB50B | 50x102x8.0x8.0 |
| IB60B | 60x180x6.4x6.4 |
| IB76A | 60x180x6.4x6.4 |
| IB76B | 76x152x9.5x9.5 |
| IB102A | 102x203x9.5x9.5 |
| IB102B | 102x203x12.7x12.7 |
| IB120 | 120x240x12x12 |
| IB127A | 127x254x9.5x9.5 |
| IB127B | 127x254x12.7x12.7 |
| IB127C | 127x152x9.5x9.5 |
| IB127D | 127x152x12.7x12.7 |
| IB152A | 152x305x9.5x9.5 |
| IB152B | 152x305x12.7x12.7 |
