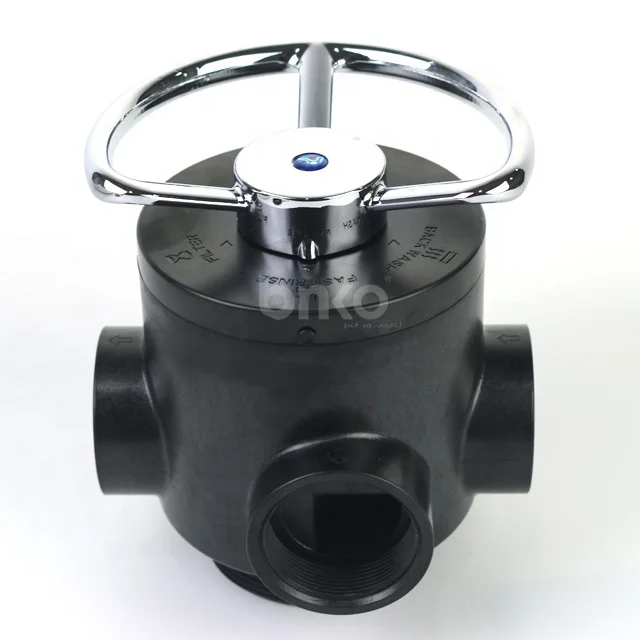

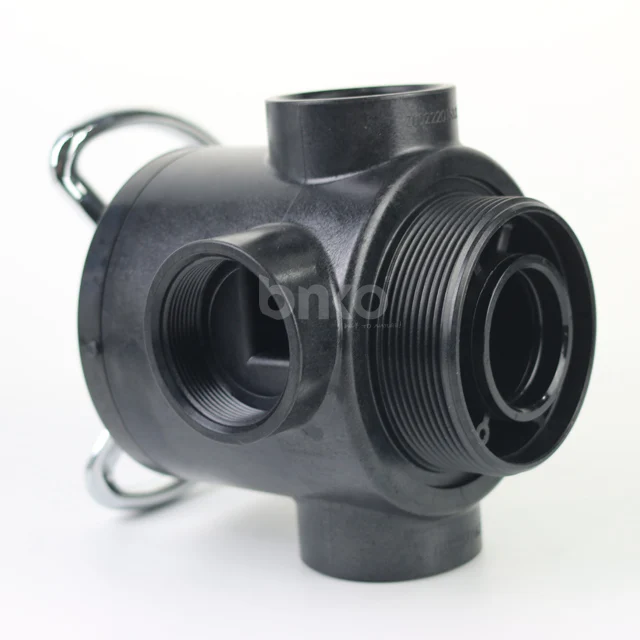

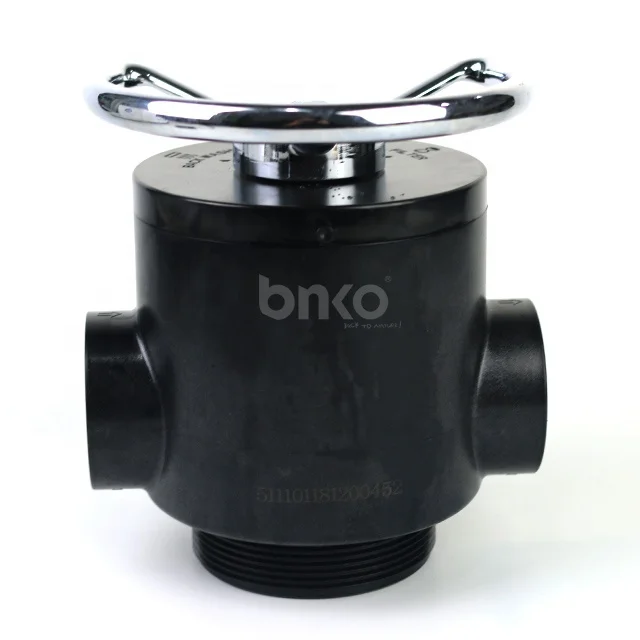

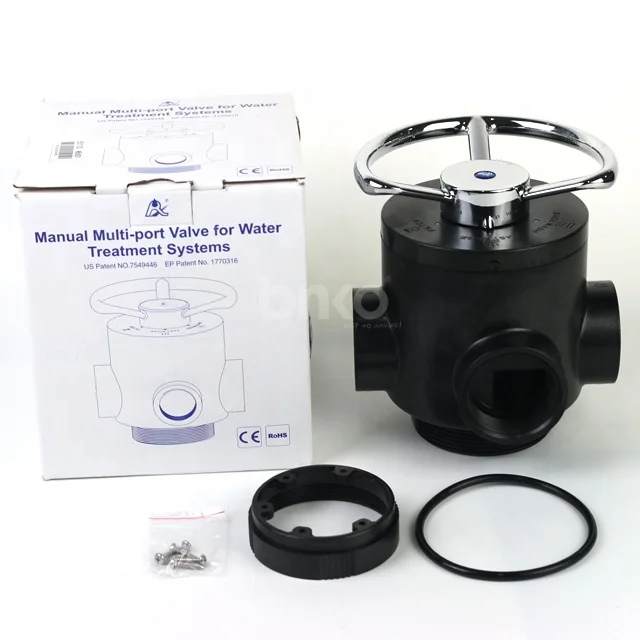

10m3/h Manual Filter Control Valve for water treatment

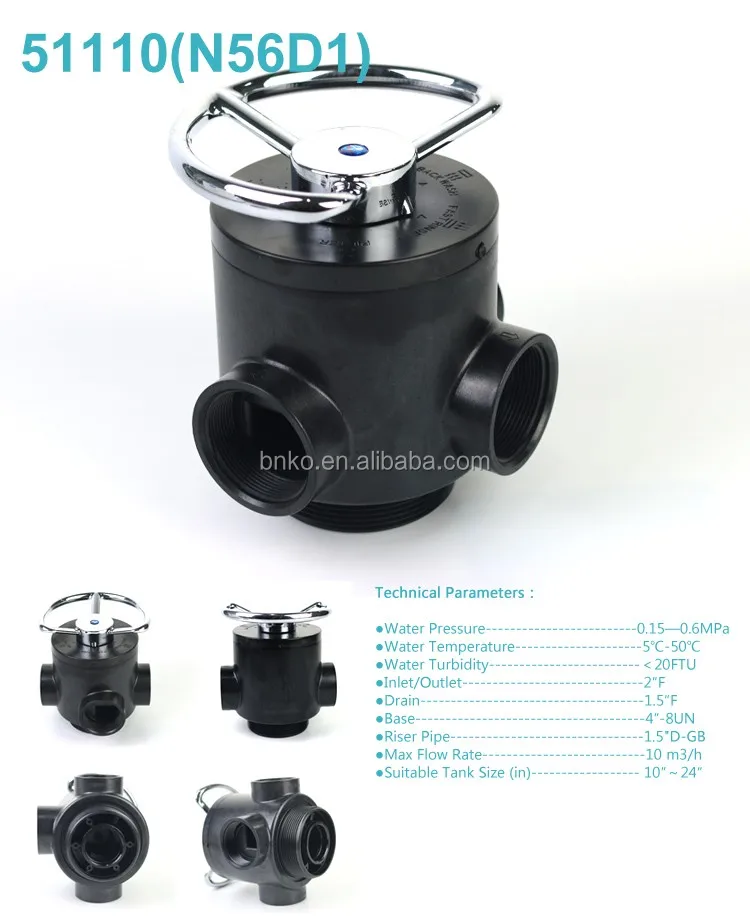

Product Characteristics

●Water Pressure----------------------------------------------0.15-0.6MPa
●Water Temperature-----------------------------------------5℃-50℃
●Water Turbidity-----------------------------------------------<20FTU
●Inlet/Outlet-----------------------------------------------------2″F
●Drain------------------------------------------------------------1.5″F
●Base-------------------------------------------------------------4″-8UN
●Riser Pipe------------------------------------------------------1.5"D-GB
●Max Flow Rate-------------------------------------------------10 m3/h
●Suitable Tank Size (in)--------------------------------------- 10″~24″

■It adopts hermetic head faces with high degree pottery and corrosion resistance for opening and closing.
■No water passes the valve in rinse in single tank type.
■Reasonable design of the flow passage: Service→ Fast Rinse→ Backwash → Fast Rinse → Backwash →Service.
■It can be changed to be side-mounted valve with side-mounted connector.
■It can operate under pressure, without leakage.

Range of Application:
Filtration system
Swimming pool filtration equipment
Active carbon or sand filter in RO water treatment filtration system
