AL 2400mm West Felt Hard Wadding & Soft Wadding Making Production Line/Drying Oven

Product Application

AL-2400mm West Felt Needle Punching Production Line Line

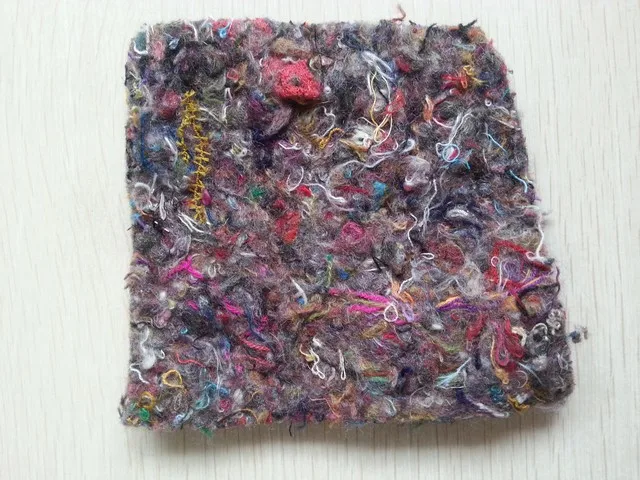

⒈ Final Products Name:AL-2400mm West Felt Thermal Bonded Wadding Production Line

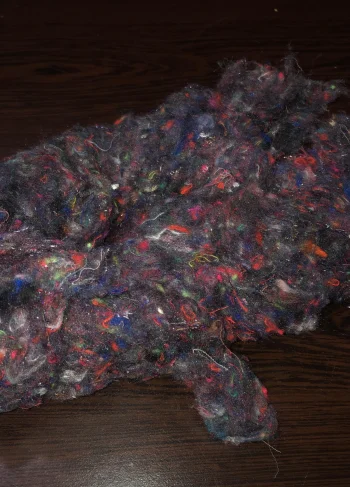

⒉ Raw Material:Polyester staple fiber, west fiber ,west cloth,Low melting point fiber and other fiber etc;
⒊ Production process: A percentage of polyester staple fiber,waste fiber or waste cloth fiber, and low melting point fibers be opened and blended by opener, then carded and lapped with required thickness, and set by the process of oven and setting.

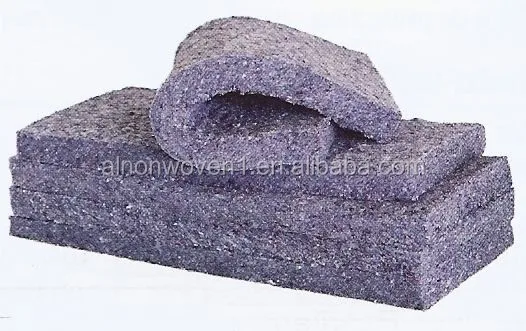

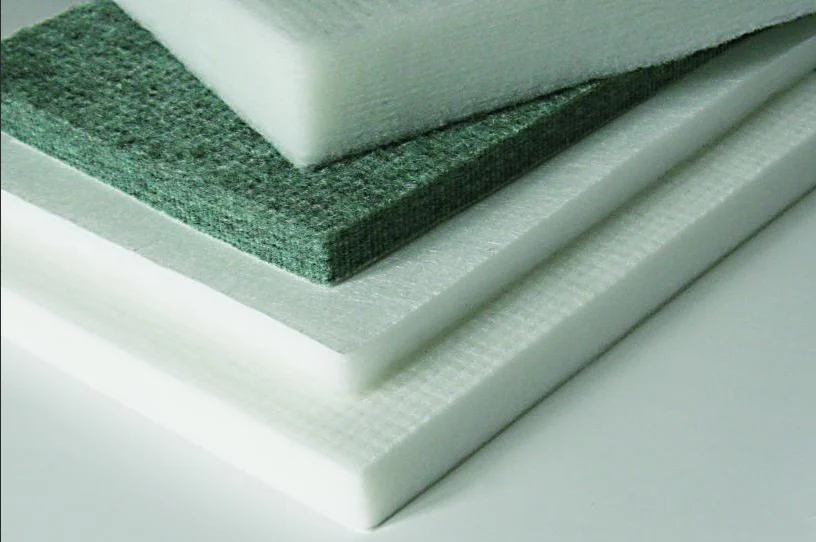

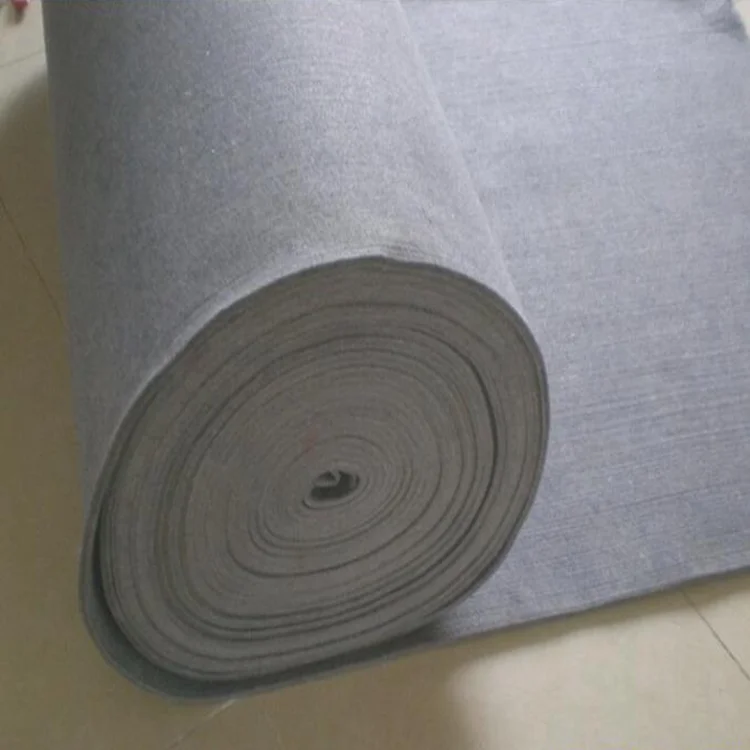

⒋ Products feature: good permeability, good warmth retention property, lightweight sound absorbing, high resilience, anti-aging, washable, clean with no harmful substances.
⒌ Products Application: The product is mattress ,warm and sound insulation ect;

Main Features

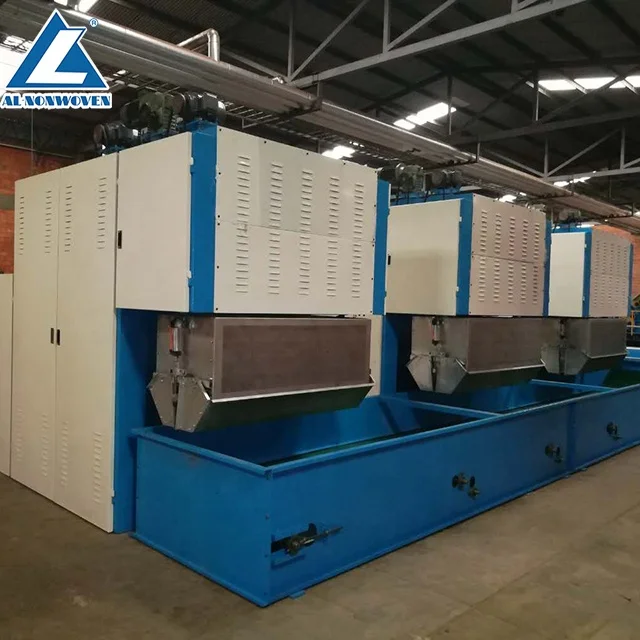

Electric Bale Opener

Brand:AL

Original: CHINA

⒈ Width:1500mm
⒉ Storage Volume:300kgs
⒊ Feeding lattice adopts PVC materials, support chain plate with steel plate adding PVC plate
⒋ Electric Weighing, photoelectric control
⒌Upper the weighing hopper with a small hopper connected with weighing hopper

Single Cylinder Carding Machine

Brand: AL
Original: CHINA
⒈ Working Width: 1850mm
⒉ Mechanical type: Single Cylinder double doffer four clutter
⒊ Proper fiber specification:4D-25D
⒋ Output line speed:15~40m/min
  Main cylinder dia 1230mm with 5 sets working zones,
⒍ Four rollers feeding with frequency control, installed with anti-metal alarm and auto-reverse function
⒎ Installed with 5 sets frequency changer to control the feeding, cylinder, doffer, inner clutter, outer clutter

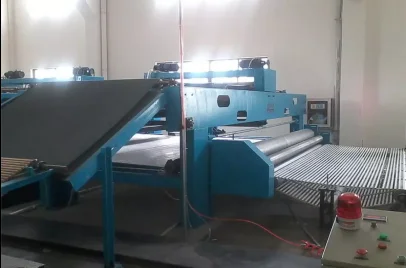

 Cross Lapper
Brand: AL
Original: CHINA
1, Effective output width2800mm
2, Input Lattice length: 2700mm(anti-skidding PVC belt)
3, Output Lattice length: 2800mm
⒋ Bottom lattice: Bamboo lattice, lift range: 500mm
⒌ All the horizontal moving rollers adopt seamless steel pipes
⒍Reciprocating movement with multistage speed control (PLC programmed control, touch screen), 4kw motor frequency control with PLC, 14M synchronous belt drive straight after, reversal time within 20 microseconds to make sure the uniformity
7. The exit of bottom output lattice with press-roller(stainless steel roller) dia 300mm by manual lifting, the bottom lattice with point control lifting by individual motor, with clip lattice

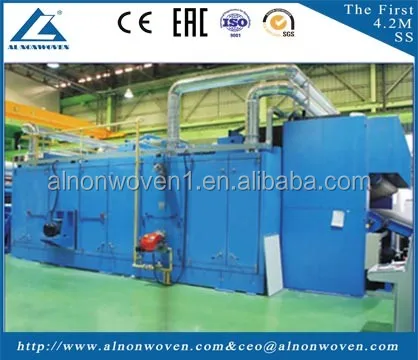

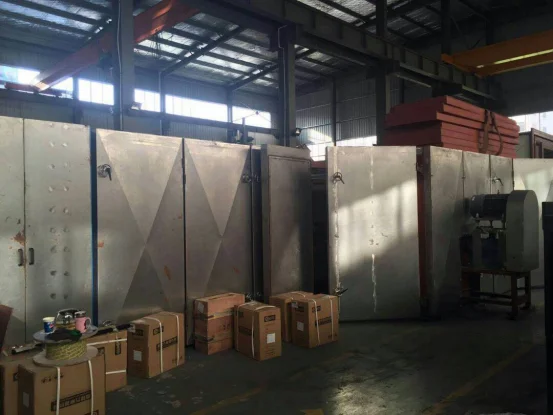

Drying and Setting Oven

Brand: AL
Original: CHINA

1. Effective working width:2400mm
2. Upper lattice &down lattice clamping type feeding , upper lattice electrical lifting with motor 2.2kw (lifting range 120mm),web lattice width 3000mm.
3. Conveying lattice uses Teflon belt with movable connector, grid size 4mm*4mm, transmitting lattice with conveying chain and chain-bar structure.
4. Effective heating areas length 6000mm, heating area has two parts, the front part with upper-blowing &down absorbing, and the back part with down blowing &upper absorbing.
