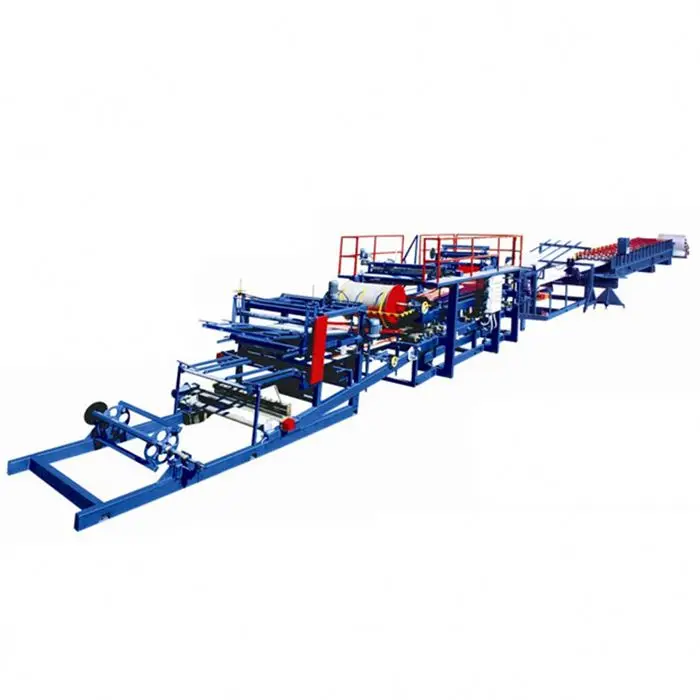

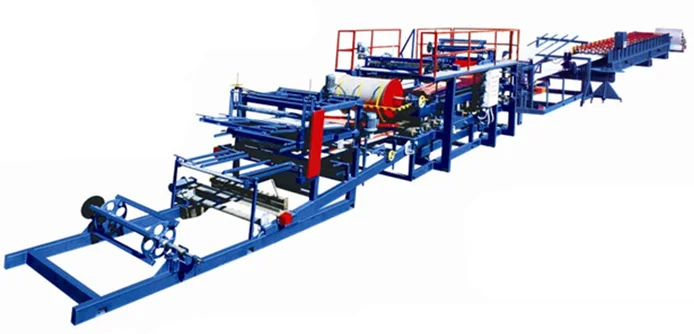

Manufacturer Price Sandwich Panel Foam Making Machine Production Line
Main Specification of PU Sandwich Panel Production Line:
1) Speed of product line: maximal speed: 6-7/min (approx 2880-3360 m2 per day) (frequency conversion to adjust speed)
2) The dimension the product line: about 120 mX18mX3.5m
3) Total power of the product line: about 400 KW(Include the electricity heating 200kw)
4) Single shift can produce 820,000-960,000 m2 (the line can operate 24 hours per day)
5) 2 component Chinese PU foaming machine
6) The final panel width:1000mm
7) The thickness of the steel sheet:0.3-0.7mm
8) Core materials: PU
9) Density of the PU panel: 40-45kg/m3.

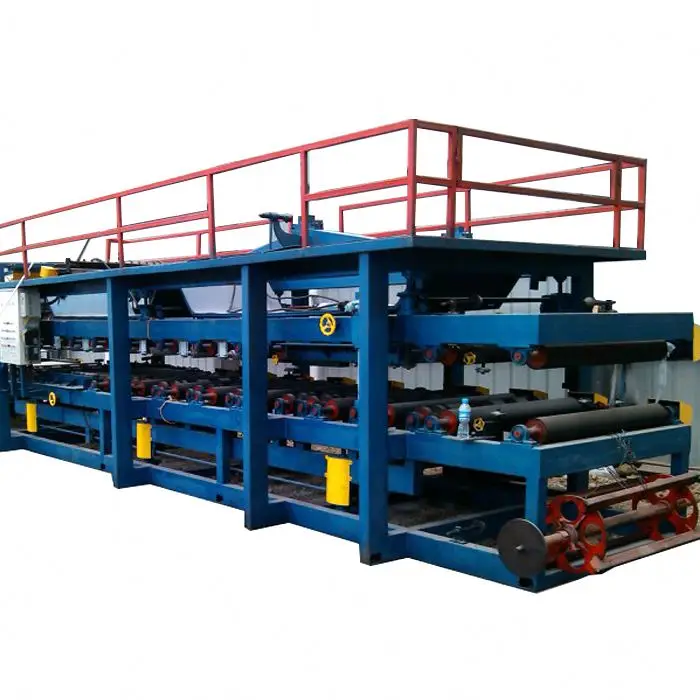

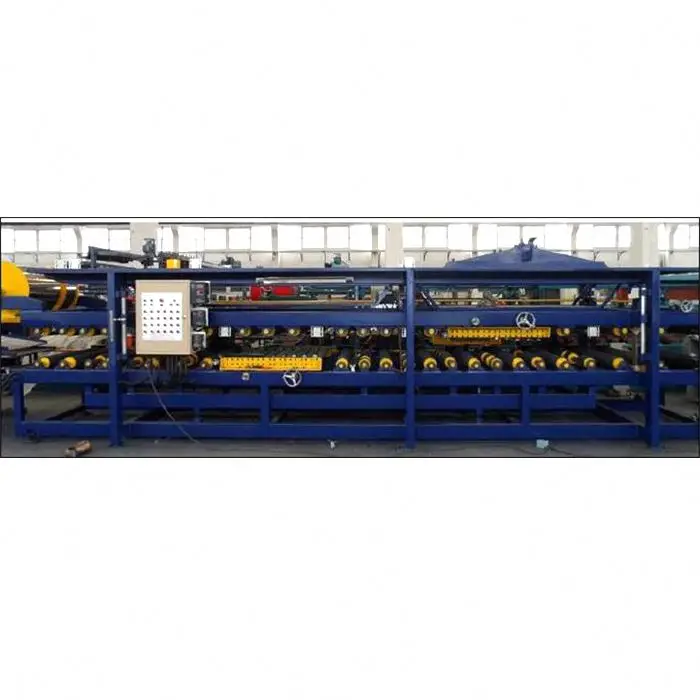

10) The length of the double belt: 24m

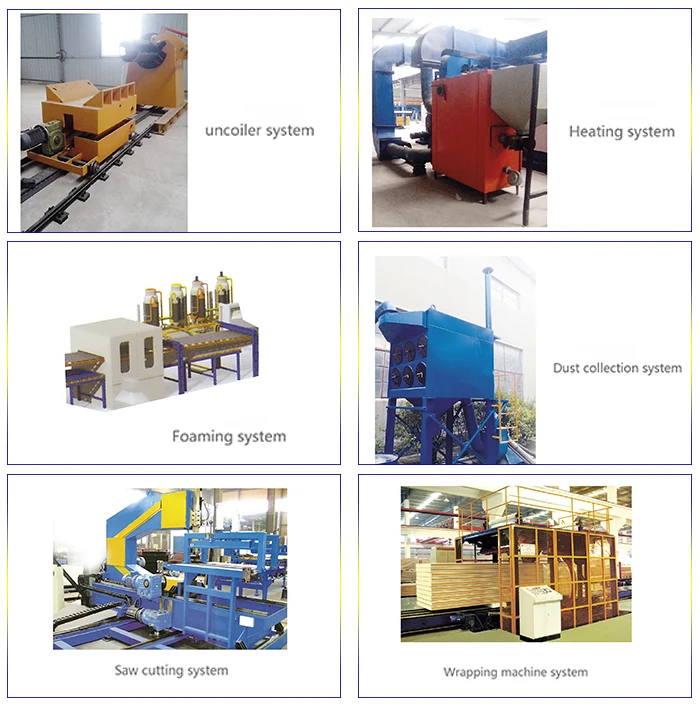

1. Hydraulic Un-coiler:
| Motor Power: | 3KW |
| Hydraulic Power | 202kw |
| Raw material: | Color steel sheet, Aluminum sheet |
| Inner diameter of coil: | φ500mm-φ600mm |
| Out diameter of coil: | φ1200mm |
| Weight of coil: | 10T |
| Thickness of sheet: | 0.3-0.7mm |
| Width of sheet: | 1250mm |
| Speed of uncoil: | 1.5-12m/min |
| Hydraulic pressure: | 6.3Mpa |
2. Coil car:
| Hydraulic cylinder lift stroke: | up panel 0.5m,down panel 0.5m |
| Coil car stroke: | 0.5m |
| Pressure of hydraulic system: | 6.3Mp |
| Tightening mechanism | Magnetic brake |
Product Category

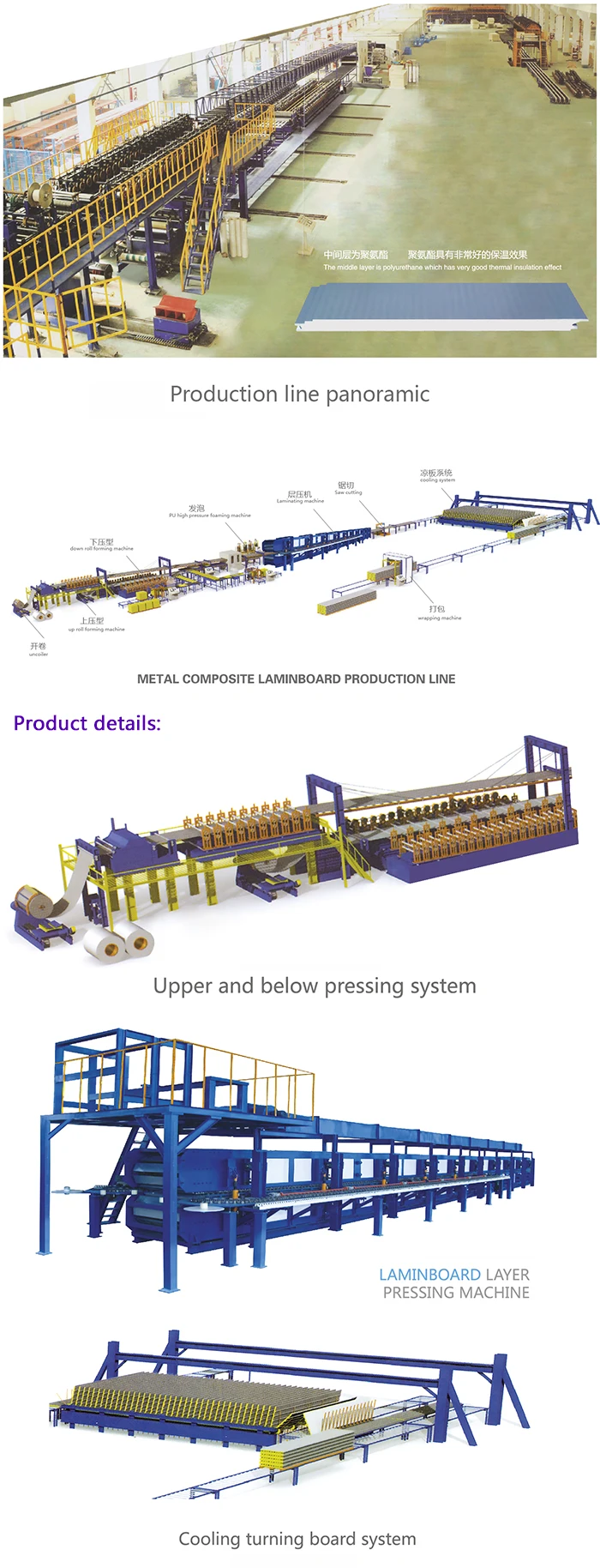

Production Flow
Company Information
Company Verified
Sale Terms
- Payment Method
30% as deposit ,balance payment after inspection while before delivery.
- Production Period
30 days after the 30% deposit.
- Packing Method
Nude packing in the 40 feet container ,fixed well with oil rope, control cabinet and all the accessories with waterproof.
- After-sell Service
In correct operation & maintaining, the machine is guaranteed for one year since leaving our factory excludes the electric elements.
- Installation
If installation is needed, the seller will dispatch a technician to the buyer’s factory abroad to assist regulating the machine with charge free. The buyer should assist the seller to get the Chinese technician's visa and should pay for the roundtrip air ticket and the local accommodation.If installation is needed, the buyer shall make the following preparation before arrival of technicians.
Position the machine in the buyer’s factory.
Prepare necessary electric wiring.
Prepare material of trial running.
Provide labors for assistance and installation during installation.
Packaging & Shipping
FAQ
Q1. What's your payment terms and delivery time?
A1: 30% as the deposit by T/T in advance, 70% as the balance payment by T/T after your inspect the machine well and before delivery. Of course your payment terms are acceptable.
After we get down payment, we will arrange production. About 30-45 days for delivery.
Q2. Do you have after-sales support?
A2: Yes, we are happy to provide advice and we also have skilled technicians available across the world.
Q3. Do you sell only standard machines?
A3: No, most of our machines are built according to customers specifications, using top brand components.
Q4. What will you do if the machine is broken?
A4: We provide 18 months free warranty and free technical support for the whole life of any machine.
If the broken parts can't repair, we can send the new parts replace the broken parts freely, but you need pay the express cost by yourself. If it is beyond the warranty period, we can negotiate to solve the problem, and we supply the technical support for the whole life of the equipment.
Q5. Can you be responsible for transport?
A5: Yes, please tell me the destination port or address. we have rich experience in transporting.
Q6. How to visit your company?
A6: 1) Fly to Beijing airport, By high speed train From Beijing Nan to Cangzhou Xi (1 hour).
2) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
