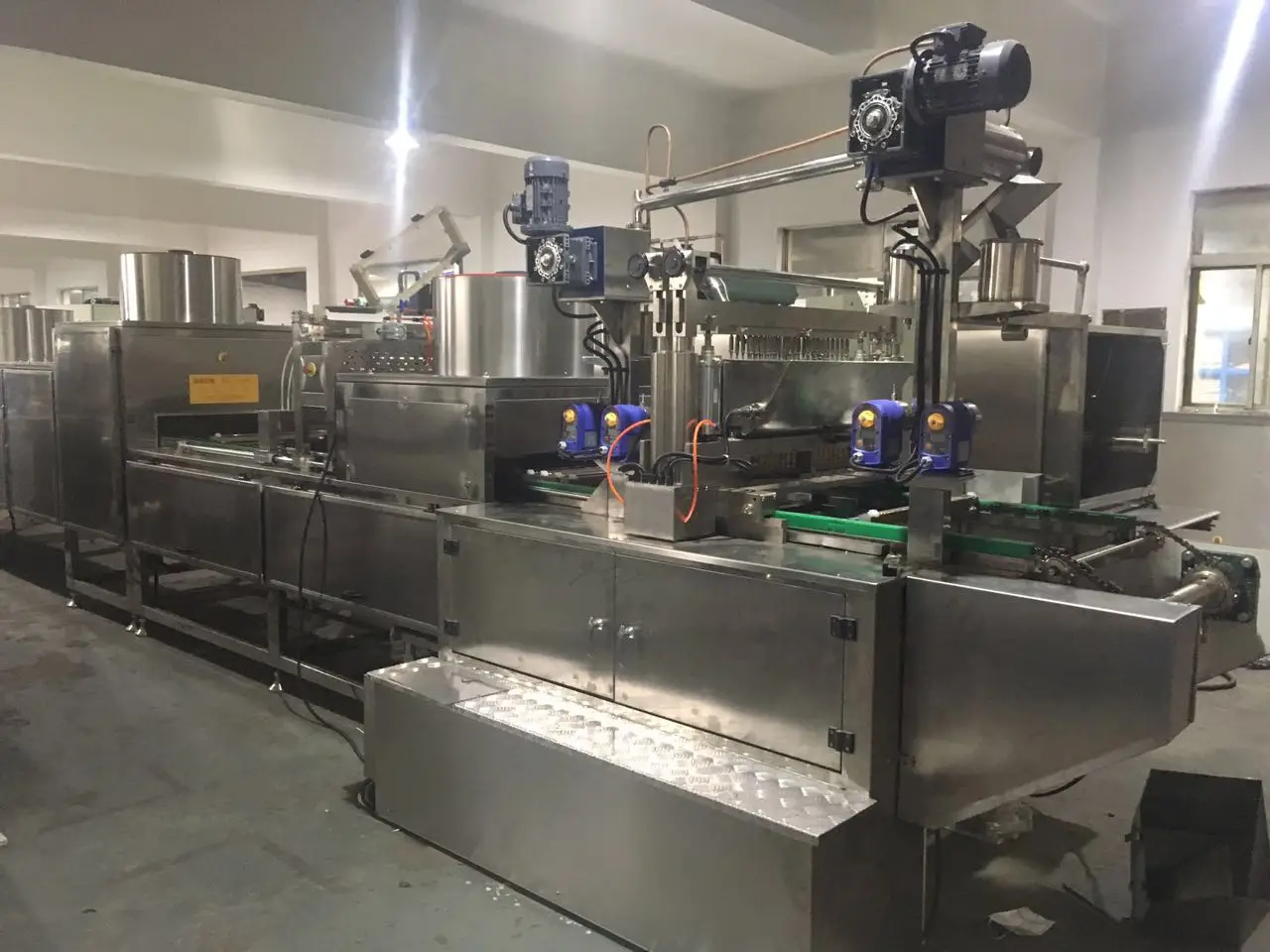

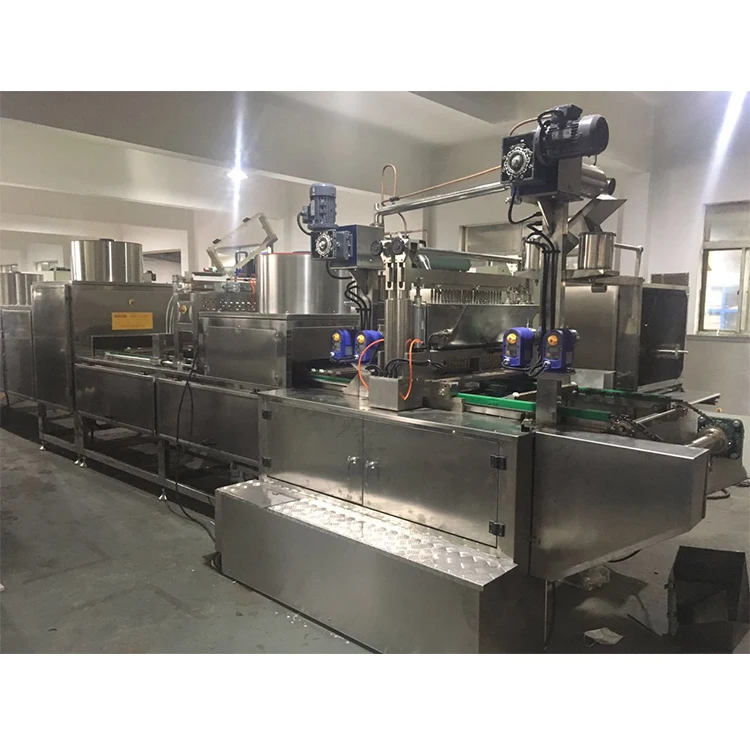

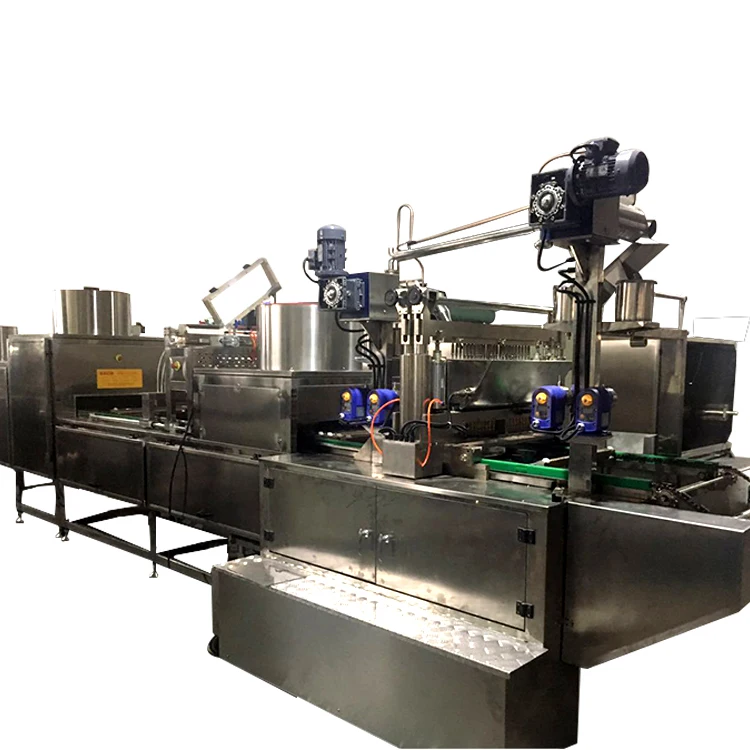

This line is the economic production line for gummy candies. There isn't starch but Alu. alloy candy moulds.
Model
NTM-150,300,450,600
Output(kg/h)
150-600kg/hour
Speed
35~55shots/min
Shape of candy
Customized mold available
Steam consumption
150-600kg/h, 0.4~0.7MPa
Steam pressure
Compressed air consumption
0.3m3/min,
Compressed air pressure
0.4~0.6MPa
Electric power needed
18-60kW/380V
Temperature of workshop
20-25 C
Humidity of workshop
55%
Mould(pcs/set)
660-1980pcs/set
Size of line
12000*1500*2500mm
Weight
3000-4500 kgs
Model
Four Rows
Three Rows
Double Row
Capacity (Calculated By 5 Grams)
600kg
450kg
300kg
Production Speed
55 min /minute
55 min /minute
55 min /minute
Glycoform
To be determined
Electrical
Voltage
380v
380v
380v
Power
45kw
40kw
30kw
Refrigeration
2x12HP
1x15HP
1x10HP
Power
20kw
15kw
8.5kw
Compressed Air
Usage
0.6 m3/min
0.6 m3/min
0.6 m3/min
Pressure
0.4-0.6mpa
0.4-0.6mpa
0.4-0.6mpa
Use environment
Temperature
8-10 degrees Celsius
8-10 degrees Celsius
8-10 degrees Celsius
Humidity
55%
55%
55%
Sugar Weight
5g
5g
5g
Machine Size
18× 3 × 2.5
18×2. 5 × 2.5
18× 2 × 2.5
Weight
10000kg
8000kg
6000kg
Company Information
Newtang Machinery and Electric Co., Ltd, involved in confectionery and chocolate machinery area for more than twenty years, has gained a high reputation among our customers. We are specialized in chocolate machines, jelly candy machines, toffee machines, hard candy and lollipop machines And related wrapping machines. We will continue to provide quality based, cost efficient products to our clients.
Certificats
Packaging & Shipping
After service
1. We provide free training of machine installation, operation, and maintenance service to our customers, the business trip charge and tips are born by the users.
2. We supply free spare parts with the machines upon the time of shipment. After that, users can purchase the necessary parts from us at our factory cost price.
3. We offer technical support service by call, email or video within 24 hours upon request.
