Morningstar’s TriStar Controller is a three-function controller that provides reliable solar battery charging, load control or diversion regulation. The controller operates in one of these modes at a time and two or more controllers may be used to provide multiple functions.
Functions

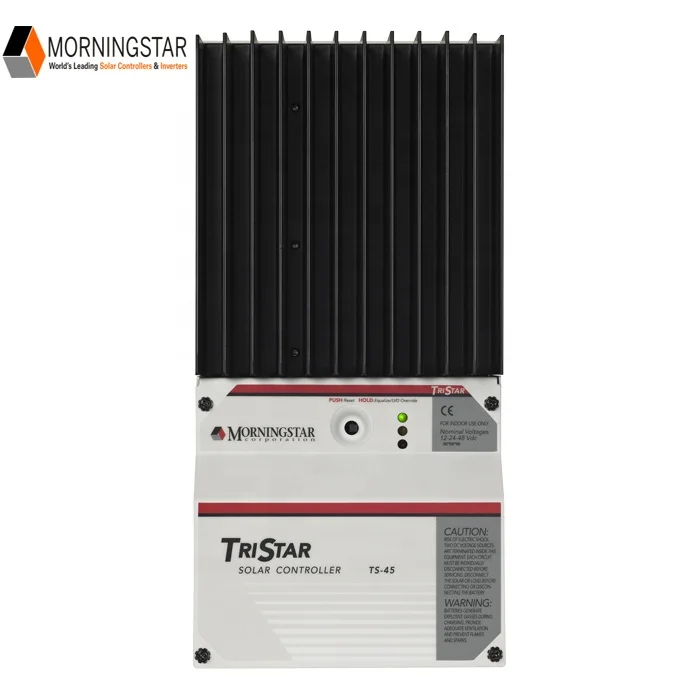

TriStar™
THREE FUNCTION SOLAR CONTROLLER • High Reliability & Efficiency • More Power • Fully Adjustable • Extensive Electronic Projections
Morningstar’s TriStar Controller is a three-function, programmable controller that provides reliable solar battery charging, load control or diversion regulation. The controller operates in one of these modes at a time and two or more controllers may be used to provide multiple functions.
The TriStar uses advanced technology and automated production to provide exciting new features at a competitive cost. The optional TriStar meter is the most sophisticated and informative controller meter on the market. The 60 amp version is also available with a factory installed meter. The controller is ETL Listed (UL1741) and TUV (IEC62109-1), and is designed for home systems and professional applications.
Product Overviews
Technical Specification
Brand
Morningstar
Type
TriStar-45
Electrical
Rated solar, load
or diversion current
45A
System Voltage
12, 24 or 48V
Accuracy
12/24V ≤0.1% ±50mV
48V ≤0.1% ±100mV
Minimum voltage to operate
9V
Maximum solar voltage (Voc)
125V
Self-consumption
Controller
<20mA
Meter
7.5mA
Mechanical
Dimensions
Height: 26.0cm/10.3 in Width: 12.7cm/5.0 in Depth: 7.1cm/2.8 in
