mini concrete batching plant for sale 35m3/h productivity /portable concrete batch plant
Product Description
mini concrete batching plant for sale 35m3/h productivity /portable concrete batch plant is a kind of combined device used for mixing concrete. Owing to its high degree of mechanization and automation, Improving the production efficiency greatly. it can guarantee the quality of concrete and save the cement and concrete used in large quantity, the concrete batching plant is widely used in long construction period, the site concentration of large and medium-sized water conservancy and electric power engineering, bridge etc.
Advantages
1. It is composed of the systems of material supply, weighing, mixing and electric control;
2.Its discharge height is 3.8m, and it can mix various types of concrete;
3.With the loader to feed material, it can store four types of aggregates at the same time and also with two cement silos and their respective screw conveyor;
4.With electronic scales to measure and the mixing host is twin-horizontal-axis type;
5.Electrical system is equipped with IPC, printer and so on to realize the centralized control and overall management.
Technology parameter
Model
HZS35
Rated Productivity
35m3/h
Main Mixer
JS750
Batching Unit
PLD1200
Max. Aggregate Diameter
80mm
Discharging Height
3.8m
Capacity ofAggregate Bin
2X8m3
Aggregate Conveying Mode
Flat Bet Conveyor
Aggregate Weighing Precision
220000Kg±2%
Cement Weighing Precision
450Kg ±1%
Water Weighing Precision
200Kg ±1%
Additive Weighing Precision
30Kg ±1%
General Power
60Kw
Total Weight
15T
Outline dimension (L*W*H)
19.8m*8.2m*8.5m
Product Display

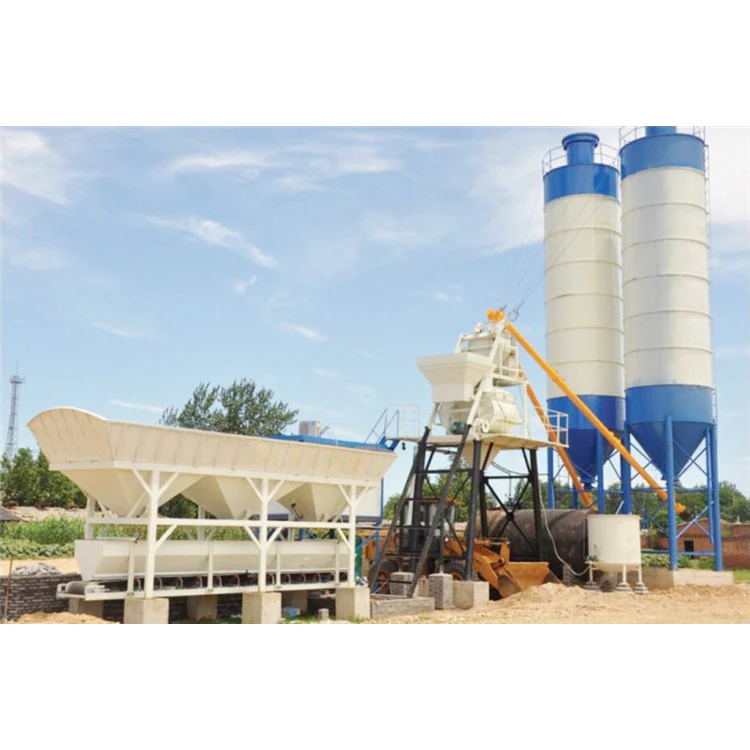

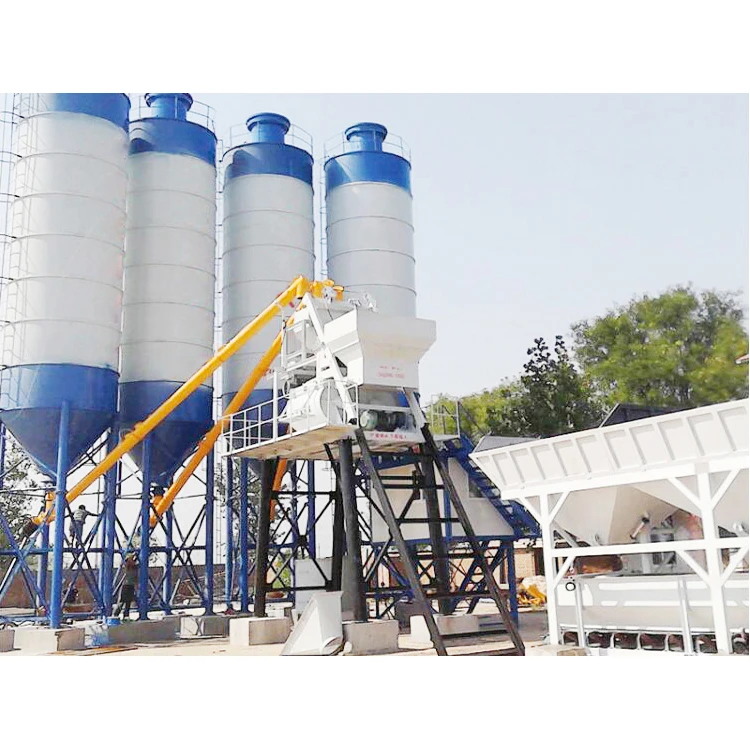

About HZS35 concrete mixer plant, it compose of concrete mixer , batching machine, electric control system etc.

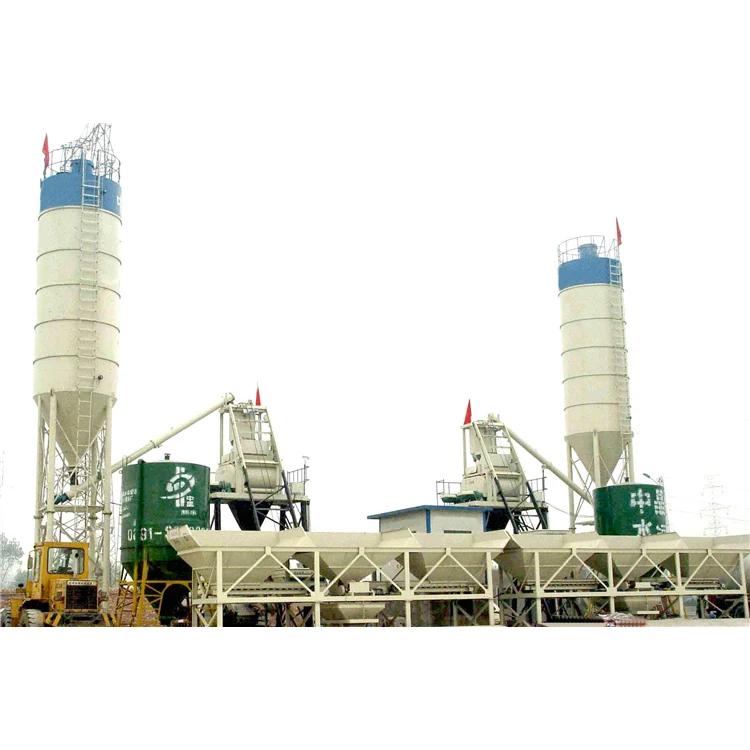

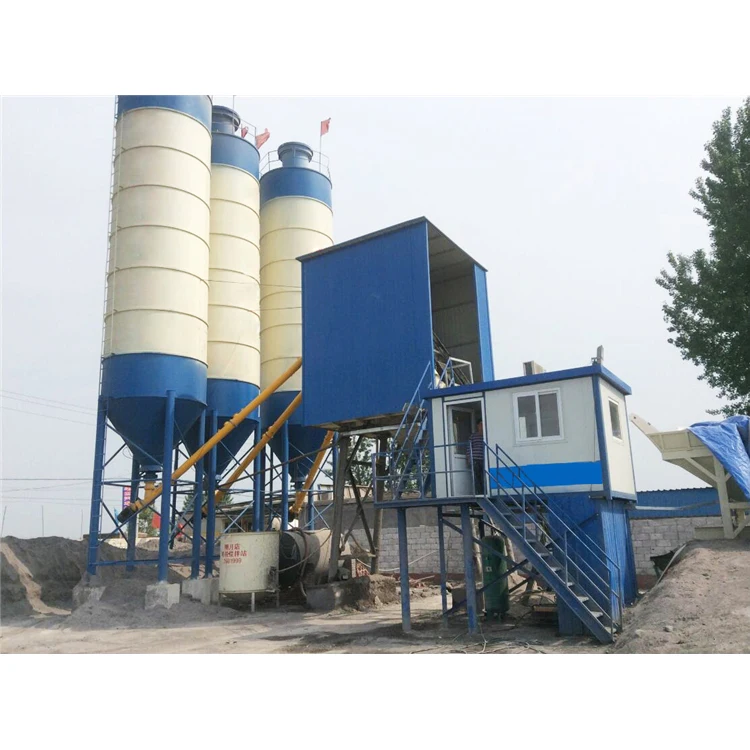

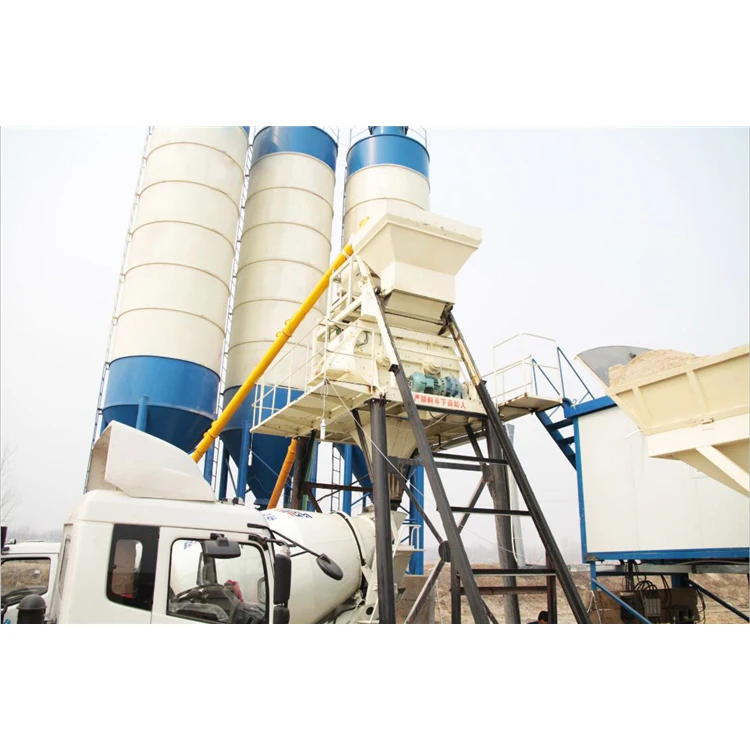

Successful Cases
Company Information
History:
With more than 30 years development, our company has become one of the leading professional manufacturers and exporters of Construction Machinery in China. Till now, the factory area covering reaches 120,000m2 and have about 1000 person, including engineers, workers, sales, and service people.
Certificates:
We have got certificate ISO9001:2000 and passed SGS test. At present, our products are popular at home and abroad.
Our Markets:
Holding high quality products and honest operation as tenets, we have developed international market very well, such as Russia, Southeast Asia, Central Asia, Mid-East, South Africa, America, etc, more than twenty countries and regions.
Our Services
Warmly welcome to send massaage to us!
we will provide best service to you!
mini concrete batching plant for sale 35m3/h productivity /portable concrete batch plant!
