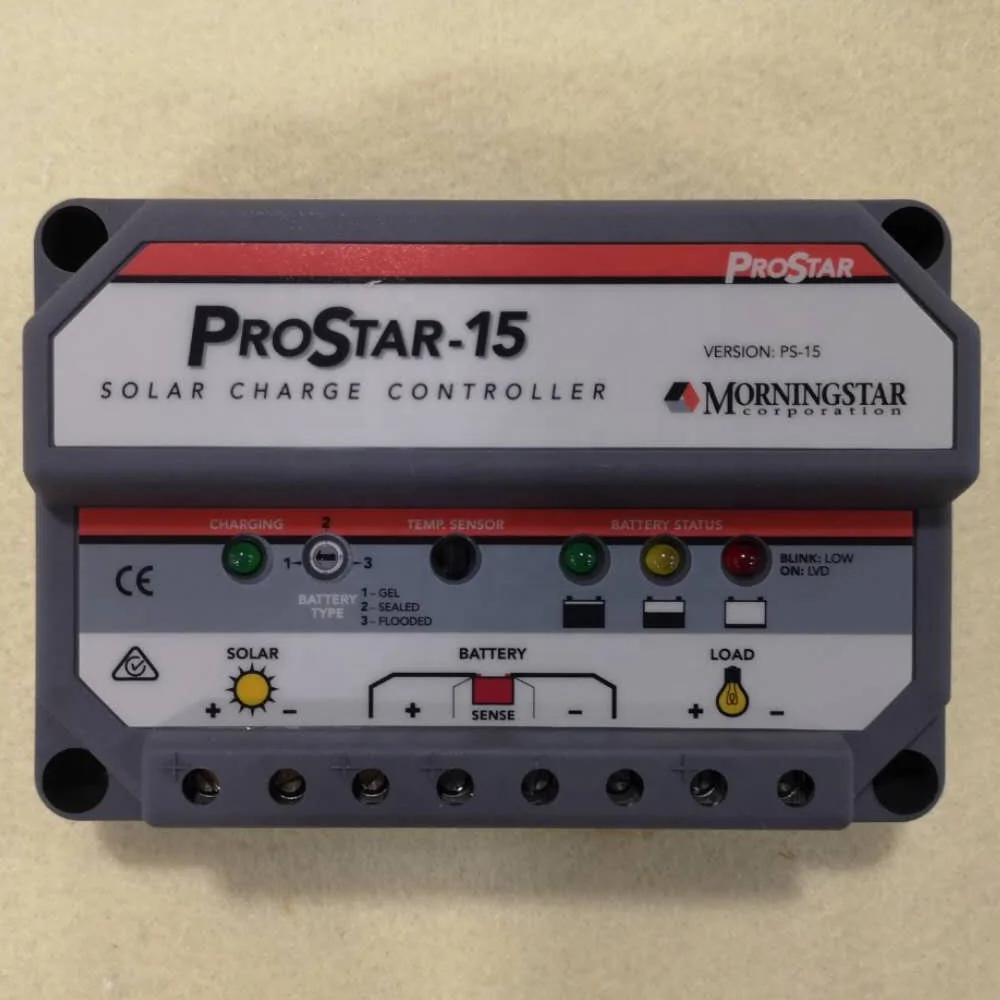

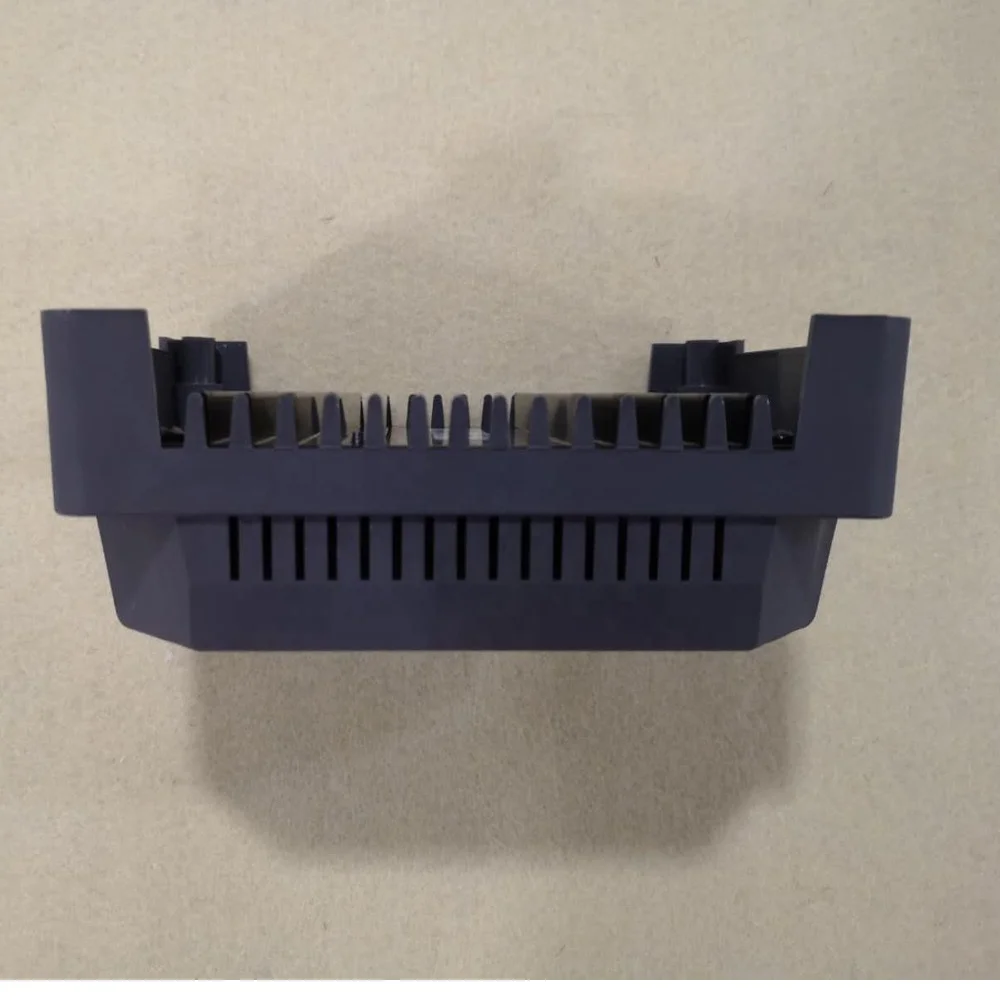

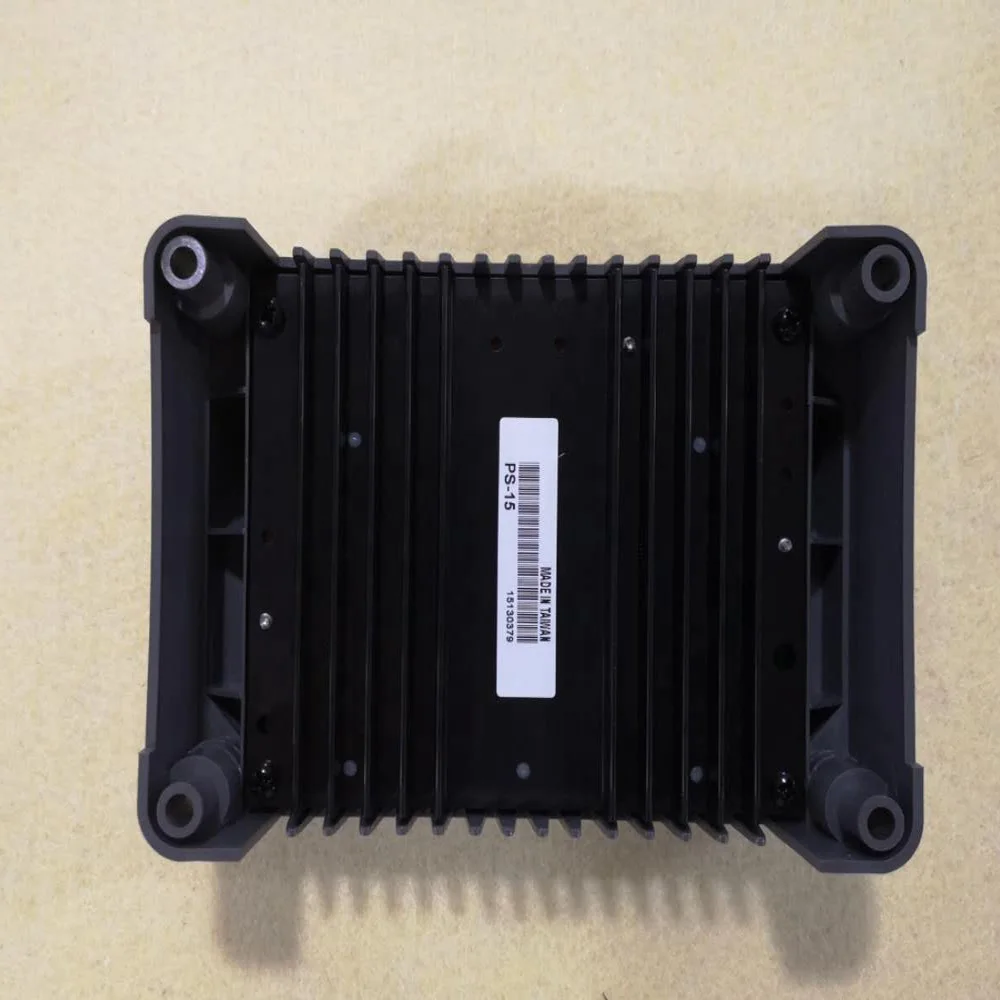

Morningstar Prostar 12-24V 15A Solar Charge Controller
prostar solar controller
morningstar prostar
Product Overviews
Brand
Morningstar
Model
PS-15 (GEN 2)
Electrical
Maximum Battery Current
15A
Load Current Rating
15A
Max. Solar Input Voltage
12V/24V bat: 60Voc
Nomianl Battery Voltage
12V or 24V
Battery Voltage Range
10-35Vdc
Voltage Accuracy
<= 0.1% +/- 50mV
Self-consumption
<20mA
LED Indications
(1) status, (3) Battery state of charge
Transient Surge Protection
1500 Watts (solar, battery, load)
Battery Charging
4-stage Charging
Bulk, Absorption, Float, Equalize
Environmental
Working temperature
–40°C to +60°C
Storage temperature
–40°C to +80°C
Humidity
100% (non-condensing)
Tropicalization
Conformal coating, marine-rated terminals
Accessories
• Remote Temperature Sensor(RTS) • Remote Meter (RM-1) • PC MeterBus Adapter (MSC) • USB Communications Adapter (UMC-1) • Ethernet Communications Adapter (EMC-1) • Meter Hub (HUB-1) • Relay Driver (RD-1) • Ground Fault Protection Device (GFPD-150)
Certifications
CE and RoHS Compliant
TUV Listed
UL62109/CSA.107.1; IEC 62109
FCC Part-15 class B compliant
Manufactured in a Certified ISO 9001 Facility
FAQ
1. Q: Are you a factory or trading company? A: We are exclusive distributor of Morningstar since 2009 and gained Partner Awards for years. 2. Q:What kind of payment do you accept? A:We accept all payment terms and prefer you to make a order online.
3. Q:Do you have any MOQ and how about the production capacity of your facotry one year? A:MOQ is 1pcs. Annual production is 120000pcs and enough in instock of Beijing office. 4. Q:May I take some samples to test before placing the order ? A: Yes, customers shall pay for the sample fees and express fees.
Please connect to Ms. Killy Sun for trial oder with best pricing online.
5. Q:How long can you offer the samples? A: 2 days after the deposit payment is confirmed.
About Morningstar
Morningstar Corporation is a world-leading manufacturer and supplier of solar charge controllers and inverters. Since their inception in 1993, over 2.5 million Morningstar units have been installed in over 112 countries around the world. Morningstar controllers and inverters have set new standards in performance, quality, reliability and innovative features, and global solar markets have consistently recognized Morningstar's products as the industry's best overall customer value.
Manufacturing is conducted in a fully-automated, world-class ISO 9001 facility, and quality control includes 100% functional testing on every product, using the latest computerized test equipment and processes.
For over 20 years, Morningstar has preserved its ownership, management and strategy, which has allowed the company to build trusted, long-term relationships with its employees, customers and suppliers.
Features
The ProStar solar charge controller has been the leading mid-range pulse width modulation (PWM) controller since 1995. With over 350,000 units installed in the harshest environments in over 100 countries, ProStar sets the standards in performance and reliability for the rest of the solar industry.
While the latest Generation 3 ProStar shares the outstanding build quality and familiar form factor as its predecessors, it comes with new data and lighting control capabilities, a new graphical interface, and advanced protection features that meet the needs of today’s most demanding off-grid solar applications. ProStar provides both “the legend and the latest” in a single new product.
