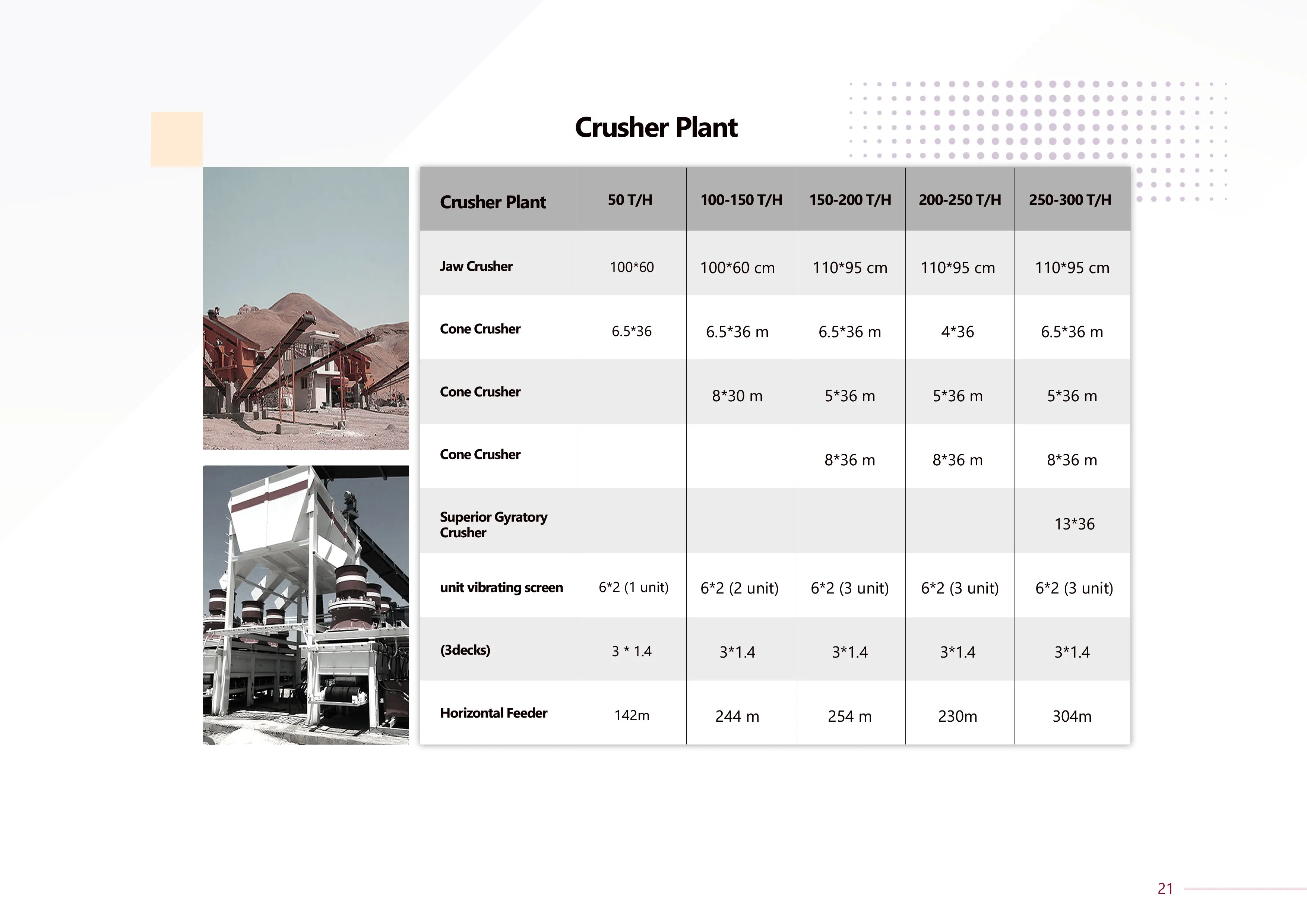

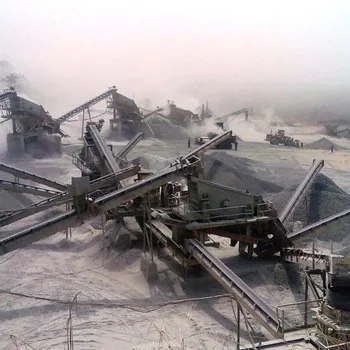

 CRUSHER PLANT 250-300 T/H

Specifications:

Jaw Crusher :110*95 cm

Cone Crusher :6.5*36 m

Cone Crusher :5*36 m

Cone Crusher :8*36 m

Superior Gyratory Crusher : 13*36

3 unit vibrating screen (3decks) : 6*2

Horizontal Feeder: 3*1.4

Conveyor Belt : 304m

Control Cabin and Cable

Power Panel

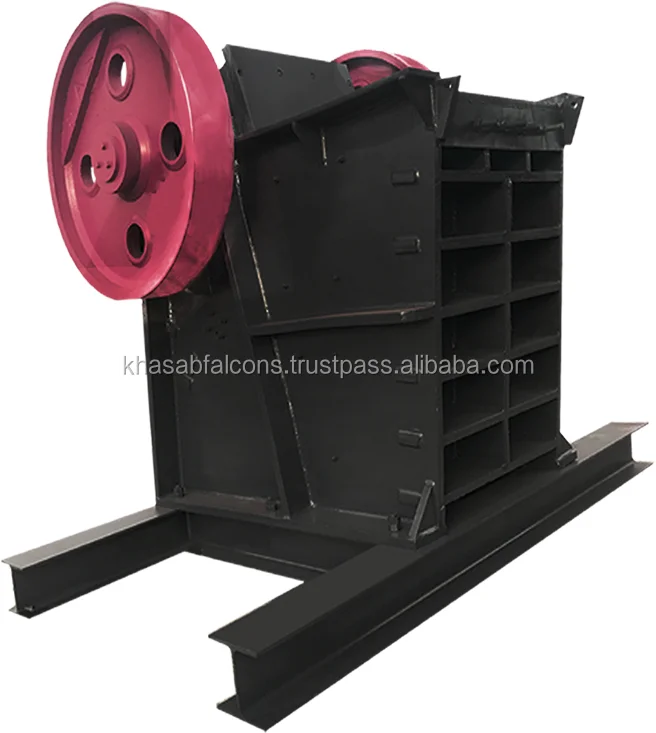

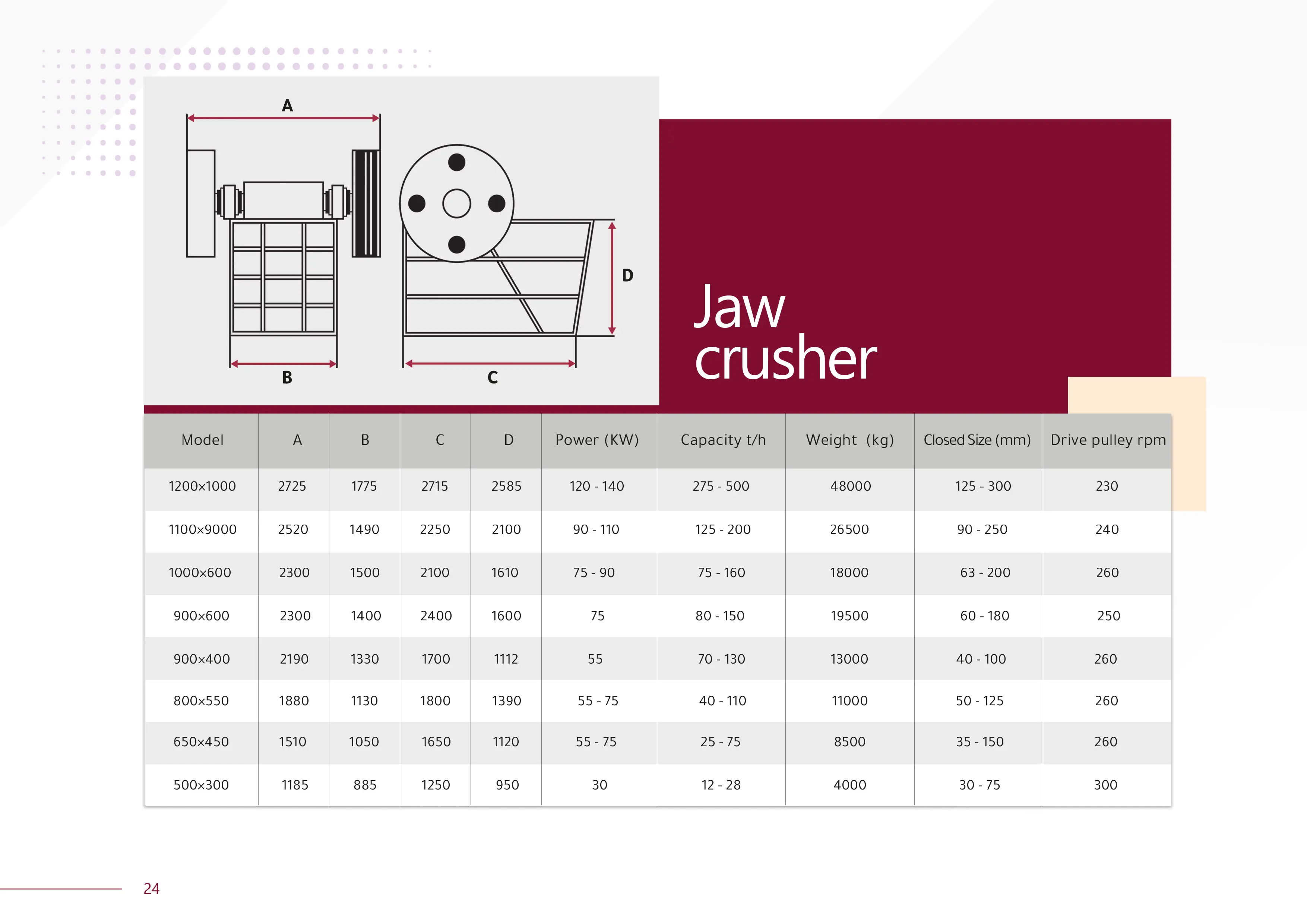

Jaw Crusher 110*95

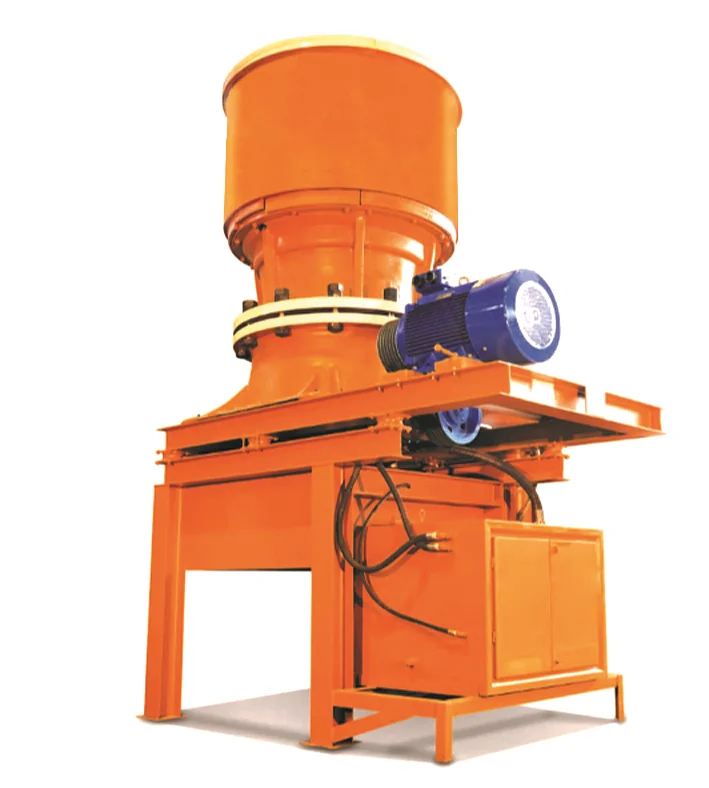

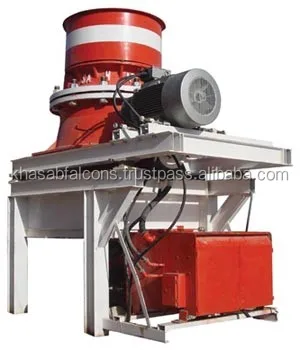

Con Crusher 4 * 36

Con Crusher 5 * 36

Used As Primary And/or Secondary Crusher In Mines

High Ability To Crush Hard Rocks

Suitable For Producing

The Large Input Opening

Very Strong And High Resistance Structure During Crushing Operation

Friction Parts Made Of Mn Steel

Easy Carrying &Installation Caused By Low Weight

Specifications:

Model : C 5 * 36

Dimension(m) : 2 * 3 * 3.7

Weight(kg) : 10,500

Capacity(t/H) : 115 T/H

Max-feed(mm) : 100 * 100 * 125

Motor : 125 Hp , 90 K.W , 1400 Rpm

Con Crusher 8 * 36

Superior gyratory crusher

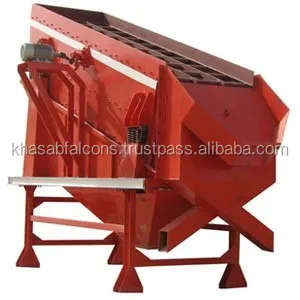

Vibrating Screen 3*

Tenacious &High Resistance Structurescreen

Body Made Of Plates Without Suture Weld

Shafts Made Of Alloy Steel

Vibration Amplitude Adjustment

Perfect Lubricant System & Use Of Caulk Tools

Use Of Double Spherical Roller Bearing For Revolving Movement Quick &Easy Installation and Replacement

Specifications:

Model : 6 * 2

Dimension(m) : L 7064 * W 3408 * H 4790

Weight(kg) : 5350

Capacity(t/H) : 180-300

No Of Decks: 3

Motor : 20 Hp , 15 K.W , 900 Rpm

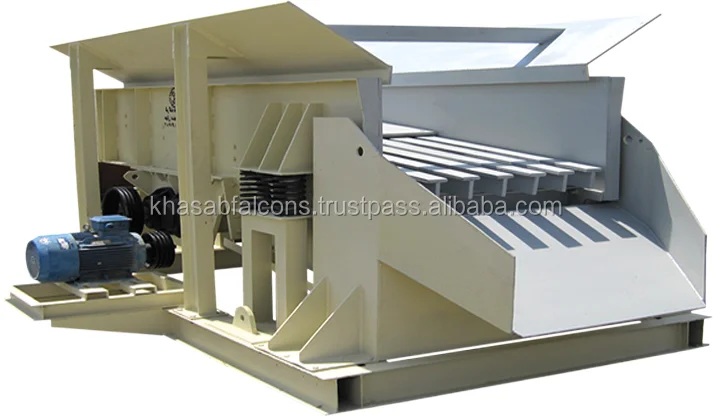

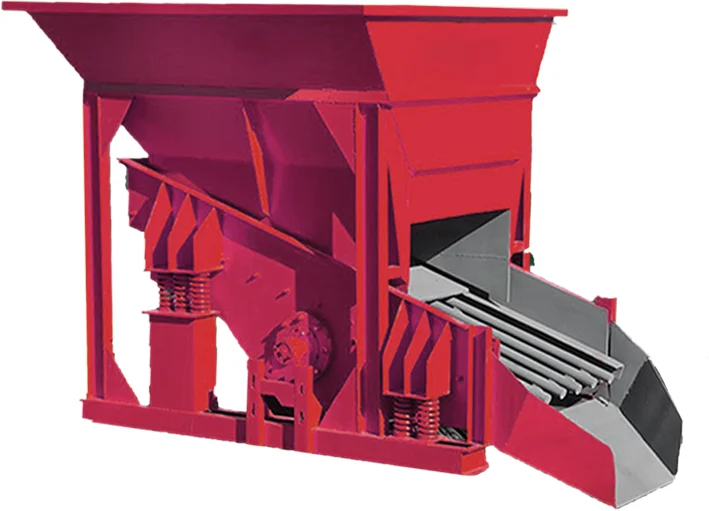

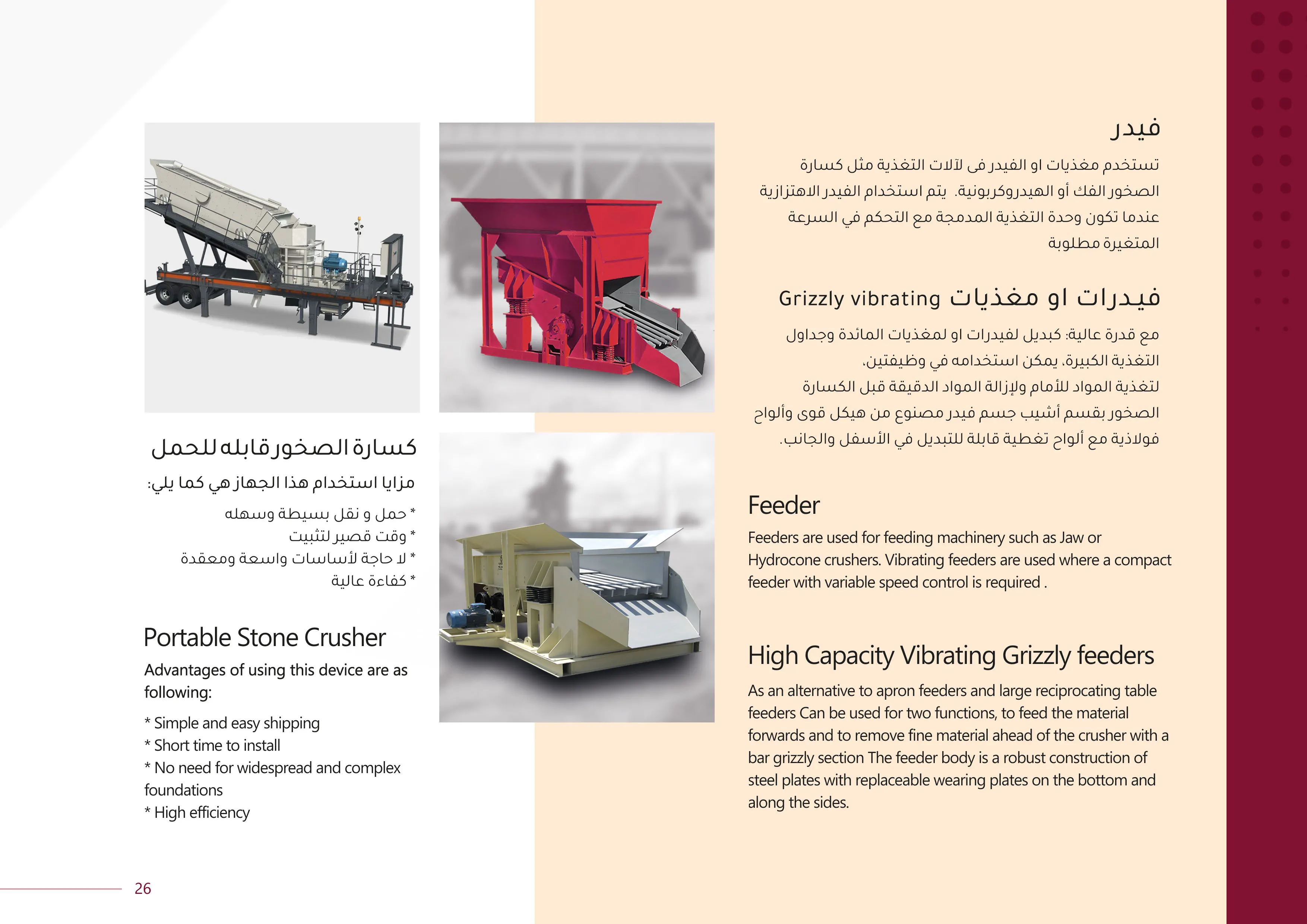

Horizontal Feeder

Suitable For Mountain Mines With Large Stones

Tenacious &High Resistance Structure

Includes Grizzly System In Front Of The Structure

Includes Very Great Storage With 60 Tons Capacity

Using Double Spherical Roller Bearing For Revolving Movement

Shafts Made Of Alloy Steel

Movement Amplitude Adjustment In Locomotive

Use Of Anti-friction Plates For The Body And The Bottom

Perfect Lubricant System &Caulk Tools

Specifications



Model : HF 4.8 * 1.2

Dimension(m) : 3100 * 1700* 806

Weight(kg) : 24,000

Capacity(t/H) : 550

Motor : 37 K.W , 900 Rpm

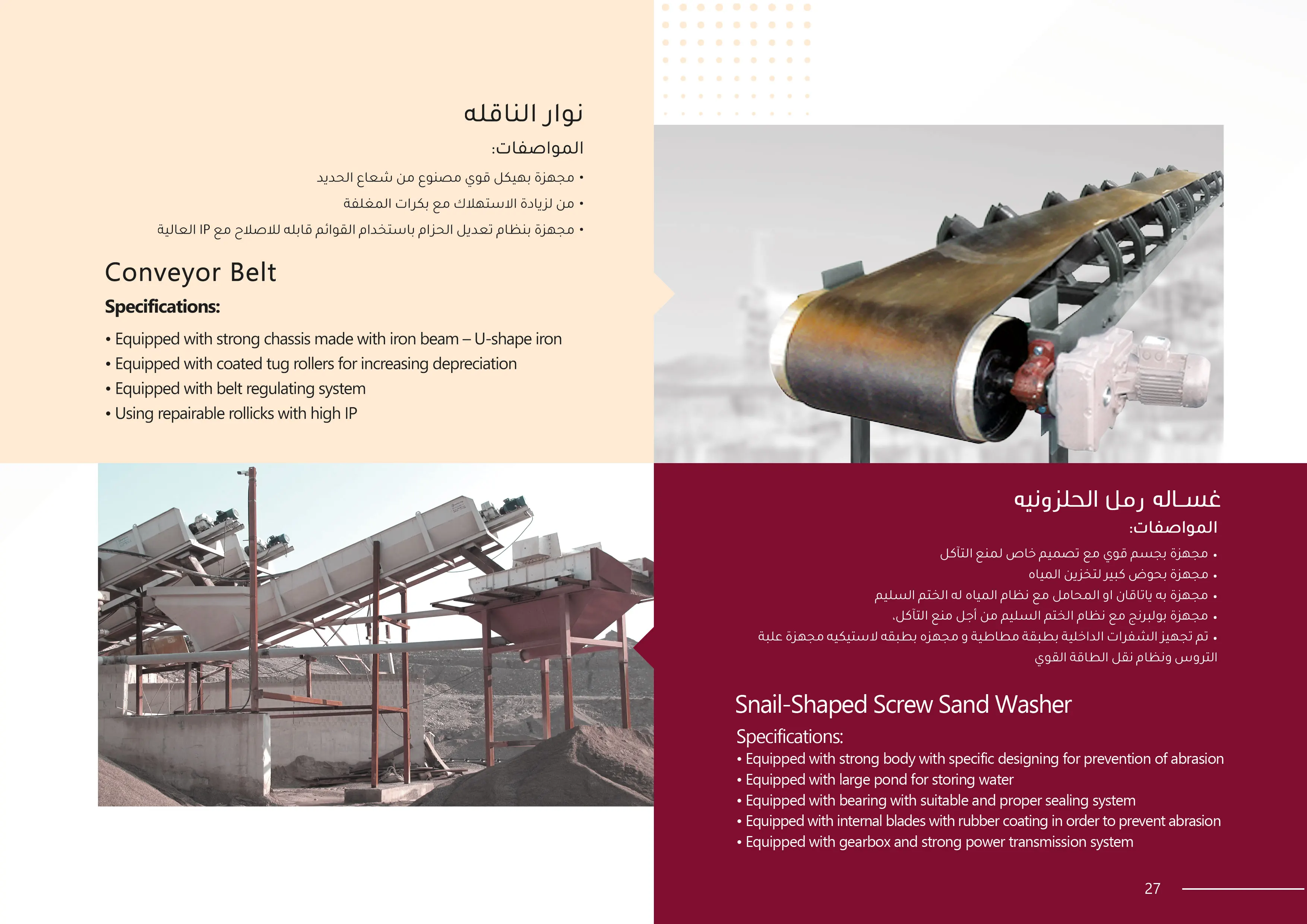

Conveyor Belt (304 m)

Includes frame contains spar

Various length to be m used in any plant

Includes SN 516 bearings and K 61222-2T roller bearings

Easily vise or replaceable rollicks

Contains Bolt & Nut junctions in parts such as conveyor structure engine prop,gear box prop , rollick prop ,preservatives,...

Belt layout according to the map:

1 –100*18 2- 100*20

3- 80 *18 4- 80 * 16

5- 80 * 18 6- 80 * 16

7- 80 * 18 8- 80 * 169- 80 * 18 10-80 * 1611-80 * 22 12-80 * 20

13-80 * 10 14-80 * 20

15-80 * 20 16-80 * 20

17-80 * 18

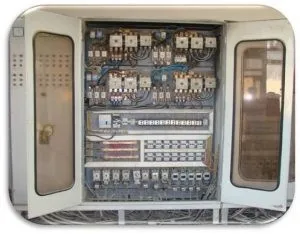

Power Panel

Power Distributer Frame And Piano Shape Control With Electrostatic Color, Siemens And In Bolt And Nut Shape.

Using Of Bimetals With Appropriate Range For Protecting Contactors Against Extra Power

Hydro-con Controller System With The Capability Of Sensitive And Accurate Function From Techno-electric Engineering

Using Of Start Chaste And Taiwan Step

Cable Layout:

1-400 M : 3 * 35

2-400 M : 3 * 2.5cable-layout

3-400 M : 2*25

4-2400m : 4*6

5.250 M: 16*1.5

6-25 M : 3*135+120
