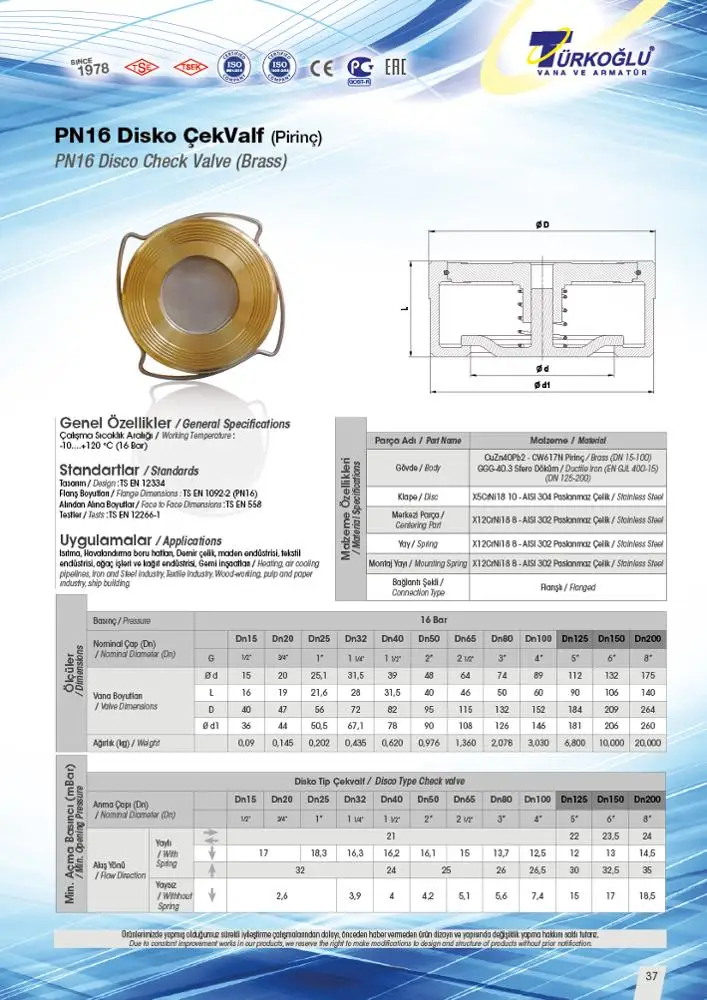

DN200 Disco Check Valve

Product Overview

Description

DISCO CHECK VALVE / WAFER TYPE / BRASS
Body	MS 58 Brass - From( DN15-DN100)
	Ductile Iron (EN GJS 400-15) - From (DN125-DN200)
Spring, Disc, Centering	Stainless Stell
Max. Working Temp.	120 ºC
Max. Working Pressure	16 Bar
Connection	Flanged- Wafer Type
Applications Area	Hot and Cold Water Systems
	Compressed Air System
	Non-acidic and non-flammable liquid fluids
	Liquid Fuel Systems



Code	Size
1721	DN15
1722	DN20
1723	DN25
1724	DN32
1725	DN40
1726	DN50
1727	DN65
1728	DN80
1729	DN100
1730 (Ductile)	DN125
1731 (Ductile)	DN150
1732 (Ductile)	DN200
