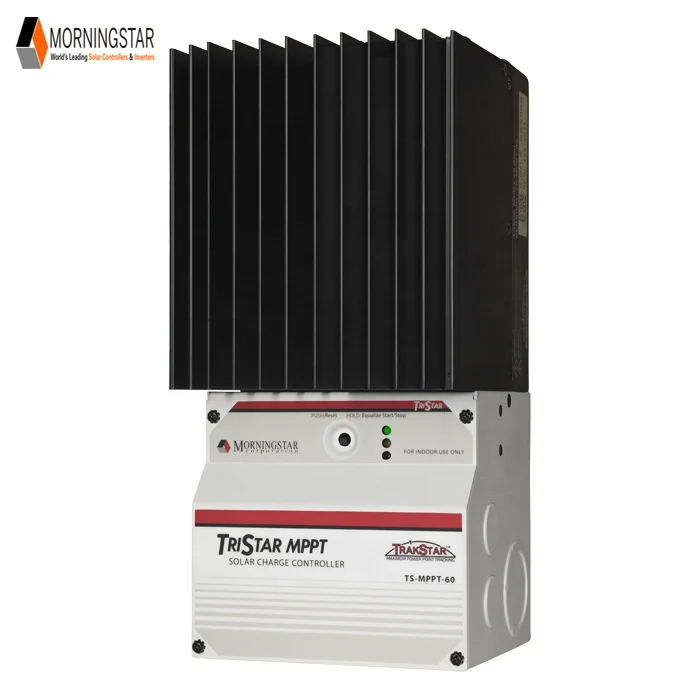

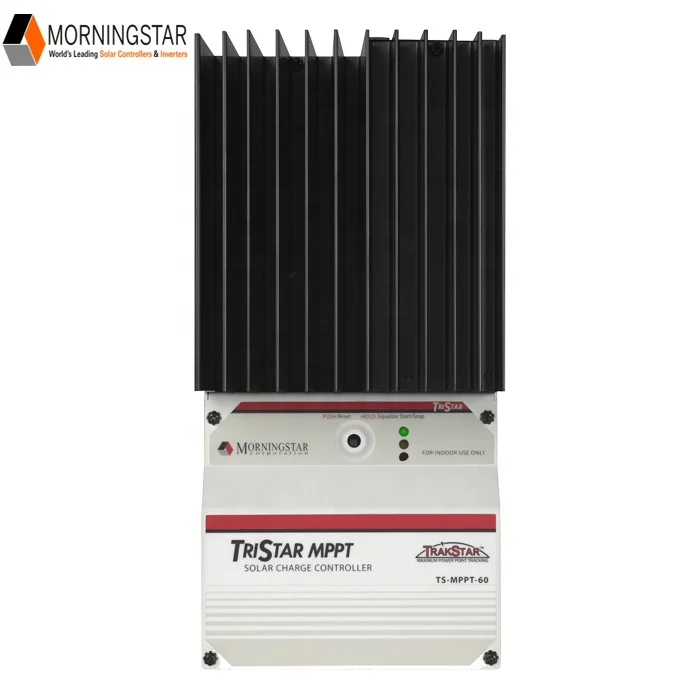

The industry-leading TriStar MPPT™ with TrakStar Technology is an advanced maximum power point tracking controller for larger off-grid photovoltaic (PV) energy systems up to 3kWp. An iconic design, TriStars have been proven in solar installations around the globe and remain the first choice for designers of mission-critical systems where failure is not an option.
Product Overviews
Model
TS-MPPT-30
TS-MPPT-45
TS-MPPT-60
Charge Rating
30 amps
45 amps
60 amps
Max. PV Open Circuit Voltage (Voc)
150 volts
150 volts
150 volts
Nominal Battery Voltage
12V, 24V or 48V
Nominal max. Operating Power*- 12 volt battery
400W
600W
800W
Nominal max. Operating Power* - 24 volt battery
800W
1200W
1600W
Nominal max. Operating Power* - 48 volt battery
1600W
2400W
3200W
Peak efficiency
99%
Battery Voltage Range
10-35V
Voltage Accuracy (12/24V)
<=0.1%+/-50mV
Voltage Accuracy (48V)
<=0.1%+/100mV
Operating Temperature Range
-40 C to +45C
Warranty
5 Years
Certifications
CE and RoHS compliant
IEC 62109
ETL Listed [UL-1741 and Canadian CSA C22.2 No.107.1.01]
FCC Class B Part 15 Compliant
Manufactured in a Certified ISO 9001 Facility

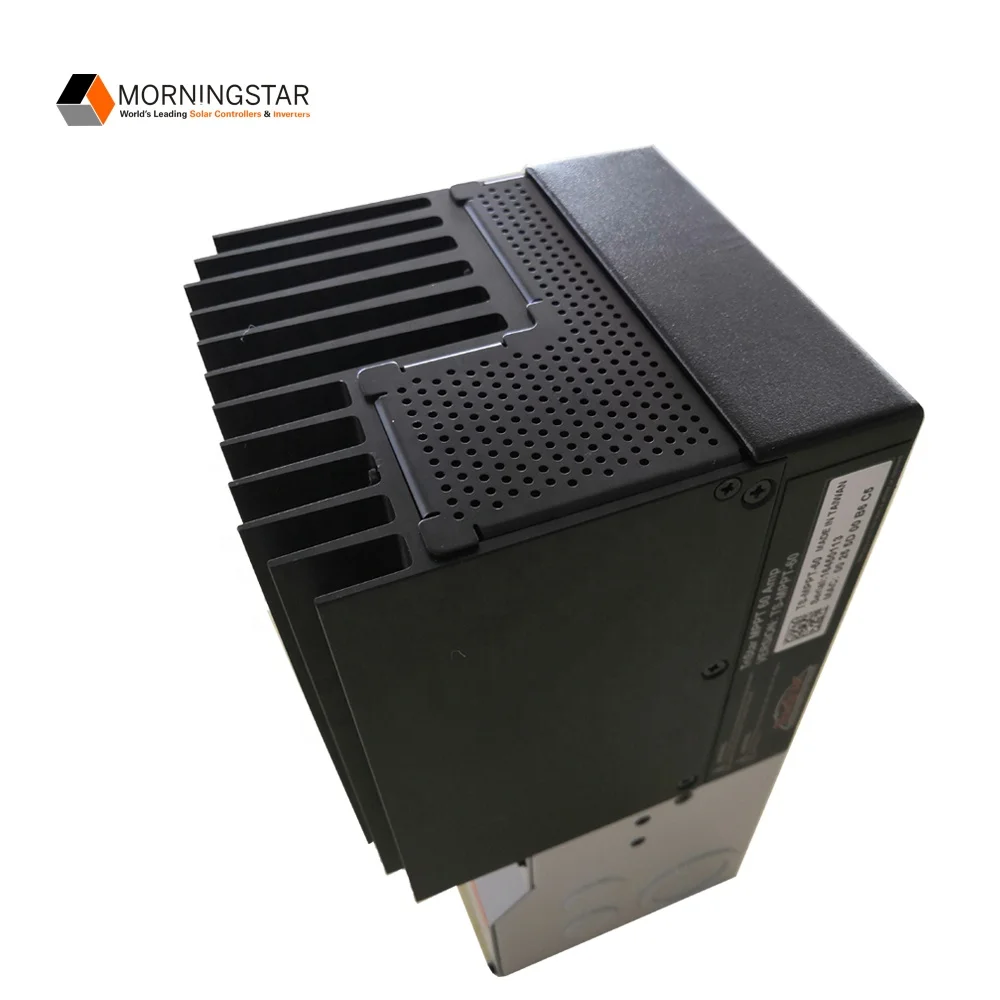

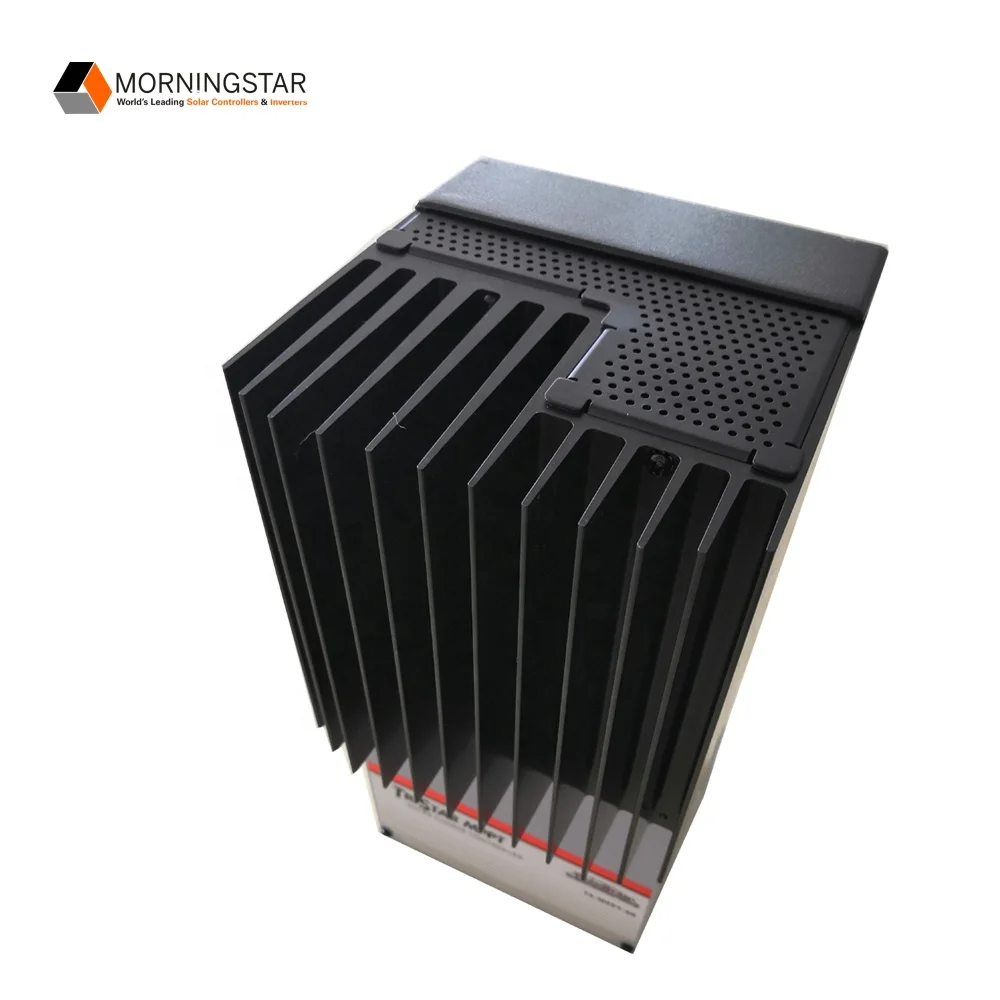

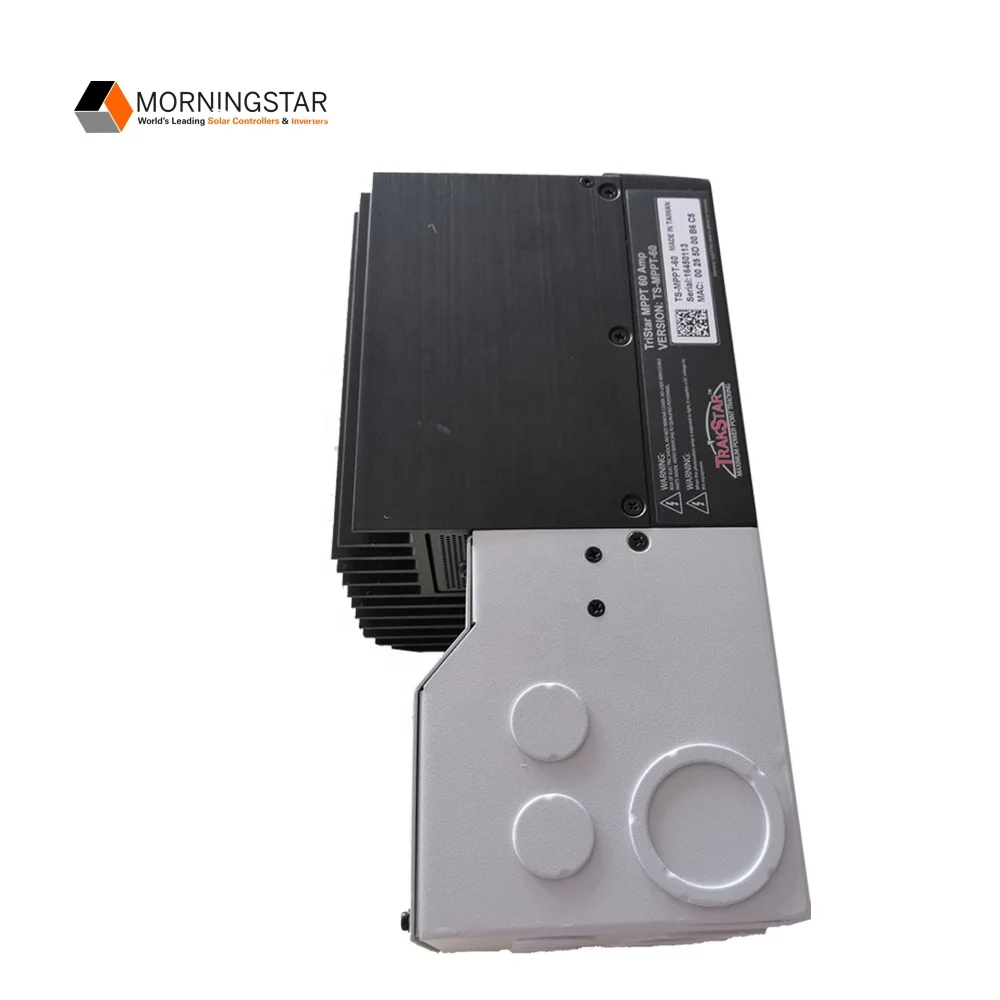

Pics
WARRANTY
Warranty: Five years warranty period.
Successful Cases

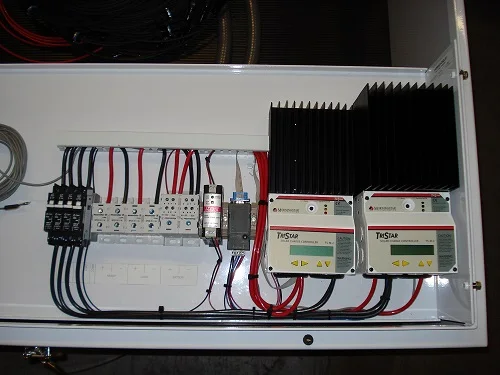

1. TriStar MPPT-60, TS-45 for load control and RS-232 Adapter (RSC) used in telecom systems in Indonesia.

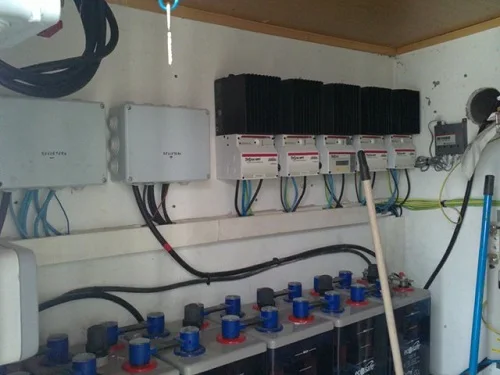

2.Telecommunications system comprised of 6 modules 135W in serial and 12VDC battery bank with 6 units of 2V OPzS cells. Five paralleled TS-MPPT-60 and Relay Driver in the system.
FAQ
1. Q: Are you a factory or trading company? A: We are exclusive distributor of Morningstar since 2009 and gained Partner Awards for years. 2. Q:What kind of payment do you accept? A:We accept all payment terms and prefer you to make a order online.
3. Q:Do you have any MOQ and how about the production capacity of your facotry one year? A:MOQ is 1pcs. Annual production is 120000pcs and enough in instock of Beijing office. 4. Q:May I take some samples to test before placing the order ? A: Yes, customers shall pay for the sample fees and express fees.
Please connect to Ms. Killy Sun for trial oder with best pricing online.
5. Q:How long can you offer the samples? A: 2 days after the deposit payment is confirmed.
