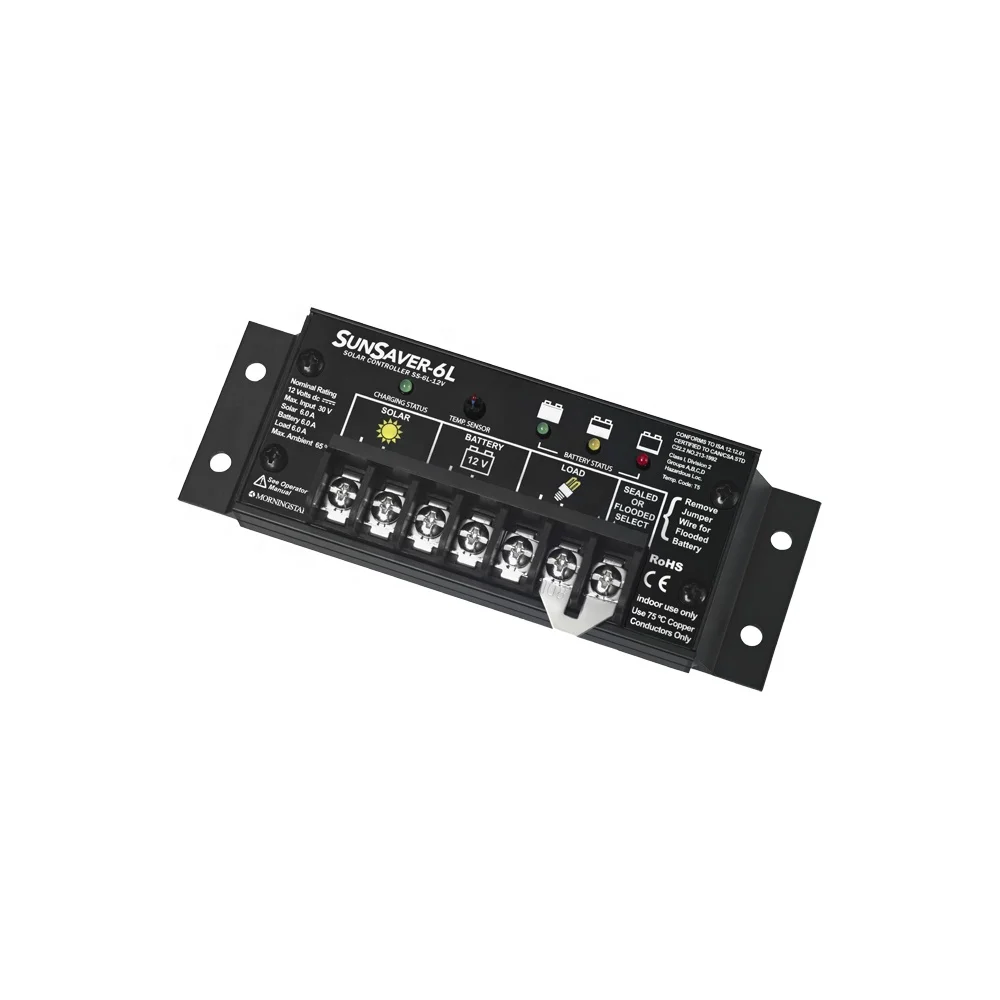

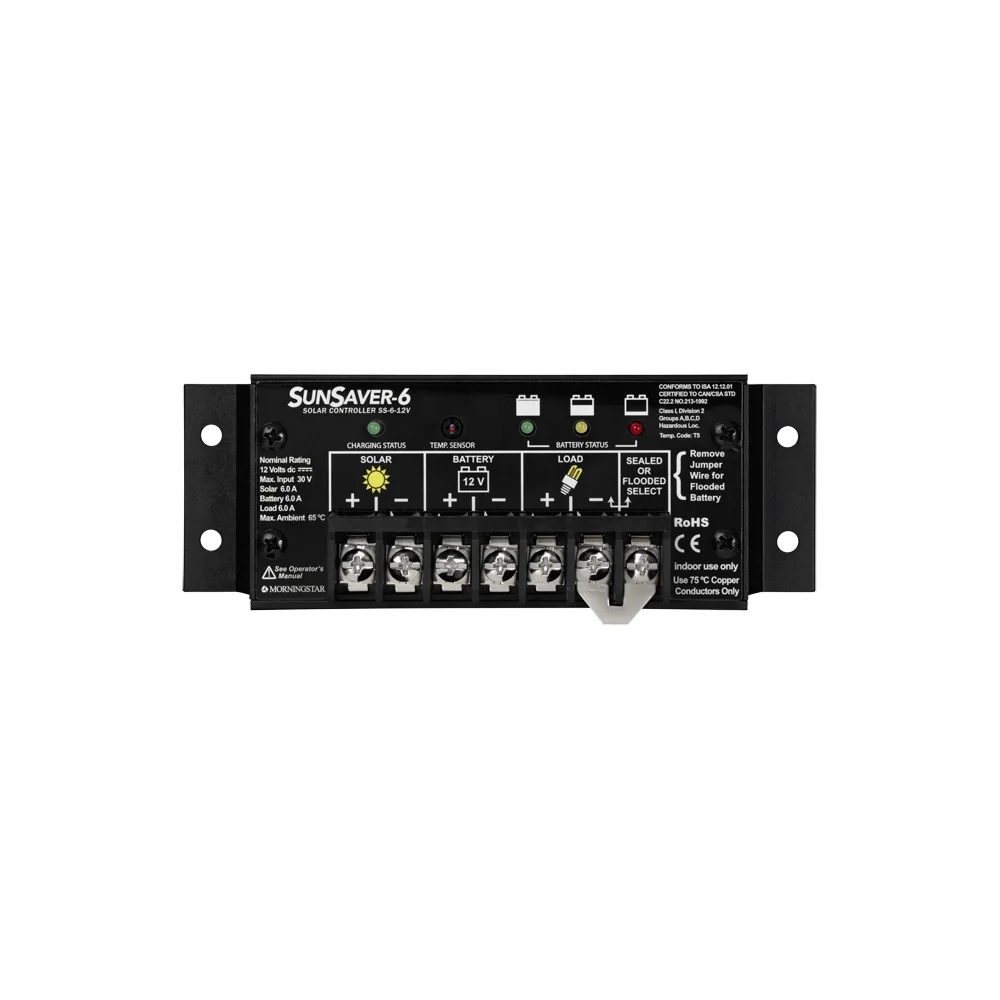

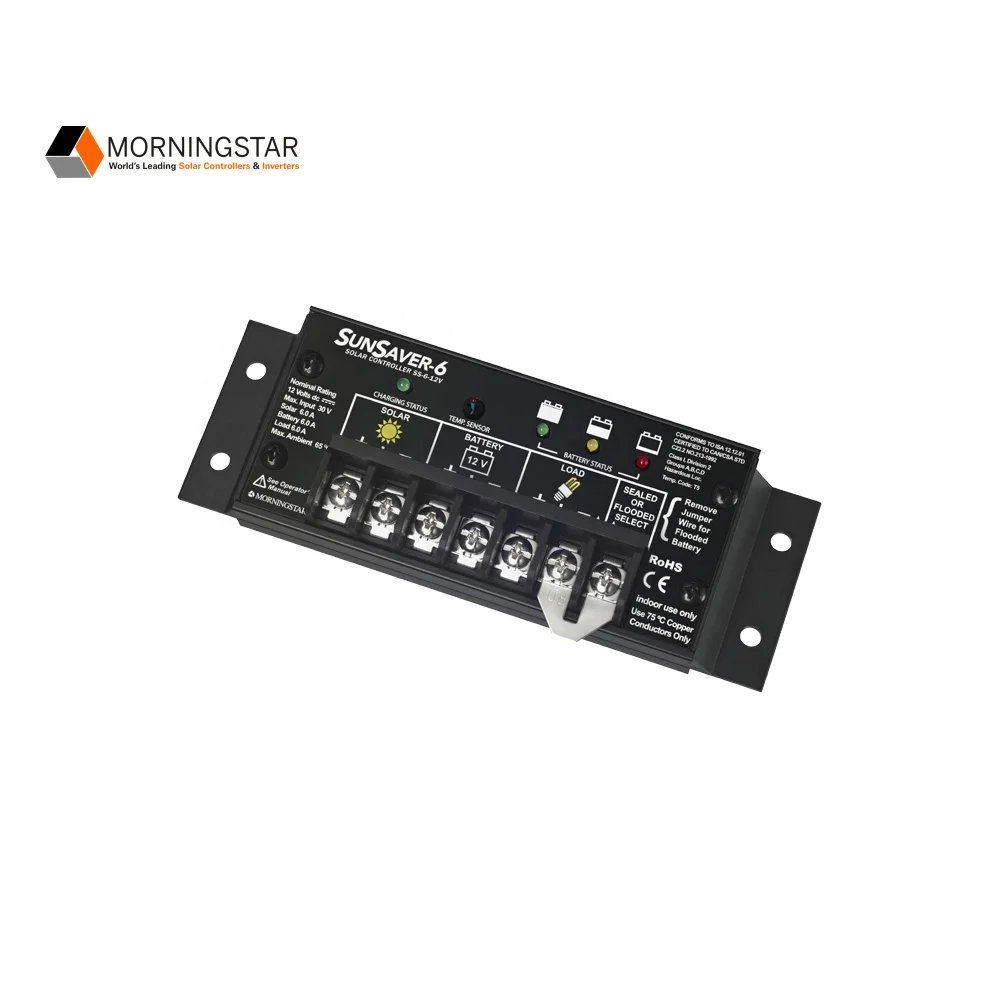

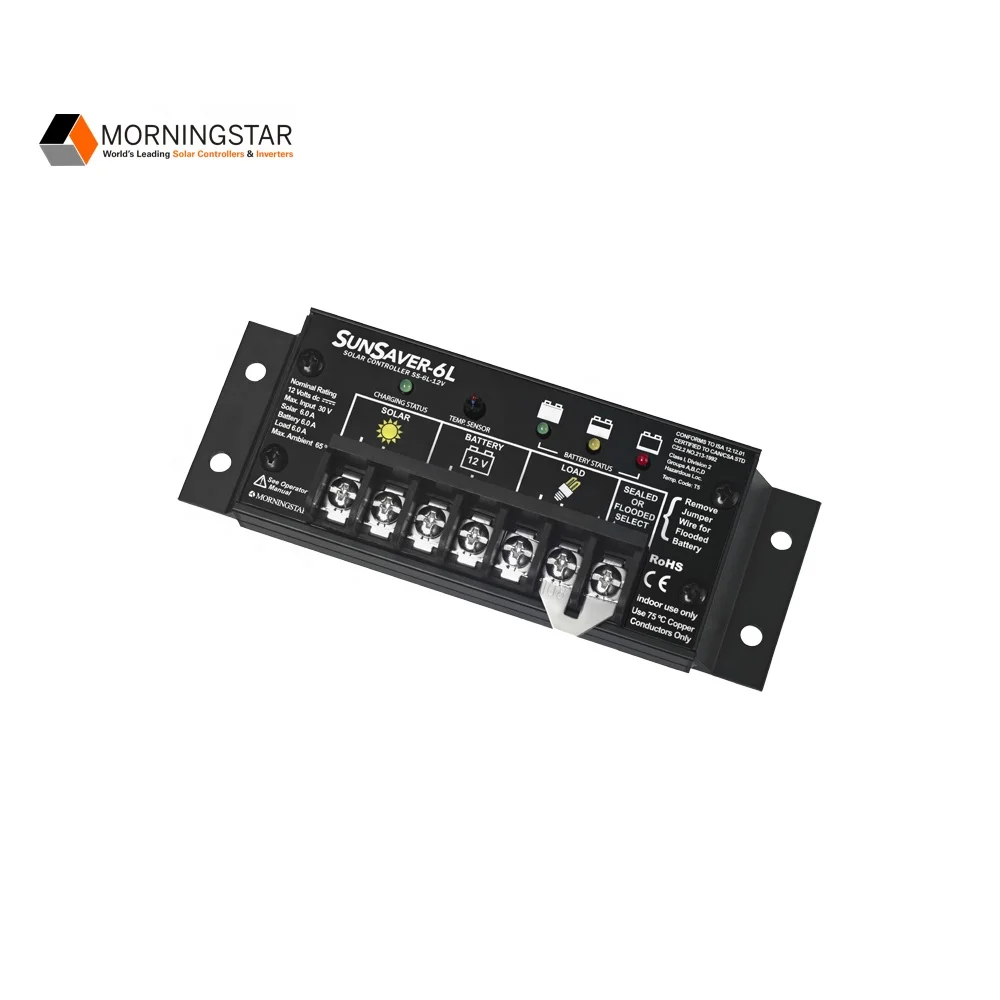

Model: SS-6-12
Morningstar’s SunSaver is the world’s leading small solar controller for both professional and consumer applications.
SunSaver’s technology provides:
•Exceptional Reliability
•PWM Battery Charging
•Consistent High Quality
The SunSaver’s advanced design delivers outstanding performance and value. The SunSaver’s low cost is made possible by Morningstar’s unique approach to design and manufacturing:
•Automated production
•ISO 9002 quality programs
•Latest power electronic technologies
•Latest control and logic technologies
•High volume manufacturing
Main features
•Eight versions available (see back)
12 and 24 volts
6, 10 and 20 amps
•100% solid state
•Series design (not shunt)
•True 0 to 100% PWM duty cycle
•Setpoint accuracy to 35 mV
•Rated for 25% overloads
•Fully encapsulated in epoxy potting
•Marine rated terminals/anodized case
•Temperature compensation
•Sealed/Flooded battery select
•No need to derate
•Parallel for 40 amps or more
•Green charging/Red LVD indicators
Approved for use in hazardous locations – Class 1, Division 2, Groups A, B, C, D
Protection
Surge protection
High temperature protection
Backflow prevention protection
Lload short circuit protection
Over current protection
High voltage protection
Low voltage disconnect protection
Technical parameters
Model
SS-6-12
SS-6L-12
SS-10-12
SS-10L-12
SS-10L-24
SS-20L-12
SS-20L-24
System voltage
12v
12v
12v
12v
24v
12v
24v
System current
6a
6a
10a
10a
10a
20a
20a
Max.voltage of input
30v
30v
30v
30v
60v
30v
60v
Self-consumption
<8mA
LVD
N/A
11.5V
N/A
11.5V
23.0V
11.5V
23.0V
Recovery&reconnection
N/A
12.6V
N/A
12.6V
25.2V
12.6V
25.2V
Size
152*55*34mm
Weight
0.23Kg
Working temperature
-40℃ ~ +60℃

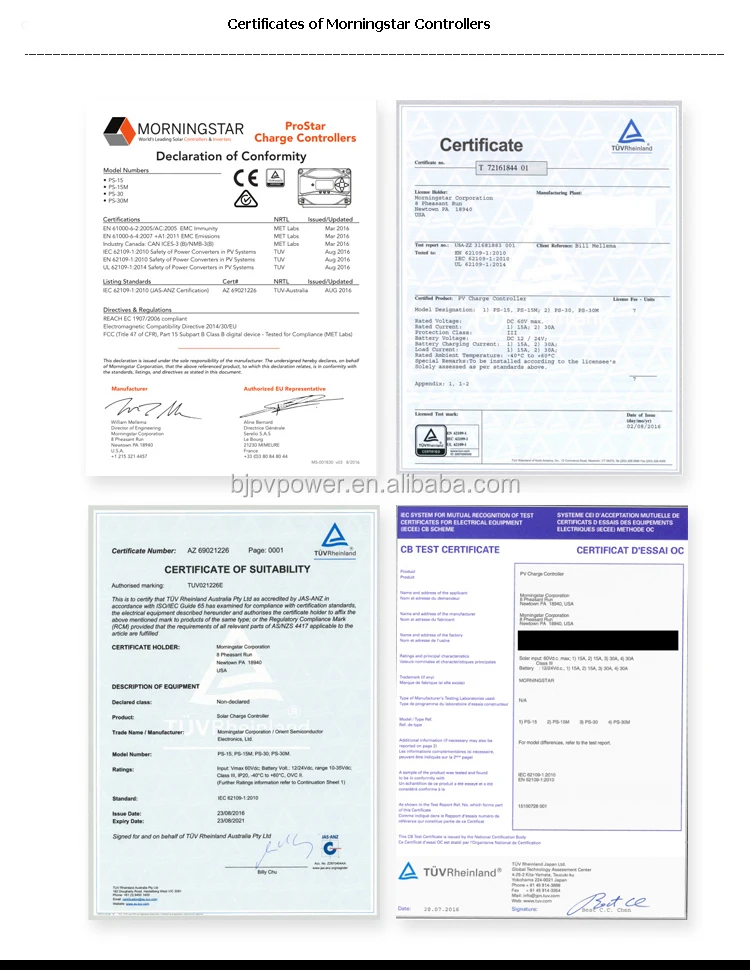

Certification
• Hazardous Locations - Class 1, Div. 2 Groups A-D
• CE, RoHS and REACH Compliant
• UL 1604/ANSI/ISA 12.12.01-2000 (USA) and CSA C22.2 No. 213-M1987 (Reaffirmed 2004)
(CANADA) Listed
• UL 1741 (with terminal cover) Listed*
• FCC Title 47 (CFR), Part 15 Subpart B for Class B Device
• Manufactured in a Certified ISO 9001 Facility
Pics
