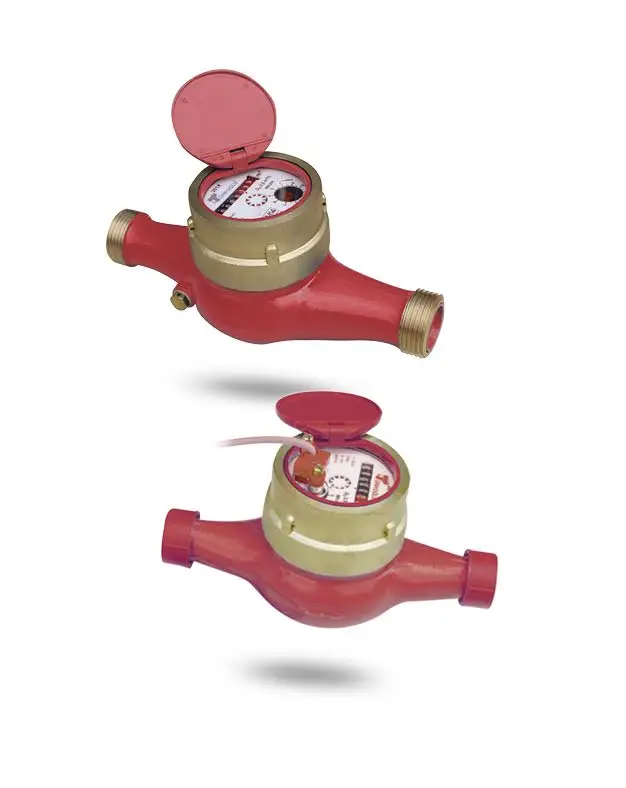

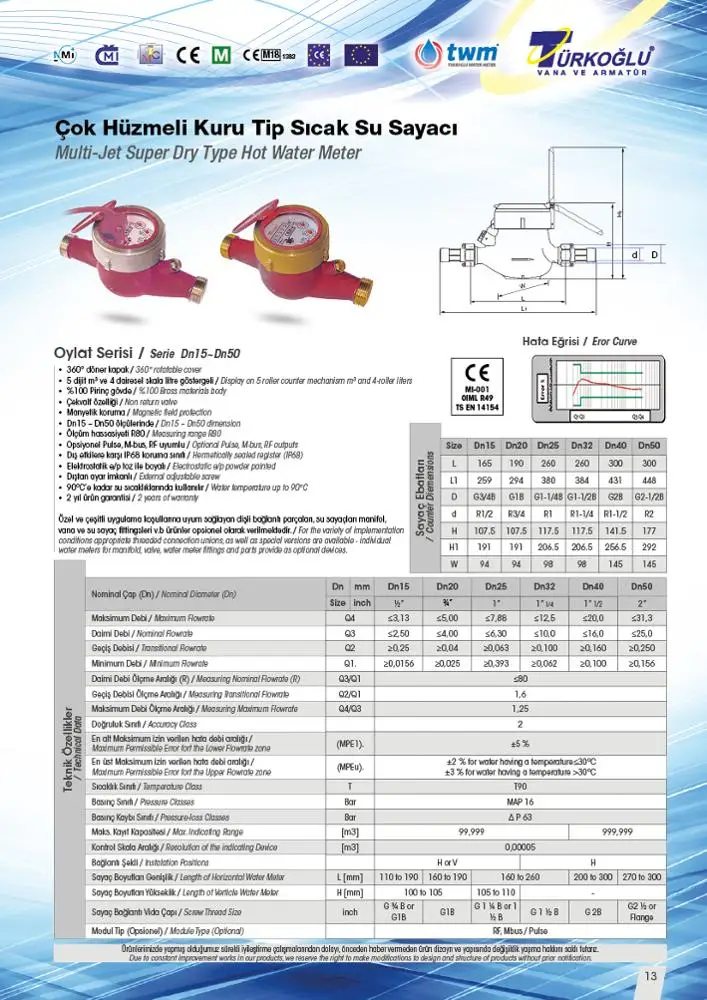

DN40 Multi Jet Dry Dial HOT Water Meter with Pulse Output

OYLAT Serie

Multi-Jet Dry Type (Hot) Water Meters

·         360° rotatable cover

·         Display on 5 roller counter mechanism m³ and 4-roller for litres

·         %100 Brass materials body

·         Non return valve

·         Magnetic field protection

·         DN15 ~ DN50 dimension

·         Measuring range R80

·         Pulse, M-bus, RF (Radio Frequency) output interfaces (optional)

·         Hermetically sealed register (IP68)

·         Electrostatic e/p powder painted

·         External adjustable screw

·         Water temperature up to 90°C

·         3 years of warranty

Certifacates:

·         2014/32/EU MID MI-001 Water Meter

·         EU Type Examination Certificate

·         Module D- EU Verification Certificate

·         ISO 4064:2015 / EN14154-1:2005, OIML R 49:2006

·         ISO 9001:2015 / ISO 14001:2015

For the variety of implementation conditions appropriate threaded connection unions, as well as special versions are available - individual water meters for manifold, valve, water meter fittings and parts provide as optional devices.
