Australian Container Homes 40ft Luxury House For Sale Usa
- Category: >>>
- Supplier: Ibeehive Technology Co. Ltd.
Share on (62008557756):

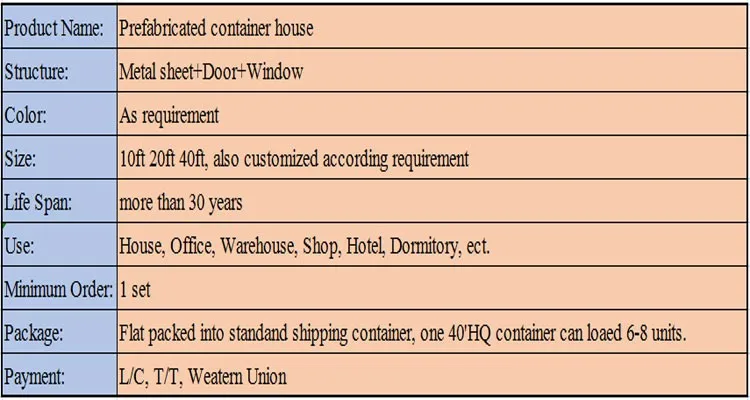

Product Overview
Description
Product Description
SIZE & MATERIAL
External | Internal | Weight (kg) | |||||||||||
Type | Length | Width | Height (package) | Height (assembled) | Length | Width | Height | ||||||
20' | 6055 | 2435 | 648/864 | 2591/2790 | 5860 | 2240 | 2500 | from 1850 | |||||
FOR FLOOR
Steel frame | - made from cold rolled, welded steel profiles, 4 mm thick | ||
- 4 corner casts, welded | |||
- 2 fork lift pockets (except 30') - distance 1200mm | |||
(internal clearance of fork lift pockets: 240×80 mm) | |||
- steel cross members, thickness=2mm | |||
Insulation | - 100 mm thick Rock Wool | ||
Subfloor | - 0.5mm thick, galvanized steel sheet | ||
Floor | - 18mm plywood board | ||
1.8mm PVC floor | |||
flammability class B1 - hardly combustible | |||
smoke density class Q1 - low smoke emission | |||
wear resistance factor: T level | |||
FOR ROOF
Steel frame | - made from cold rolled, welded steel profiles, 3mm thick | ||||
- 4 corner casts, welded | |||||
- steel cross members, thickness=2mm | |||||
Roof cover | - 0.5mm thick, galvanized steel sheet | ||||
- 360 degree seaming at joint of roof panels | |||||
Insulation | - 100 mm thick Rock Wool | ||||
Ceiling | - 10 mm chipboard (V 20), laminated on both sides, white | ||||
- the chipboard complies with the emission value E1 | |||||
CEE connector | - sunken in frame on short end side | ||||

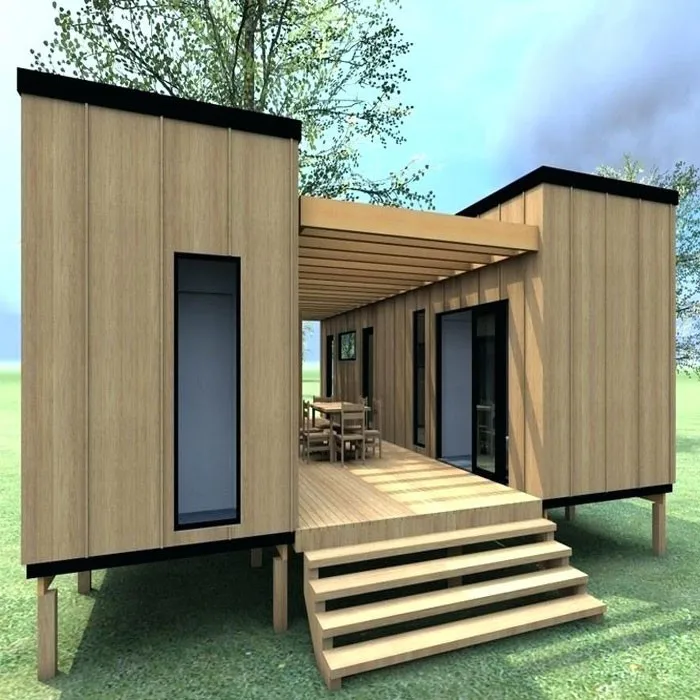

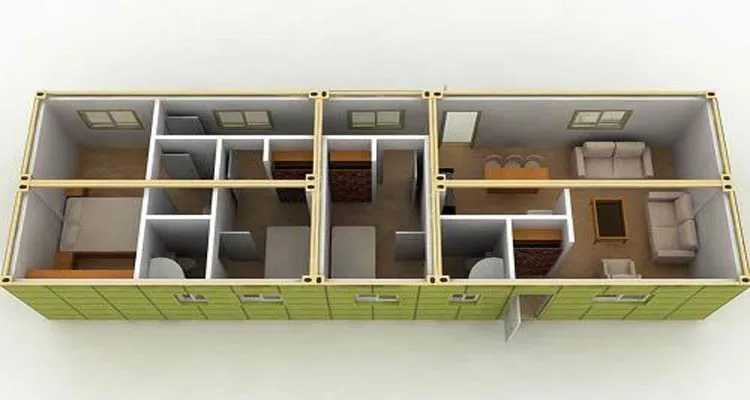

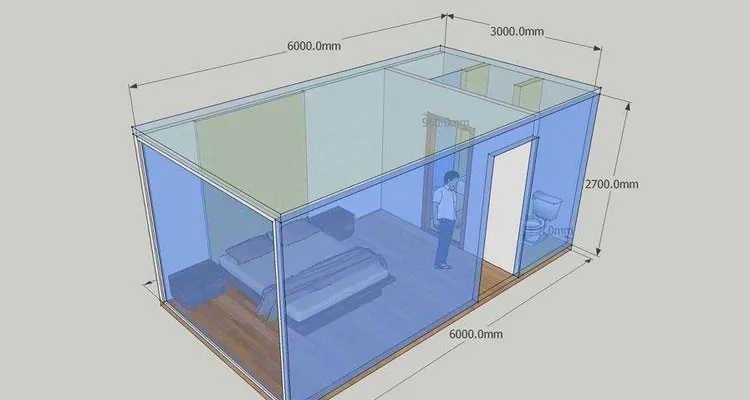

PRODUCT DESIGN

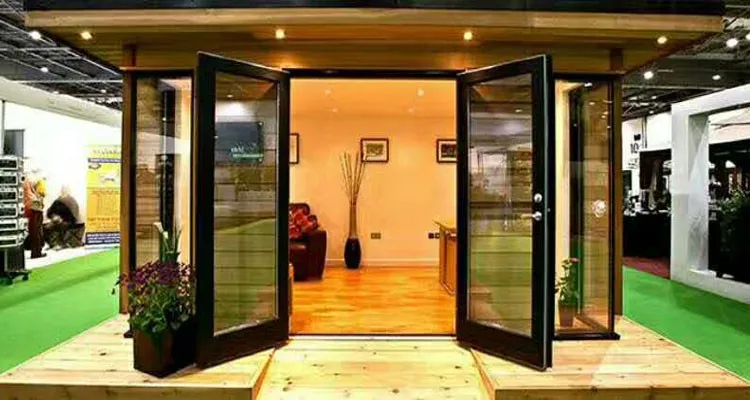

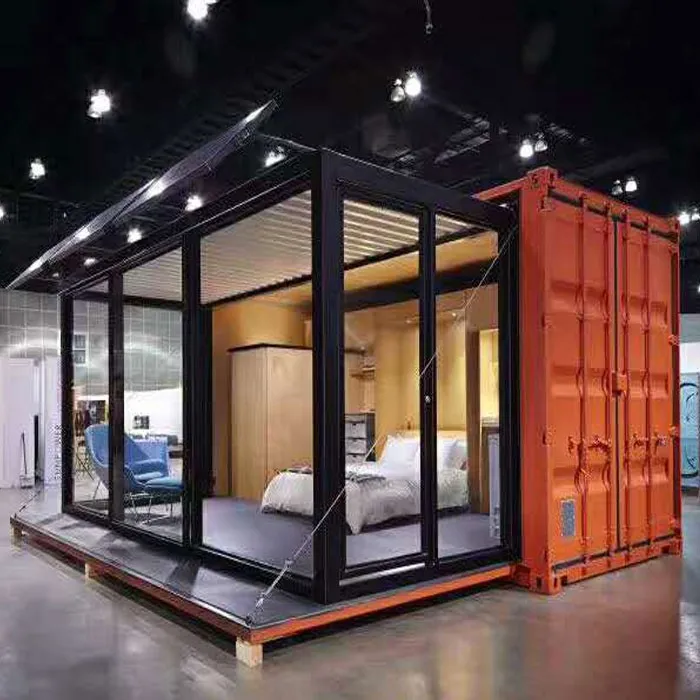

PRODUCT INSIDE SHOW

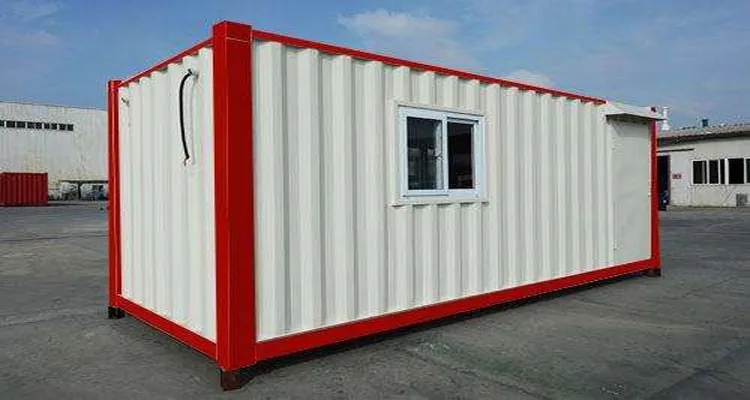

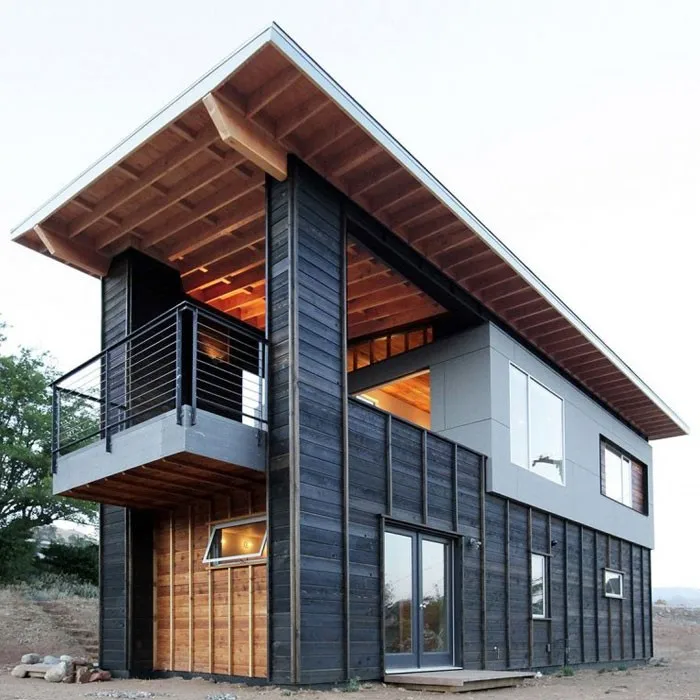

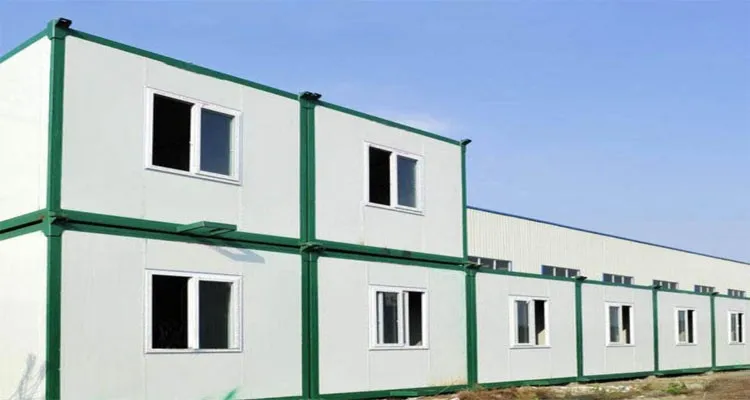

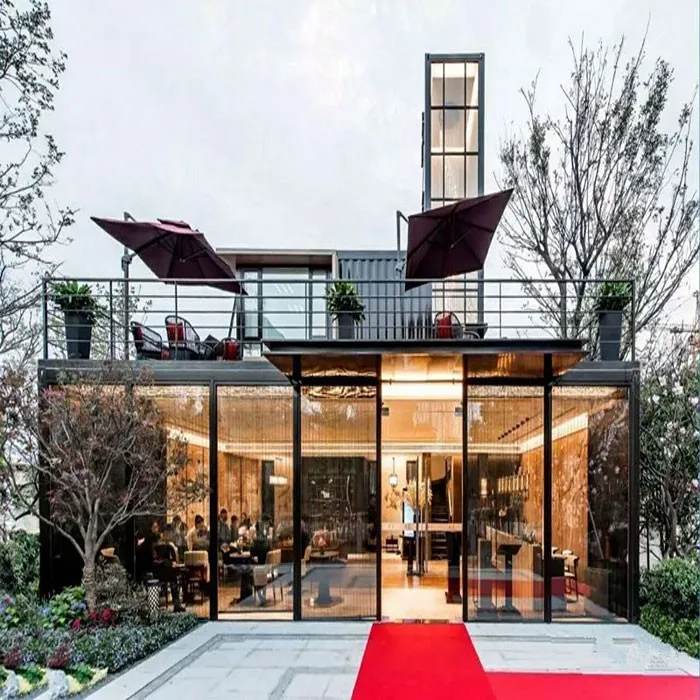

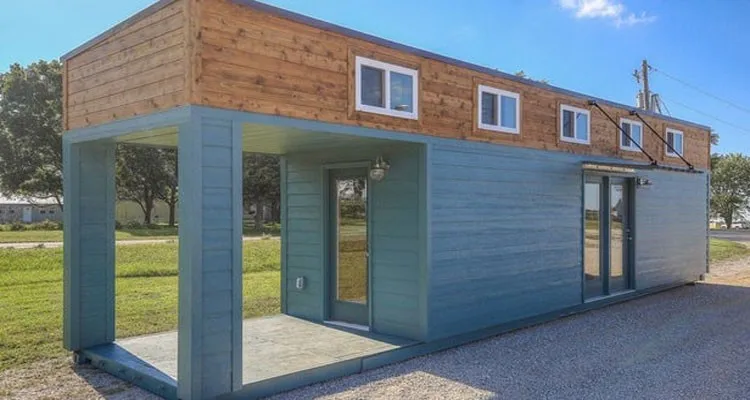

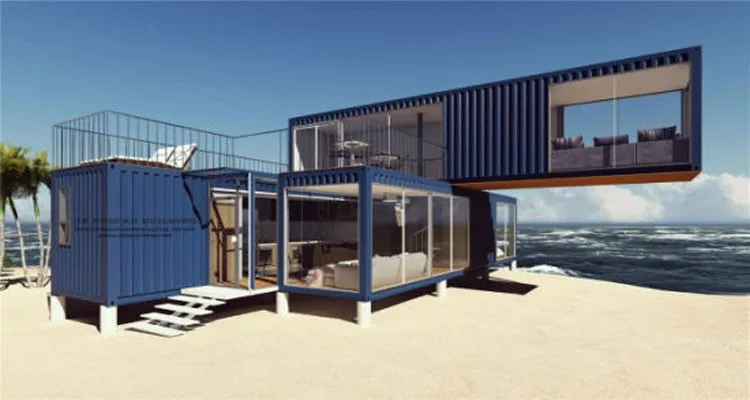

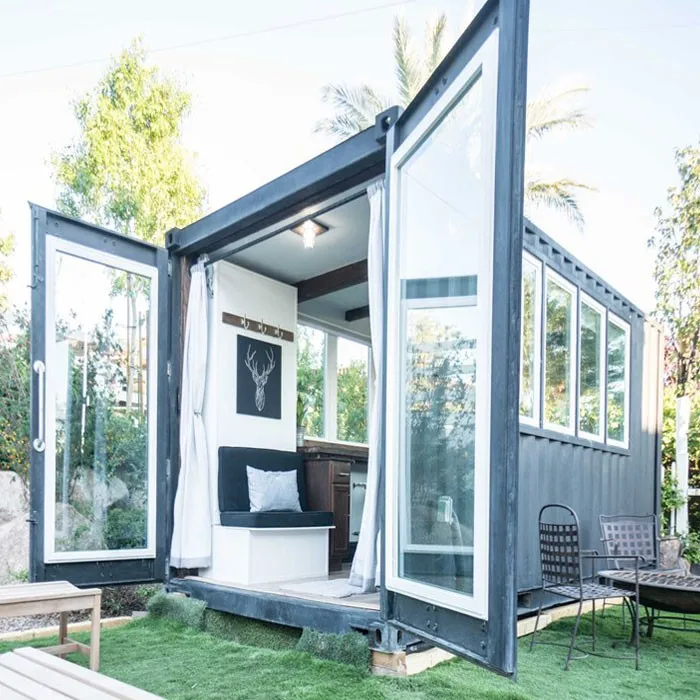

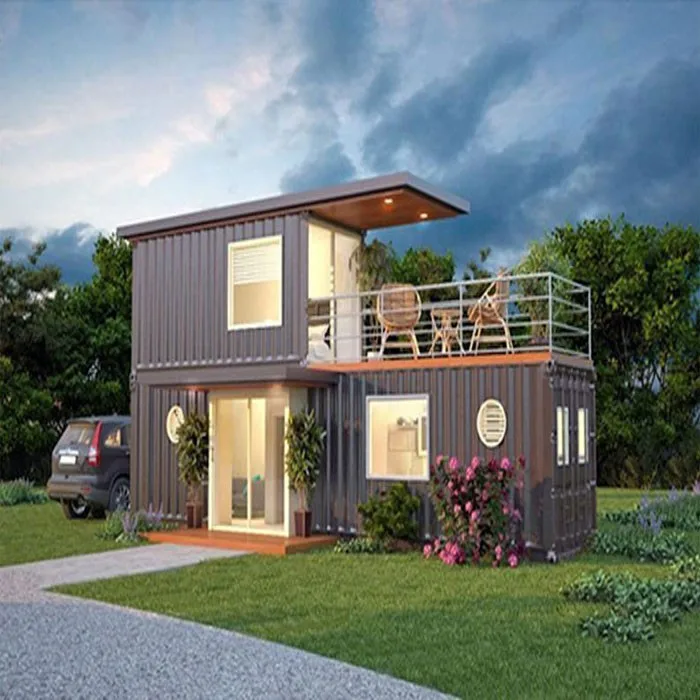

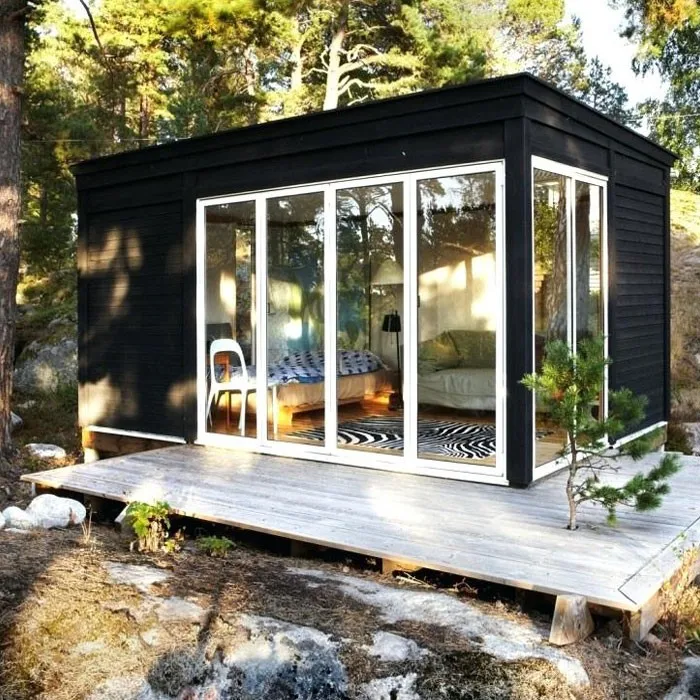

PRODUCT DISPLAY
WHY CHOOSE US
The Quality We Provide - Outstanding Quality Assurance
Control from production process: we provide customized service.
Control from material:
*All bolts and screws are international standard
*Galvanized steel sheet material
*Panel: Galvanized steel sheet +twice primer+paint twice
*Insulation materials: EPS/PU/Rock wool
Control from inspection:
Final inspection before loading in random checking
