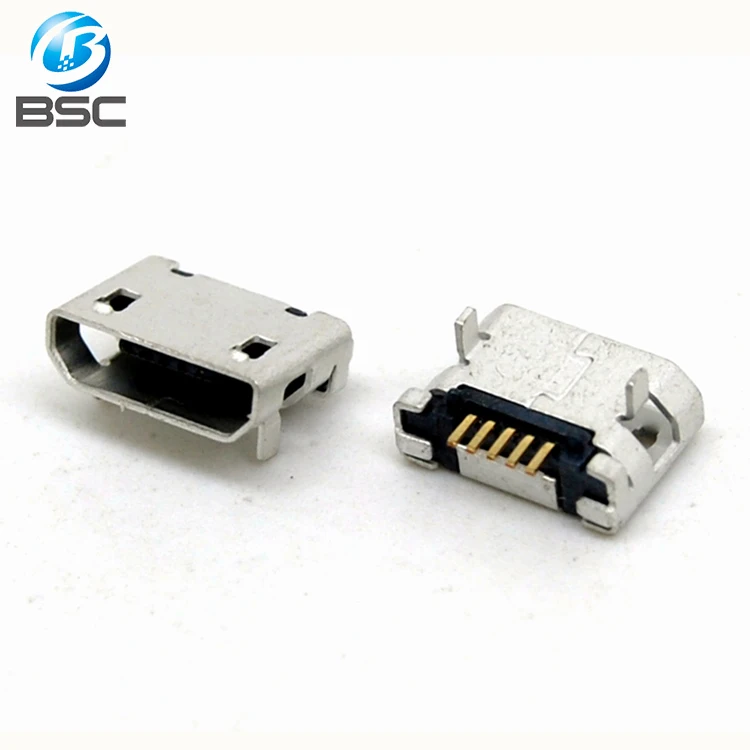

Top mount Micro USB 2.0 5pin B Female jack socket connector China Supplier

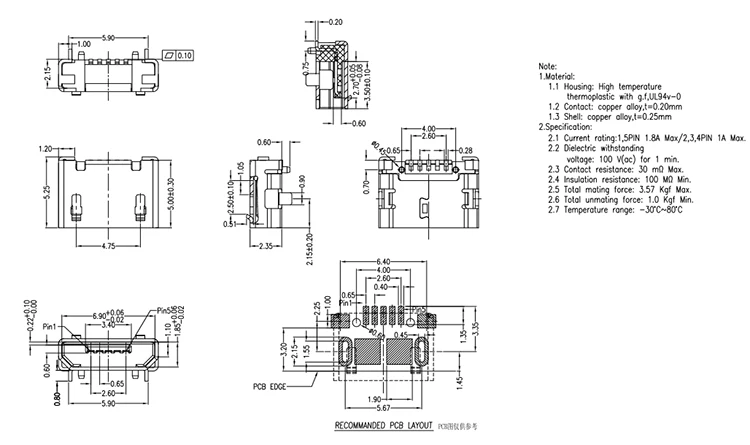

Specification:

 Top mount Micro USB 2.0 5 Pin female jack socket connector China Supplier

1.Material:

1.1 Housing:High temperature

      thermoplastic with g.f,UL94V-0

1.2 Contact:copper alloy,t=0.15mm

1.3Shell:copper alloy,t=0.25mm

2.Specification:

2.1 Current rating:1,5PIN 1.8A Max/2,3,4PIN 1A Max

2.2Dielectric withstanding

     voltage:100V(ac) for 1 min.

2.3 Contact resistance:30mΩ Max.

2.4Insulation resistance:100MΩ Min.

2.5Total mating force:3.57 Kgf Min.

2.6 Total unmating force:1.0Kgf Min.

2.7Temperature range:-30℃~80℃
