Mini PC Mini PC SD829 I5 4300U 4COM with CPU Haswell U I5 4300U Mini PC
- Category: >>>
- Supplier: SD-Omega (HongKong) Company Limited
Share on (62008628365):
Product Overview
Description
Model: SD829-I5-4300U-4COM Mini PC
Haswell Core I5-4300U/1.9GHz dual core processo
Linux Ubuntu 4 RS232 mini PC for POS
Fanless heatsink structure
Full aluminum alloy chassis, compact structure, flexible installation
Adopt Intel® Haswell-U I5-4300U/1.9GHz dual core processor
1*Mini-PCIE slot, support WIFI or 3G module
2*WGI211AT Gigabit Ethernet port ,support Wake on Lan funciton

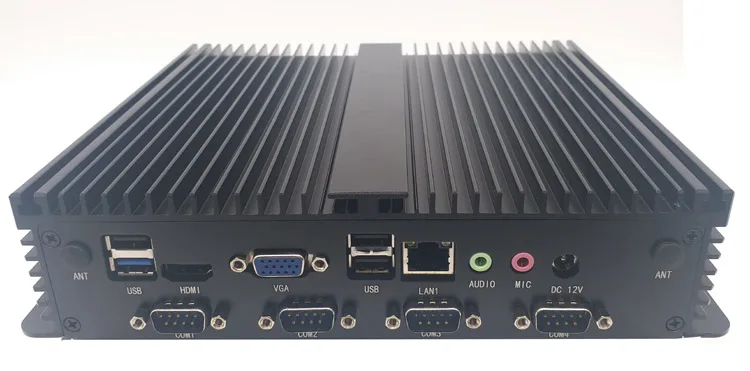

I/O: 1xDC input, 4xCOM, 1xVGA, 1xHDMI, 1xLan, 1xAduio, 6xUSB
Specification
| Chassis | Color | Black |
| Dimension | 235mm*200mm*52mm(L*W*H) | |
| Structure | Full aluminum fanless radiating structure | |
| Material | Full aluminum alloy | |
| Intallation | Desktop or embedded installation | |
| Motherboard | Model | SD829-I5-4300U-4COM |
| Processor | Integrated Intel® Haswell-U I5-4300U/1.9GHz dual core processor | |
| Chipset | Based on Intel® Haswell-U/Broadwell-U SOC platform | |
| Graphics | HD Graphics | Integrated Intel® HD Graphics 4400, support DirectX 11.2/12, OpenGL4.3 support synchronous / asynchronous display. |
| Resolution | 1*VGA, max support 1920x1200@60Hz 1*HDMI, max support 3200x2000@60Hz | |
| Storage | Memory | 1* SODIMM support 1600/1333MHz DDR3L/1.35V memory, max up to 8GB |
| HDD | Support 1*2.5 inch HDD expansion | |
| CF | N/A | |
| SSD | Support 1*MSATA SSD expansion | |
| Audio | Sound Card | Integrated ALC662 6 channels Hi-Fi audio controller, support MIC, Line_out |
| Network | Ethernet | 2*WGI211AT Gigabit Ethernet port, support Wake on Lan, PXE |
| WiFi | 1*Mini-PCIE slot, support WiFi, 3G module | |
| I/O port | USB | 6* USB |
| Power Switch | 1* Power Switch | |
| LAN | 1* LAN (RTL8111E/F, Gigabit Ethernet) | |
| Display | 1* VGA, 1*HDMI display output | |
| Serial Port | 4* RS232 serial port | |
| Power In | 1*12V DC IN Jack | |
| Antenna | 2*WIFI/3G SMA antenna (optional) | |
| Audio | 1*MIC, 1*Line-out | |
| Power Adaptor | Input | AC 110V ~ 220V |
| Output | DC 12V 5A | |
| Reliability | Operating Temp. | 0℃~45℃ |
| Storage Temp. | -20℃~70℃ | |
| Relative Humidity | 5%-95%, no condensing | |
| Vibration | 0.5g rms/5-500HZ/random/operating | |
| Operate System | Support Windows 7, Windows 8, Windows XP, Linux OS | |
