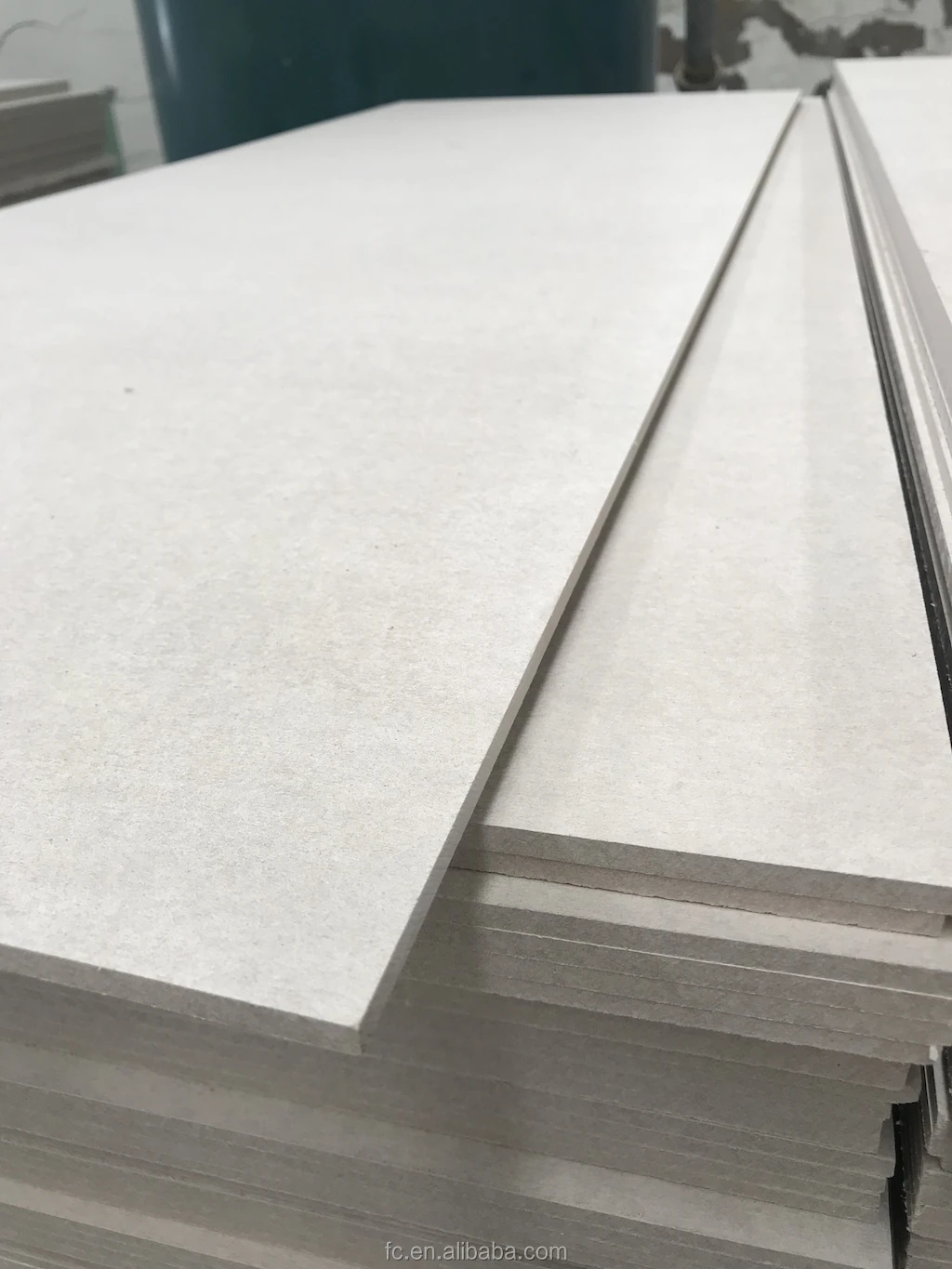

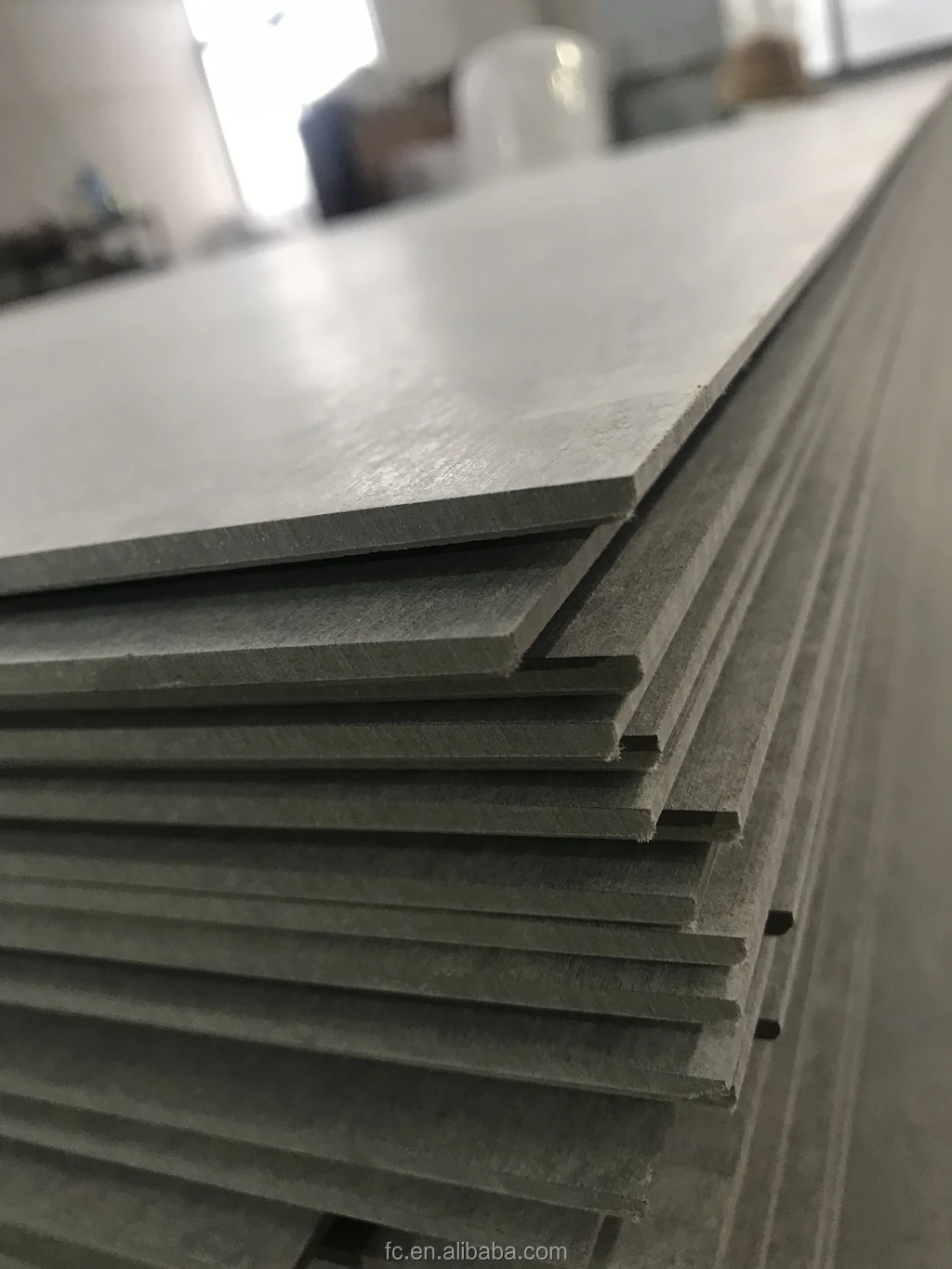

6mm thick Fibre Cement Tile backer Board or Floor Tiling base with CE certificate

Share on (62008656776):


Price:RUB 244.11 - RUB 3,814.14

Quantity:


Product Overview

Description

AiFuXi(FC)  Fibre Cement Ceramic Tile Underlay

AiFuXi(FC)  Fibre Cement Tile Backer Board

 tile backer board



Our Products

Fibre cement is perhaps one of the most flexible building materials available today. AiFuXi(FC)  offers a wide range of products  that make buildings look great and perform even better.

IMG_7551

AiFuXi(FC)   Fiber Cement Ceramic Tile  Underlay/Tile backer Board   is an autoclaved, cellulose fibre reinforced cement sheet. It has a smooth sanded finish as an internal underlay , designed to be installed under ceramic tile, On top of internal timber, particleboard and plywood substrates, Suitable for both wet and dry areas.



IMG_8757



Product Description



AiFuXi(FC)   Fiber Cement  Ceramic Tile  Underlay/Tile backer Board



Fibre cement tile backer board products are especially suited as a tiling base for tiling wet areas such as bathrooms, kitchens and showers as it is resistant to permanent water damage and does not need to be treated before tiling. Because it is water and mould resistant, fibre cement tile backer board is used as an alternative to Plywood and Plasterboard tile substrate .

 IMG_7556IMG_7557IMG_7553IMG_7553



Its application over internal timber, particleboard and plywood substrates helps to minimise tile movement and potential tile cracking caused by the expansion and contraction of these substrates. To add to this, the key requirement of materials used in wet areas is superior resistance to moisture damage in the event that the material gets wet. Reduced tile adhesion is one of the main problems moisture penetration causes.



IMG_7557

Specifications

----------------------------------------------------------------------------------------

Raw Material:Portland cement, sand, cellulose fibre, water
Applicationkitchens and bathrooms, Ceramic Tile Underlay, Tile Substrate
Size

6mm:  1200 x 600 ,900*1800,900*2400,1200*2400

12mm: 1200 x 800  ,900*2400,1200*2400
Weight:6mm: 9.50 kg per m2
12mm: 18.5.8 kg per m2
Profile:Square edge
Durable:

Backed by a 10-year warranty

Finish

Smooth fine sanded finish

Fire Resistance Non-cumbustibiltity A1
Density (Oven Dry)     1350 kg/m3
Modulus of Rupture (Wet)   > 12 MPa
Water Tightness (24hrs)       No water droplet
Water Absorption (Saturated – 48hrs)    20%
Moisture Content (EMC)                          6.5%
Moisture Movement                                  0.04
Thermal Conductivity                               0.2776 W/m.K.
Heat Rain                                                   PASSED (25 Cycles)
Freeze Thaw                                               PASSED (50 Cycles)
Warm Water ResistancePASSED (25 Cycles)
Soak Dry                                                    PASSED (25 Cycles)



 ==========================================================================================================



Relevant standard :

·        Australia AS/NZS 2908.2: Cellulose – Cement products part 2: Flat sheet

·        Australia AS/NZS 1530.1:  Methods for fire tests on building materials, components and structures – Part 1: Combustibility test for materials.

·        Australia AS/NZS 1530.3: Methods for fire tests on building materials, components and structures Part 3:  Simultaneous determination of ignitability, flame propagation, heat release and smoke release.

·        NOISH 9002: Test Non-Asbestos

·        AS 4964-2004: Method for the qualitative identification of asbestos in bulk samples

·        EN 12467: Fibre-Cement Flat Sheets - Product Specification And Test Methods

·        EN13501-1:Fire classification of construction products and building elements-Part1: Classification using data from reaction to fire tests

·        ASTM C1185/1186: Standard Test Methods for Sampling and Testing Non-Asbestos Fiber-Cement Flat Sheet, Roofing and Siding Shingles, and Clapboards

·        ASTM E136 :Standard Test Method for Behavior of Materials in a Vertical Tube Furnace at 750°C

·        BS 476-4 : Fire tests on building materials and structures- Part 4: Non-combustibility test for materials





IMG_5141



AiFuXi(FC)   Fiber Cement  Ceramic Tile  Underlay/Tile backer Board

ADVANTAGES

·       Robust & stable

·       Weather resistant – doesn’t shrink, crack rot or warp,

·       Lightweight for easy and quick installation

·       Low maintenance

·       Eco-friendly

·       Termite resistant.

·       Fire resistant



AiFuXi(FC)   Fiber Cement  Ceramic Tile  Underlay/Tile backer Board

IMG_2490

 AiFuXi(FC)   Fiber Cement  Ceramic Tile  Underlay/Tile backer BoardIMG_0024
