Lathe 5 jaw chuck with built in cylinder. Strong clamping, customized chuck with 5 pliers, pneumatic hollow through hole chuck
- Category: >>>
- Supplier: Yantai Hongyi Electromechanical Equipment Co. Ltd.
Share on (62008668365):
Product Overview
Description

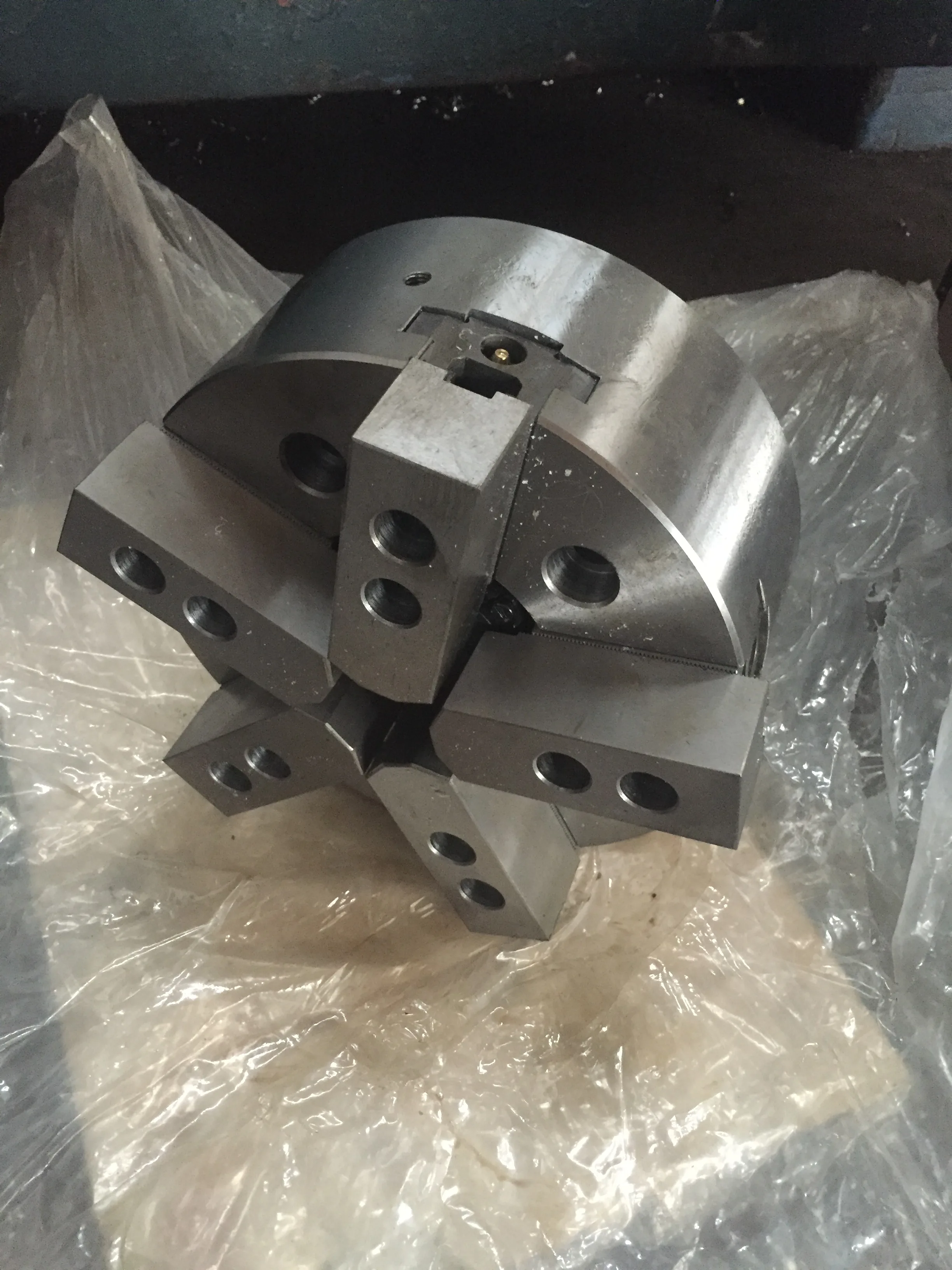

Hollow five jaw pneumatic chuck,Patented product, cylindrical form of connection, built-in cylinder with large clamping force
Product Description
Patented product, cylindrical form of connection.
The chuck is easily installed, and the connection method follows
industry standards; it is simply equipped with a flange consistent
with the chuck, without changes in the machine structure; similar to
the connection method of general mechanical chuck, the specific
installation method refers to installation instructions.
The chuck is a built-in cylinder with large clamping force, good sealing,
high precision, safety and reliability, nice economical and practical
applicability and long service life, and it can be suitable for processing
square parts and other special-shaped parts.
Subject to the different products spec and craft, and different exchange rate, The price here is just for your reference, please get the right price from our sales when you order.
There are four questions to answer to aid the correct choice of power chuck:
1. Type and model of CNC lathe.
2. Length of workpiece?
3. Outer diameter of workpiece?
4. Processing requirement?

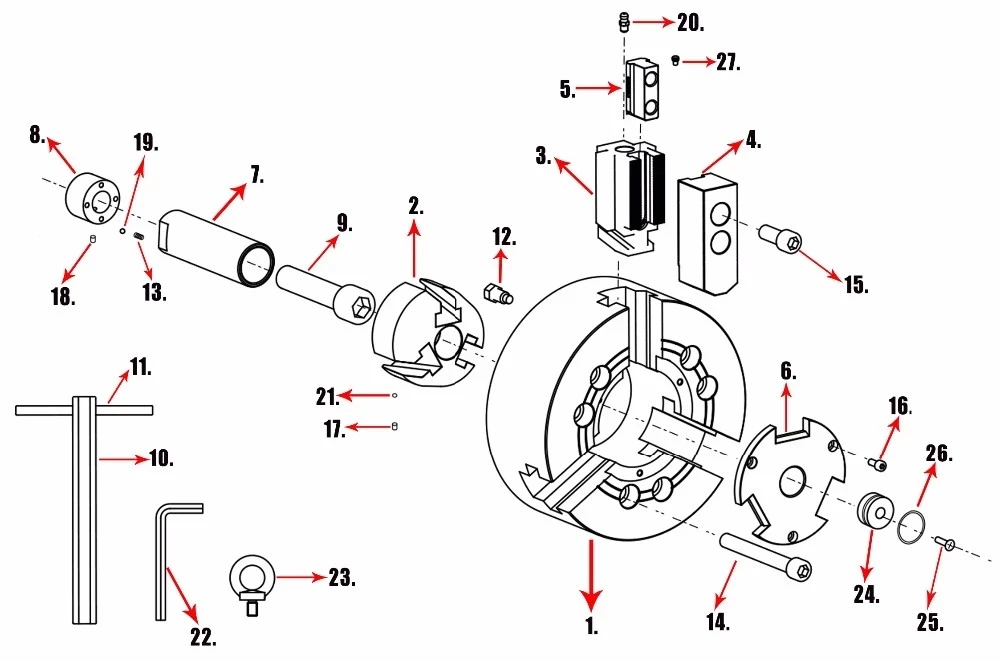

| No. | Name | No. | Name |
| 1 | Body | 15 | Hex. socket head bolt |
| 2 | Wedge plunger | 16 | Hex. socket head bolt |
| 3 | Master jaw | 17 | Set screw |
| 4 | Soft jaw | 18 | Set screw |
| 5 | T-nut | 19 | Steel ball |
| 6 | Cover | 20 | Grease nipple |
| 7 | Draw tube | 21 | Pb ball |
| 8 | Draw nut | 22 | Hex. socket srew key |
| 9 | Draw bolt | 23 | Eyebolt |
| 10 | Handle body | 24 | Cover plug |
| 11 | Handle pin | 25 | Fist Head capp Screw |
| 12 | Stop bolt | 26 | O-ring |
| 13 | Spring | 27 | Rivet |
| 14 | Hex. socket head bolt |
