160 tons 50 70 sbs and bitumen granules for asphalt mixes plant
I.Introduction of mobile asphalt plant for sale
Asphalt mixing plant mainly including batching systems, drying systems, burning systems, hot material enhance, vibrating screen, hot material storage bins, weighing mixing system, asphalt supply system, powder supply system, dust removal system, finished product storage bin,control system and other parts.
II.Technical parameters of LB series mobile asphalt plant for sale
Type
LB500
LB750
LB1000
LB1500
LB2000
LB2500
LB3000
LB4000
Rated production
30-40t/h
50-60t/h
60-80t/h
90-120t/h
120-160 t/h
160-200 t/h
200-240 t/h
280-320 t/h
Cold aggregate container
4containers ×6m3
4containers ×6m3
4containers ×9m3
4containers ×9m3
5 containers ×11m3
5 containers ×11m3
5 containers ×11m3
5 containers ×11m3

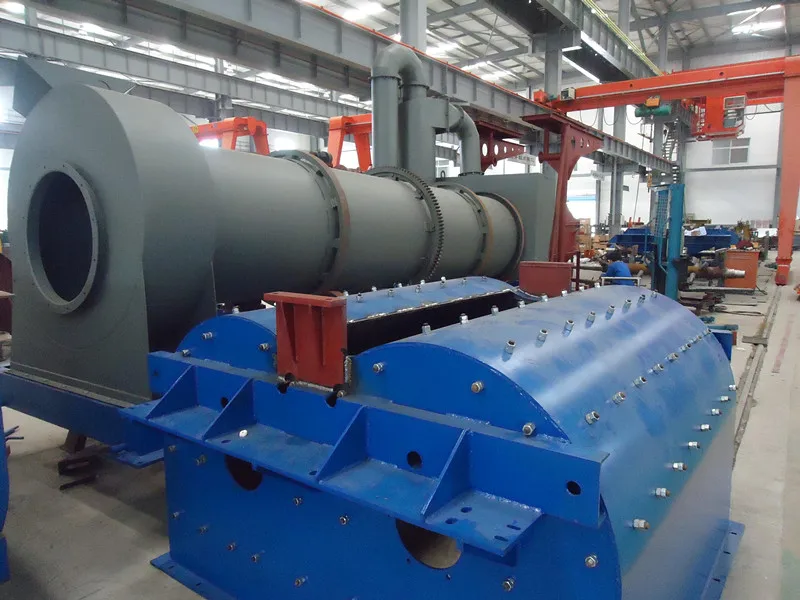

Dry cylinder
1.1m×4.2m
1.3m×5m
1.5m×6m
1.8m×7m
2.2m×8m
2.35m×9m
2.5m×10m
2.8m×11m

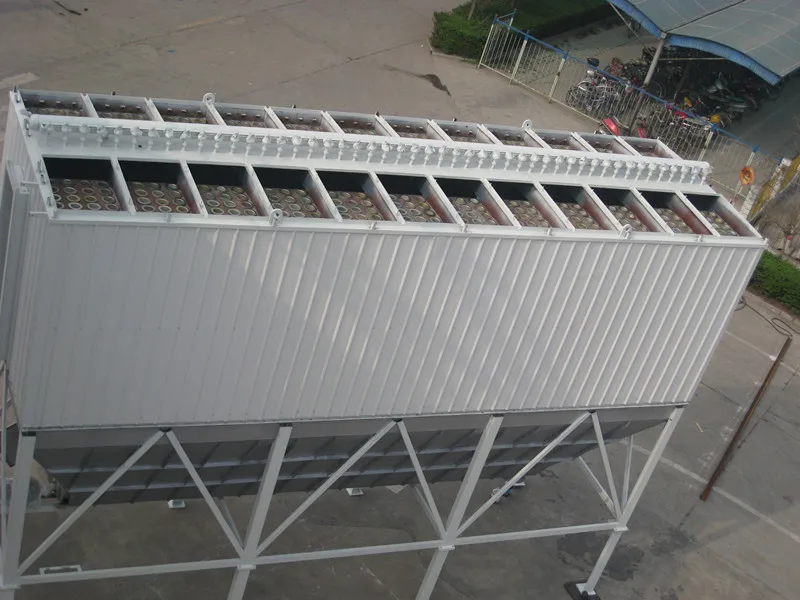

Bag dust-remover
CNM156
CNM240
CNM357
CNM476
CNM654
CNM832
CNM1012
CNM1308
Emission standard
50mg/nm3
50mg/nm3
50mg/nm3
50mg/nm3
50mg/nm3
50mg/nm3
50mg/nm3
50mg/nm3
Vibrating screen
4 layers
4 layers
4 layers
4 layers
5 layers
5 layers
5 layers
5 layers
Hot aggregate container
12t
12t
26t
26t
5/40t
40t
80t
100t
Mixing kettle capacity
500kg
750kg
1000kg
1500kg
2000kg
2500kg
3000kg
4000kg
Mixing cycle
45s
45s
45s
45s
45s
45s
45s
45s
Mineral powder tank volume
30t
30t
26+36t
26+36t
30+43t
30+43t
50+35t
60+35t

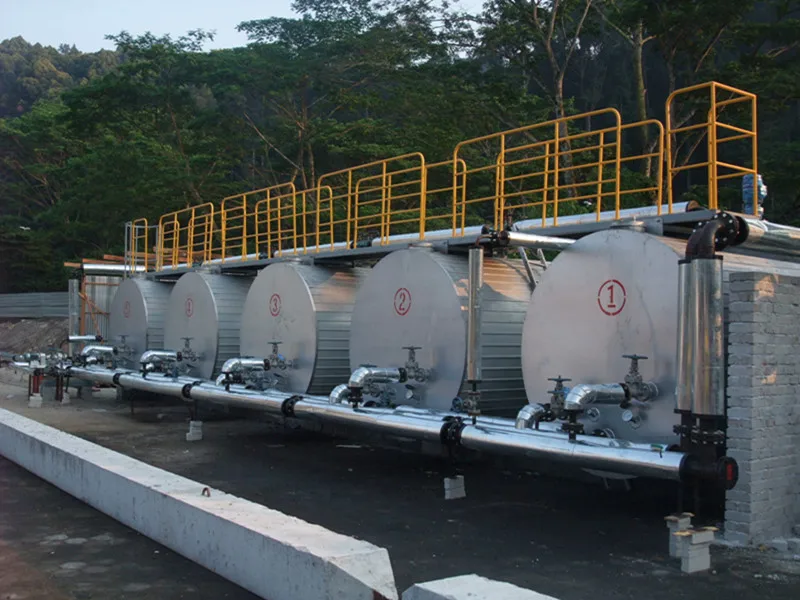

Asphalt tank volume
30000L
30000L
50000L
50000L
2×50000L
2×50000L
3×50000L
4×50000L
Heat conduction oil stove
200,000 kcol/h
200,000 kcol/h
300,000 kcol/h
300,000 kcol/h
500,000 kcol/h
500,000 kcol/h
800,000 kcol/h
1,000,000 kcol/h
End-product container volume
50t
50t
90t
90t
110t
110t
200t
200t

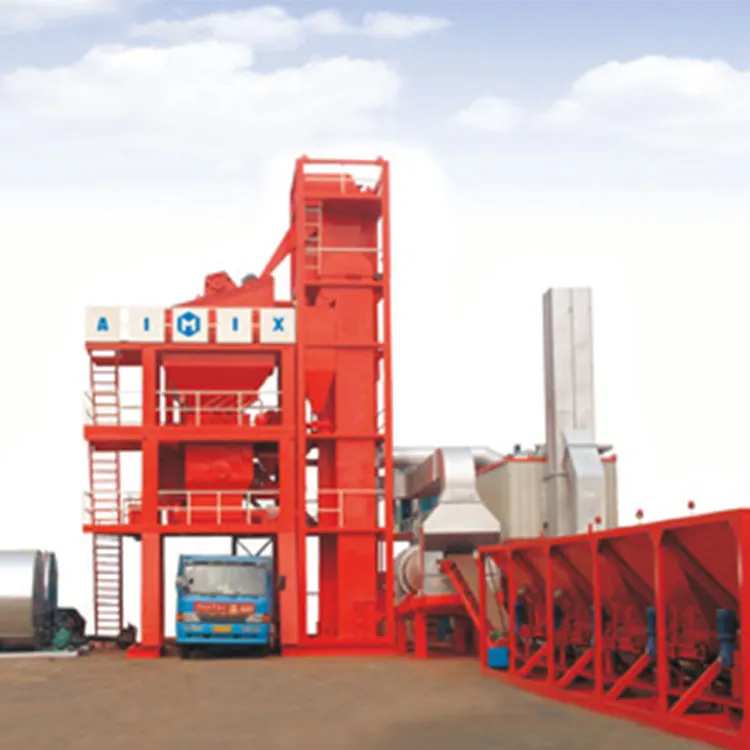

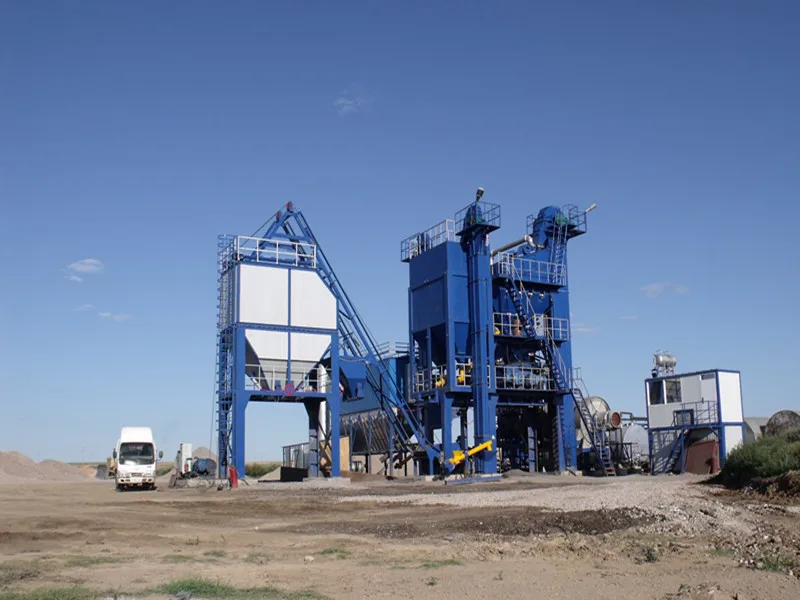

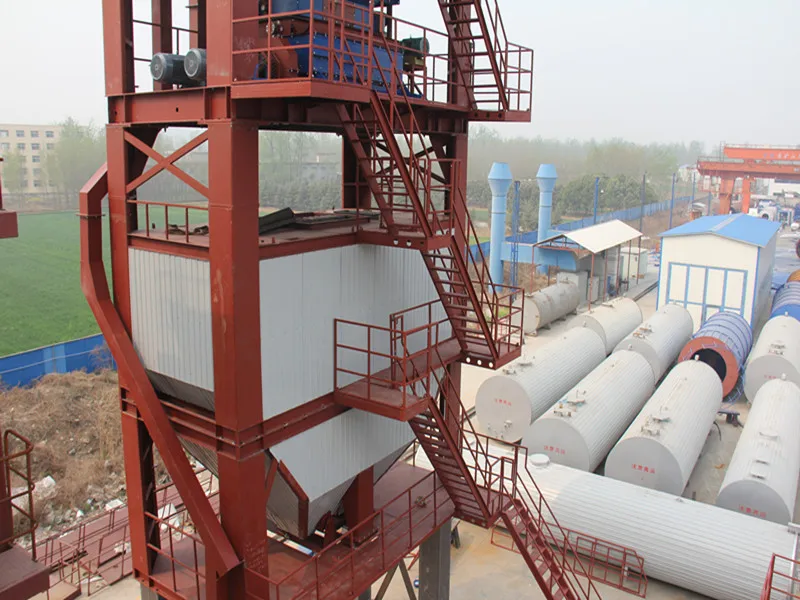

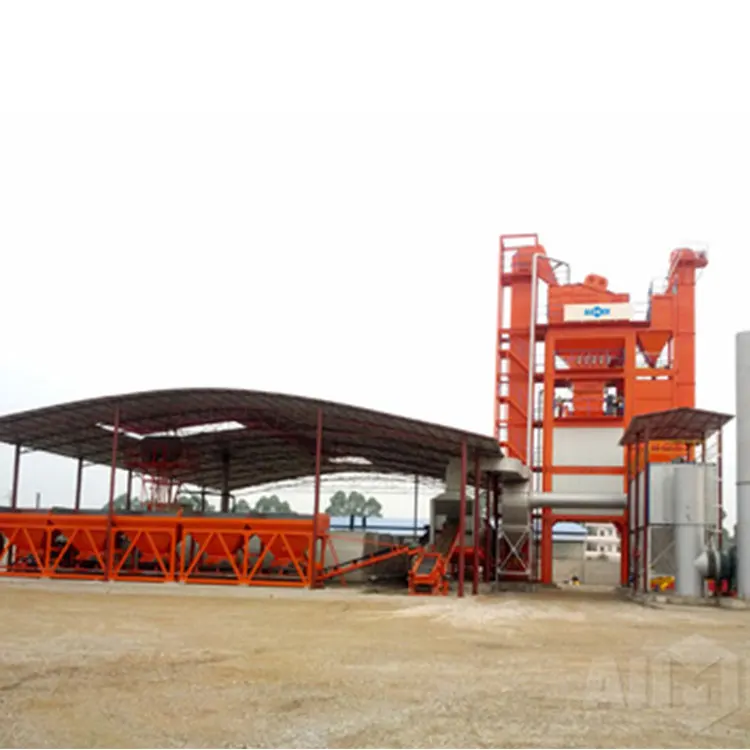

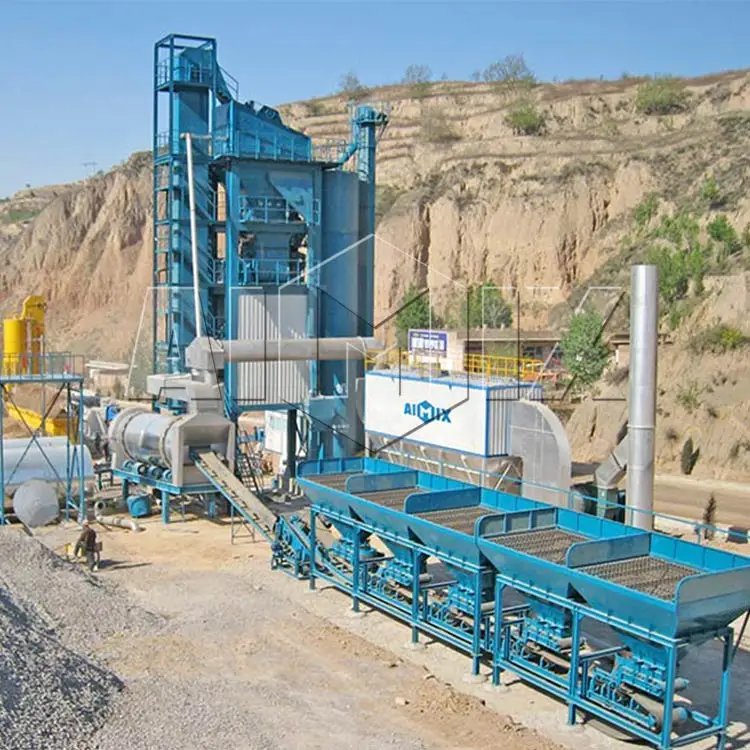

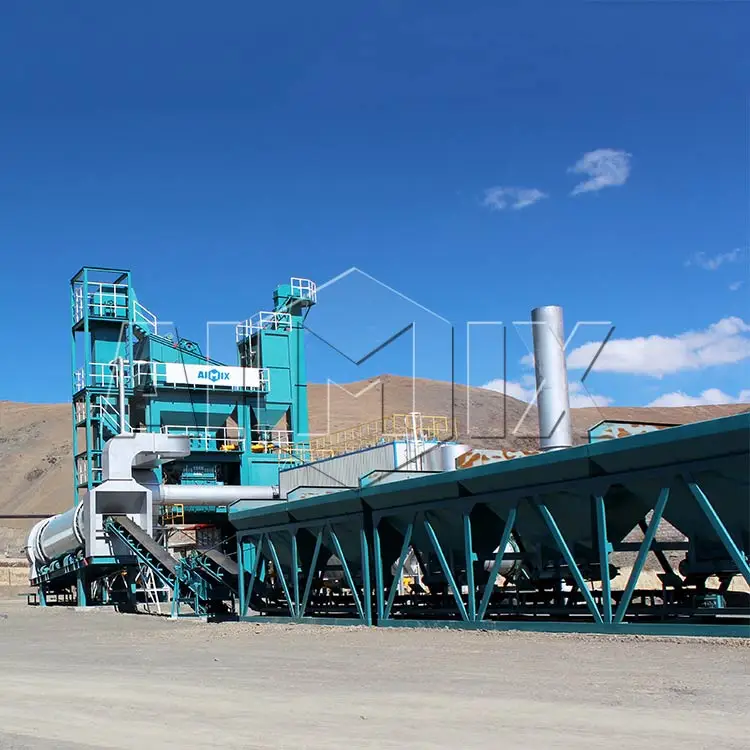

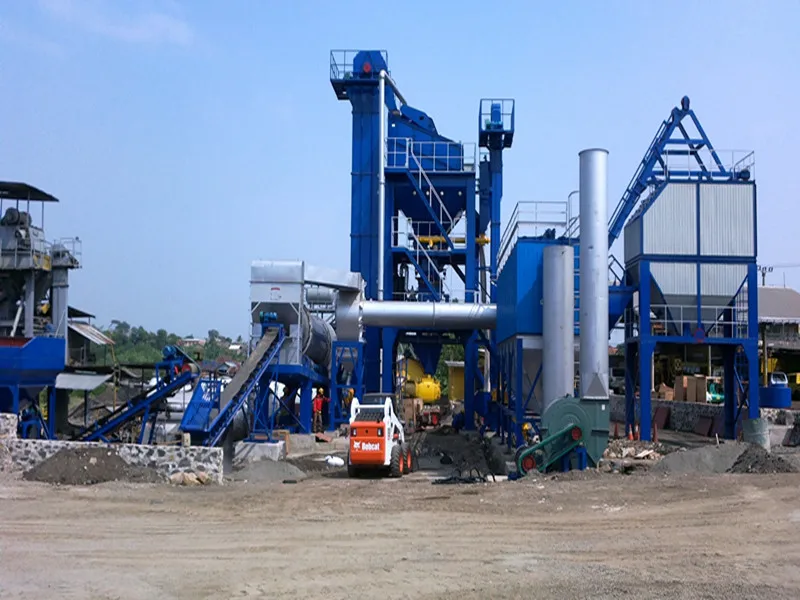

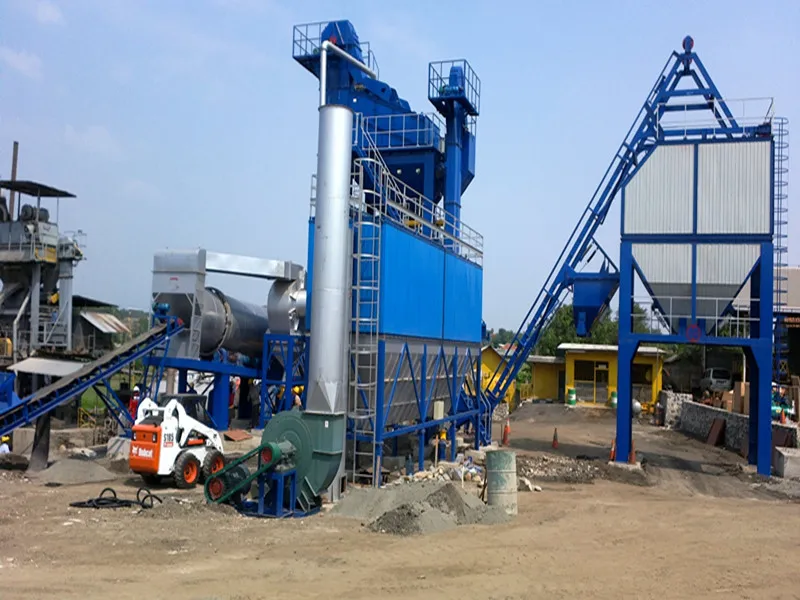

III.More detailed pictures of mobile asphalt plant for sale
v

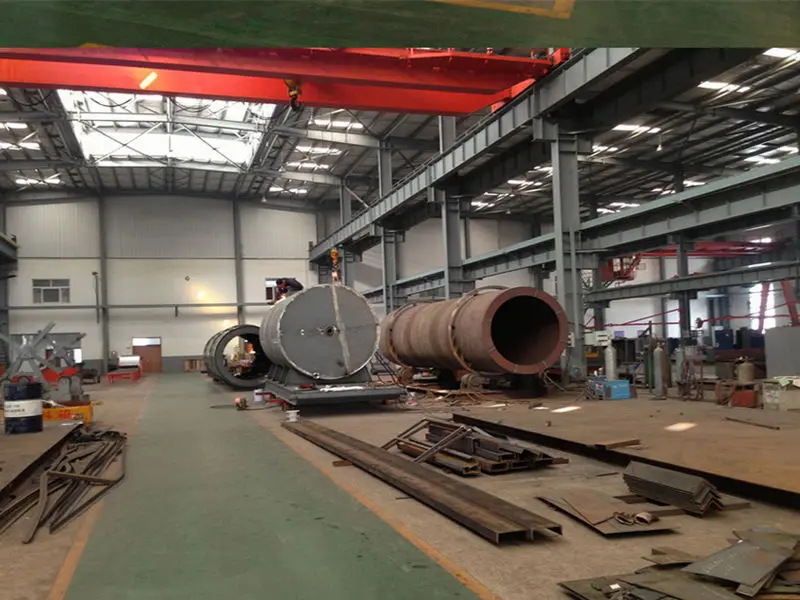

Company Information
Our Services
1. High quantity and quantity assured;
2. Favorable price as we are manufacturer;
3. Provide professional technical and project solutions;
4. Your inquiry will be replied within 24 hours.
5. Well-trained and experienced staff to answer all your inquiries in fluent English and Russia.
6.Factory visit is welcomed and free booking hotel and airport pick up service.
7. Engineers will go to clients' site for guiding the installation and test-running;
8.Spare parts supply,We will keep your know the complete data, when you need any spare parts, we will send to you as a fast way.
