automatic cleaning coal overband suspended cross belt magnetic magnet for conveyor

Product Overview

Description

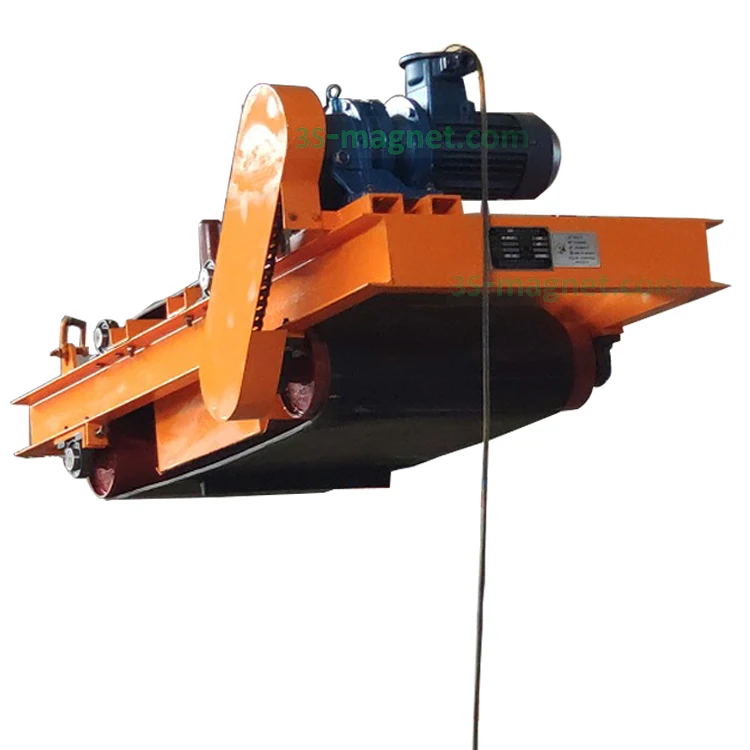

coal overband conveyor suspended magnet cross belt magnetic separator



Introduction of magnetic separator

 Suspended transversely and longitudinally over the belt conveyor, vibrate feeder and vibratory conveyor, it is designed to extract and separate the tramp metal automatically and continuously in heavy duty occasions, which provides effective removal of unwanted contaminants and protects your subsequent machinery(shredder, crusher, mill, grinder).

Similar to manual clean RCYB series, RCYD incorporates a set of pulleys along with a motor and reducer to drive a cleat belt around the magnet assembly.

when the material on the conveyor passes underneath the magnetic field, due to extremely powerful and long-reaching magnetic flux, ferrous metal is attracted to the rubber belt surface allowing the "cleared" material continue along the conveyor ,the magnet system will retain the tramp metal until it leaves its magnetic field and discharged to the collection area. thus high reparation is achieved.



Features of magnetic separator

a,computer simulation design, bipolar magnetic magnet structure, deep magnetic field,

b,large gradient and large suction force.

c,High-performance NdFeB .5% demagnetization within 8 years.

d,Waist drum-shaped drum structure bearing wheel, with automatic rectification function,



 e,fully sealed bearing seat, good sealing, adapt to harsh environments.



f, The belt is automatically unloaded to ensure long-term trouble-free continuous operation.



g,interlocked with the belt conveyor, field control and DCS,PLC control .



For more funtions you want to have(non standard), please Click Here to get advice and know detailed explanation above the list functions.



Applications of magnetic separator

(1),quarry ,aggregate ,mineral and mining.

(2),wood, plastic recycling

(3),rubber tire steel recycling

(4),construction and demolition

(5),mobile screen, shredder and grinding machine

(6),steelworks and slag processing industry

(7),coal

(8),ceramic, abrasive, incineration and foundry sand

(9),food, chemical and pharmaceutical.

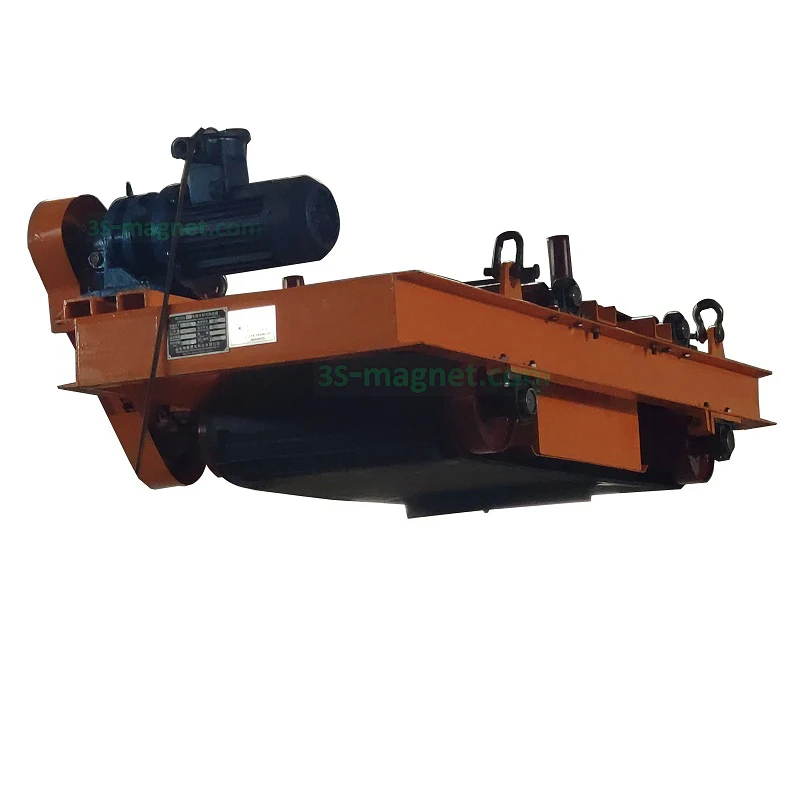

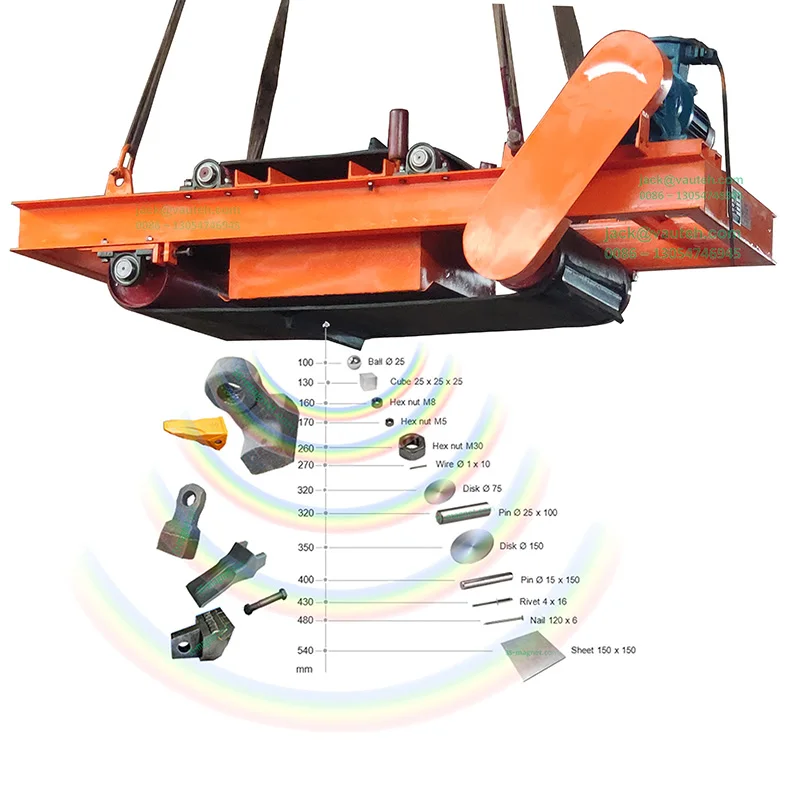

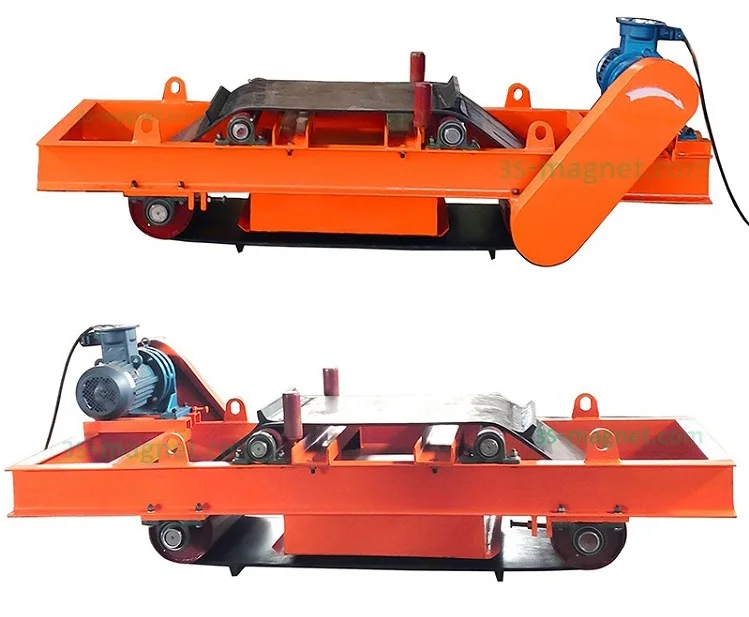

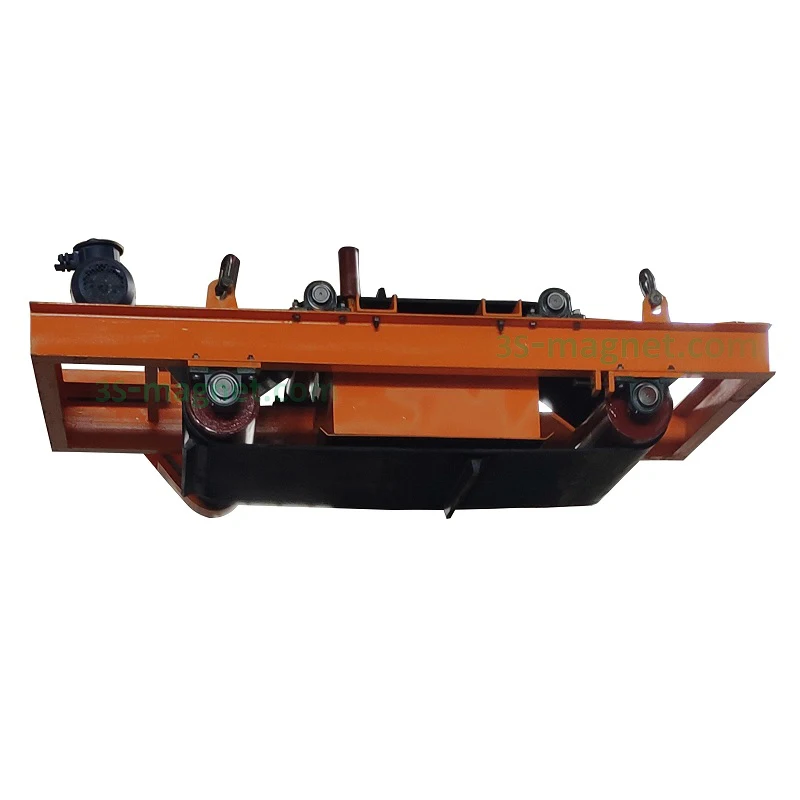

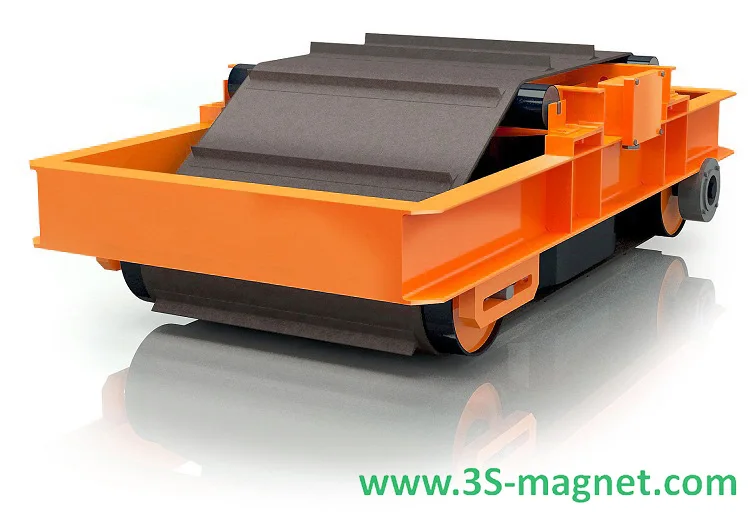

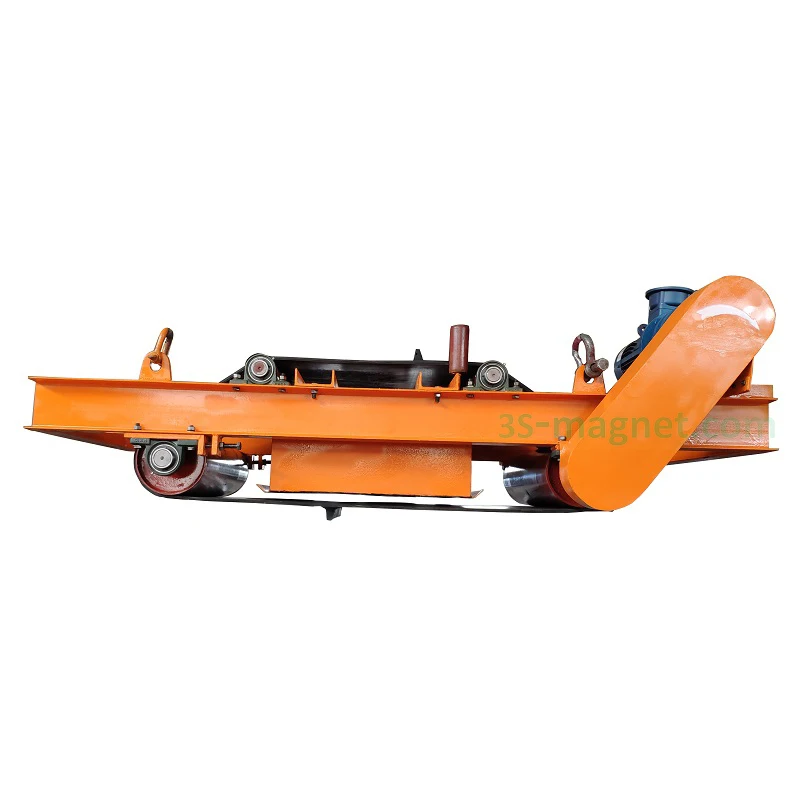

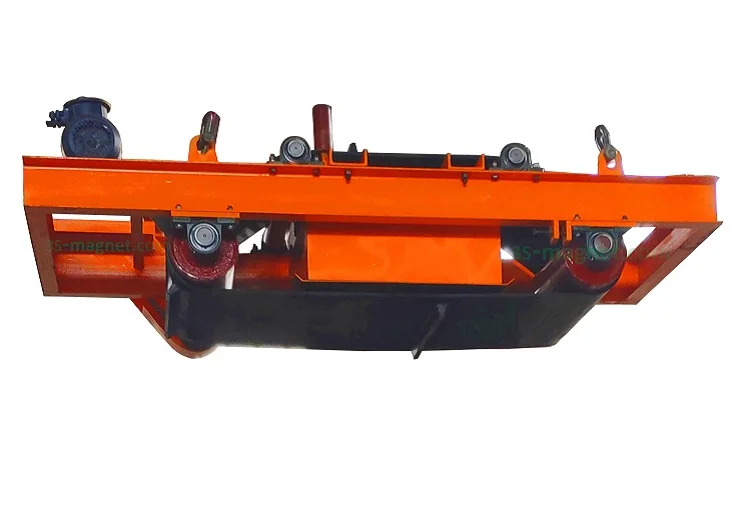

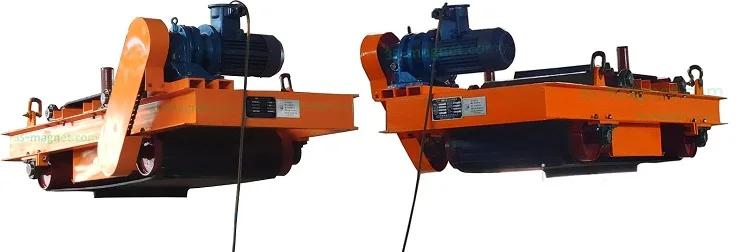

Photos View of magnetic separator

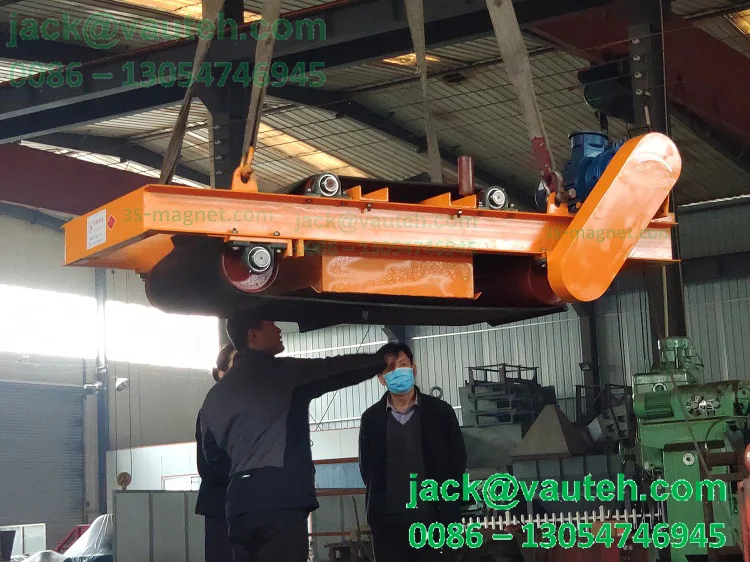

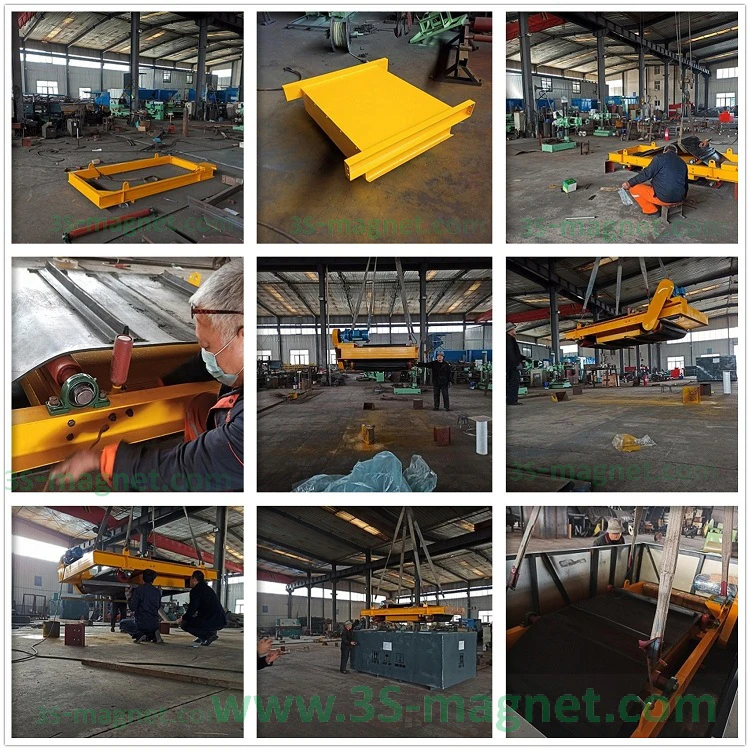

Production processs

 more machine tailored to your actual needs

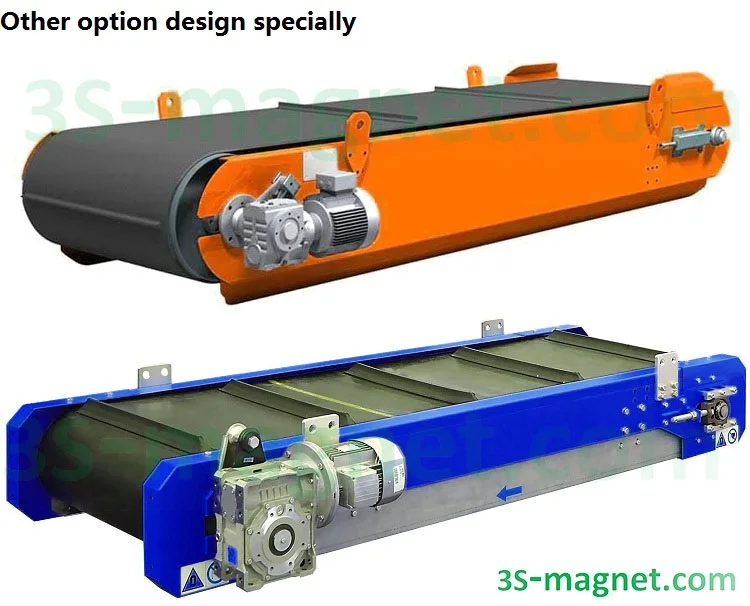

Other's option

 (1),Electro magnetic design

(2),Rare earth magnet design

(3),Explosion proof .

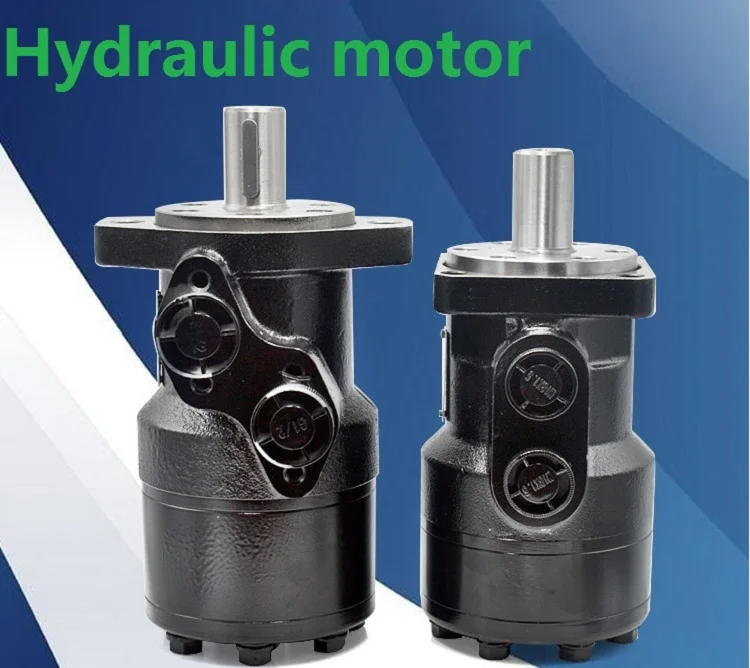

(4),hydraulic drive for mobile crushers.

(5),stainless steel cladding.

besides above, for more particular option, please click here to get contact with our engineers.





 Technical Data of magnetic separator

model		width mm	RSH (Rated Suspension Height)  mm	Magnetic intensity ≈mT	Drive power (KW)	Overall size mm			Belt speed ≤m/s	weight kg
						L	W	H
RCYD(C)-6.5	T1	650	200	90	2.2	2160	1075	795	4.5	1300
	T2			120	2.2	2160	1075	795		1420
	T3			150	2.2	2310	1075	795		1750
RCYD(C)-8	T1	800	250	90	2.2	2350	1280	795	4.5	1920
	T2			120	2.2	2350	1280	795		2180
	T3			150	3.0	2520	1253	795		2820
RCYD(C)-10	T1	1000	300	90	3.0	2660	1540	950	4.5	2350
	T2			120	3.0	2660	1540	950		2700
	T3			150	4.0	2760	1540	950		3680
RCYD(C)-12	T1	1200	350	90	4.0	2900	1730	970	4.5	3250
	T2			120	4.0	2900	1730	970		4100
	T3			150	5.5	2900	1730	970		5150
RCYD(C)-14	T1	1400	400	90	4.0	2900	1730	970	4.5	4800
	T2			120	5.5	3225	1980	1180		5600
	T3			150	5.5	3340	1980	1180		7450
RCYD(C)-16	T1	1600	450	90	5.5	3450	2210	1180	4.5	6200
	T2			120	5.5	3450	2210	1180		7750
	T3			150	7.5	3620	2210	1180		1038
RCYD(C)-18	T1	1800	500	90	7.5	3825	2570	1180	4.5	8500
	T2			120	7.5	3825	2570	1180		10850
	T3			150	11.0	4025	2570	1270		14800
RCYD(C)-20	T1	2000	550	90	7.5	4275	2570	1180	4.5	11500
	T2			120	11.0	4275	2570	1250		14270
	T3			150	11.0	4540	2670	1250		19260
RCYD(C)-22	T1	2200	600	90	11.0	4810	2820	1250	4.5	13980
	T2			120	11.0	4810	2820	1250		18350
	T3			150	15.0	4810	2820	1350		25080
RCYD(C)-24	T1	2400	650	90	15.0	5280	3180	1250	4.5	18760
	T2			120	15.0	5280	3180	1350		23870
	T3			150	15.0	5280	3180	1350		29960

 The max magnetic strength we can get to 6000 gauss with extruded system or NdFeB ring section, if you

want to have specific requireements, welcome to Click Here for comprehensive solution.

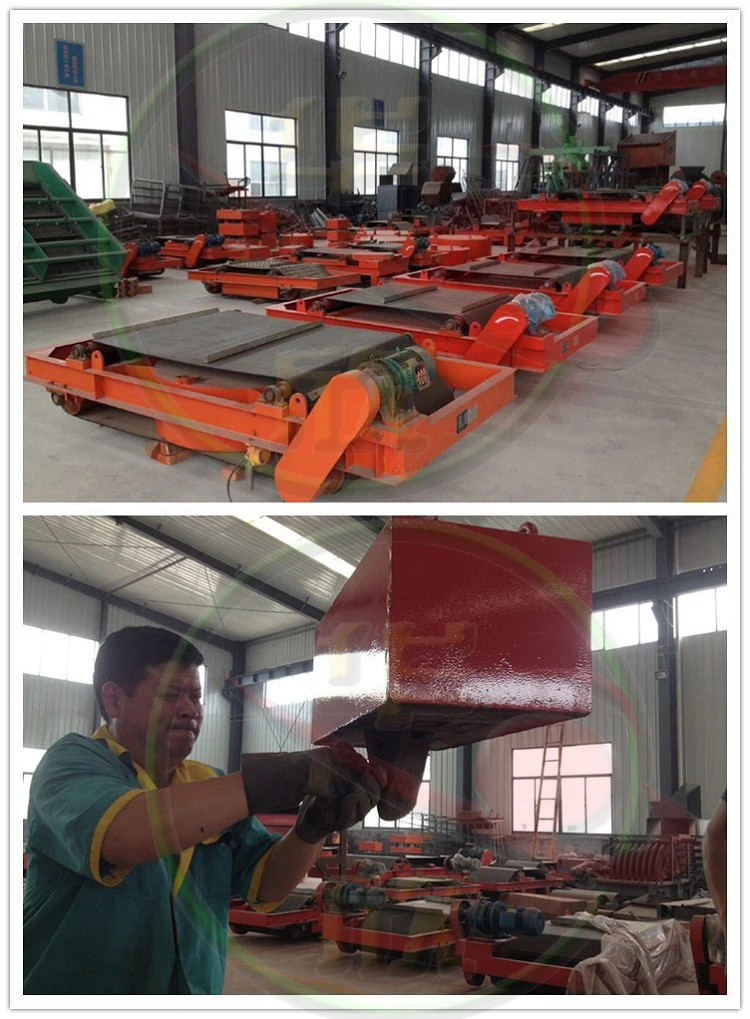

Equipment stock of magnetic separator

Fabrication of magnetic separator

(1), is made of robust strontium ferrite

(2),rugged structural steel frame

(3),optimal adaption to the conveyor belt width and speed

(4),reinforced bearing in dustproof housing

(5),extra thick heavy duty cleat belt

(6),self-aligning sealed bearing

(7),deflector rolls improving belt alignment.(option)

Besides above,if you have other specific requirements to address to our technician, please click here

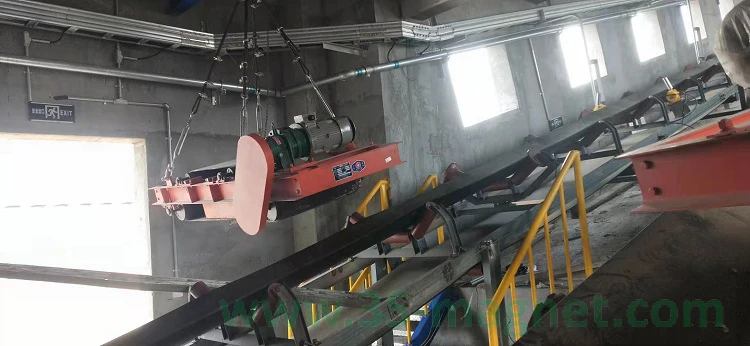

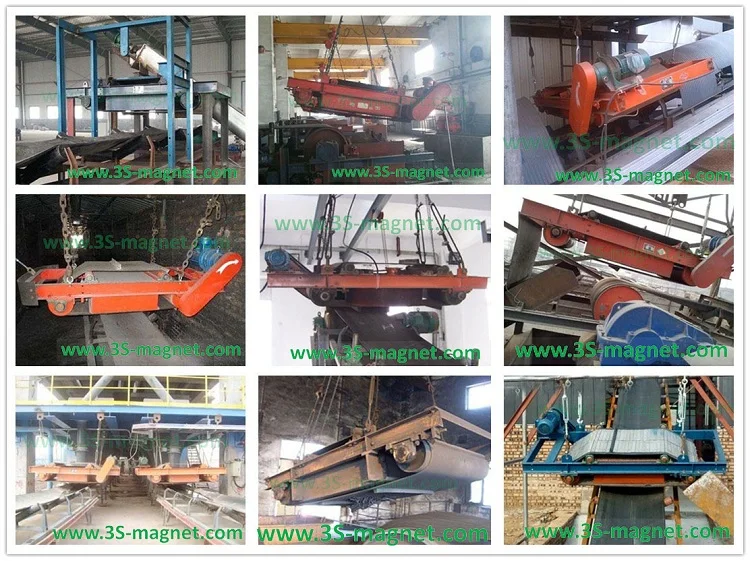

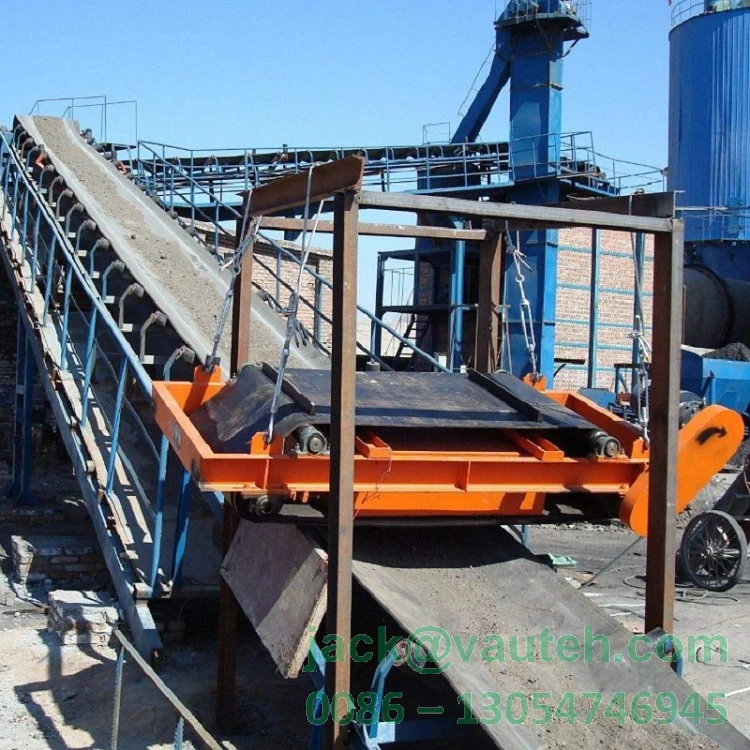

Installation project of magnetic separator



 Design Options





How to get a quote of magnetic separator?

To make a responsible and exact quote for you, it will be helpful if you can tell us :

(1),what kind of mineral to be processed by magnetic separation?

(2),the metal size to be removed ?

(3),the burden depth ,and the suspension height

(3),others to be cleared with our engineer, please CLIKE HERE to send inquiry, where you can receive professional advice about the test analysis, flow chart ,and machine choices.

your contact will keep confidential with us.

With your permission, we would like to send you E-catalogue, photos, and actual video.
