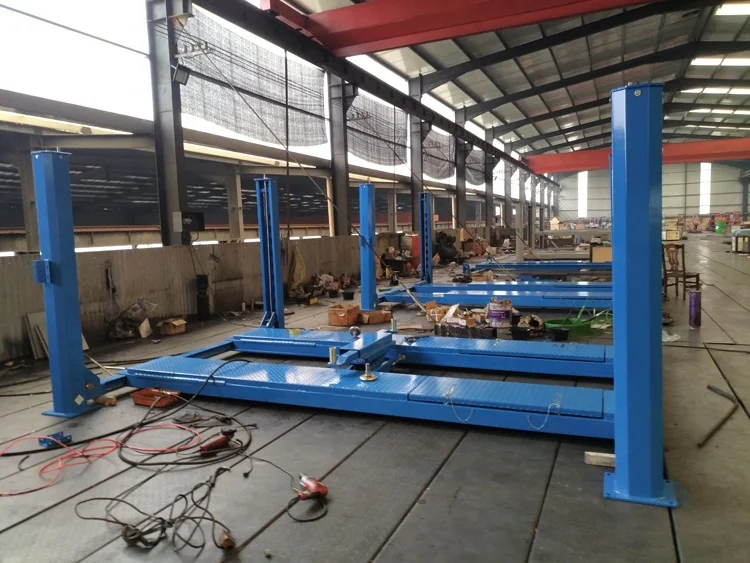

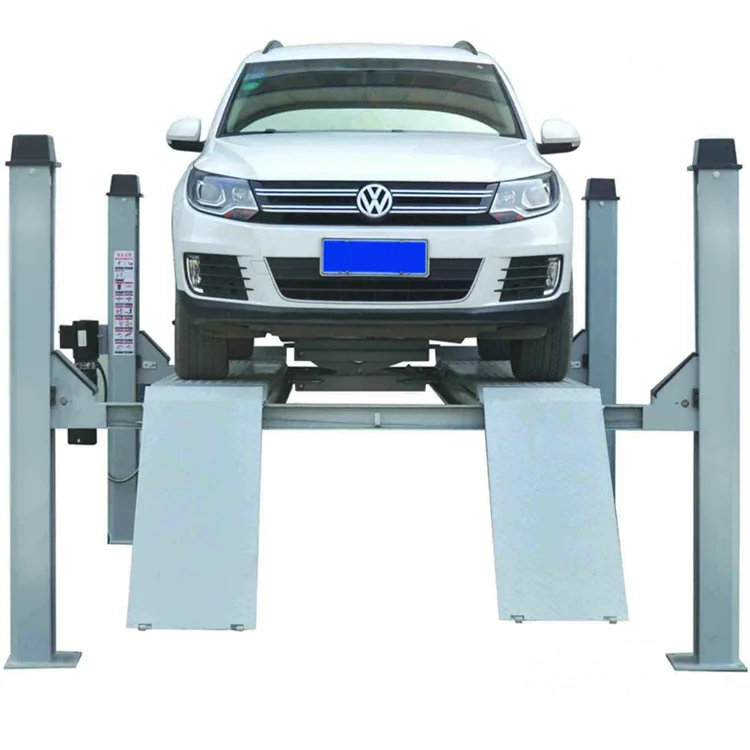

CE approved 3.5T 4 post scissor car lift for wheel alignment

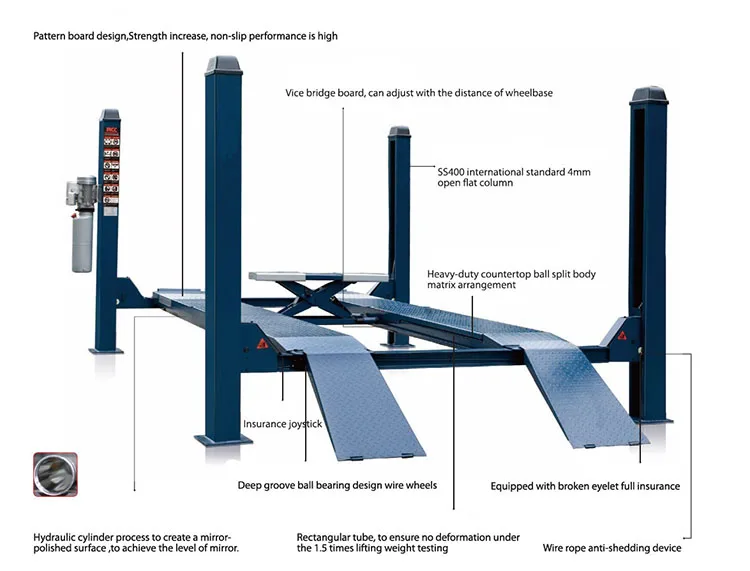

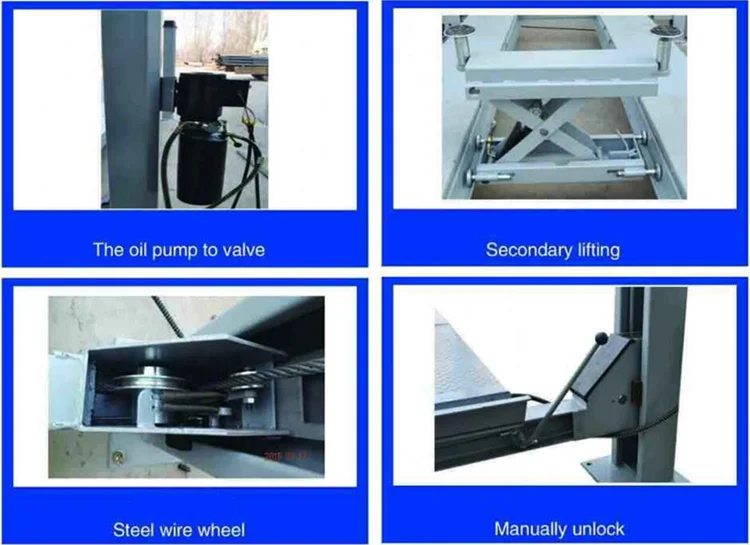

1.Manual machine to unlock ,easy and convenient.

2.Adopt the hydraulic lock and the main insurance positioning structure and the rope breaking        resistant insurance mechanism multiple-safety device safe and reliable.

3.Adopt the hydraulic failure and overload safety valve protection ,in the event of rope breaking and insurance mechanism failure ,the machine cannot be decreased rapidly.

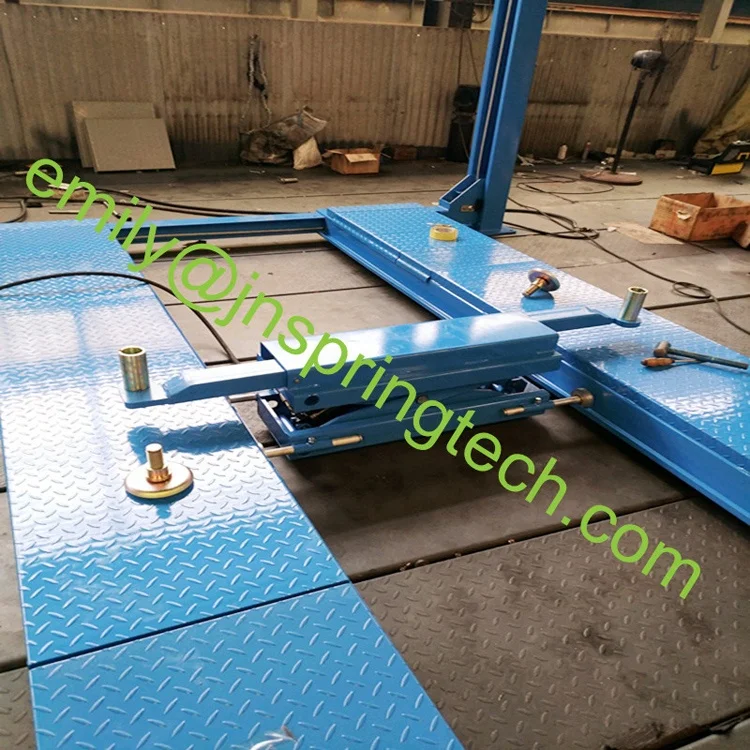

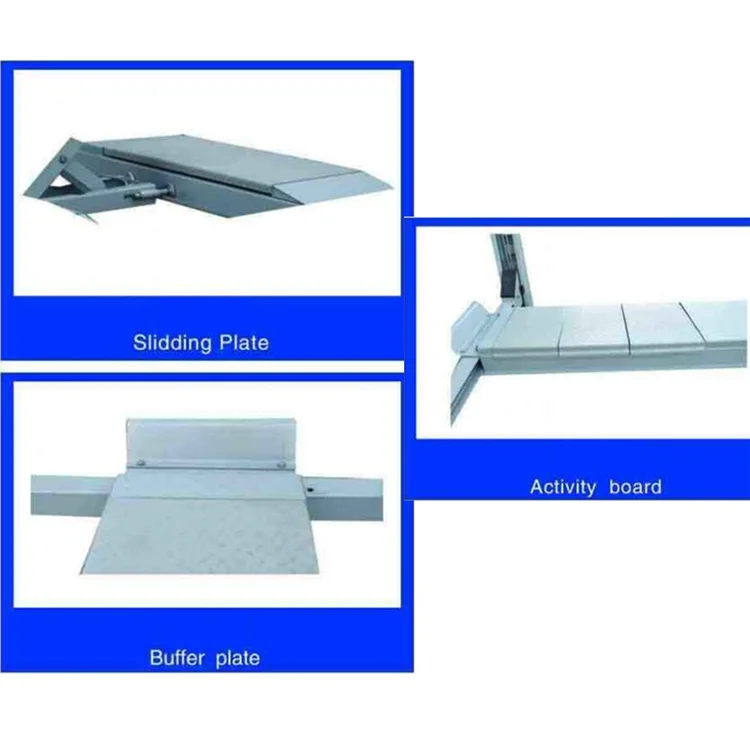

4.The lengthened double-level rear sliding plate,the position of front wheel turn plate can be adjusted,the secondary lifting trolley’s sliding rail a number of secondary lifting trolleys are optional.

5.Adopt the secondary lifting trolley’s sliding rail, a number of secondary lifting trolleys are optional.

6.The inside distance of adjustable lifting platform for different vehicles with different treads.

7.Receive 115% dynamic and 150% static testing.

8.Accord with standard of European union CE.

Model:SP-I3500

Load capacity:3500kg

Lifting height:1700mm

Minimum height:160mm

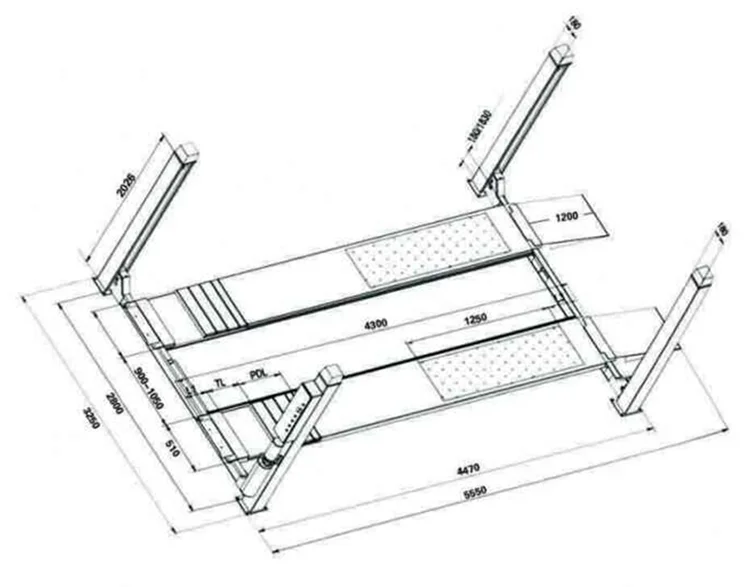

Overall length:5550mm

Overall width:3250mm

Columns within wide:2800mm

Runway plate wide:510mm

Width between runway:900-1050mm

Secondary lifting height:270-540mm

Post height:2000mm

Lifting time:60s

Falling time:50s

Motor power:2.2kw  Weight:1100kg
