ERP A energy label approved mini household split heat pump for domestic hot water
- Category: >>>
- Supplier: Guangzhou Sprsun New Energy Technology Development Co. Ltd.
Share on (62008752915):
Product Overview
Description
Product Description
3.8kW Household Split Air to Water Heat Pump for Domestic Hot water
Air source heat pumps are designed for domestic/commercial hot water and house heating with lowest air temperature is above -15℃.
● Efficient and Energy-saving
Air to water heat pumps absorb hot energy from the air freely, while the electricity is only used to drive the compressor to pump up the heat from the air, so they consume just a quarter of power of traditional electric water heaters, saving a lot of electric cost for users.
● Green and Environmental Protection
By using air source energy and electric power,there is no harmful gas being discharged during the operattion of heat pumps. R410A refrigerant guarantees fluoride-free emission.
● All-weather Operation
Stable operation without being influenced by windy, rainy or snowy weather.
● Endurable
Copeland scroll compressor, Danfoss electronic expansion valve, Eaton AC contactor and thermal relay as well as other brand components of the heat pump guarantee high product quality and a long lifespan. All of our screws and clips (both external and internal) are stainless steel. The cabinet we are using is made of GALVANIZED STEEL, making the product more rust resistant and durable.
● Multiple Protections
For example, if water flow is not enough in the system, the system will show high pressure protection and stop the heat pump automatically to protect the compressor from being damaged. Also, there is high current protection: if the power supply is not stable, the heat pump will show the high current error to stop the heat pump and avoid compressor damage.
● Linkage Function
External signal on/off function
● Guaranteed Safety
Complete isolation of water and electricity avoids electric shock, explosion and poisoning.
● Convenient
Air to water heat pumps are easy to install. They can be placed in many places, such as garages, balconies, kitchens, etc.
Specifications
Model | CGKF3.5-150YA | CGKF3.5-200YA | |||
Outdoor unit | CGKF3.5 | ||||
Indoor water tank | 150Y | 200Y | |||
Outdoor unit(Model) | CGKF3.5 | ||||
Power supply | V | 220V~240V/50Hz/1ph | |||
Refrigerant | R417A | ||||
Heating capacity(A20/W55) | KW | 3.8 | |||
Input power(A20/W55) | KW | 0.91 | |||
COP(A20/W55) | 4.09 | ||||
Heating capacity (A7/W45) | KW | 2.96 | |||
Input power (A7/W45) | KW | 0.91 | |||
COP (A7/W45) | 3.24 | ||||
Heating capacity (A2/W45) | KW | 2.4 | |||
Input power (A2/W45) | KW | 0.88 | |||
COP (A2/W45) | 2.68 | ||||
Rated current | A | 5 | |||
L line | Mm2 | 1 | |||
Fan motor power | W | 30 | |||
Fan motor quantity | piece | 1 | |||
Gas pipe connector | mm | ∅6.35/∅9.52 | |||
Net weight | kg | 32 | |||
Gross weight | kg | 35 | |||
Noise | db | 48 | |||
Pipe size(external thread) | mm | 20 | |||
Dimension | mm | 795*255*540 | |||
Packing dimension | mm | 920*335*590 | |||
Indoor water tank (Model) | 150Y | 200Y | |||
Volume | L | 150 | 200 | ||
External diameter | mm | Φ470 | Φ520 | ||
Height | mm | 1539 | 1590 | ||
Packing dimension | mm | 545*545*1570 | 590*590*1575 | ||
Internal tank material / thickness | SUS304 /δ1.0mm | ||||
Insulation material / thickness | polyurethane blowing/ δ50mm | ||||
Coil pipe material | SUS304 stainless steel | ||||
External tank material | baking coated / δ0.5mm | ||||
Magnesium rod | Included | ||||
Hot water pipe connector | mm | DN15 | DN15 | ||
Cool water pipe connector | mm | DN15 | DN15 | ||
Drain water pipe connector | mm | DN15 | DN15 | ||
Rated working condition: dry-bulb temp: 20℃, wet-bulb temp: 15℃, cool water temp: 15℃, hot water temp: 55℃.
Key Components

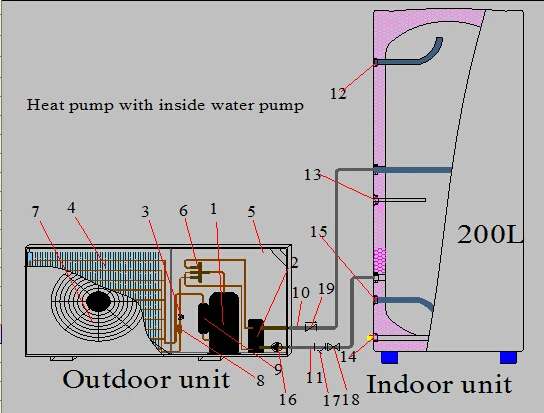

Installation Digragram
Company Overview
SPRSUN - Professional Heat Pump Manufacturer since 1999
As one of the Top 10 brand in China's heat pump industry, SPRSUN has been in the heat pump industry for 20 years. With a strong R&D center and 6 production lines, we are specialized in producing air to water heat pumps and other high efficient heat pumps for the HVAC market. Our products are welcome all over the world, such as Germany, Sweden, Serbia, Turkey, Czech, Russia, Vietnam, Australia, South Africa and so on.
SPRSUN Heat Pump Projects Worldwide
Certifications
Focusing on hot water, heating and cooling, SPRSUN is built up to meet customers'special energy saving needs with advanced technology support from Germany while ISO9001 and ISO14001 have been obtained. Our heat pump products are produced based on EN14511 standard with CE, CB, SAA, ETL and ERP certificates.
Economic Analysis
Compared with solar water heaters, gas water heaters and electric water weaters, the energy cost saved by SPRSUN heat pump water heaters is shocking.
Item | SPRSUN Heat Pump | Solar Water Heater | Gas Water Heater | Electric Water Heater | ||
Heat source | electricity | solar + electricity | natural gas | liquefield gas | electricity | |
Heat value | 860kcal/kw/h | 860kcal/kw/h | 9000kcal/m³ | 860kcal/kg | 860kcal/kw/h | |
Efficiency | 450% | 1/3 time use electric heater | 90% | 85% | 90% | |
Energy consumption | 2.07kw/h | 3.45kw/h | 0.99m³ | 0.87kg | 10.34kw/h | |
Cost | $0.11/kw.h | $0.11/kw.h | $0.42/m³ | $1.1/kg | $0.11/kw.h | |
Cost per day | $0.23 | $0.38 | $0.42 | $0.96 | $1.14 | |
Annual cost | $84 | $139 | $153 | $350 | $416 | |
Under 20℃ environment temperature and 15℃ water temperature condition, sample for heating 200L water to 55℃.
FAQ
Q1: Are you a manufacturer?
A: Yes, we are a professional heat pump manufacturer since 1999, with experienced and improved R&D, production, sales and service supply.
Q2: What are your main products?
A: Our main products include air source heat pumps, water/ground source heat pumps, swimming pool heat pumps, high temperature heat pumps, EVI heat pumps for cold area and so on.
Q3: How to place an order?
A: Please send us an inquiry or contact us with online service; after receiving your inquiry, we will reply to you with our catalogue, quotation and other information you need.
Q4: Do you provide OEM/ODM customized manufacturing service?
A: Yes, we warmly welcome your heat pump OEM/ODM opportunities. We can produce Europe standard heat pumps under your brand and according to your special needs.
Q5: Can I apply to become your heat pump distributor/reseller?
A: Yes, we are currently looking for more heat pump distributors/resellers across the globe, who can distribute our heat pump products in their local countries.
Q6: How long is your warranty period?
Our warranty is 18 months, but actually we provide lifelong maintenance service. Within 18 months since the delivery date, if the product has any failure under normal usage, SPRSUN will provide free assembly parts. After the warranty period, we will continue to provide lifelong maintenance service, with just a small amount of charges.
