2 Wheel Tractor Used 12hp Diesel Engine Mini Tractors Price
- Category: >>>
- Supplier: Weifang Kinger Machinery Co. Ltd.
Share on (62008831366):
Product Overview
Description

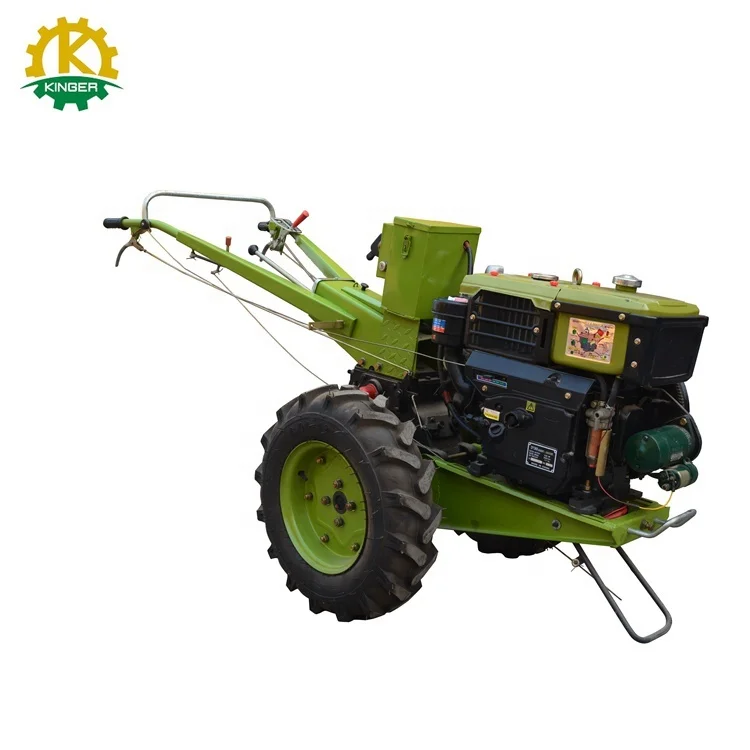

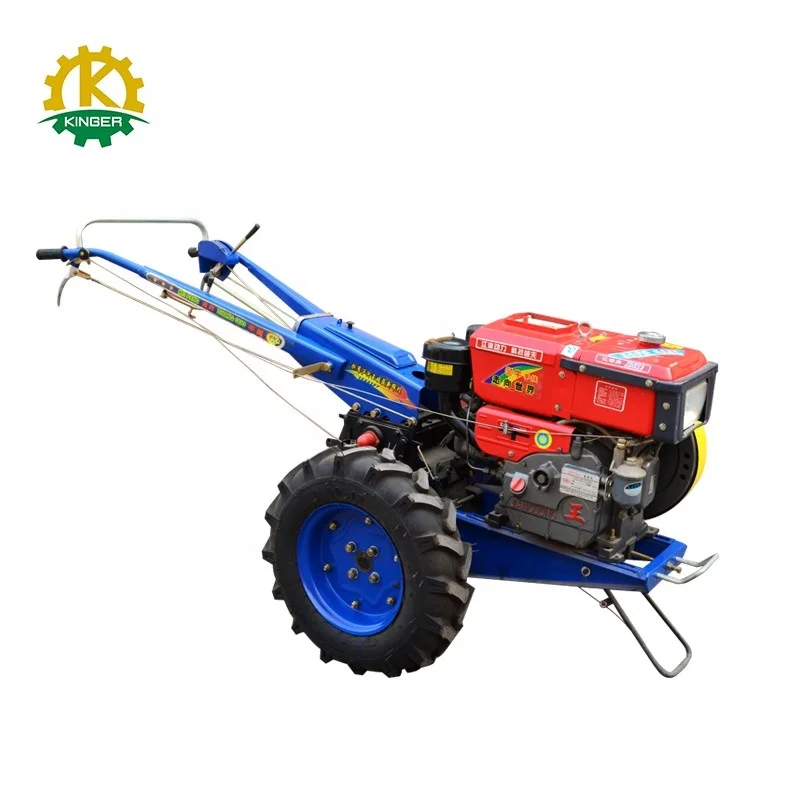

2 wheel tractor used 12hp diesel engine mini tractors price
Product Overviews:
Specification of 2 wheel tractor:
| Model | GH-12 |
| Engine Power | 8.82kw / 12hp, 2000rpm |
| Engine Type | Vertical, 1 Cylinder, 4 Stroke, Diesel powered, Water-cooled |
| Starting System | Z - shaped handel / electric |
| Overall Dimensions | 2180×890×1250mm |
| Wheel Base | 680-740mm |
| Min. Ground Clearance | 210mm |
| Semi-axlis | 340mm |
| Structural Weight (without attachments) | 290kg |
Weight in use ( with oil, water, tools) | 360kg |
| Wheels | 6.00-12 (GB1192-82), herringbone tread pattern |
| Tire Pressure | Field condition 80-120 (~0.8 lbs 1.2kg/cm2) |
| Transportation 140-200 (~2.00 lbs 1.40kg/cm2) | |
| Rotation Speed PTO | 1176 rev. / Minute |
| A pair of V-belts | B1850 |
| Clutch | Single plate, dry type, with permanent adhesion, friction type |
| Gears | (3+1)×2, driven by a cylindrical pinion |
| Forward Speed | F1: 1.68km/h F 2: 2.61km/h F3: 4.22km/h F 4: 6.79km/h F5: 10.57km/h F 6: 17.08km/h |
| Reverse Speed | Reverse 1: 1.29km/h Reverse 2: 5.22km/h |
Max. volume of lubricating oil in the gearbox | 5L |

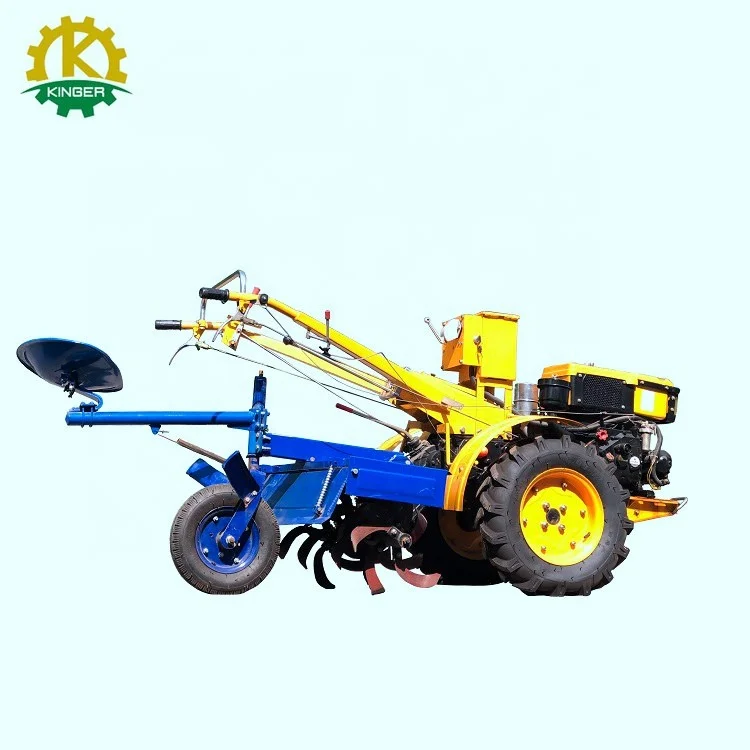

| Rotary Tiller | Width of the rototillers cultivation : 100cm |
| Weight of the rototillers assembly: 56kg | |
| Single Plough | The width of the plow: 25cm |
| Weight of the single plow: 18.5kg | |
| Rated loading weight for the trailer | 1000kg |

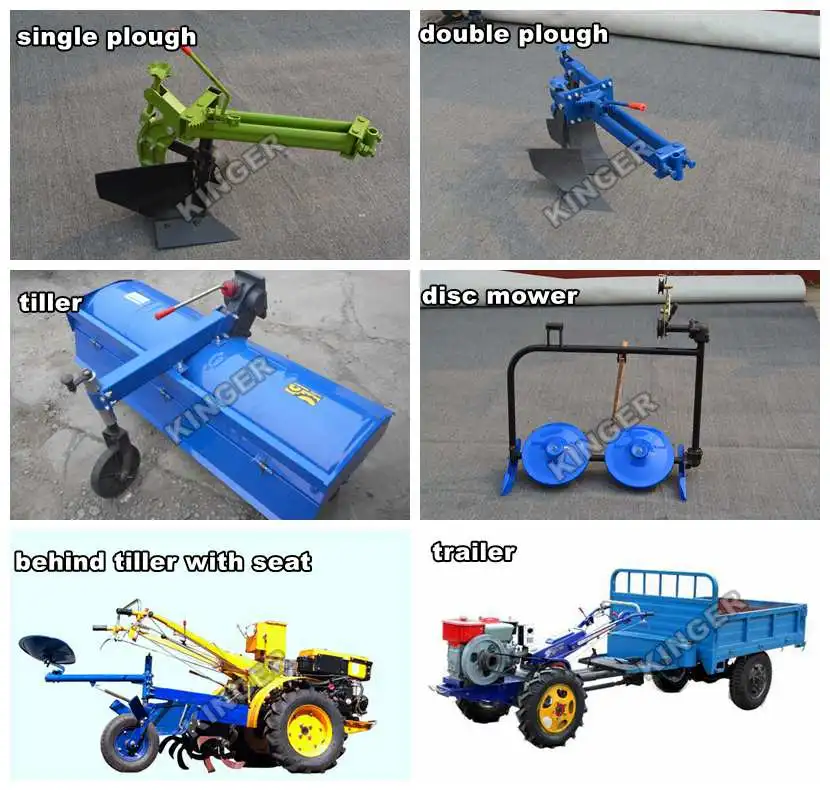

2 wheel tractor optional impments:

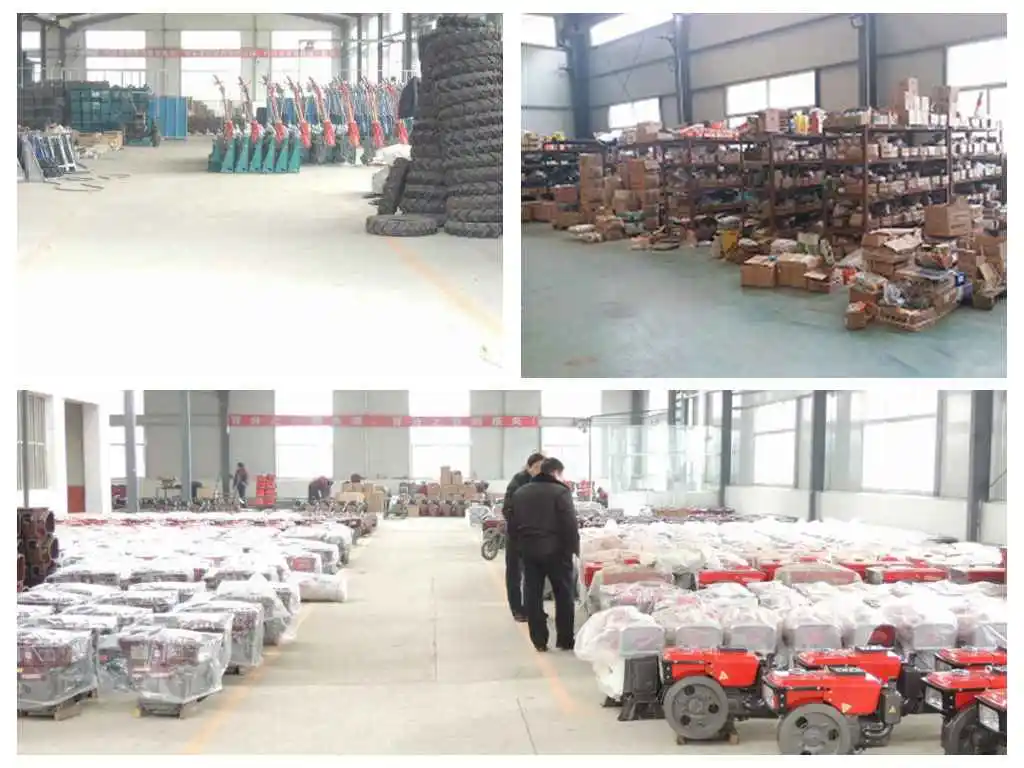

Production Flow
2 wheel tractor used 12hp diesel engine mini tractors price
Our Location
2 wheel tractor used 12hp diesel engine mini tractors price
FAQ
Q1:Why choose Kinger?
A1: * Kinger has 8 years experience in manufacturing argriculture implements,more specialized in bulk production;
*More professional team in purchasing,producing,sales and technology,with excellent equipments;
*Have fast after-sales service ;
*More innovative, 3 new products annually .
Q2: What's the Min. order quantity?
A2: we accept 1set sample for testing.
Now our agri machines are exported in large quantity.
If you need one sample for test, we advise you to get this sample as test
Q3:What is your payment term?
A3: By bank transfer or Alibaba trade assurance(credit card is available).
Q4: How to order?
A4: * first pls tell us which model do you need? or your working requirements?
* we will supply the quotation list and solution;
* we send proforma invoice or start order from Alibaba for payment;
* we will arrange the production and shipment after confirma payment.
Q5: warranty & sales service:
A5: we supply 1 year warranty and machine life sales serive.
If any problems during using, please freely let us know, thanks.
