Main Features

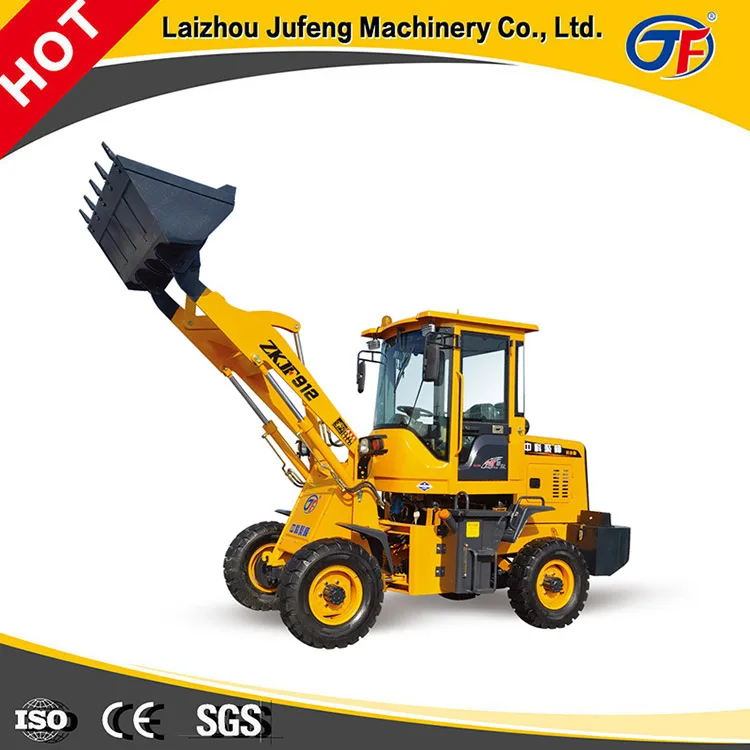

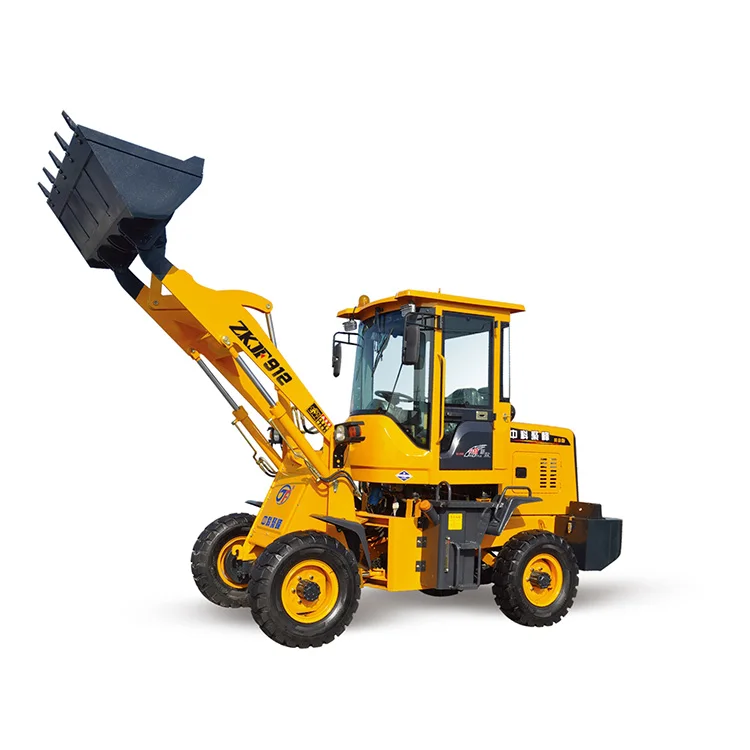

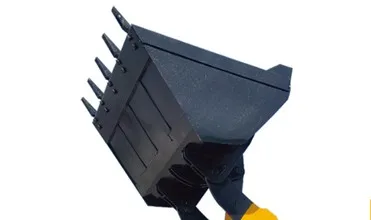

1500 mm wide bucket, the rated load of bucket is 1200 Kg. The dumping height of vehicle is 2900 mm and dumping reach is 900 mm.

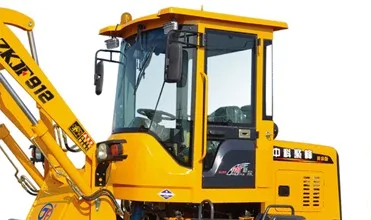

ROPS & FOPS cabin is available on this vehicle which helps to increase the safety of driver greatly.

The engine casing adopts thickened punch forming steel plate, which increases the stability of whole vehicle greatly.
Bucket | ||||||
Rated Load | 1200 Kg | |||||
Bucket Capacity | 0.6 M3 | |||||
Bucket Width | 1500 mm | |||||
Dumping Height | 2900 mm | |||||
Dumping Reach | 900 mm | |||||
Engine | ||||||
Model | HUICHAI, 2105, Naturally Aspirated | |||||
Rated power | 26 KW / 35 HP | |||||
Emission standard | Euro II | |||||
Chassis | ||||||
Structure | Articulated chassis | |||||
Articulation angle | 35 degree | |||||
Transmission gear | Manual, 3F+ 2R shift | |||||
Driving & steering | 4-Wheel drive (4x4), hydraulic articulated steering | |||||
Wheelbase | 2100 mm | |||||
Tread | 1370 mm | |||||
Axles | Isuzu reduction driving axle | |||||
Torque Converter | Mechanical | |||||
Brake | Oil brake | |||||
Tyre size | 10.00-16 | |||||
Cabin | ||||||
Type | ROPS & FOPS type | |||||
Air conditioning system | Optional | |||||
Vehicle | ||||||
Min. turning radius | 3.5 m | |||||
Min. ground clearance | 400 mm | |||||
Operating weight | 2600 Kg | |||||
Overall size (L×W×H) | 4900 x 1600 x 2700 mm | |||||
Optional accessories: | ||||||
HUICHAI (34KW) | ||||||
Bucket width 1000mm | ||||||
Air Conditioner in side cabin | ||||||



Laizhou Jufeng Machinery Co., Ltd. is the leading manufacturer specializing in construction machinery and equipment in China. Founded in 1992, our company has grown to be group enterprise which covers an area of more than 200,000 square meters and owns over 600 employees and 5 production plants.
The main products we manufacture include Self Loading Concrete Mixer with output capacity ranging from 0.8 CBM to 6.5 CBM, Wheel Loader with payload from 1 Ton to 3 Ton, Backhoe Loader, Site Dumper, Crawler Excavator, Concrete Mixer Pump, Concrete Boom Pump, Block Making Machine and Compaction Machine, etc.
We have constantly improved and updated our products according to customer's feedback and market demand. At every stage of the manufacturing process, each component has passed the stringent tests before the assembled machinery goes through its final pre-despatching inspection. Excellent quality, efficient after-sales service and reasonable price make us gain customer's trust and good reputation in both domestic and overseas markets. Our products have been exported to Russia, Uzbekistan, Mongolia, Malaysia, Philippines, Middle East, Kenya, Uganda, Algeria and Australia, etc.
In accordance with the development strategy of "Make ZKJF as a Brand with One Hundred Year's History", we endeavor to head towards of our great goal of be first-class enterprise in mainland China and well-known engineering machinery manufacturer in the worldwide as well.

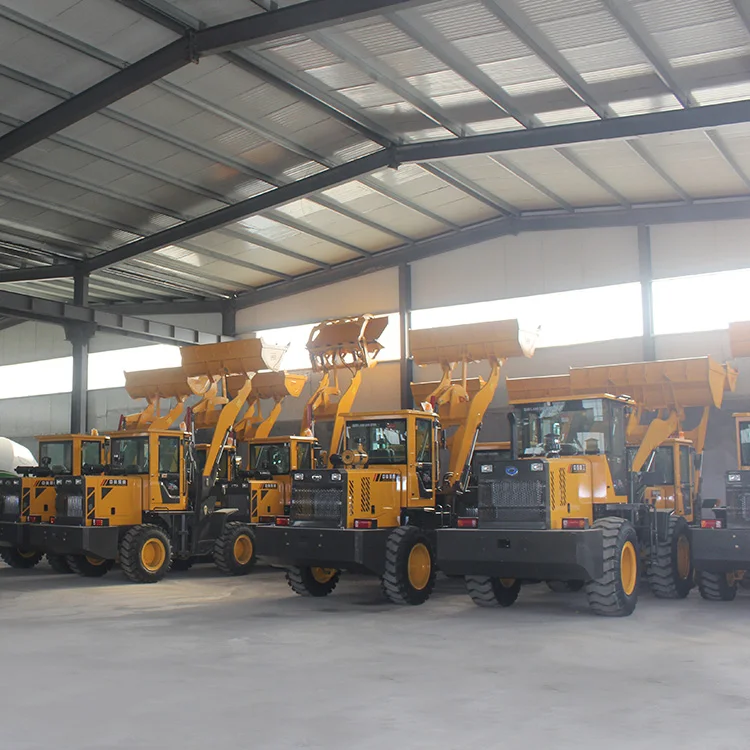

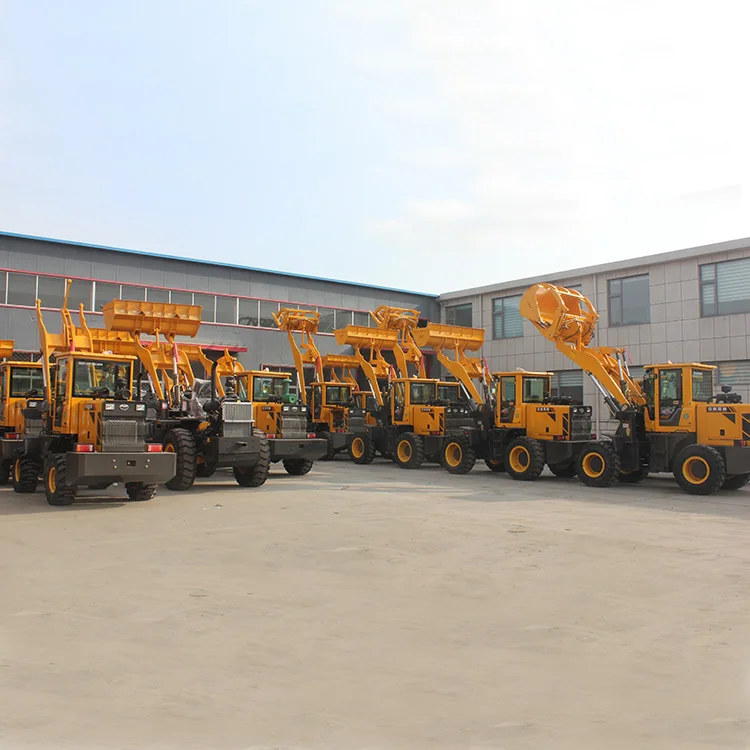

High Production Capacity

Advanced Laser Cutting, Robot Welding, Painting & Other Processing Equipments

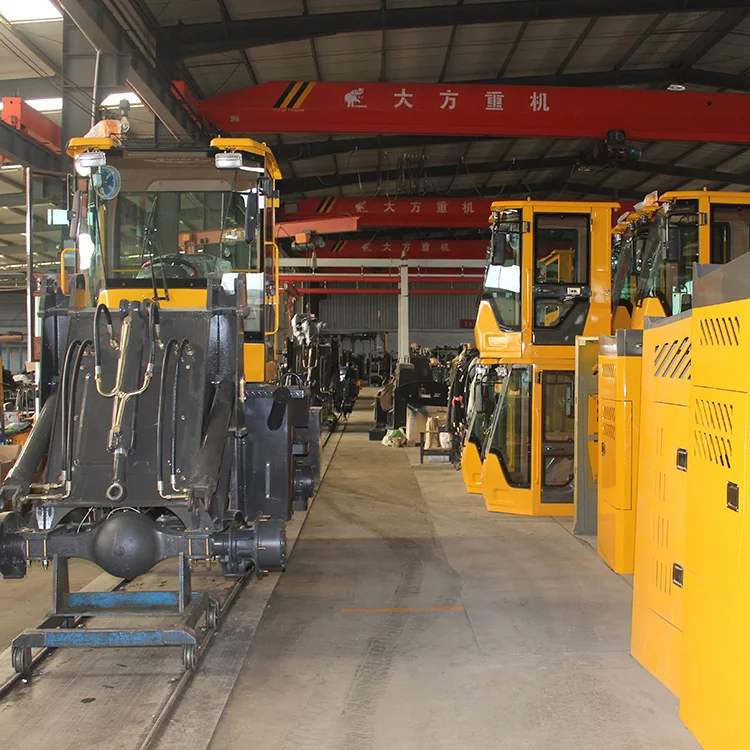

High Level Quality Control & Neat Assembling Workshop
