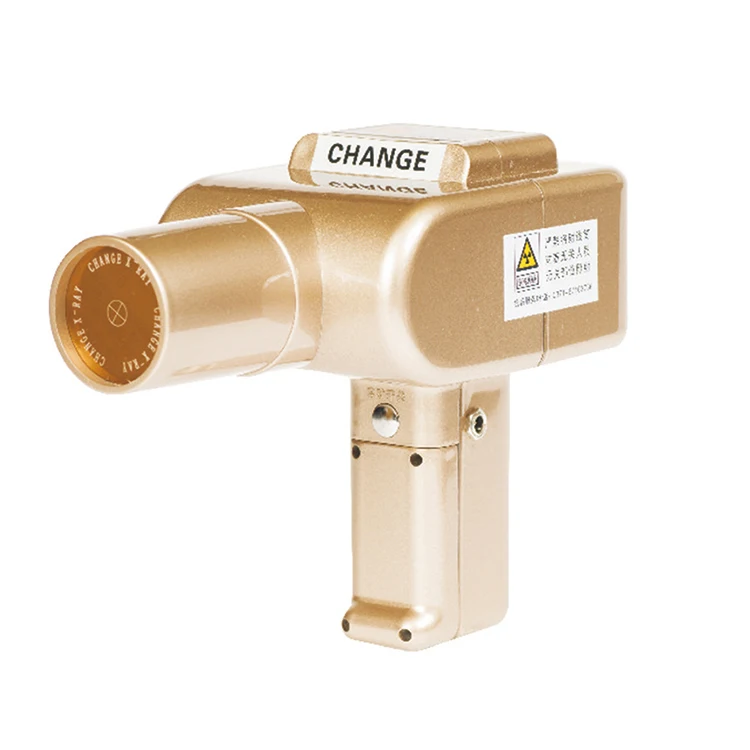

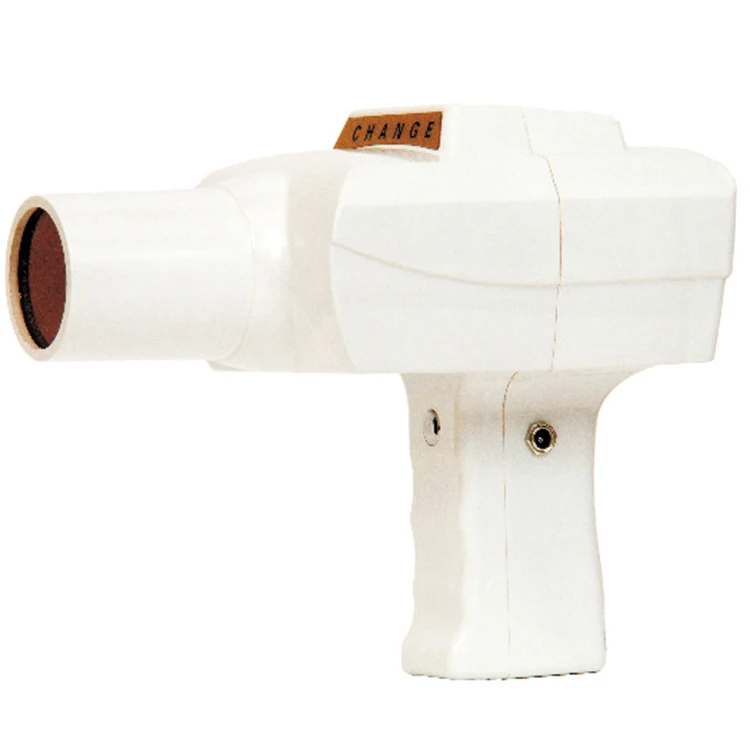

Dental Portable Handheld X Ray Unit Machine

Product Overview

Description

Specification

Charger	AC110V-220V±10%,50/60Hz
Frequency	30KHz
Lithium battery capacity	24V 3A 5000mAh
Tube voltage	60KV
Tube current	0.28mA
load time	0.2-6.0s
Irradiation time	0.3-1.3s
Focal To Skin Distance	10cm
Loading leakage radiation	<0.25mGy/h
No load,leak radiation	0mGy/h
Work type:	Irradiation load and continuous operation
Line limit diameter	45mm
Net  weight	1.6 kg
High voltage generator maximum output power	16.8W(60KV,0.28mA)
Tube life:	an average of 10,000 hours
Colour	Green, gold, white, wine red





The handheld high-frequency oral X-ray machine adopts modern technology of variable frequency microelectronic technology, microcomputer chip programming, and electronic voltage doubler rectifier circuit. Therefore, the power is small, the high voltage current is small, the volume is small, the device is simple, easy to operate, and the definition is high. One hand can be operated in the chair position, the real chair side X-ray machine. The inside of the machine has been secured and can be used with confidence. It is easy to carry and can be used with digital oral sensors. It is widely used for photographing the apical slices of oral patients in hospitals and clinics.
working principle:
The machine is an X-ray tube that uses variable frequency electronic double-voltage rectification technology and high-voltage excitation micro-focus to generate X-rays. The X-ray penetration characteristics are used to obtain images of human teeth. The science has proved that X-ray penetration ability depends on substances. Its structure and properties, generally high atomic number, and compact structure, high density of substances, poor X-ray penetration, X-rays penetrate the human tooth's teeth, bones, muscles and other tissue parts of different density, produce image information on the film Or a digital image receiving device displays different tissue images and performs clinical diagnosis based on the images.



Advantages and features;
One-handed operation! Good shooting angle! Convenient!
The radiation range is only 22 degrees from the front end and less than 1.2 meters. This is the first in China and is also in the leading position in the world. It is called the “green X-ray machine”. All components of the product adopt imported components and realize digital control of the whole machine, and the performance is more stable and reliable.
 In addition to the ray mouth, the ball head has been fully shielded and protected. Although safe to use.
 Small size, light weight, easy to use, save storage space
Film time is adjustable, image contrast is high, and imaging is clearer
Digital control of the whole machine, accurate and stable X-ray output
Open consumables: all types of dental and dental solutions available on the market
No need to purchase lead room, dark room and other facilities to start work
The whole machine is free for one year! The ball is five years!

Remarks; the biggest difference between handheld X-ray machine and hand-held X-ray machine
The hand-held one-handed one-handed (one person, one hand) operation! And it's easy to finish the film!
 Hand-held type requires two (2 people) hands (two hands) to operate! And you need a big doctor to operate! ! !
Hand-held is left-handed and right-handed
Hand-held style is a hand holding operation
Good products know at a glance
