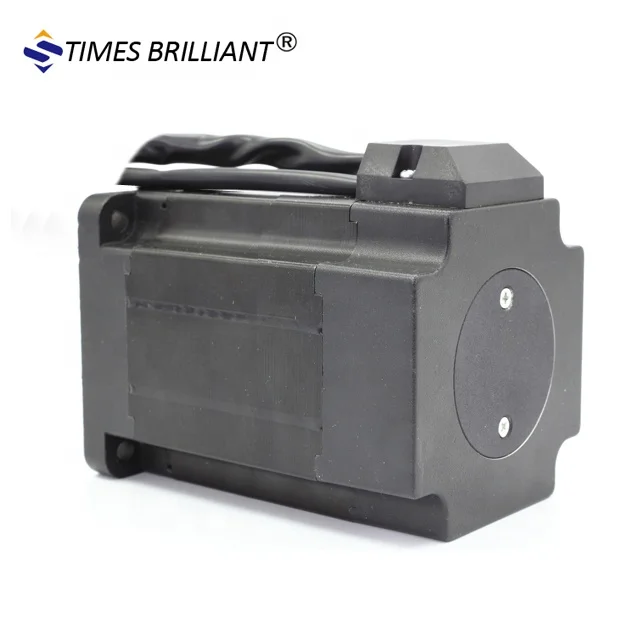

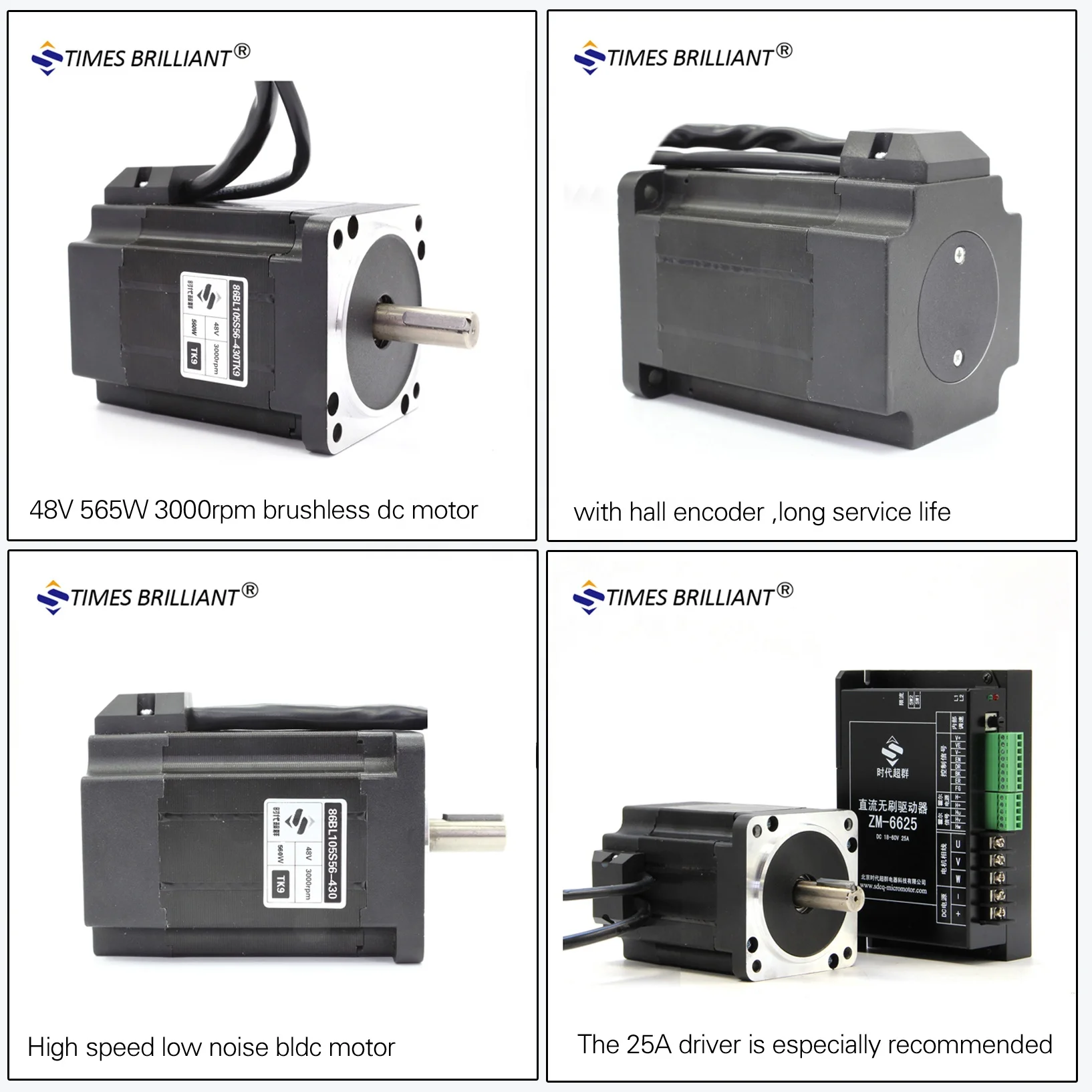

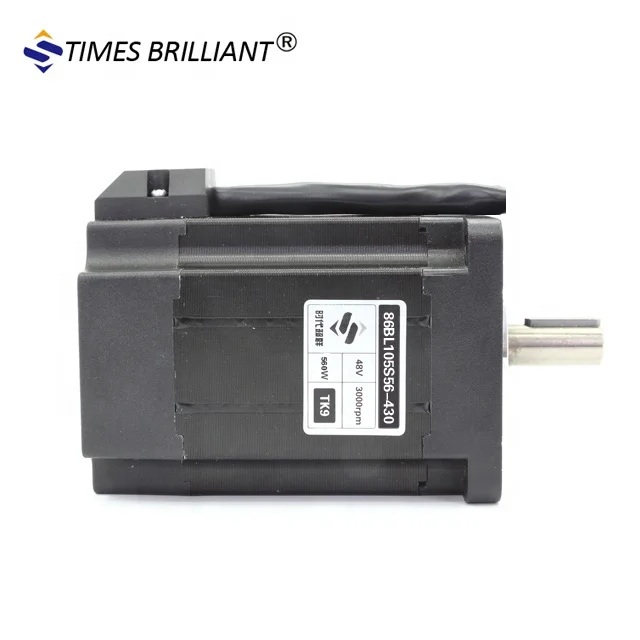

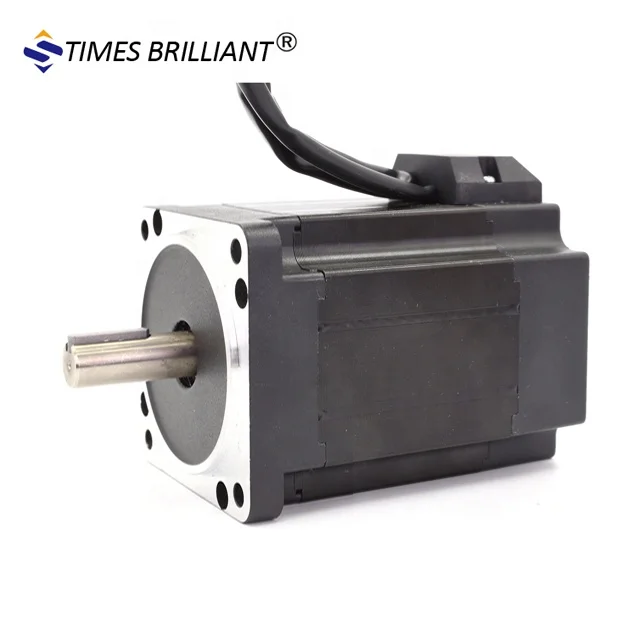

Chinese Supplier 3000rpm high speed low noise 565W 48V bldc brushless dc motor for CNC Milling and Drilling Machine

Product Overview

Description

Chinese Supplier 3000rpm high speed low noise 565W 48V bldc  brushless dc motor for CNC Milling and Drilling Machine

Note: the motor with magnetic ,so magnetic inspection fee will be incurred during transportation. Please contact shop assistant to supplement it.large quantities can dispense with it



KeyWords	Brushless DC Motor

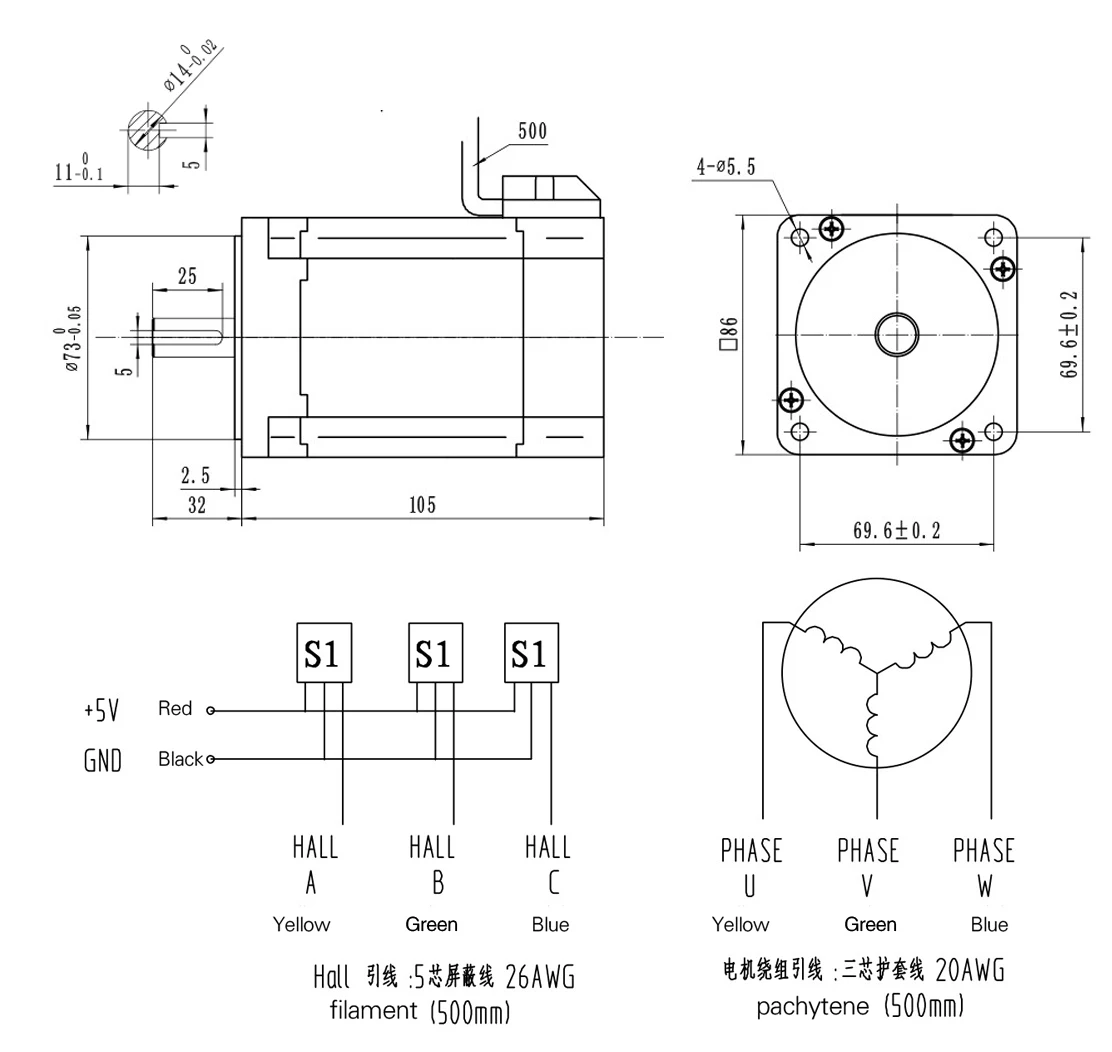

Model	86BL105S56-430TK9
Phase	3
Rotor poles	4
Rated Voltage	48V
No load speed	3500±10%
Rotor inertia	220kg.mm2
Rated Speed	3000±10%
Rated Torque	1.8NM
Rated power	565W
Rated Current (Max)	14.8A
Output shaft diameter	14mm
Insulation class	B
Insulating strength	500VAC
IP class	IP40
Quality guarantee	1 year
Mass	3.4Kg
