1 мм титановый лист/класс 5 титановый лист/титановая пластина gr5
- Category: Titanium Sheets >>>
- Supplier: Tianjin Elegant Technology Co. Ltd.
Share on (62009160411):
Product Overview
Description
Product Description
Titanium Plates, coil, Sheet, and Foil
We provide high quality titanium plates, titanium sheet, and titanium foil directly from China according to customer's requirements. Sheets and plates made of molybdenum and nickel are also available.
Hot rolling titanium plates/ coils are good material for further processing such as petroleum, chemical, electric power, medicine and environmental protection, and other various fields. Complete in specifications, variety of products, breadth, long Ti-coils, good strip shape, high precision of specification, stable in performance, punctual delivery, four forms: Ti-plates, Ti- coils, Ti-sheets, Ti-foils. We have many different kinds of delivery status such as hot rolling, annealing, shot blasting, acid picking.
Cold rolling titanium plates/ coils are widely used in petroleum, chemical, electric power, medicine and environmental protection, and other various fields. Complete in specifications, variety of products breath, good in shape, high precision of specification, surface cleanliness and consistency, homogeneous in organization.
Grades:
ASTM GR.5, ASTM GR.7, ASTM GR.9, ASTM F136, TC4, TA8, TA9, Ti 15-3-3-3
TA-0, TA1-A, TA1, TA2, ASTM GR.1, ASTM GR.2, ASTM ERT-1, ASTM ERT-2, ASTM F6

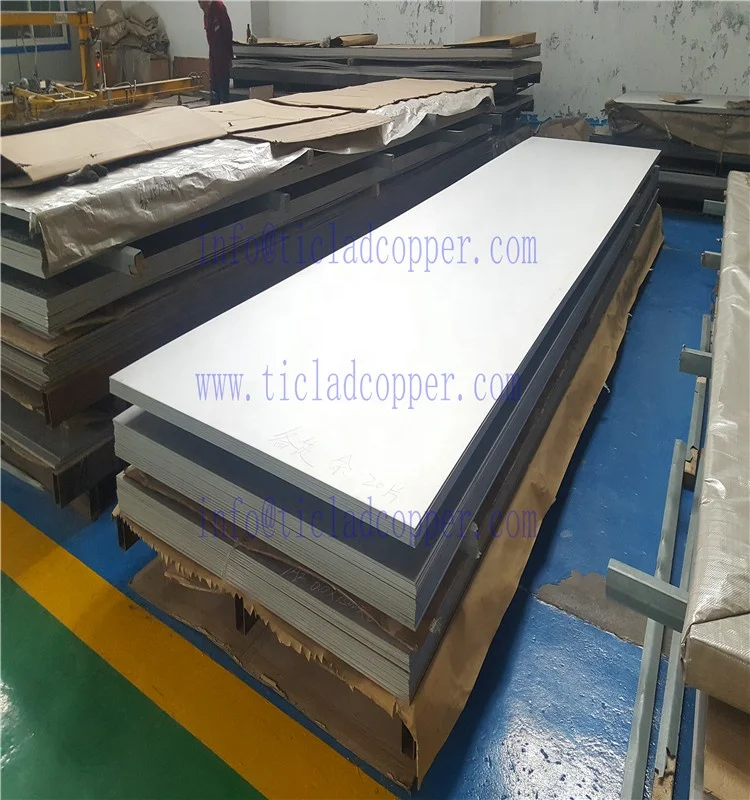

Titanium Plates
Manufactured according to ASTM B265. Custom cuttings on demand.
Materials | Manufacturing Process | Processing State | Standards |
TA1, 2, 9, 10, Gr1, 2, 3, 7, 11, 12, 17 | Hot rolled (3.0mm < thickness < 60mm) | Hot rolled, annealed Shot blasting Acid picking | ASTM B265-95 GB/T3261-2007 |
TA1, 2, 9, 10, Gr1, 2, 3, 7, 11, 12, 17 | Cold rolled (0.2mm < thickness < 4.0mm) | Cold rolled, annealed smooth | ASTM B265-95 GB/T3261-2007 |
TC1, TC2, TC4 Gr5, Gr23 | Hot rolled (4.1mm < thickness < 60mm) | Hot rolled, annealed Shot blasting Acid picking | ASTM B265-95 GB/T3261-2007 |
TC1, TC2, TC4 Gr5, Gr23 | Cold rolled (0.2mm < thickness < 4.0mm) | Cold rolled, annealed smooth | ASTM B265-95 GB/T3261-2007 |
Dimensions (T*W*L) [mm] | (0.3-0.5) x ≤600 x ≤1500 | ||
Titanium Foil
Item Name | Titanium Foil | |
Grade | Titanium Gr1,Gr2, Gr5 | |
Standard | ASTM B265,ASME SB265,AMS4911,ASTM F136,ASTM F67, | |
Surface | Bright | |
Shape | In coil | |
Production Method | hot/cold rolled,Annealed | |
Specification(mm) | Thickness | 0.008-1.0 mm Regular thickness: 0.05mm, 0.08mm, 0.1mm, 0.2mm, 0.3mm, 0.4mm, 0.5mm; custom-tailor thickness: 0.008mm, 0.01mm, 0.02mm |
Width | 10-500 mm | |
Features | 1.Low Density and High Strength | |
Applications | (1) electronics fields (2) chemical industry | |
Titanium Punch plates for heat exchangers
JISH4600TP 270C (TA1-A GB/T14845-93) , box-packed flat plates
JISH4600TR 270C (TA1-A GB/T14845-93), sheet coil
JISH4600TP 270C 0.2pd (TA9 GB/T14845-93) , box-packed flat plates
JISH4600TP 270C 0.2pd (TA9 GB/T14845-93), sheet coil
Please inquire about other titanium plates and specifications.
Our Services
1, We are specialized in producing titanium / nickle/ zr foil/ sheet/plate
2, the size, the material according to customer requirements.
3, No MOQ
4, 24 -7 service

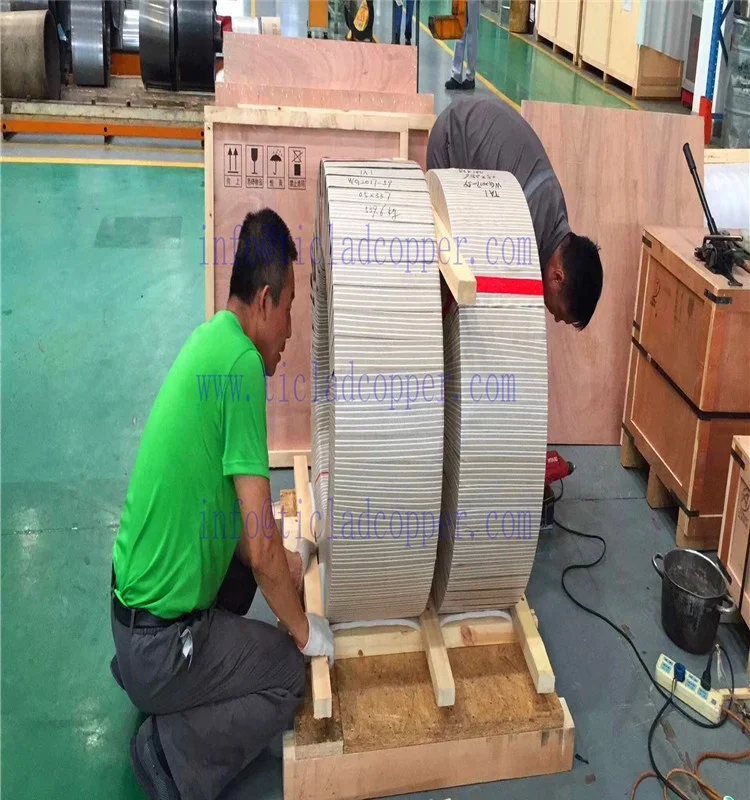

Packaging & Shipping
