4 20mA 0.5 4.5V Air Water Oil Pressure Sensor For Pressure Control And Monitor

Share on:

Price:RUB 891.93 - RUB 1,412.22
Price in USD:Details


Product Overview


Product Description

 4-20mA 0.5-4.5V Air Water Oil Pressure Sensor For Pressure Control And Monitor

Applicable media Liquid, Gas
Pressure range 0-100kPa~150bar
Cell Ceramic capacitive pressure sensor
Pressure measurment Gauge Pressure, Sealing pressure
Output 4-20mA/0.5-4.5V/1 -5V/0-5V/0-10V/I2C
Power supply 24VDC/12VDC/5VDC/3.3V
Accuracy(linearity,Hysteresis and Repeatability) 1%F.S.
Compensation temperature -20~85ºC
Ambient temperature -40~125ºC
Working temperature -40~125ºC
Temperature drift(zero) ±0.15% F.S. (-20~85ºC)
Temperature drift(full range) ±0.15% F.S. (-20~85ºC)
Electrical connection Parkard, Cable outlet, M12, mini DIN43650
Mechanical connection G1/4, 1/4NPT,1/8NPT, M12*1.5, 7/16-20UNF (female), customazation
Housing material 304 stainless steel
Protection IP65


•Specific high performance ASIC conditioning circuit;
•Dry ceramic capacitive pressure sensor;

•Robust ceramic capacitive sensitive membrane;

•Excellent anti-corrosive and anti-wear performance;

•Suitable for pollution and corrosive environment;

•Various electrical connectors optional;

•Rapid response, no hysteresis;

•Wide operating temperature range -40~135℃;


•0.5…4.5V and 4…20mA analog output or I2C and SPI digital output;

•Accurate, stable and reliable;

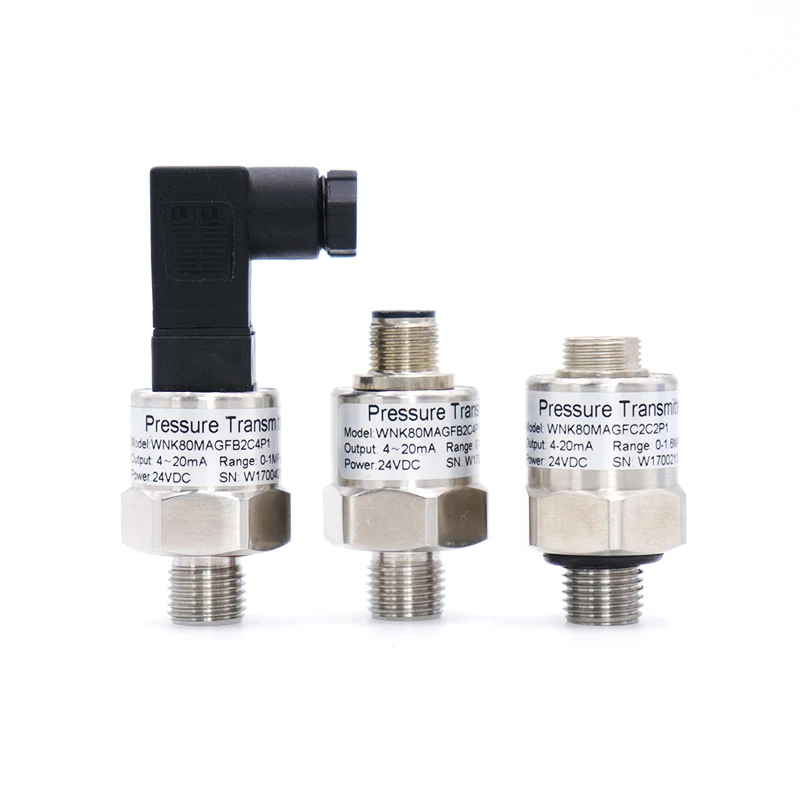

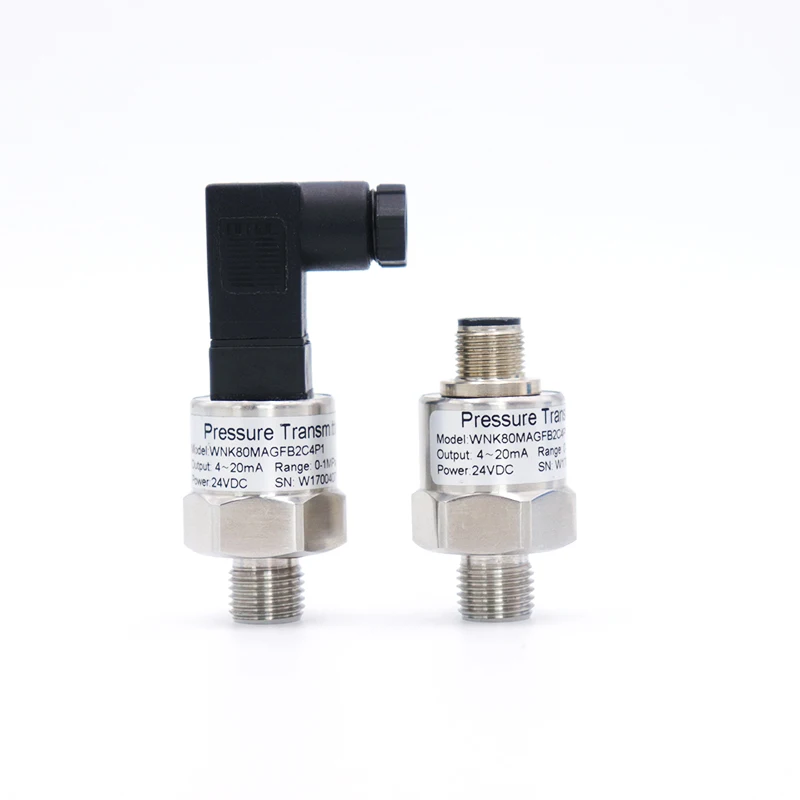

Product pictures


Company Information






Our Certificate


Packaging & Shipping



Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

Large orders are recommended to ship by sea.
