Heavy duty outdoor garden utility pulled atv log trailer
US $3000-$3500
ATV TB1000 garden machinery timber trailer made in China
- Category: Motorcycle & ATV Trailers >>>
- Supplier: Weifang Sinolink Heavy Industry Co. Ltd.
Share on (62009184406):
Product Overview
Description

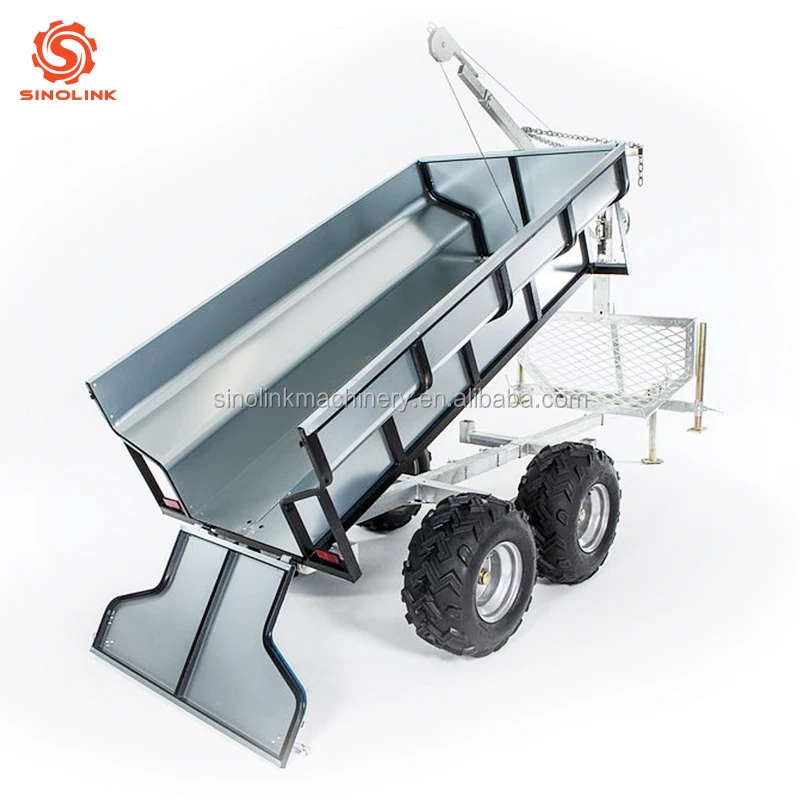

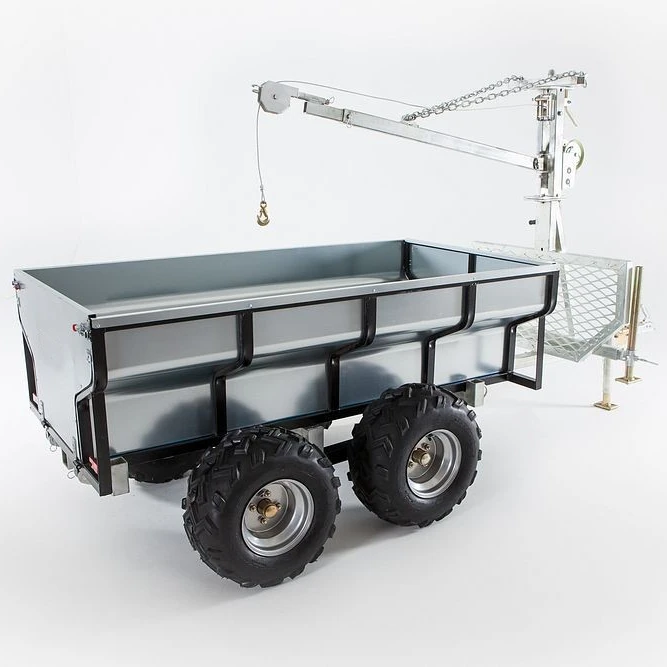

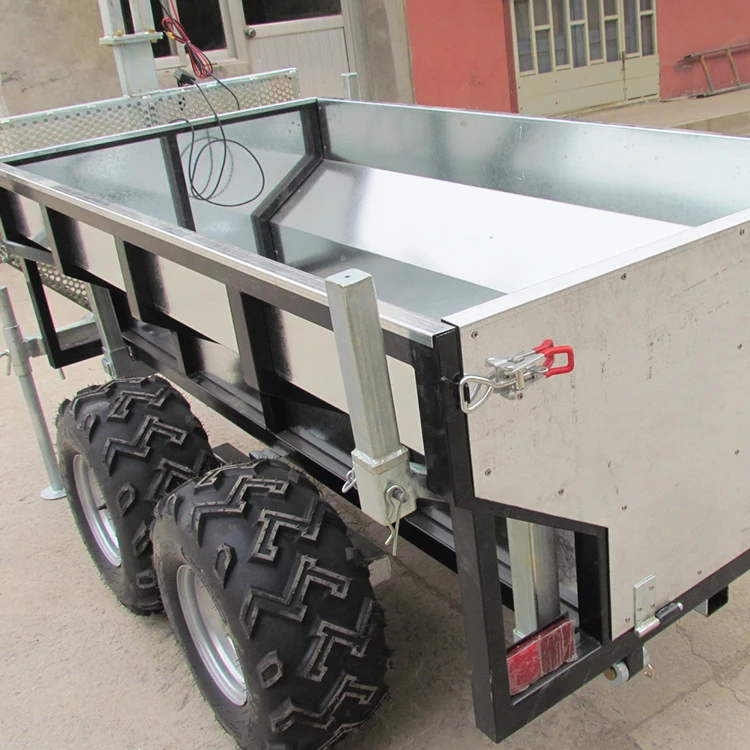

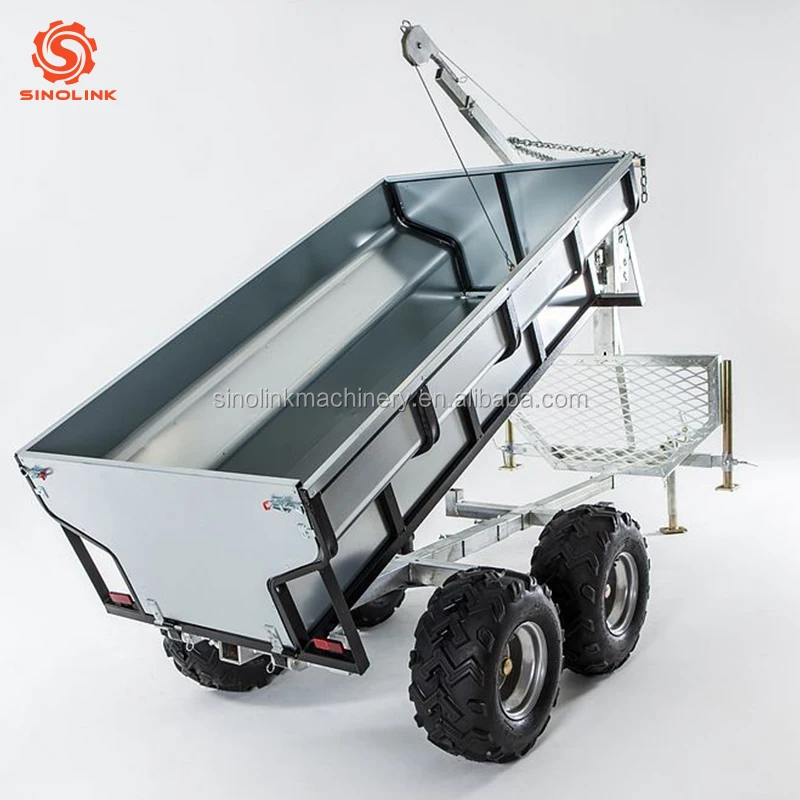

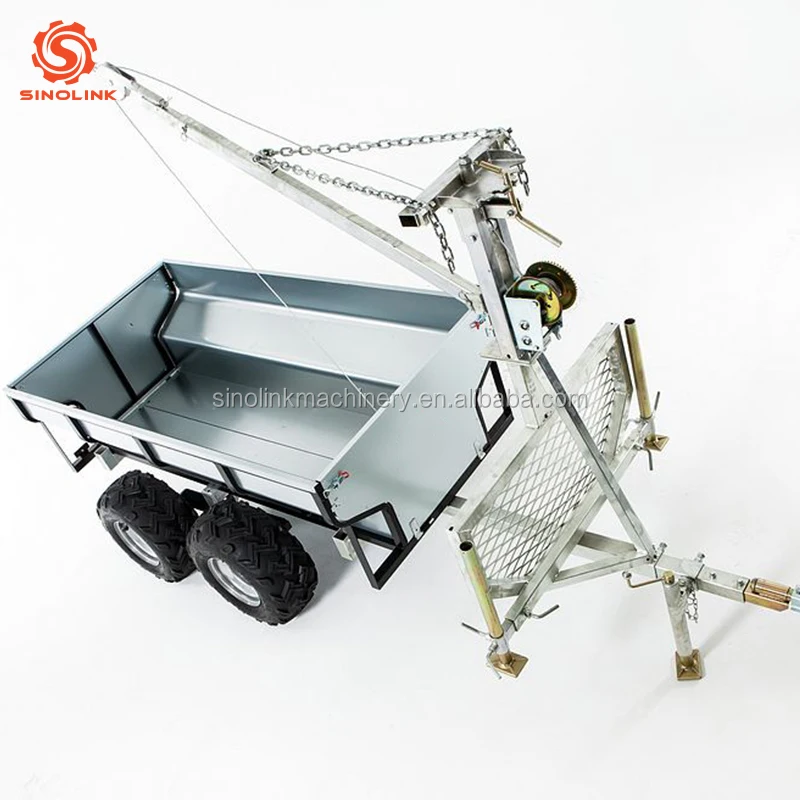

TB-1000 timber trailer Description:
The efficiently designed ATV Timber Trailer, allows you to carry large quantities of logs with ease. It’s strong, galvanized steel, lightweight design allows for easy manoeuvres within tight inspection paths. The trailer is specially designed to fit comfortably between the average tree line, and yet still carries a large load of logs stably. Each trailer is fitted with heavy duty tires and lubricated swinging axles that are well capable of travelling over any terrain and carrying up to 1 tonne logs. This product also features removable side bars for easy loading/unloading of timber. The trailer connects to tractor/ATV by a rotating, lubricated, 50mm ball hitch.
Include a galvanized steel cargo box, with a hinged rear door which when used with the crane winch, converts the Log trailer to a tipping trailer, Wood supports (4 pcs).
Lifting crane, Manual winch, jockey wheel is option.
Include a galvanized steel cargo box, with a hinged rear door which when used with the crane winch, converts the Log trailer to a tipping trailer, Wood supports (4 pcs).
Lifting crane, Manual winch, jockey wheel is option.
Model | TB1000(A) | 3400×1020×960mm | ||
Overall size | 3400×1020×960mm | 2000×1020/520×540mm | ||
Box size | 2000×1020/520×540mm | 2120*1150*850mm | ||
Packing size | 2120*1150*850mm | 1.5mm galvanized sheet | ||
Box Material | 1.5mm galvanized sheet | Powder coating (colors optional),plating or galvanizing | ||
Surface Finish | Powder coating (colors optional), plating or galvanizing | 1000mm | ||
Draw Bar Length | 1000mm | 60*60*3.5mm | ||
Draw Bar Size | 60*60*3.5mm | 1000kg | ||
Loading Capacity | 1000kg | 340kg | ||
N.W. | 340kg | 22*11-10 | ||
Rubber tires | 22*11-10(optional) | 4 | ||
Rubber quantity | 4 | 32mm | ||
Axle diameter | 32mm | manual operated | ||
Winch Type | manual operated | Add more +30USD | ||
Electric winch | Add more +30USD | 2500lbs/1100KG(optional) | ||
Pulling force of electric winch | 2500lbs/1100KG(optional) | 15M (Optional) | ||
Weight of electric winch | 10KG(optional) | 10KG(optional) | ||
length of electric winch line | 15M (Optional) | 5mm(optional) | ||
Diameter of electric winch line | 5mm(optional) | ø50mm,2000kg | ||
Coupler/ATV connector | ø50mm,2000kg | Iron frame, cardboard packaging | ||
Packing method | Iron frame, cardboard packaging | 12 months (not including tires) | ||
Warranty | 12 months (not including tires) | |||
