Solar Systems 20 Kw Home Solar System Price Solar Complete Syetm 20kw 30kw Off Grid MPPT Lead Acid Pure Sine Wave Solar System
- Category: >>>
- Supplier: Foshan Sunmart Electronic Co. Ltd.
Share on (62009259477):
Product Overview
Description
20kw off grid solar system
1.Picture:
Off-Grid Solar Systems
An off-grid solar system (off the grid, standalone) is the obvious alternative to one that is gridtied. For homeowners that have access to the grid, off grid solar systems are usually out of question.Here's why:
To ensure access to electricity at all times, off grid solar systems require battery storage and a backup generator (if you live off the grid). On top of this, a battery bank typically needs to be replaced after 15 years. Batteries are complicated, expensive and decrease overall system efficiency.

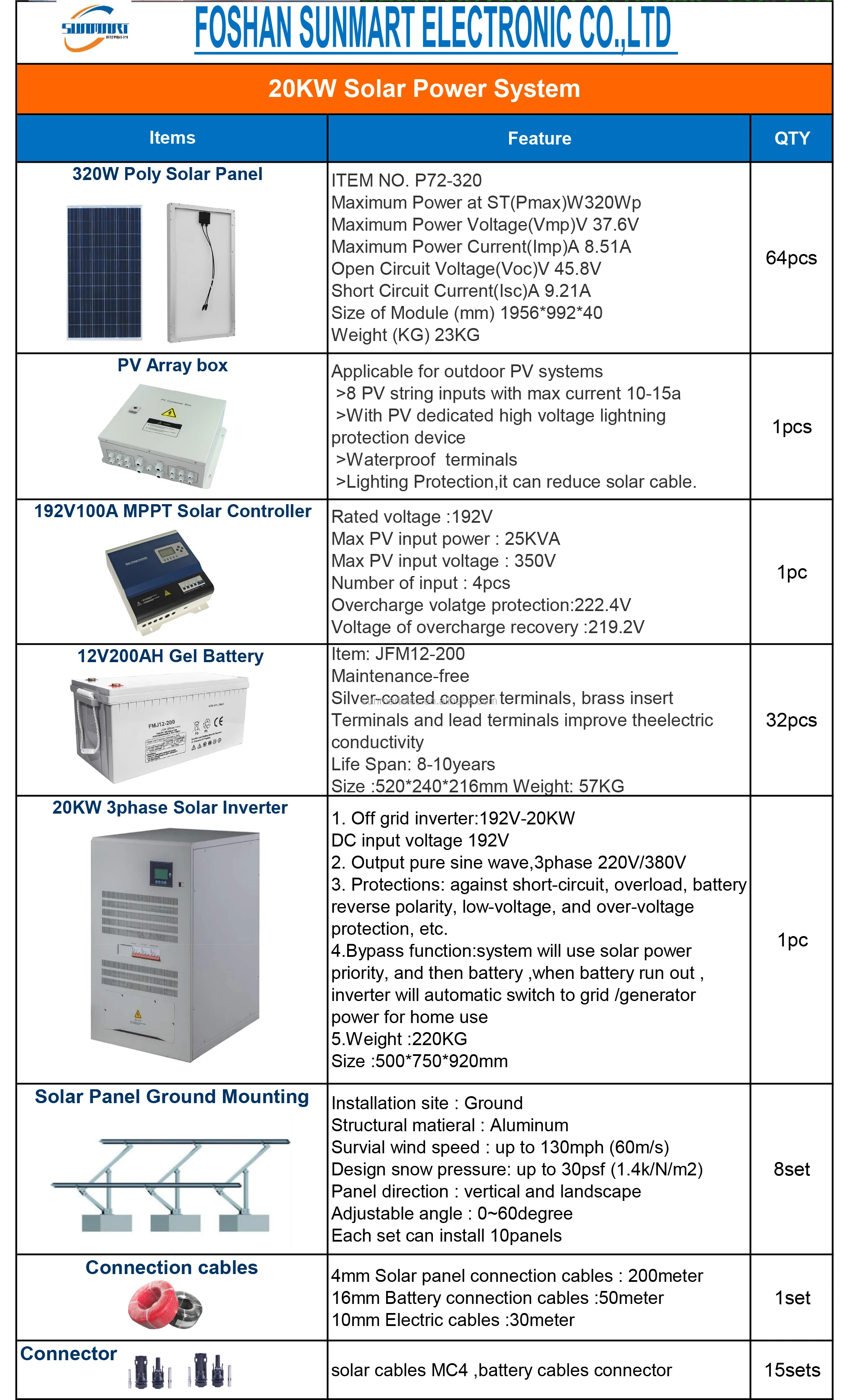

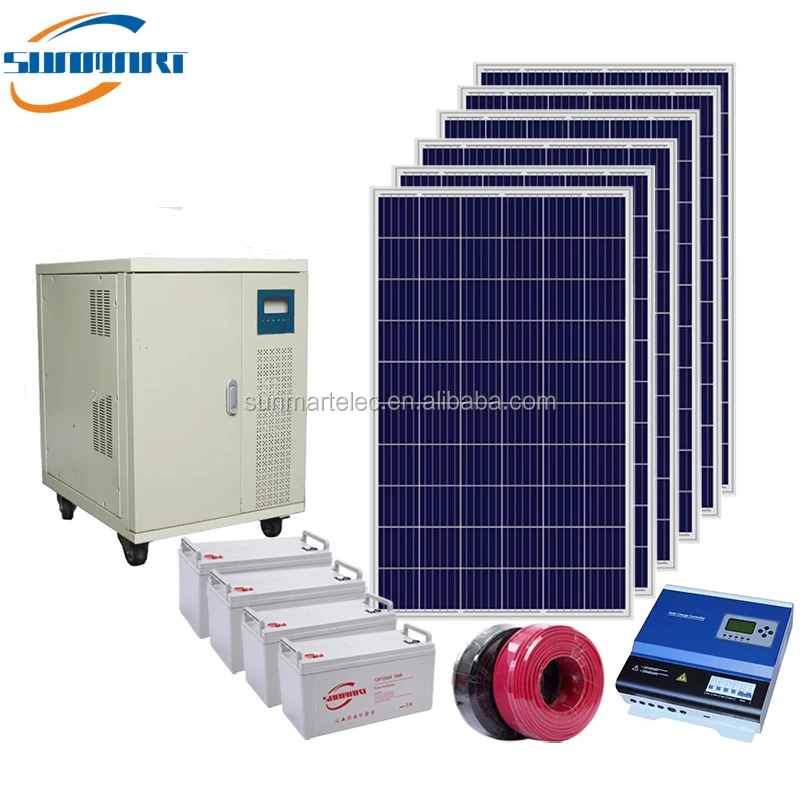

2. 20kw off grid solar system three phase including :
3.work process:
4. Specification of products :

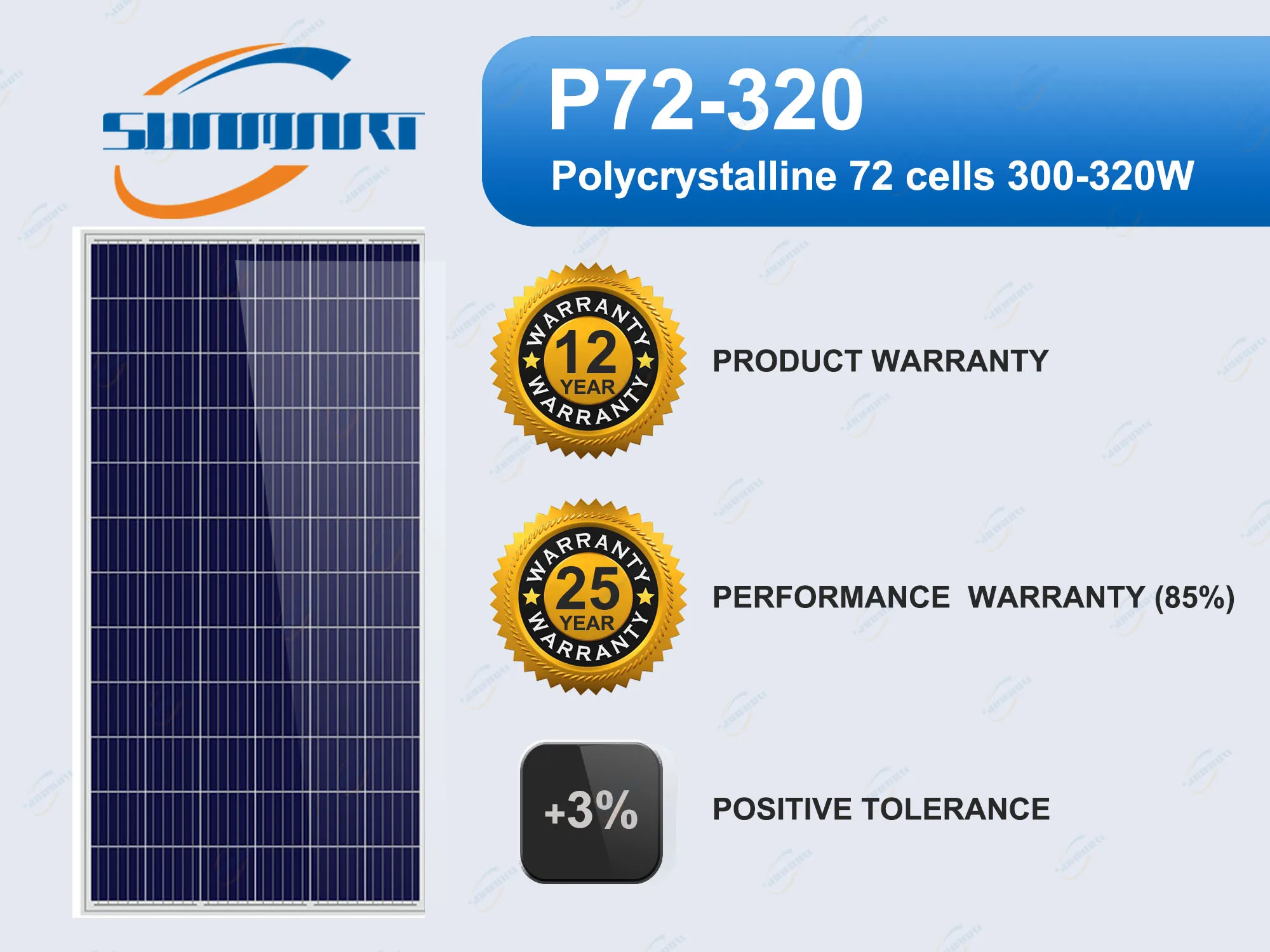

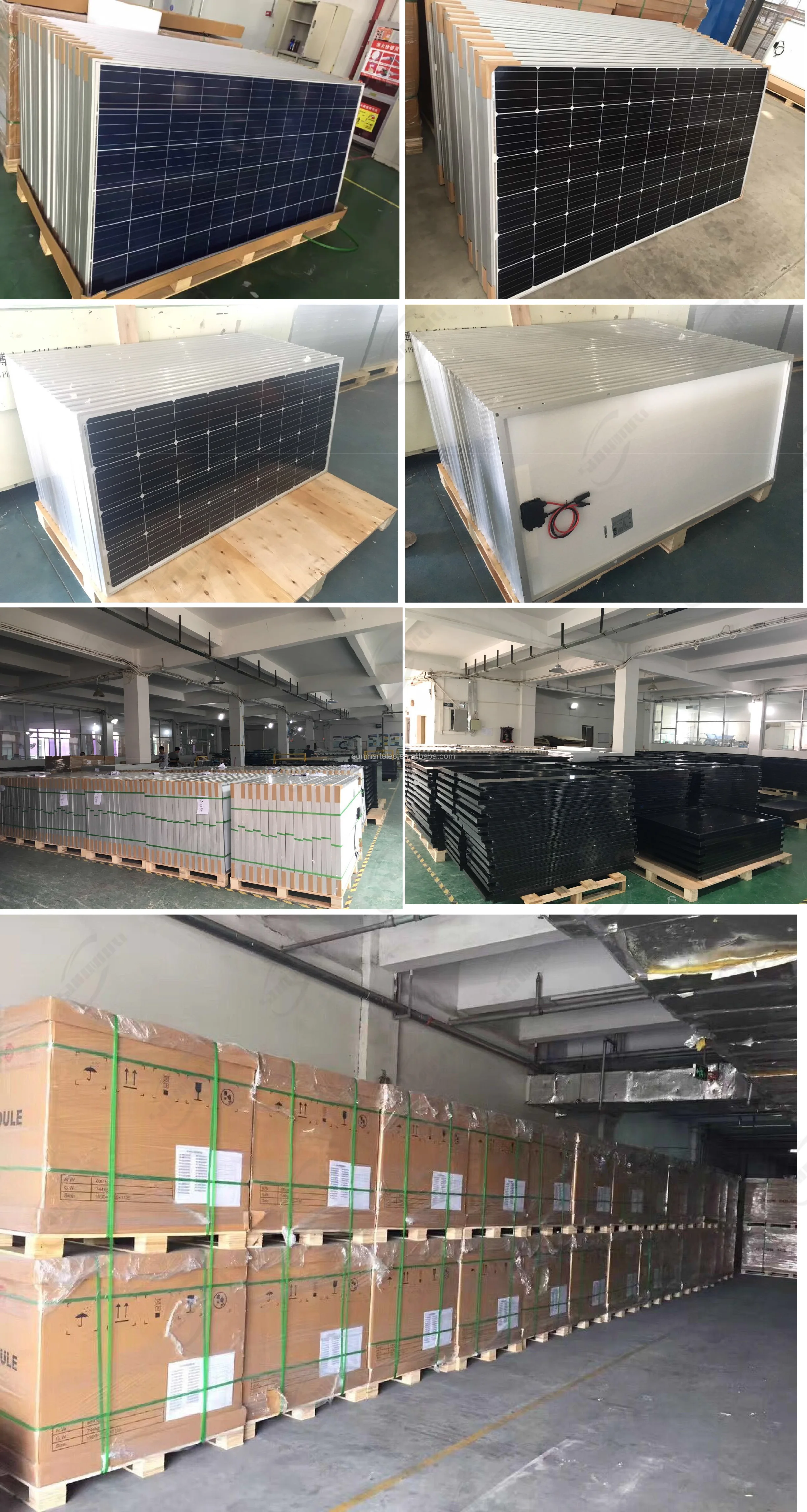

4.1) Solar panel:
For a period of twenty five (25)years commencing on the Warranty Start Date, loss of power output of the nominal power output measured at Standard Test Conditions (STC) for the Product(s) shall not exceed:
For Monocrystalline A grade solar cell, 3% in the first year, thereafter 0.66% per year, ending with 81% in the 25 th year after the Warranty Start Date;
12Years Manufacturing Warranty
15Years Warranty 90% Power Output
25Years Warranty 85% Power Output
Electrical Characteristics | |
ITEM NO. | P72-320 |
Maximum Power at ST(Pmax)W | 320WP |
Maximum Power Voltage(Vmp)V | 37.6 |
Maximum Power Current(Imp)A | 8.51A |
Open Circuit Voltage(Voc)V | 45.8V |
Short Circuit Current(Isc)A | 9.21A |
Cell Efficiency(%) | 18.83% |
Module Efficiency(%) | 16.58% |
Size of Module (mm) | 1956*992*40 |
Solar Cell | 156*156 |
Number of Cell (PCS) | 6*12 |
Weight (KG) | 23.4KG |
Power Tolerance | 0~+3% |

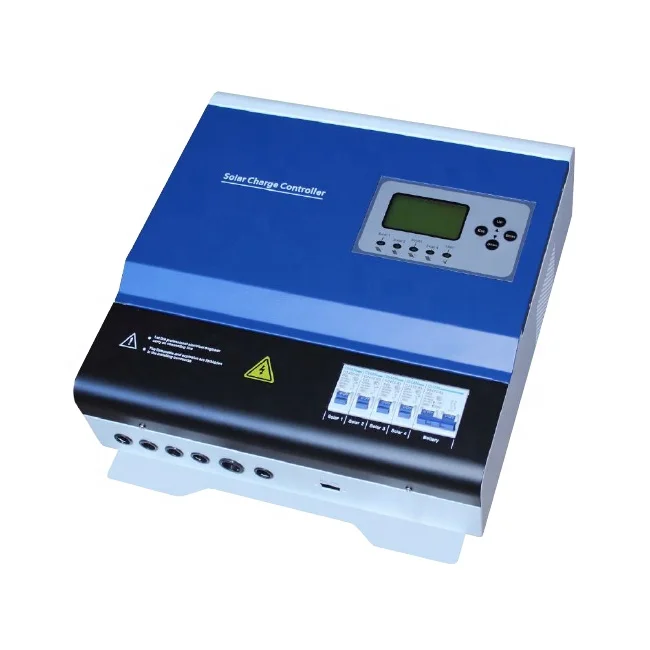

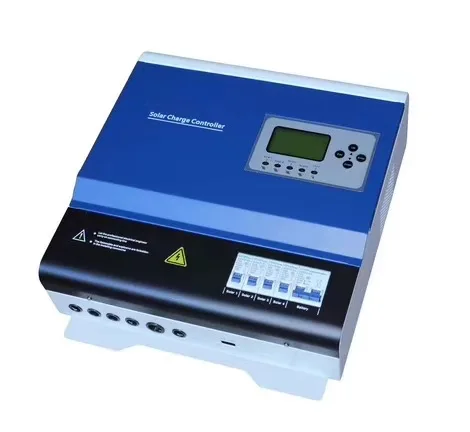

4.2) Controller :
The solar charge controllers designed for solar power generation system, uses the MCU intelligent control technology, implementation charge and discharge management for solar battery, prolong the service life of the system Can be widely used in family, school, street, industrial and mining, frontier defense, islands, pastoral areas such as solar energy power supply system
| Model | CP-192/100 | |
| Rated voltage | 192V | |
| Rated current | 100 | |
| Input of the photovoltaic module | Maximum power | 20KWp |
| Maximum photovoltaic voltage | ≤350V | |
| Number of inputs | 4 | |
| Maximum current of each input | 25A | |
| Voltage of overcharge protection | 222.4V | |
| Voltage of overcharge recovery | 219.2V | |
| DC output | Rated output current | 50A |
| Voltage of load overvoltage protection | 248V | |
| Voltage of load over voltage recovery | 240V | |
| Voltage of load over discharge recovery | 203.2V | |
| Voltage of load over discharge protection | 175V | |
| Overall efficiency | >98% | |
| Protection function | Charge over current, overvoltage/DC output undervoltage, overvoltage, overcurrent, etc. | |
| Starting temperature of the exhaust fan | >45°C | |
| Ambient temperature for operation | 0 - 40°C | |
| Ambient temperature for storage | -15 - +50°C | |
| Operation/storage conditions | 0-90% (no condensation) | |

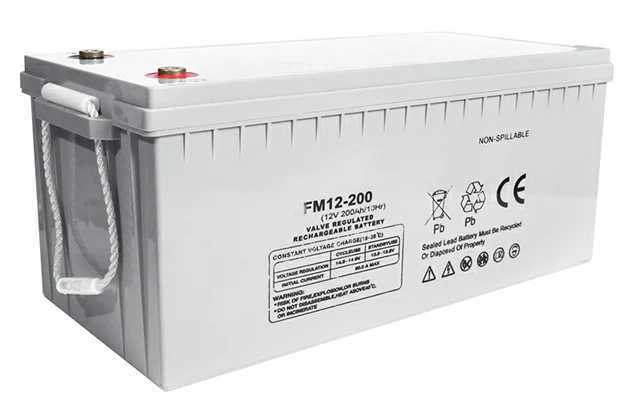

4.3) Battery
200AH Performance and Specifications:
Battery Model | JFM12V-200 | |||||
Designed life | 12 Years (Floating) or > 750 Cycles @ 50% D.O.D | |||||
Capacity (25℃) | 20HR(10.5A) | 10HR(20A) | 5HR(34A) | 1HR(110A) | ||
210AH | 200AH | 170AH | 110AH | |||
Dimensions | Length | Width | Height | Total Height | ||
520mm | 240mm | 220mm | 220mm | |||
Approx. Weight | 56KG±5% | |||||
Internal Resistance | Full charged at 25℃: 0.004 Ohm | |||||
Self Discharge | 3% of capacity declined per month at (25℃) | |||||
Capacity Affected By Temp. | 40℃ | 25℃ | 0℃ | -15℃ | ||
104% | 100% | 90% | 70% | |||
Charge voltage (25℃) | Cycle use | Float use | ||||
Constant Voltage 14.1-14.4V, Initial current is smaller than 80A | Constant Voltage 13.5-13.8V, Initial current is smaller than 30A | |||||

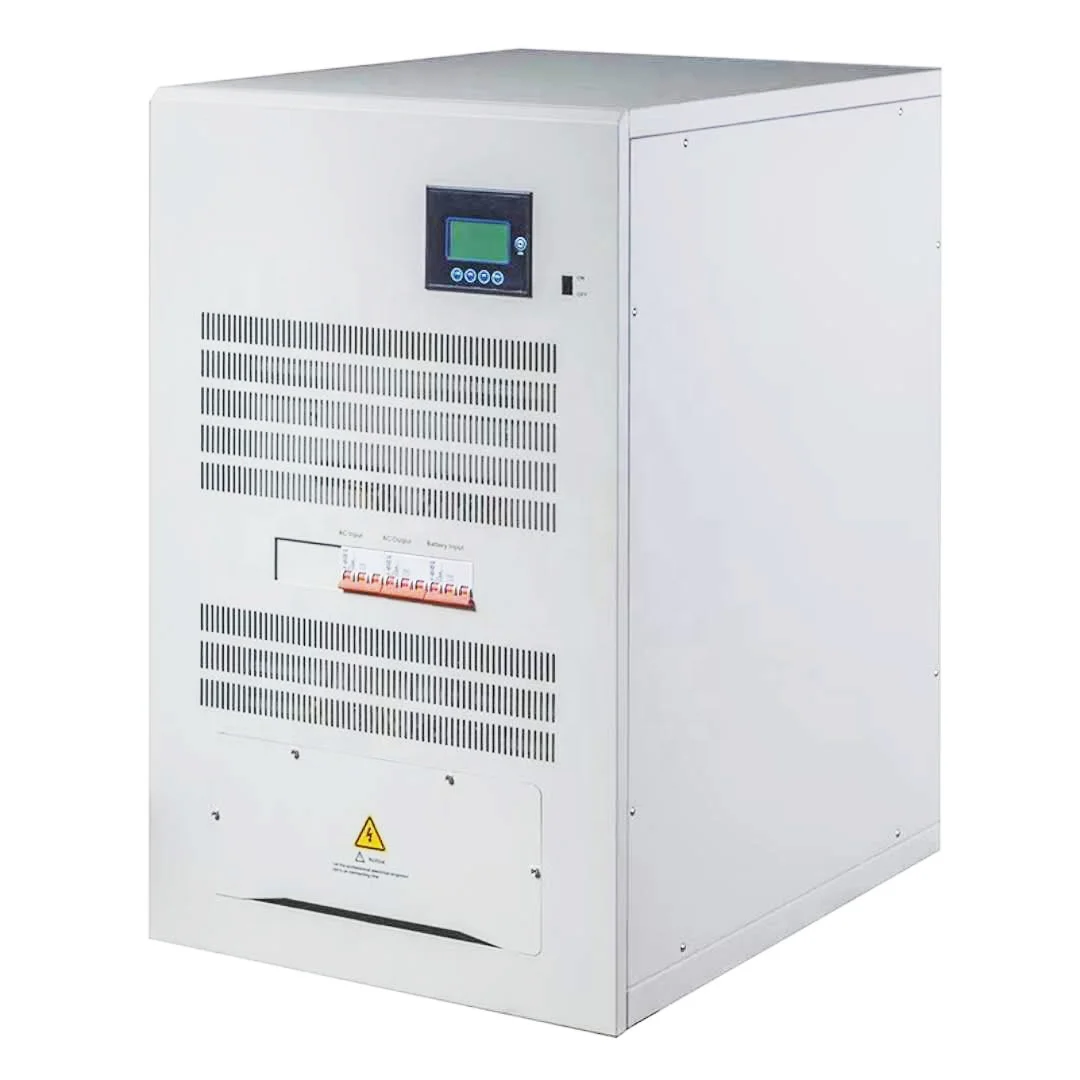

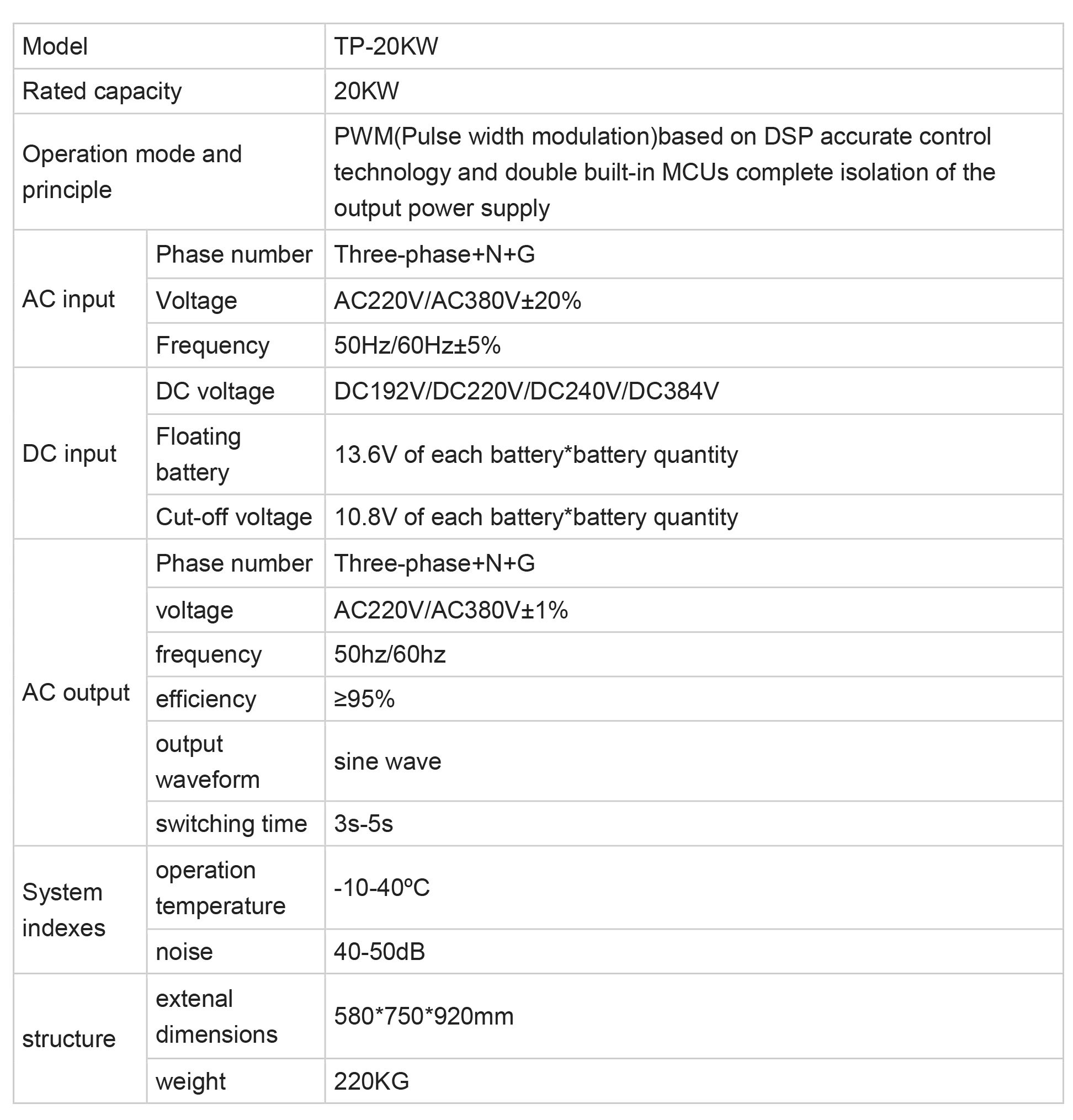

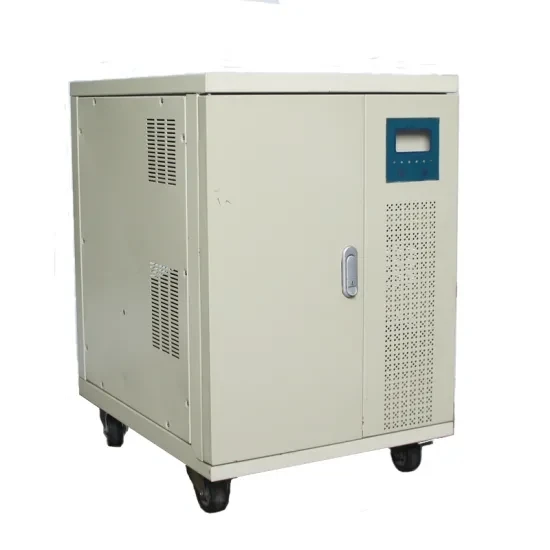

4.4) Inverter :
Main features:
+ Excellent performance because of an MCU intelligent control technology;
+ A wide range of applicable loads because of power-frequency transformer design and pure sine wave AC output;
+ A wide range, high accuracy, and full automatic voltage stabilization;
+ Overall protection functions (overload protection, short circuit protection, overvoltage protection, undervoltage protection and overtemperature protection);
+ Simple LEDs and a LCD for visualization of operation status of the equipment.
7.FAQ
1.Q:Are you factory ?
A: Yes , welcome to visit my factory .
2 Q:which size of solar system do you produce ?
A:we can produce differen size from 100w to 100kw .both on grid and off grid .
3. Q : can you design if we have any special requirement for the power consumption ?
A:Yes, we can . you can just let me know the power consumption of each day or month, and also the power of the main equipment you need to load .

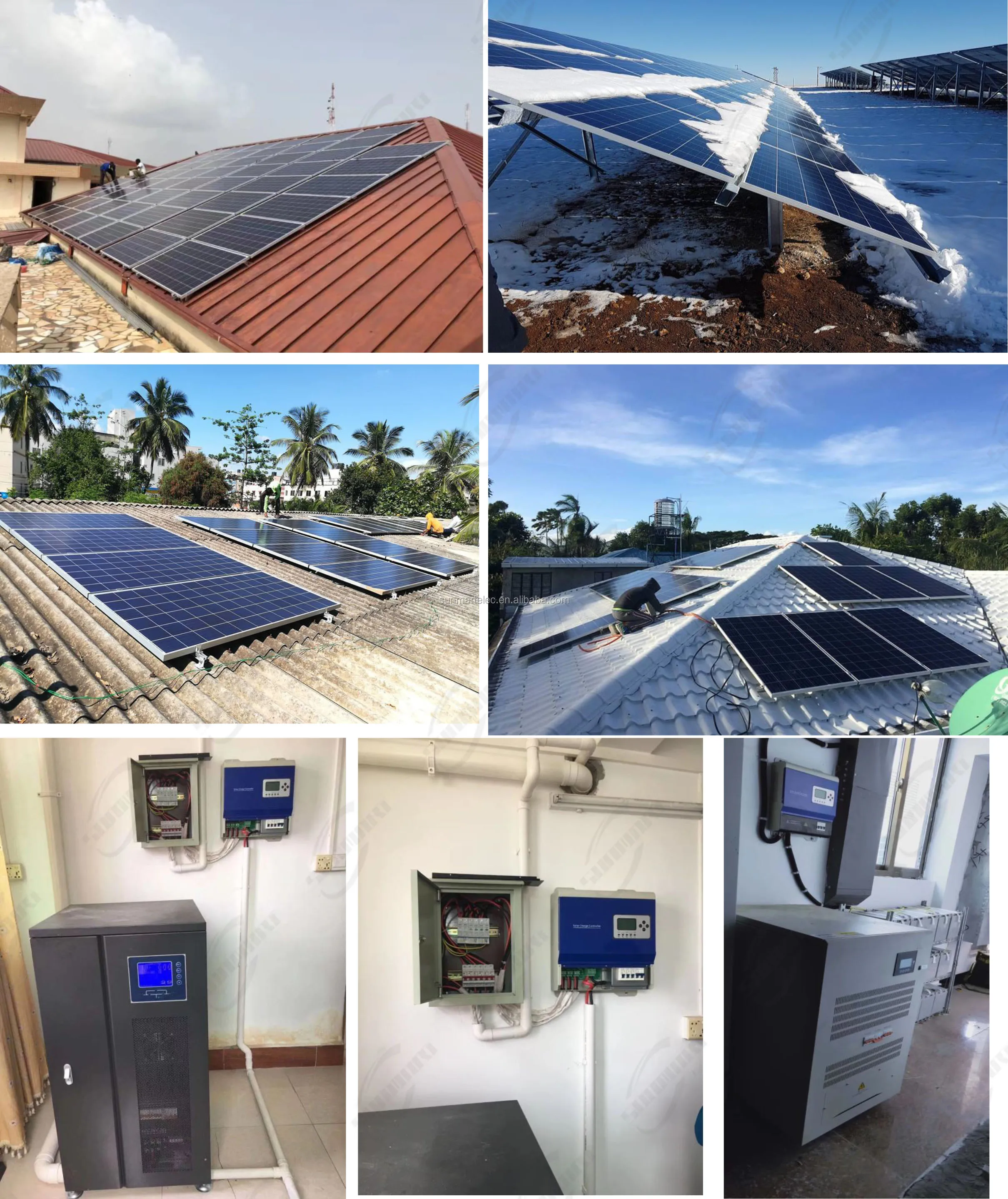

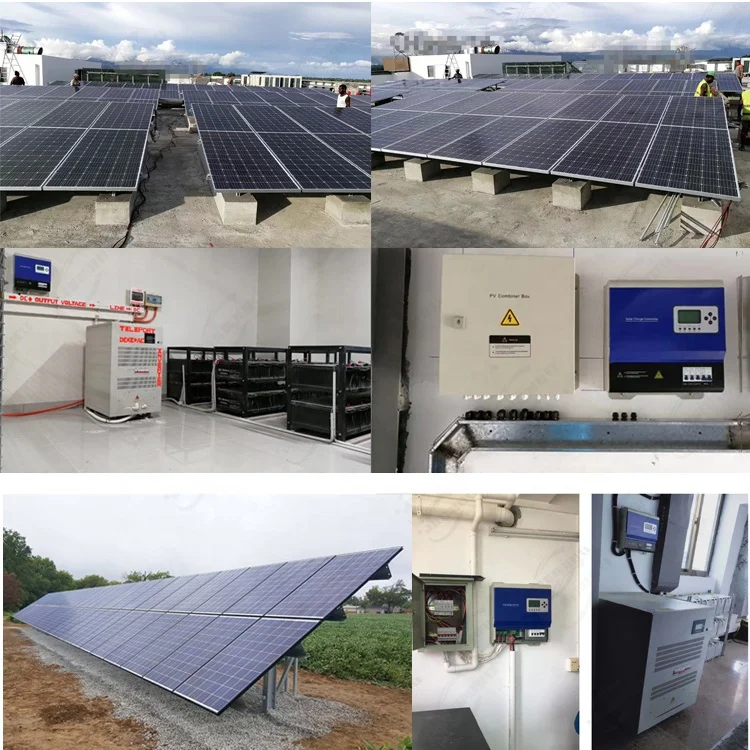

4. Q: where we can use the system ?
A:You can use the system for home , for Vila, for village , for power station, for office , for communication station, for lighting systom ,
for farmer and so on, where there is no enough proer or the grid power is expensive.
5. Q: what the voltage of the system?
A:we can adjust any voltage to different countries or customers requirement , such AC 110v, 220v, 240v, 380v - 450 and so on .
and DC as 12v 24v 48v 96v ,192v, 240v ,380v and so on .
