Hot top extrusion aluminium billet casting machine

Product Overview

Description

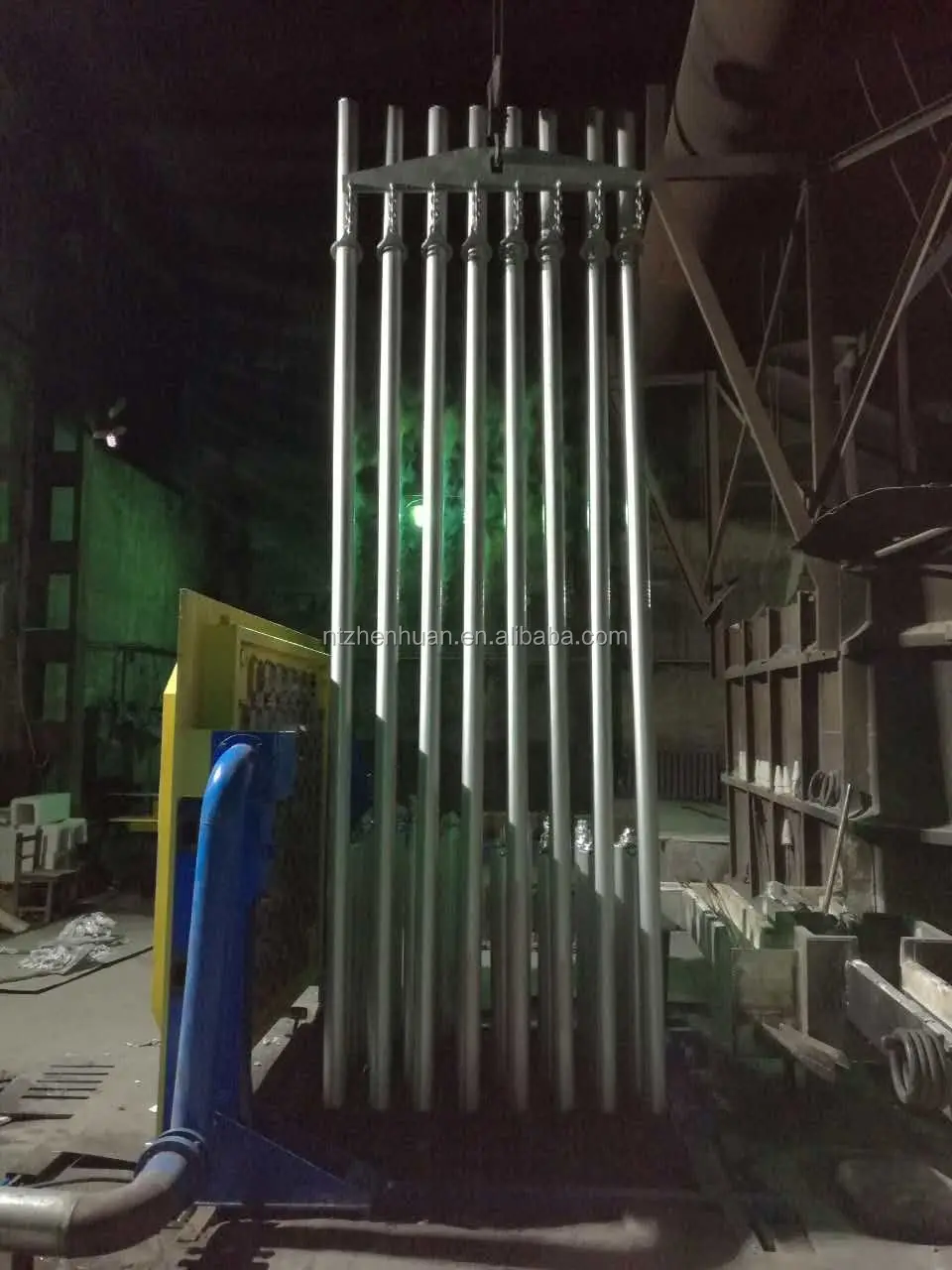

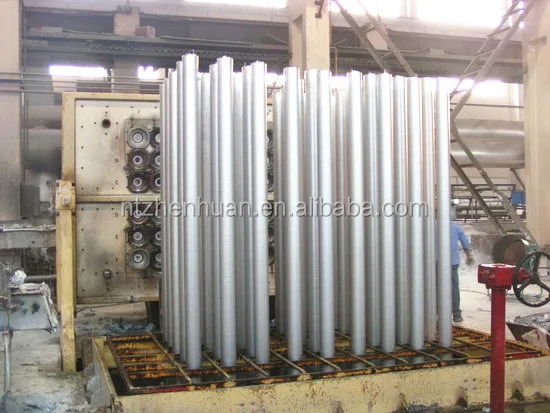

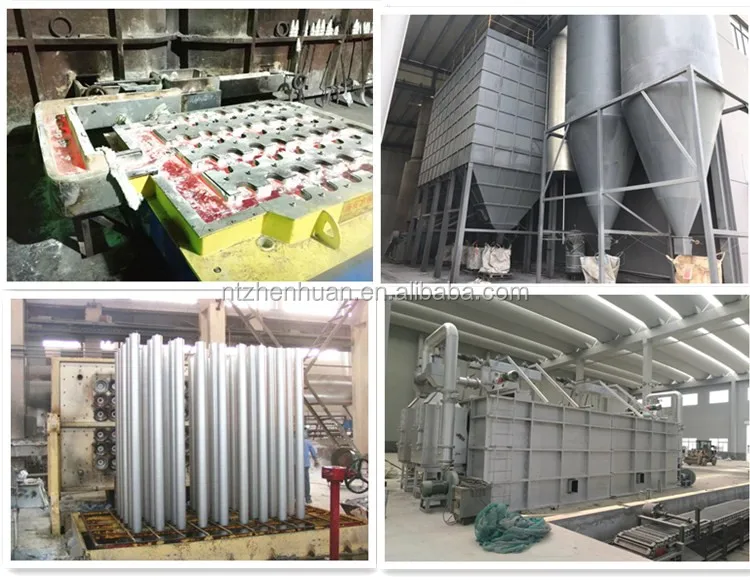

 HOT TOP Aluminum Billet Casting Machine

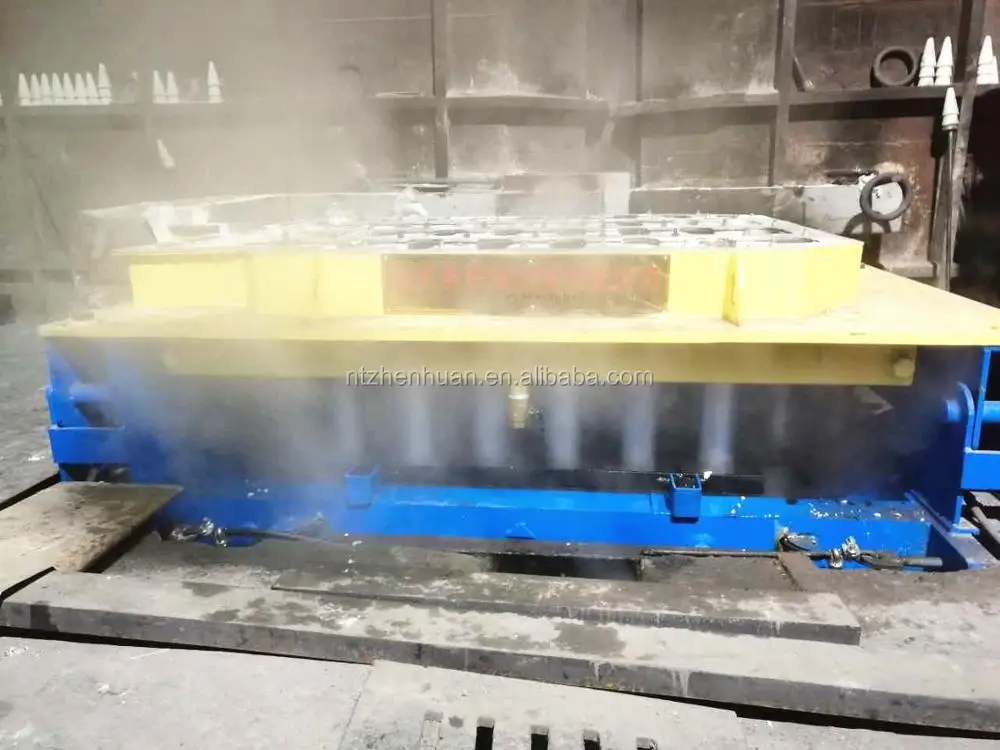

I Φ90 aluminum alloy billet casting die, 100pcs each casting( length is 12m, and cut to be 6m by cutting machine)

1- Upper die disc 2650 x 2200mm. Upper plate thickness is 25mm, lower plate thickness is 14mm.

2- lower die disc is 1950mm×1950mm×720mm, it adopt Q235 steel plate( 16mm and 10mm), and quadrangle is Φ76 seamless steel pipe column

3- Crystallizer is 100pcs, high strength duralumin alloy, and lining is High density graphite ring.

4- Liquid separate disc: 50pcs

5- Honeycomb duct: 100pcs

6- Main runner channel: 1pcs

7- Dummy bar head: 50pcs, casting iron.



II Φ120 aluminum alloy billet casting die, 56pcs each casting( length is 12m, and cut to be 6m by cutting machine)

1- Upper die disc 2650 x 2200mm. Upper plate thickness is 25mm, lower plate thickness is 14mm.

2- lower die disc is 1950mm×1950mm×720mm, it adopt Q235 steel plate( 16mm and 10mm), and quadrangle is Φ76 seamless steel pipe column

3- Crystallizer is 56pcs, high strength duralumin alloy, and lining is High density graphite ring.

4- Liquid separate disc: 28pcs

5- Honeycomb duct: 56pcs

6- Main runner channel: 1pcs

7- Dummy bar head: 56pcs, casting iron.



Hydraulic turnover device

Supply range:

1- Hydraulic: 1 pcs (motor power is 2.2kW)

2- Hydraulic arm: 2 pcs

3- Hydraulic oil cylinder: 2 pcs (diameter is 100mm)

4- Oil pipe

5- Valve

6- The capacity of hydraulic arm is more than 20tons.



Wire rope transmission type casting machine (20 tons)

Structure	Worm speed reducer, gear reducer and stepless speed regulation motor
Variable-grequency and variable-speed motor	11kW
200 type worm speed reducer	Speed ratio: 60:1
500 type gear reducer	Speed ratio: 20.49:1
Wire rope reel	1
Braking device	1
Steel wires	16 mm x 124m
Guide roller	6pcs
Carrying roller	4 pcs
Adjusting screw rod for steel wires	4 pcs
Lifting platform	1 set
Electric cabinet	1 set

 Water pump

Model	IS200-150-400B
Flow	346m3/h
throw of pump	38m
Motor power	55kW



Billet cutting machine

Model	LH-90
Power	11kW
Rated voltage	380V, 50Hz
No-load speed	1500rpm
