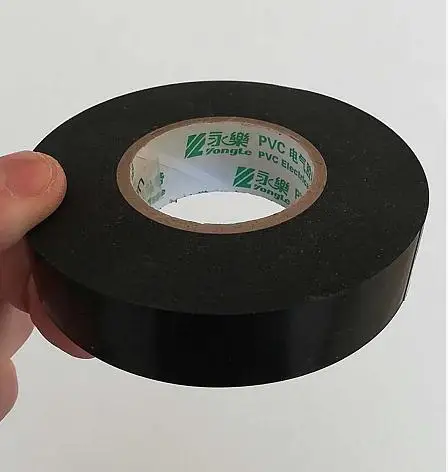

UM Series PVC Insulation Vinyl Electrical Adhesive Tape

Product Overview

Description

UM Series PVC Insulation Vinyl Electrical Adhesive Tape









UM Series PVC Insulation Vinyl Electrical Adhesive Tape

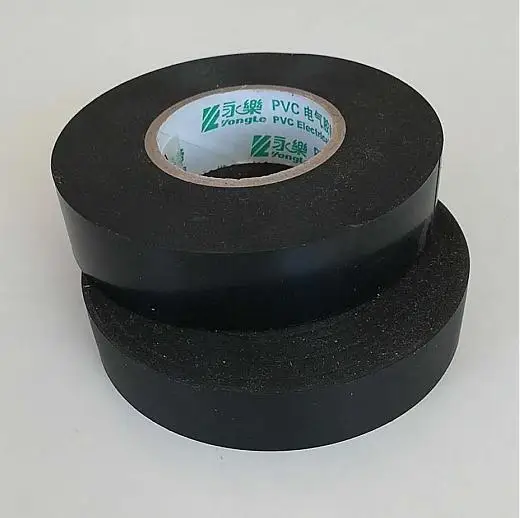

 Description: UL/CE/ROHS approved black vinyl pvc tape

SPECIFICATIONS: UM130
PROPERTY	VALUE	UNIT	TEST METHOD
Total thickness	0.13	mm	ASTM-D-1000
Tensile Strength	21	N/cm	ASTM-D-1000
Elongation at break	230	%	ASTM-D-1000
Temperature Resistance	80	°C	VW60360(LV312)
Adhesion Strength:
to steel	1.2	N/cm	ASTM-D-1000
to backing	1.0	N/cm	ASTM-D-1000
Voltage resistance	600	v	ASTM-D-1000
Flame Resistance	< 2	s	ASTM-D-1000
Content of Heavy Metal:
Lead, Cadmium	30	ppm	US EPA3052
Mercury, Chromium	10	ppm	US EPA3060A
Polybrominated biphenyl	10	ppm	US EPA3540C
STANDARD SIZES:
Width	Length	Core
19mm	10m	32mm
19mm	20m	32mm
19mm	33m	32mm
Other sizes and cores are available. Consult factory.
Code:UM120 UM130 UM150 UM165 UM180 UM190

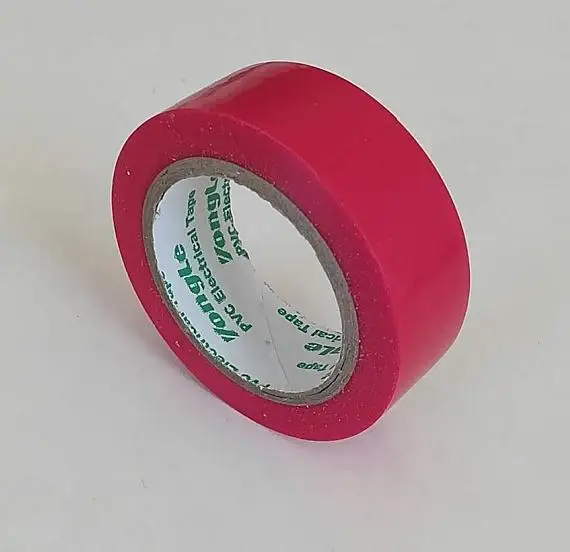

Color: Black Red Blue Yellow White Green
DESCRIPTION:
A thin premium grade plasticized PVC film coated with an aggressive rubber based adhesive with good characteristics. It is highly conformable and unaffected by most chemicals and moisture. Meet ROHS requirement. It does not contain substances harmful to human body such as lead and cadmium. This products APPROVAL by CE UL  ROSH
RECOMMENDED USES:
Electric insulation below 600V. Insulating wrapping of electric wires and cables. Marking of electric wires and cables. Can be used indoor and outdoor.

Code	Total thickness (mm)	Tensile Strength(N/m)	Elongation at break(%)	Adhesion Strength to steel	Adhesion Strength to backing	Dielectric(v) breakdown	Temperature Resistance(°C)	Flame Resistance(s)
UM150	0.15	25	220	1.5	1.5	600	80	<2
UM165	0.165	25	220	1.5	1.5	600	80	<2
UM180	0.18	30	250	1.5	1.5	600	80	<2
UM190	0.19	30	250	1.5	1.5	600	80	<2

















PRODUCT NAME:









As on paper core size, usually different countries have differenct core OD size and thickness, pls let me know your ideal core size and core thickness. blank core or printed with your own brand?







Your mini order is 1 ton pvc film, after giving me your rolls size, I would let you know how many rolls are possible for 1 ton pvc adhesive tape !







 Your inquiries will be answered in 24 hours !

COMPANY HISTORY



 1985 Company founded

(One of the earliest BOPP tape manufactures in China)

1991 Started manufacturing PVC tape



(One of the earliest BOPP tape manufactures in China)



1995 Huaxia Research and Development Center established

 1997 UL listed

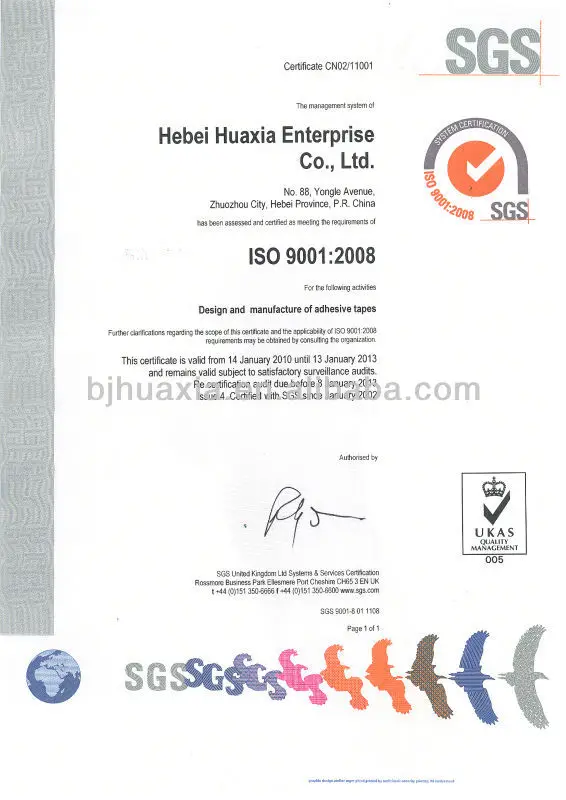

 1998 ISO90021999 CE listed

 2002 QS9000 and VDA 6.1 certified

 2002 BSI certified

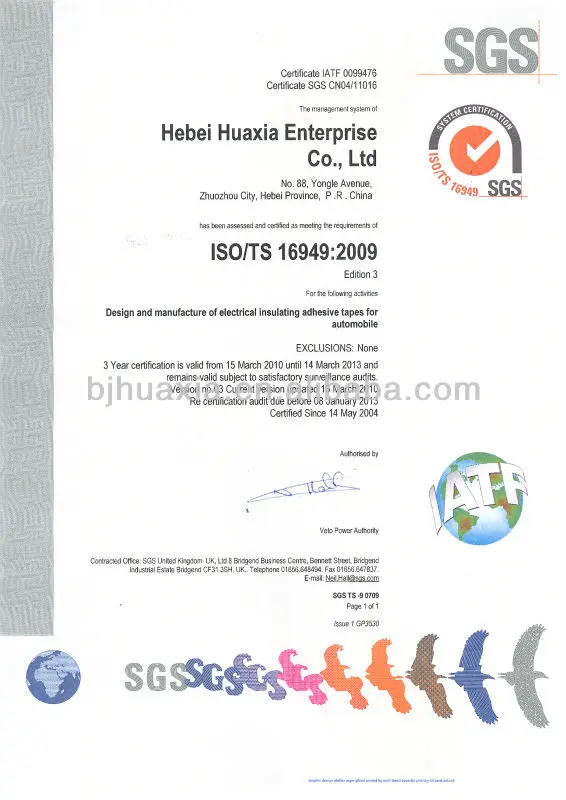

 2004 ISO/TS 16949 Quality system certified



2005 ISO 14001 certified

 2006 Rated one of the most growth-oriented enterprise by Forbes Asia

2006 HUAXIA GROUP participate in the drafting PVC tape industry standards of China

2007 "Yongle"awarded as China Resounding Brand

2007 "Yongle Tape"awarded as China Top Brand

 2009 UPC approved  2010 VED approve

2010 VDE approved
