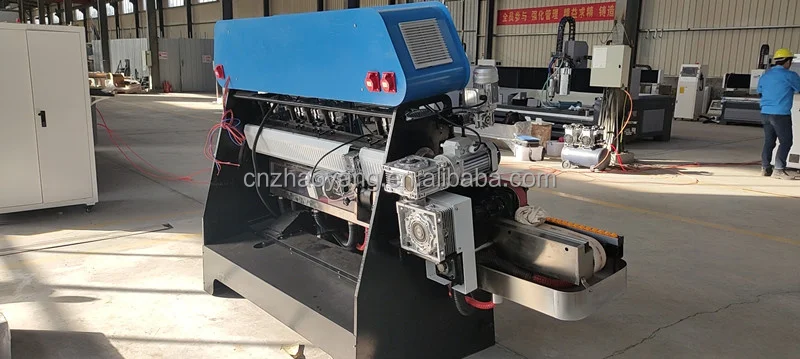

4 engines glass edging machine

Product Overview

Description





























Equipment details:

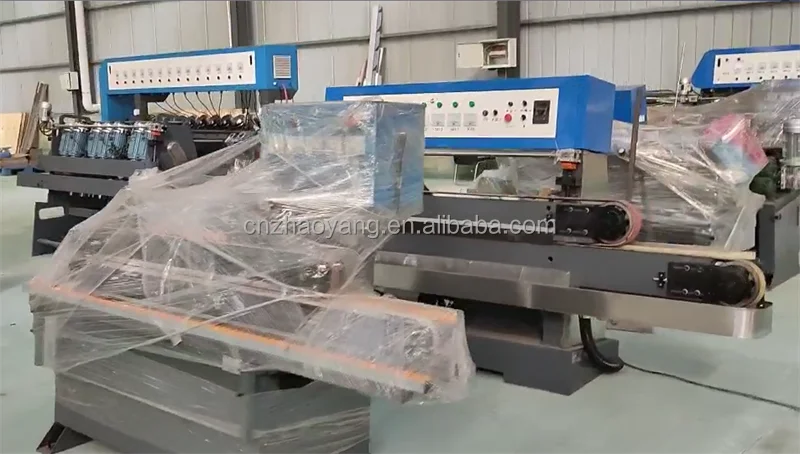

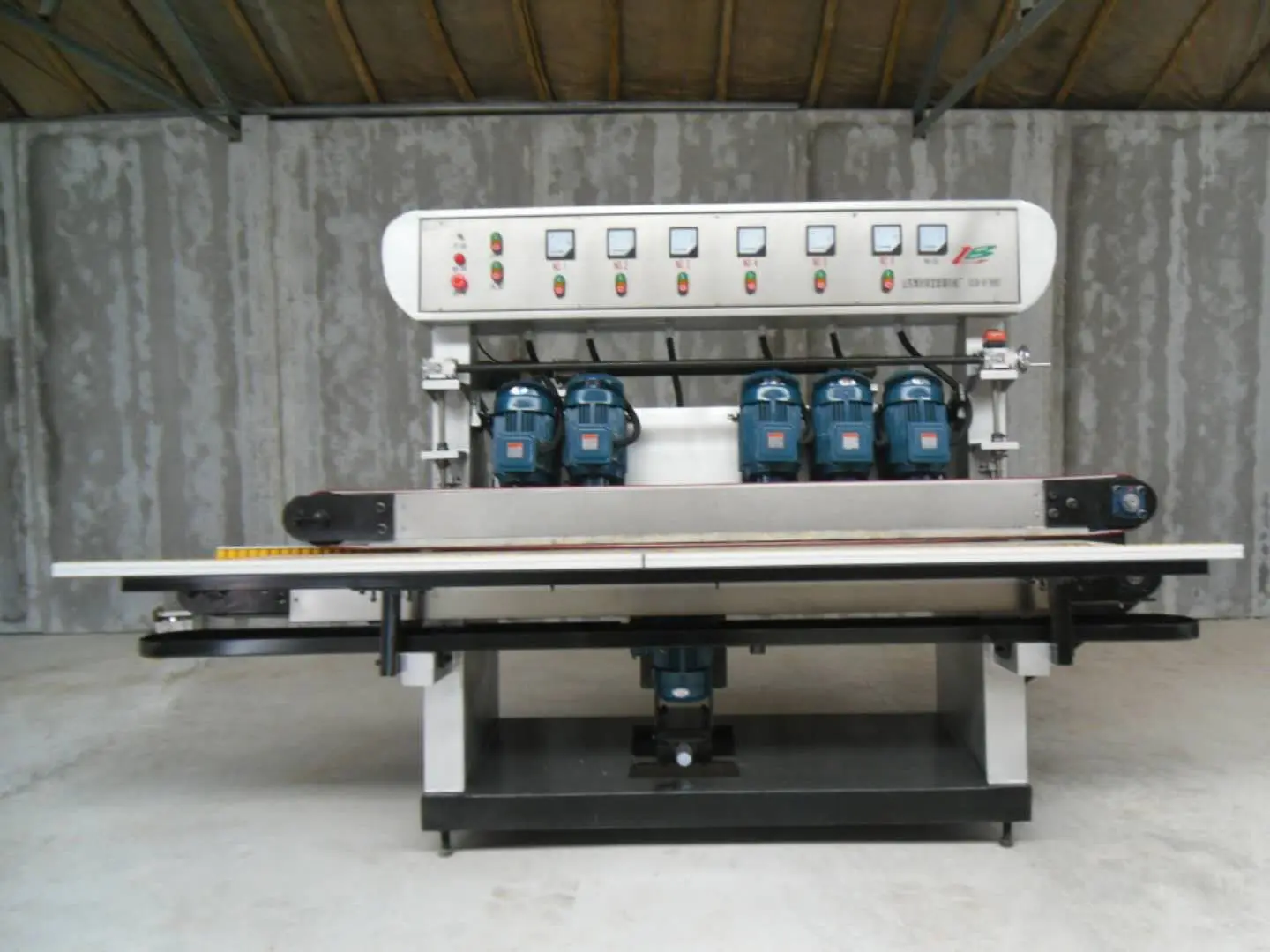

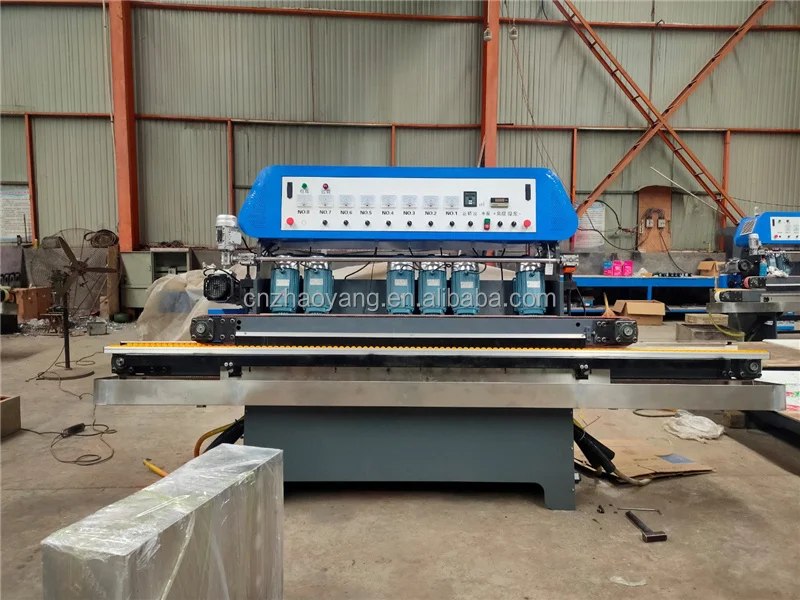

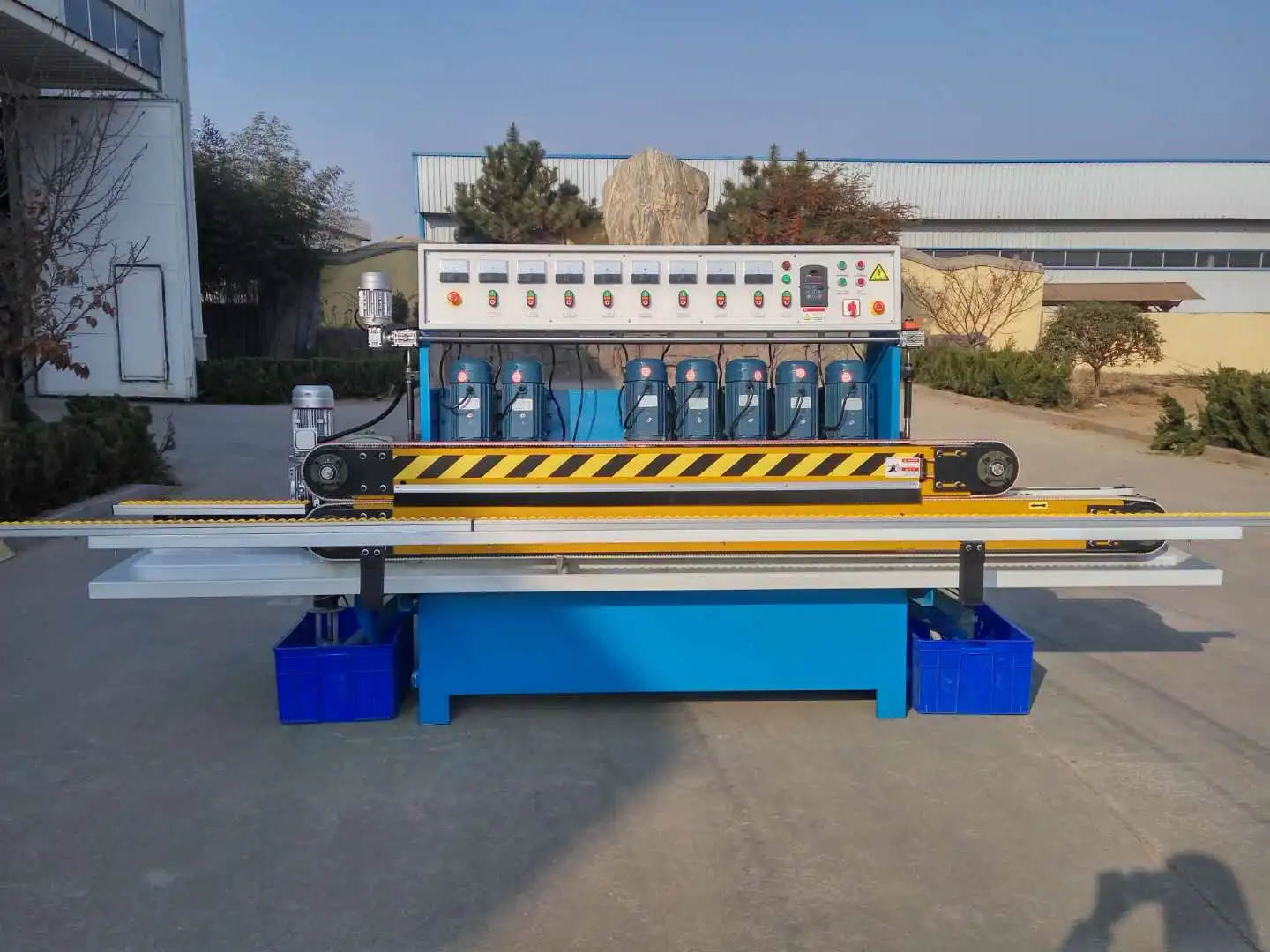

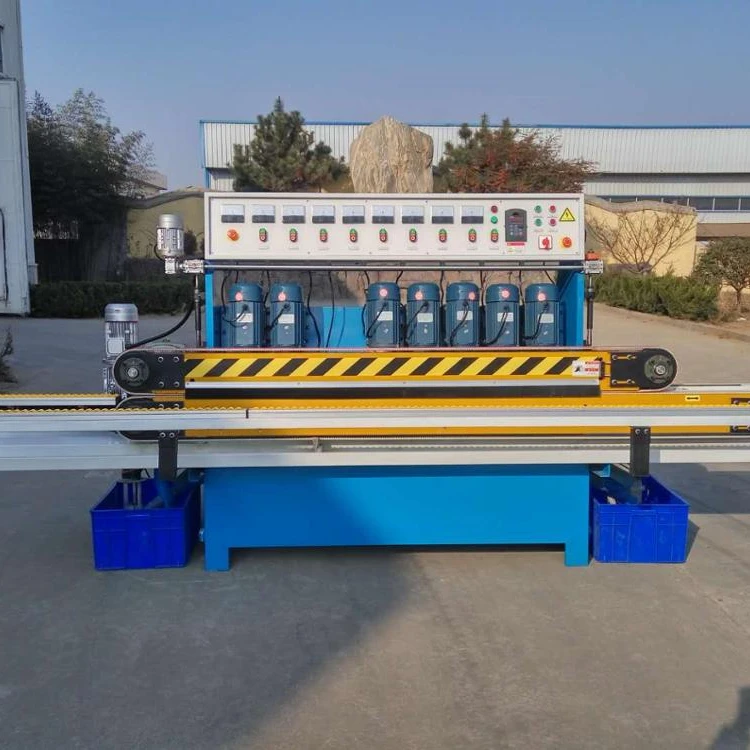

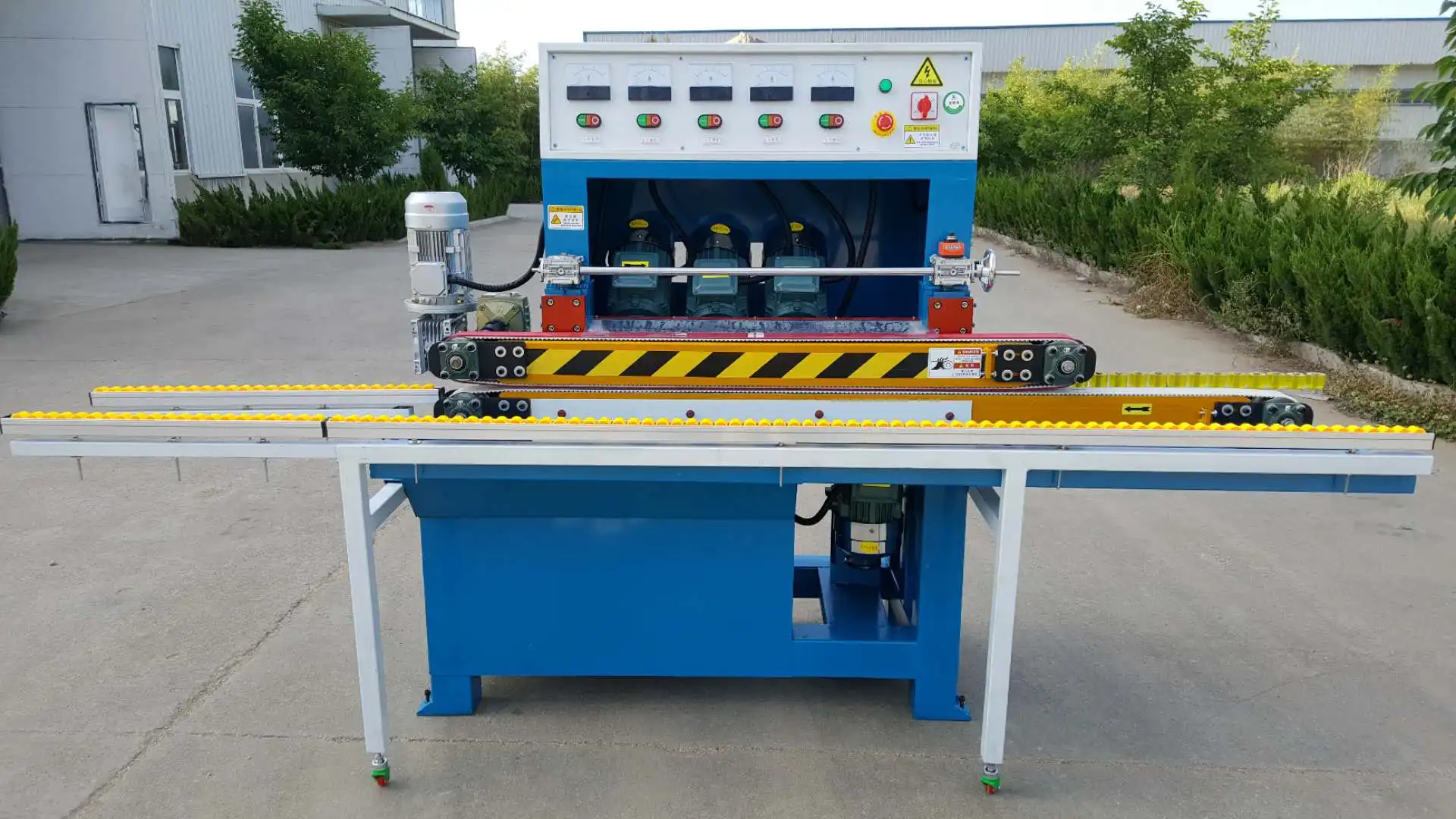

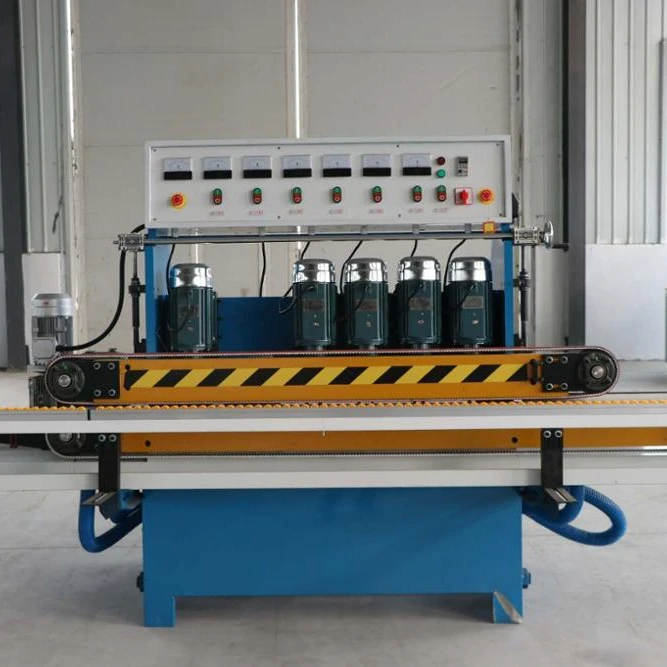

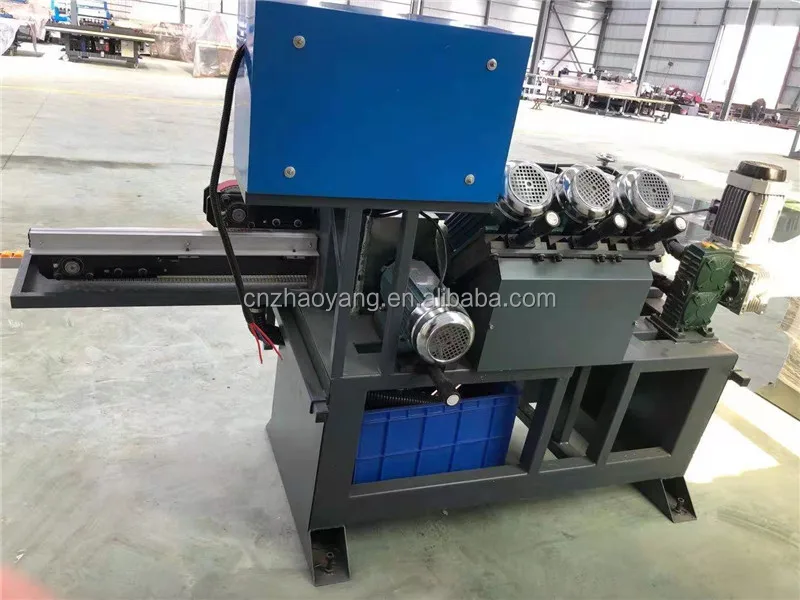

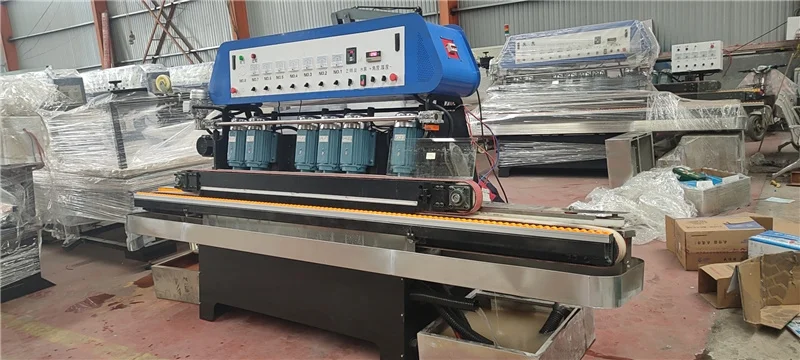

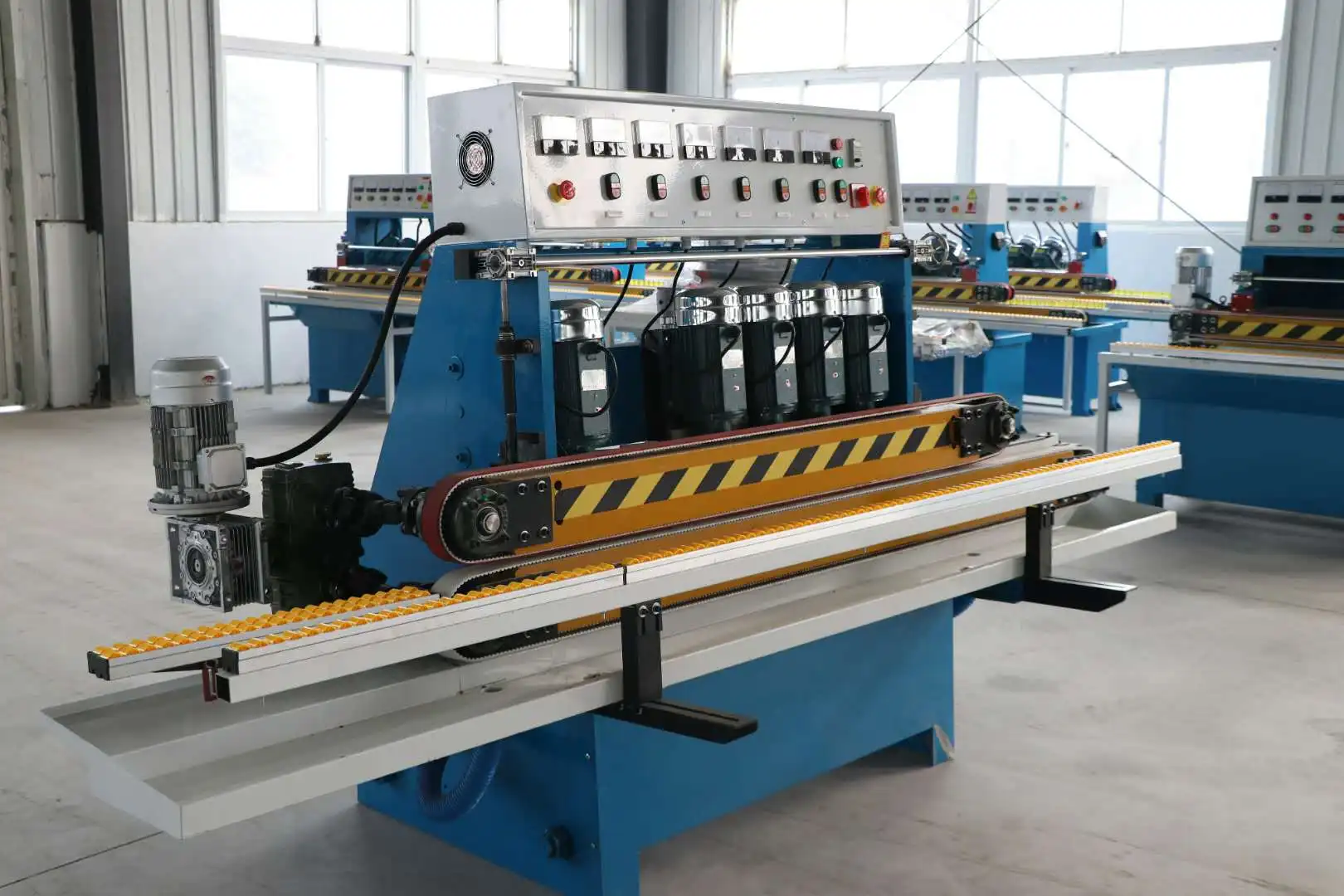

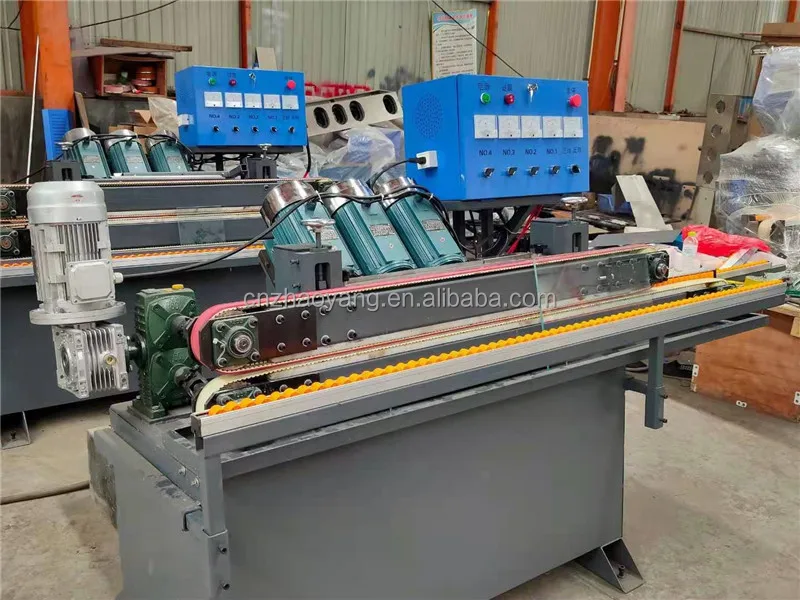

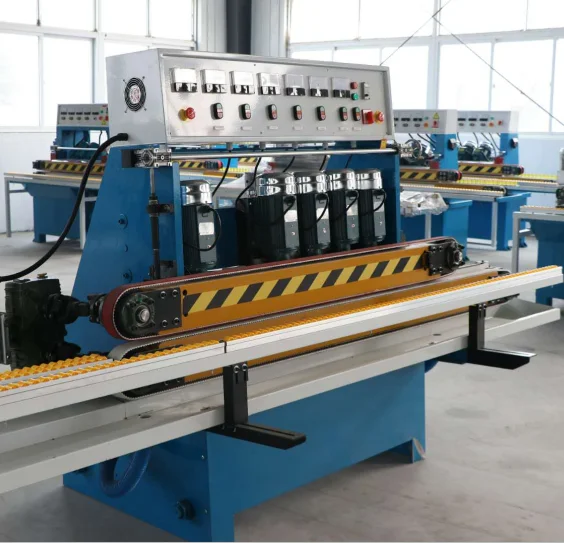

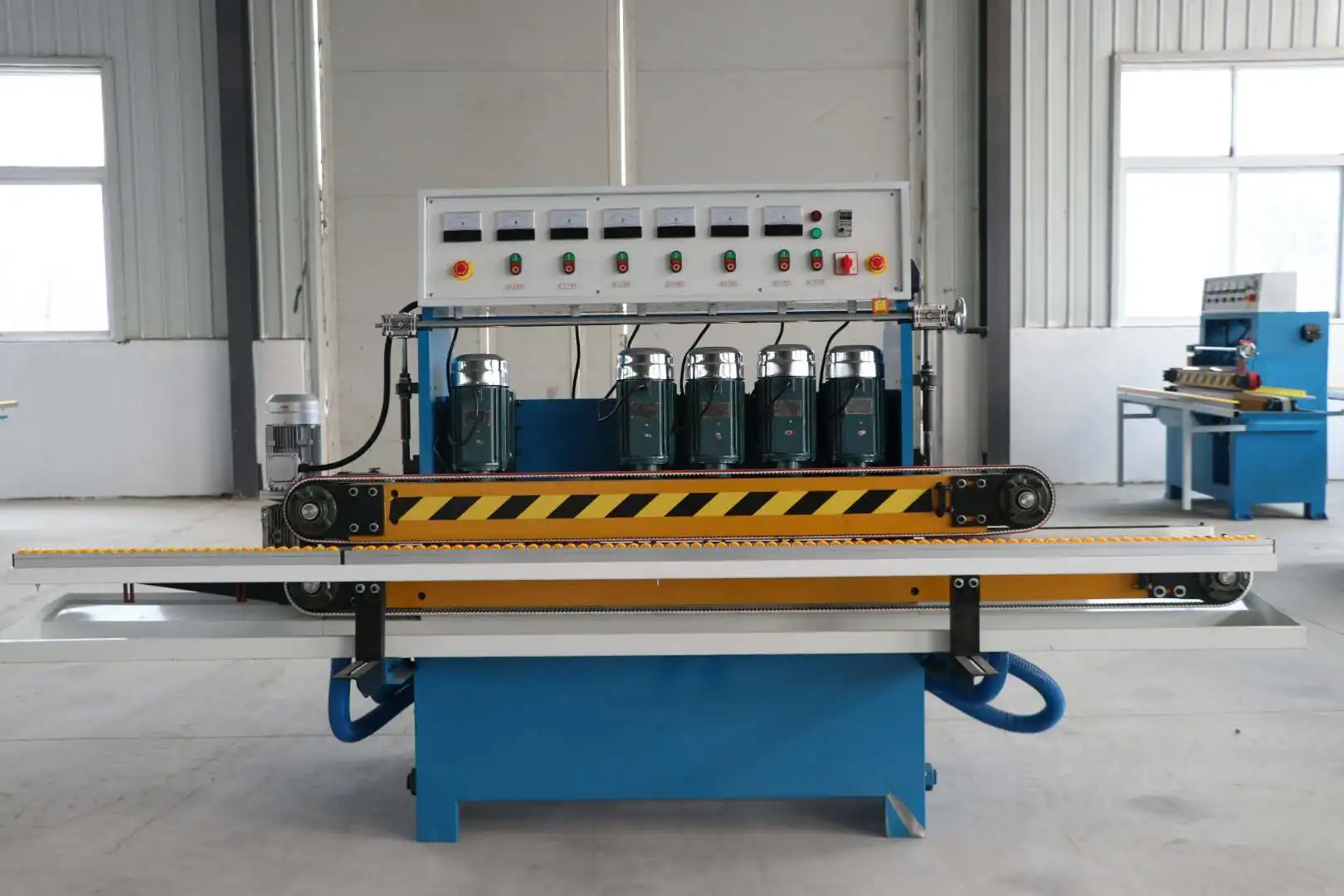

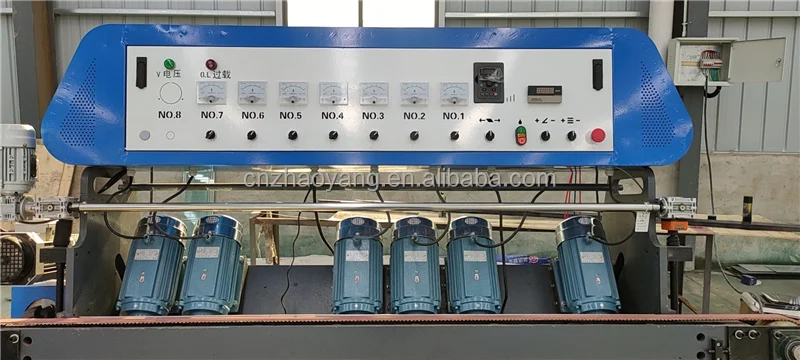

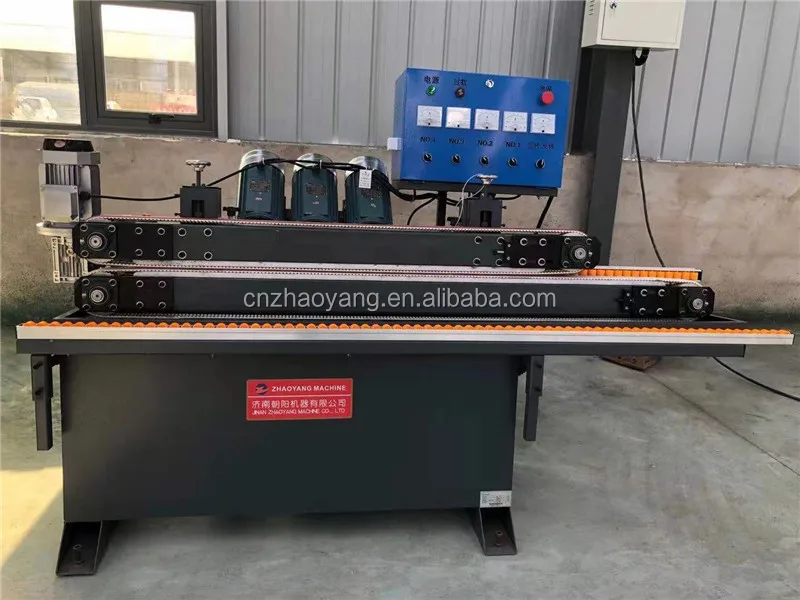

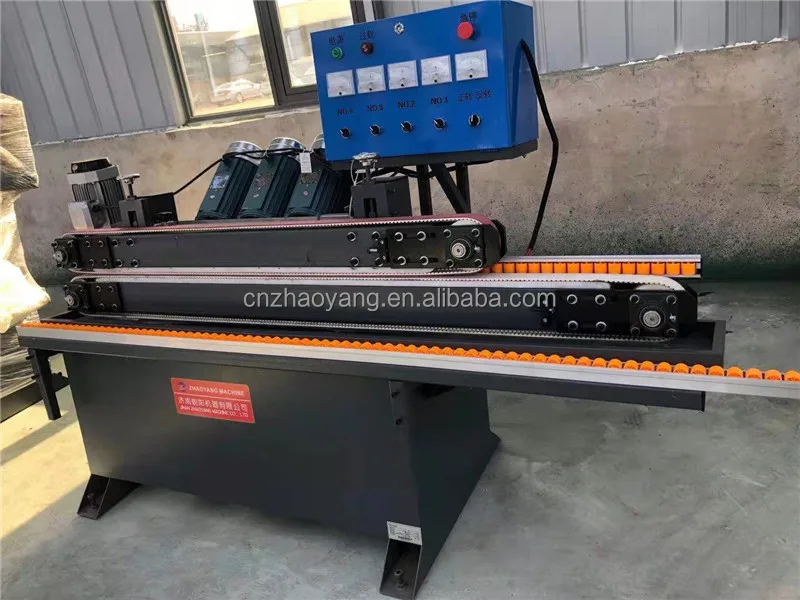

ZYEM4 horizontal linear glass edging machine is a precise and efficient glass deep processing equipment. The key support parts such as the guide rail support frame and the motor seat are all cast iron castings and processed after natural aging. They have the advantages of smooth, smooth, beautiful and non-deformed appearance, so as to ensure the accuracy of the whole machine after long-term use; The variable speed part adopts worm gear to change the speed uniformly and continuously to meet the different processing needs of different manufacturers. The clamping part adopts the imported Italian timing belt, and the surface is adhered with PU and red glue, which not only ensures the proper clamping force and friction force, but also solves the problem that ultra-thin glass is easy to break and difficult to clamp and transmit. The grinding system adopts three-phase high-speed motor and the latest technology grinding wheel, which is especially suitable for long-term small and medium-sized glass crafts manufacturers. Undertakes the platform and uses the same synchronous belt with the conveying mechanism to avoid surface scratches during glass operation. Some organically cooperate with working parts, people-oriented, highlighting the humanized design. The method of use is simple and clear, and the grinding accuracy is stable and continuous. The whole work process can be monitored through the transparent observation window, which is clear at a glance. It is the most ideal choice for glass deep processing enterprises, especially glass handicraft manufacturers.

Functions:

1.Craft glass:Small pieces of crafts glass edge grinding

2.Decoration glass:Home decoration glass, furniture glass

3.Architectural glass:Frameless glass door

4.Cabinet door: cabinet door, crystal steel door glass edge grinding

5.Deep processing of glass decoration and other industries

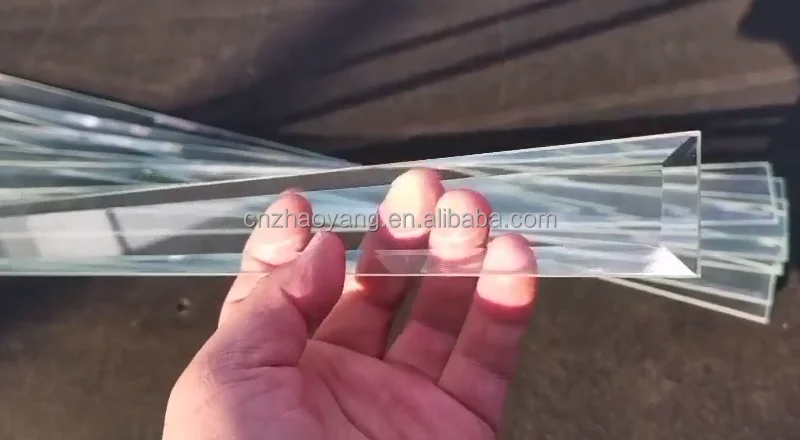

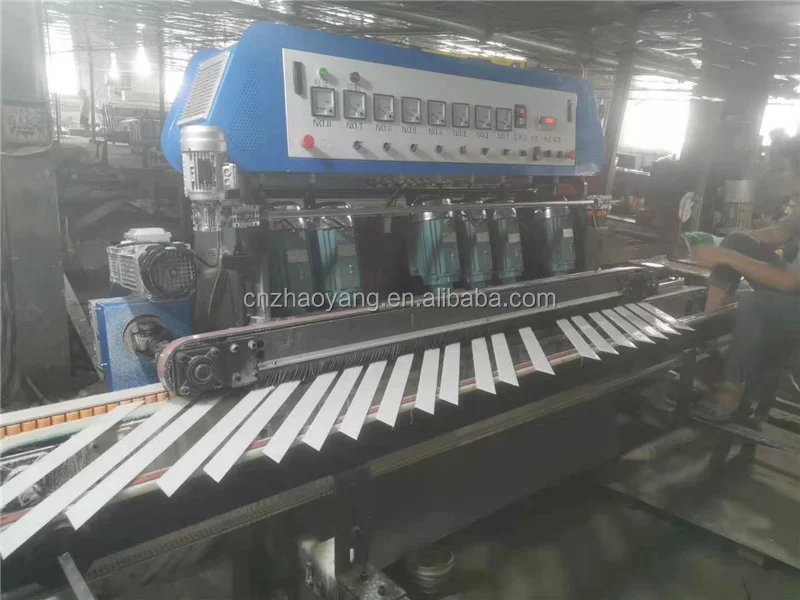

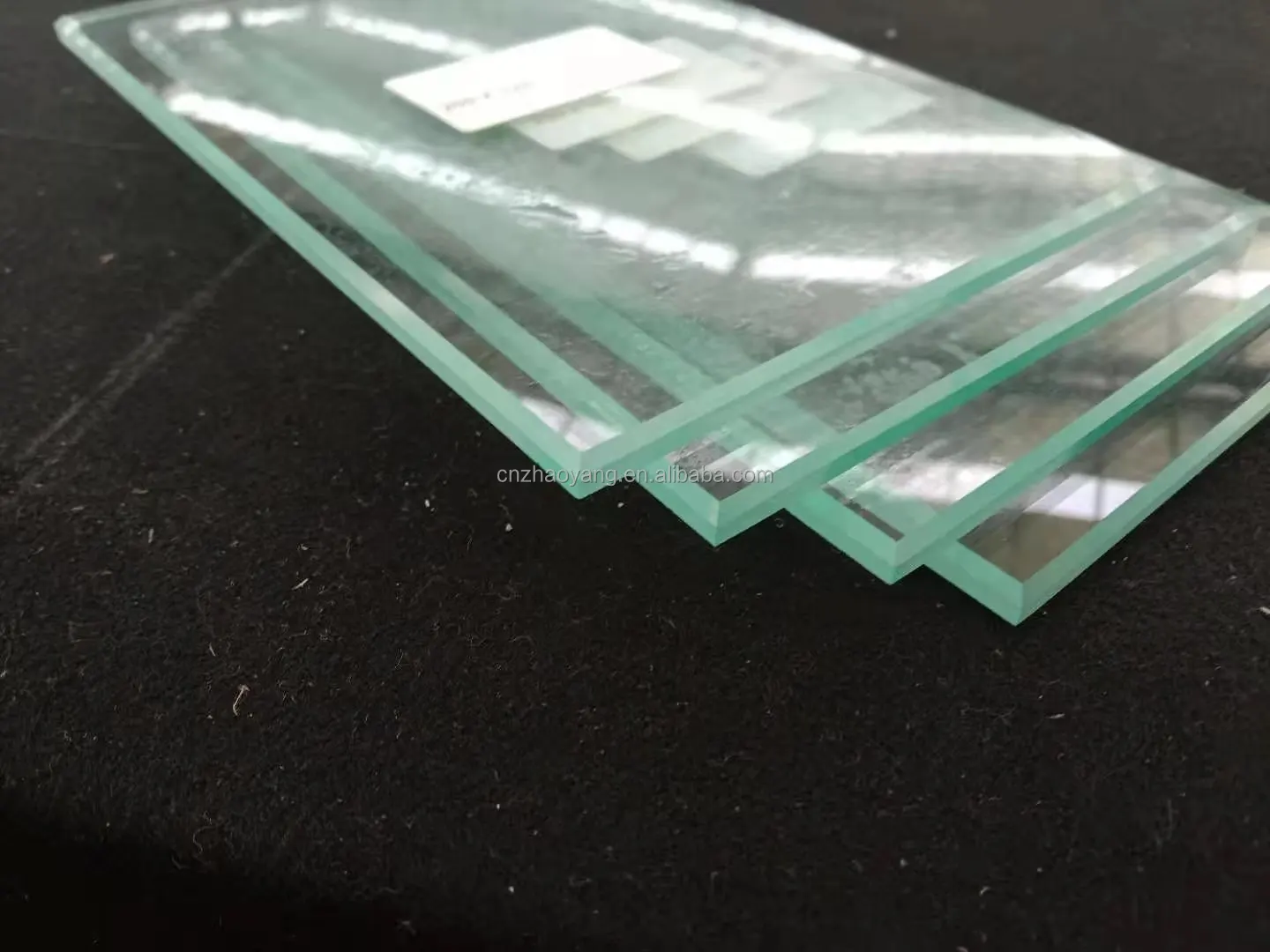

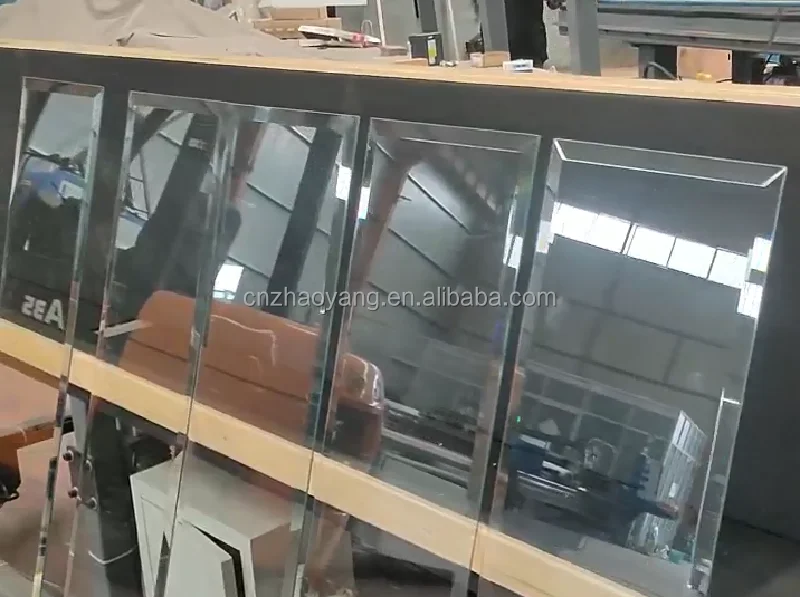

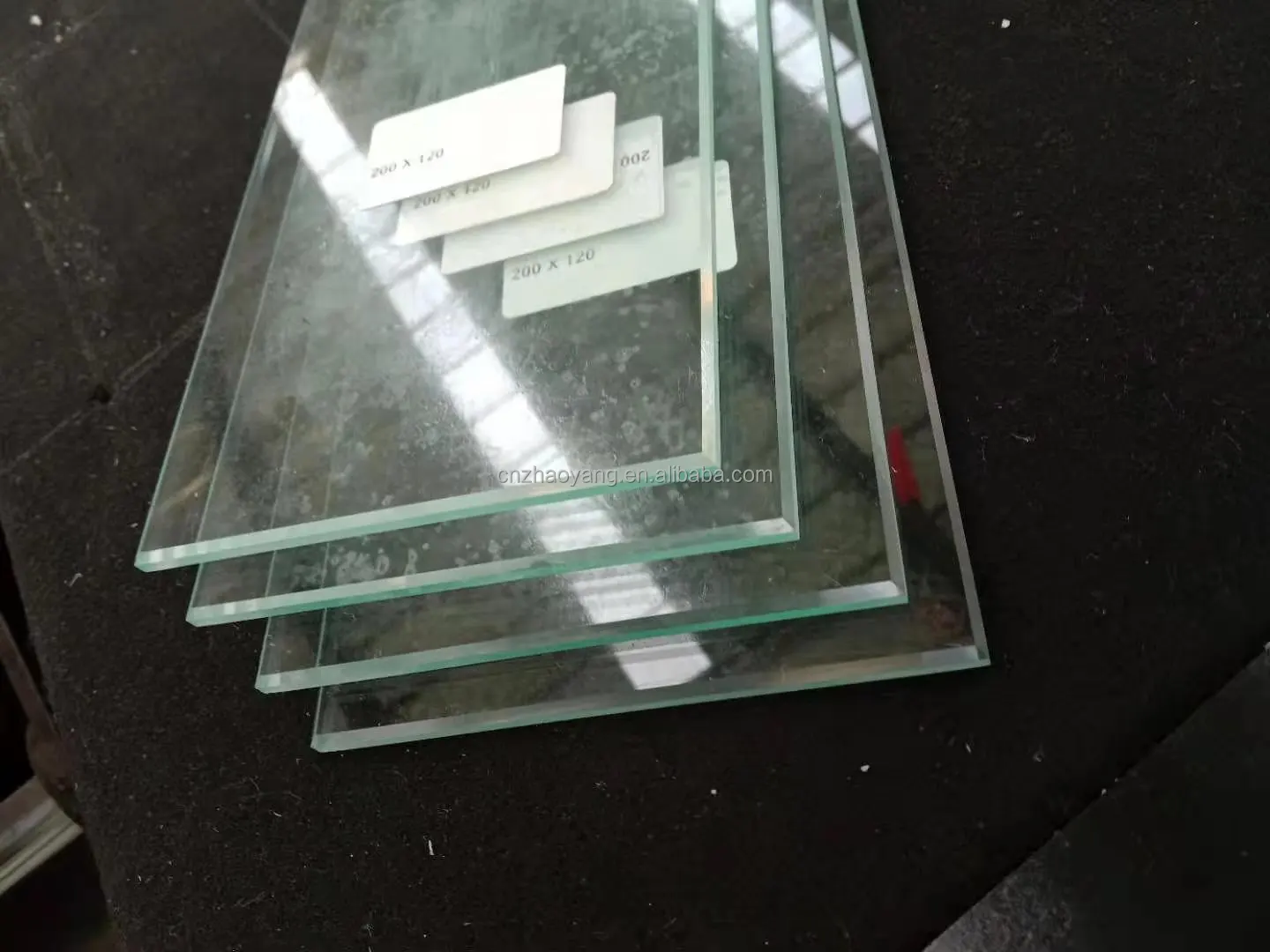

The straight line glass edging machine is suitable for flat glass straight edge grinding, coarse grinding,fine grinding, polishing ,one-time finished to achieve the mirror effect.

Two polished, polished more bright.

Linkage adjustment thickness, more effort.

Parameter:

Dimension:2800*1750*1600mm

Weight: 428kg

Max processing size: 2000mm*2000mm

Min processing size: 30mm*30mm

Glass processing thickness: 2mm-10mm

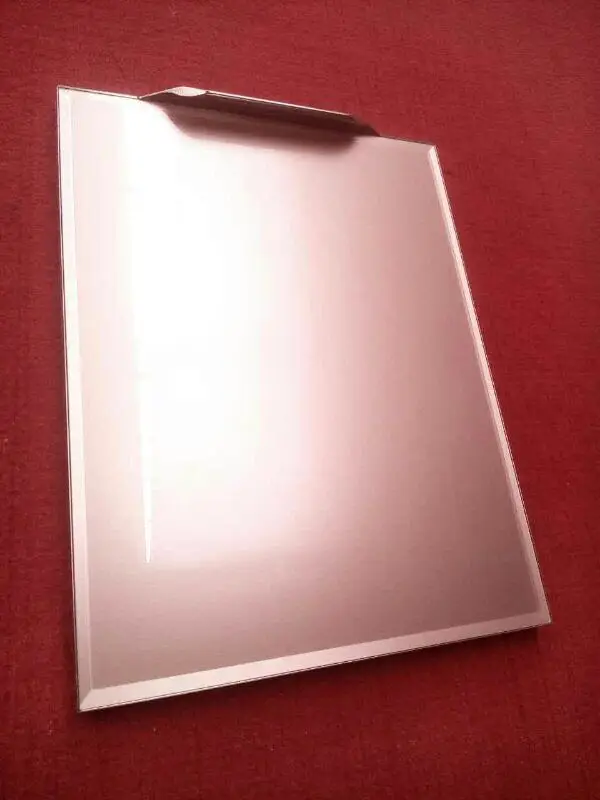

Chamferring angle:45°

Glass transfer speed: 0.5/min-5m/min

Power: 7.65kw

Voltage:380V 50HZ(or customized)

Description:

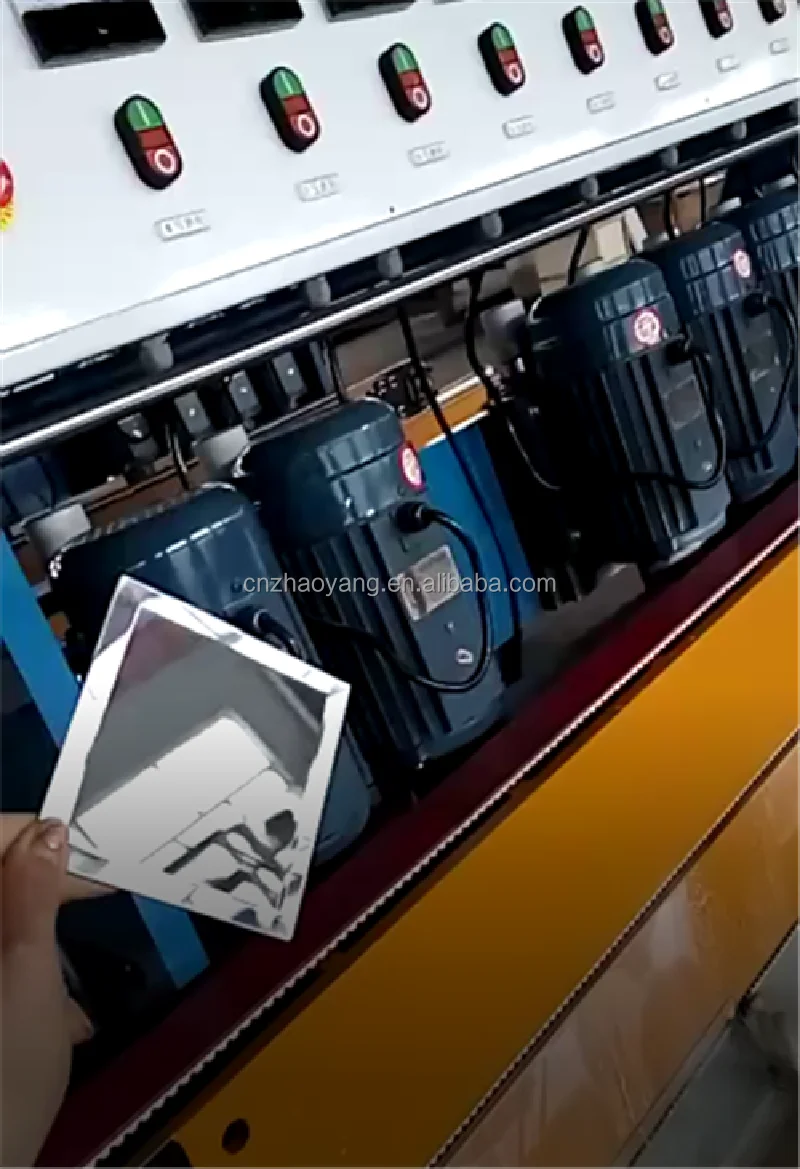

Motor:pure copper wire grinding wheel dedicated motor, waterproof, explosion-proof, durable, powerful, smooth operation

Electric: the main power supply with Delixi brand, Additional power supply with Zhengtai electrical appliances, durable, reliable quality

Reducer: reducer with twin turbine set, run more smoothly, It can be controlled by frequency conversion

Pump: the use of high-power water pump, 22 meters, It has a filtration system that can be recycled for water

Transport: faster running ,more stable, more durable and the holding more compact

Thickness adjustment: With two 30rv reducer synchronous adjustment, with digital display, the glass thickness can be random adjust and it without error.

Customized:The glass polishing angle can be customized according to customer demand



Parts details:

Rail: Steel Plate

Switch: Zhejiang Chint

Frame: 100mm thick 4mm square tube welding

Motor slide: cast iron

bearing: Harbin bearing

Motor: Shanghai Jester

Reducer: Hangzhou Boyu

Frequency conversion motor: Hangzhou Boyu

Indicator light: Zhejiang Chint

Synchronous belt: Foshan Yongli

AC contactor: Zhejiang Chint

Water cover: 304# stainless steel

Intermediate relay: Zhejiang Chint

Supplied tools:

one set of hex socket,

one 14-17 open end wrench,

one 10-12 open end wrench,

2 pcs waterproof holsters,

2 pcs universal faucets,

a bucket of glass glue,

1 pair of wire gloves,

diameter 50mm 2 pcs water pipes,

1pcs 220V water pump,

1pcs plastic water tank.
