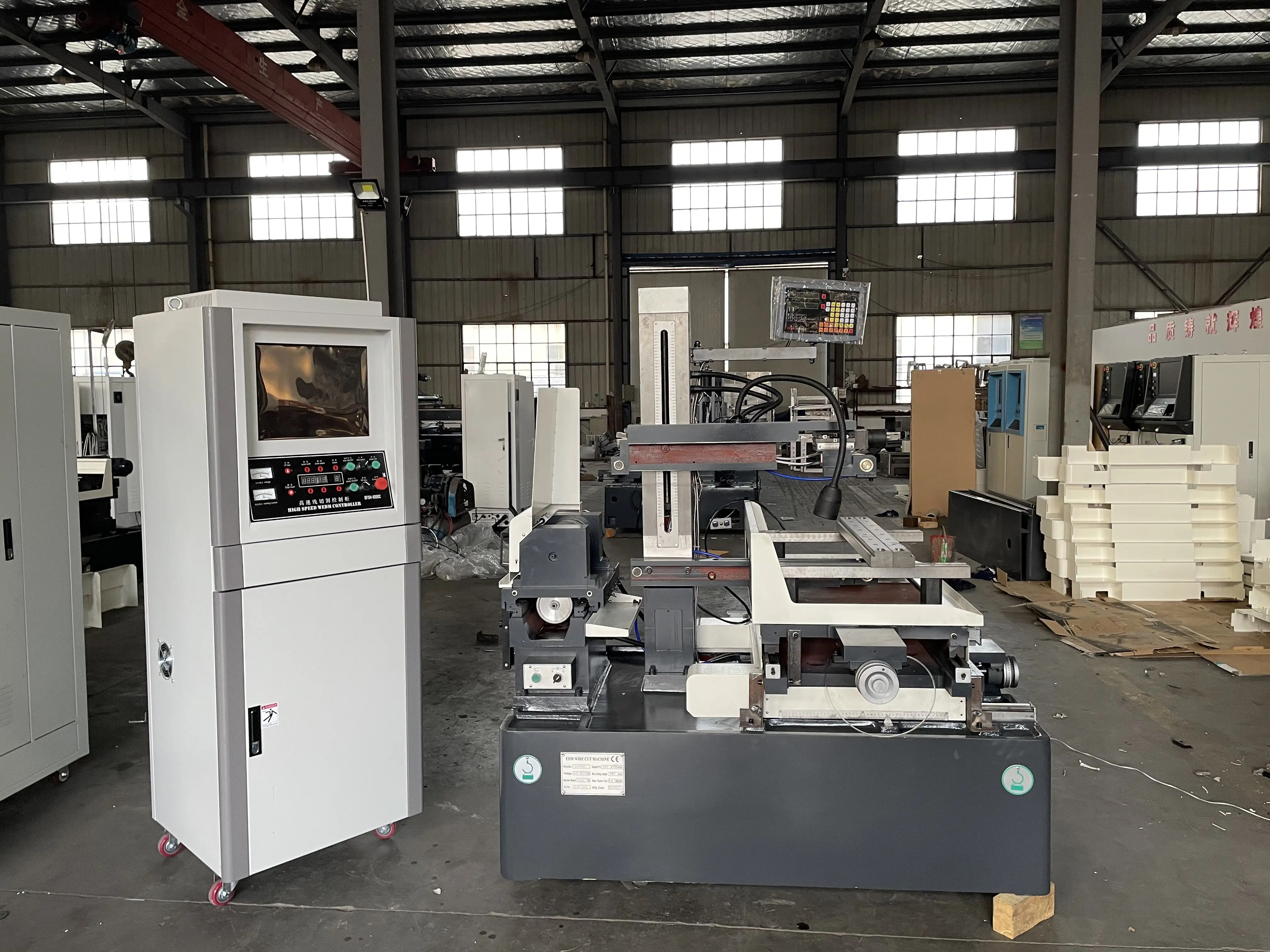

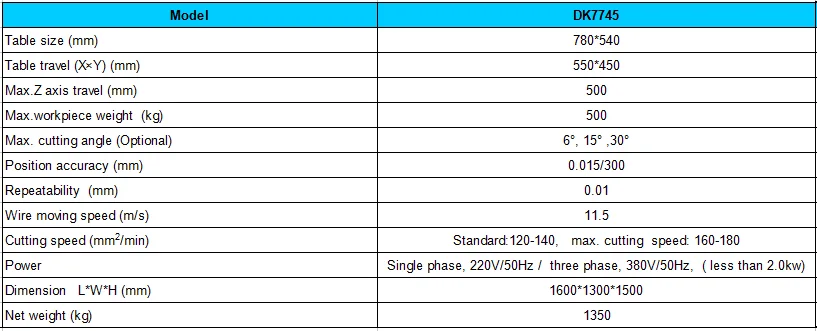

cnc edm machine DK7745 price

Product Overview

Description

Wire EDM is a method to cut conductive materials with a thin electrode that follows a programmed path.    The electrode is a thin wire. Typical diameters range from 0.12mm - 0.30mm (0.004" - 0.012") . The hardness of the work piece material has no detrimental effect on the cutting speed. It is widely used in die making, heat treated material.



Feature:



Large travel , High cutting speed.
With 3° taper as standard attachment.
Small wire diameters 0.12- 0.30mm (down to 0 .08mm).
Accuracy: 0.015mm, even 0.01mm( middle speed)
Roughness: Ra 1.0-2.5 µm
All project sizes - prototype to high volume production.
Submersed cutting for thermal stability and interrupted cuts.
Low consumption, material saving.
Advanced CAD/CAM equipment with file transfer and translation capabilities.
High cutting speed modular is optional.
Middle speed control system can improve the accuracy more.

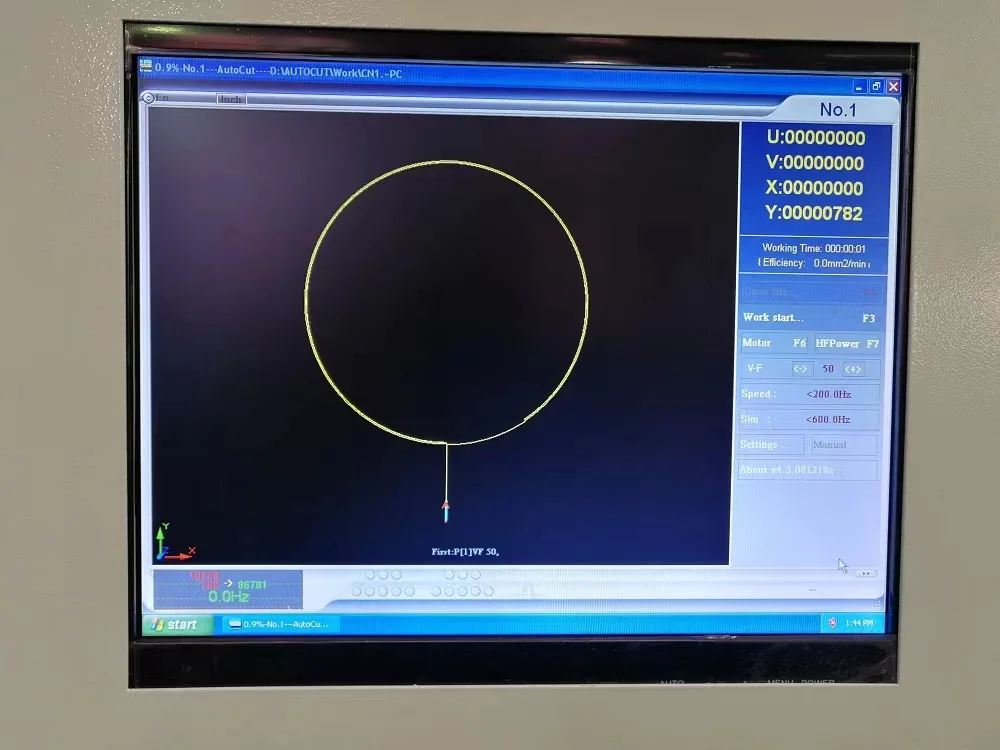

Control system: ( AUTOCUT,HL, HF,WINCUT)
a) microcomputer process control system
b) PC control system.

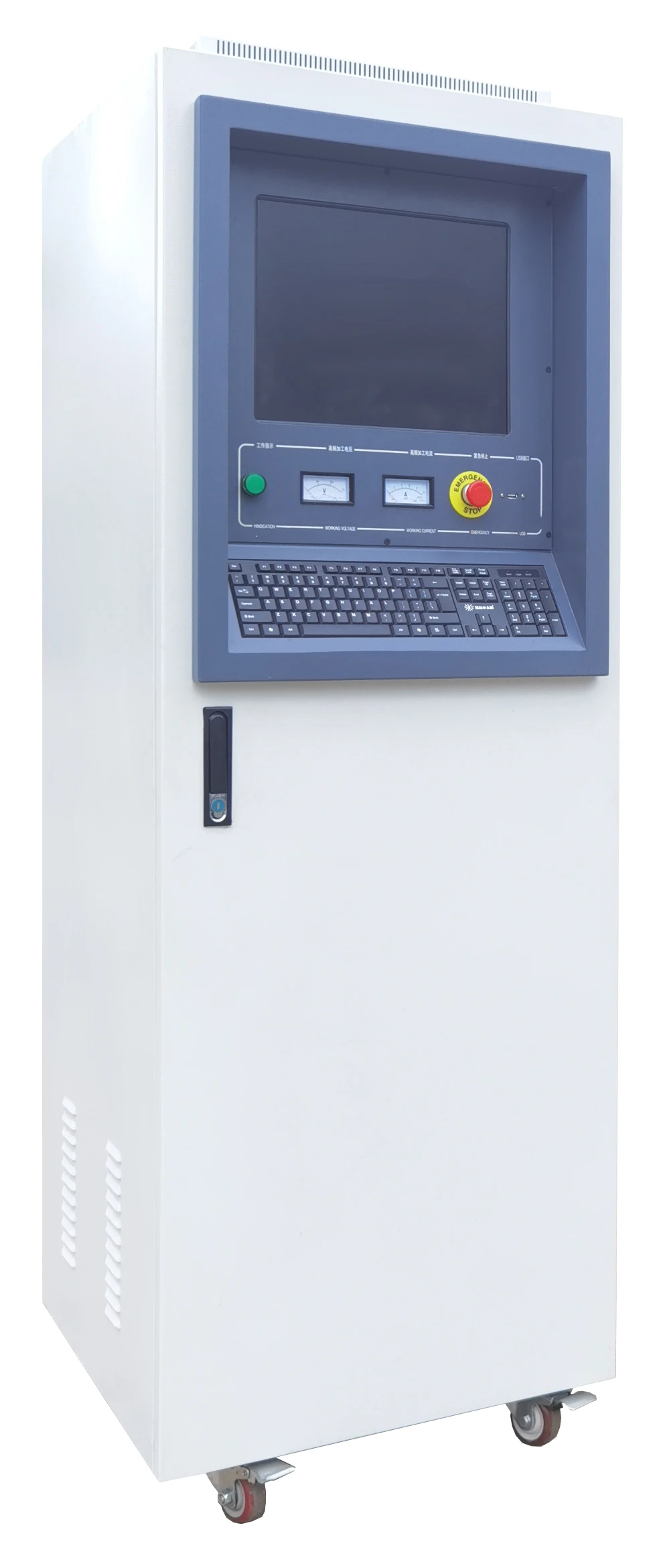

c) Luxury vertical control cabinet



Options:

1.Taper angles up to 6°, 15°, 30°

2.DRO

3.High pressure coolant tank

4.Lifting motor
