High Frequency Blister Packing Machine of High Frequency Welding for Blister packing for Clamshell_Blister Printed Paper Packing
- Category: >>>
- Supplier: Shenzhen Keepleader Machinery Co. Ltd.Shenzhen Ltd.
Share on (62009321038):
Product Overview
Description

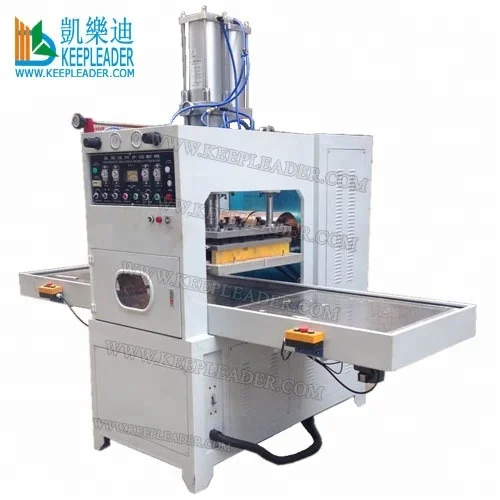

High Frequency Blister Packing Machine
High Frequency Blister Packing Machine has 1: Auto bpaper feeding 2: Auto rotary table 3: Auto Unloading packs
Product Description
High Frequency Blister Packing Machine
Application | |
High Frequency Blister Packing Machine Applied for PVC, PET, APET, PETG, GAG blister sealing and cutting in one machine | |
Character | |
Built-in PLC, is convenient to read and operation One person is available in its operation Loading, sealing, cutting, and unloading all in one machine Electronic motor auto compensation in equal HF output Build-in sensitive anti-sparkle device to protect mold Four stations, auto feeding, sealing, cutting, and unloading With oil station, the maximum cutting pressure can reach 40 tons | |
Parameter | |
Name | High Frequency Blister Packing Machine |
Model | KLR-15KW-40T |
Power | 15KW |
Frequency | 27.12MHZ |
Power consumption | 16KVA |
Power source | 380VAC |
Anti-sparkle | 5557 |
Oscillation tube | 8T85 |
Upper board | 700*800MM |
Bottom board | 800*900MM |
Pressure mode | Oil pressure |
Heating temp | 30~250 |
MFR: KEEPLEADER™ have modified and designed High Frequency Blister Packing Machine for our customers’ unique and special requirements, please contact KEEPLEADER™ for updated details, for High Frequency Blister Packing Machine, pls provide 1: Material 2: Size 3: Sample picture of your packs for technic confirmation
Detailed Images

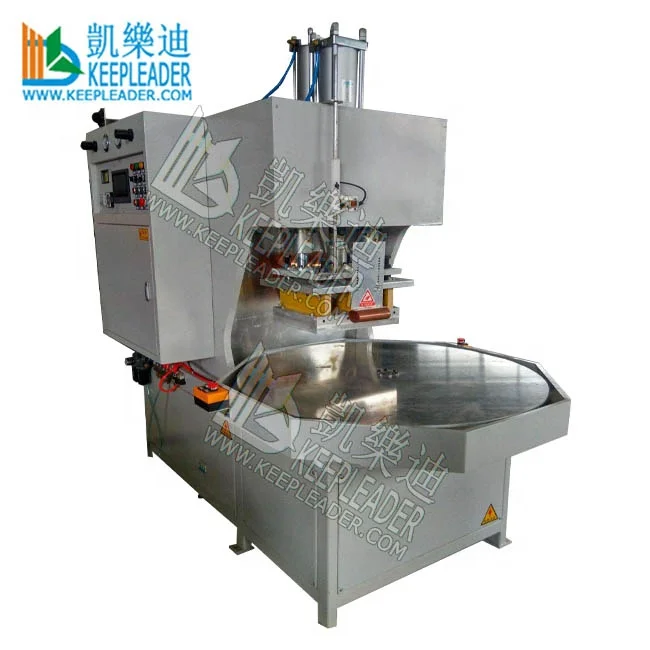

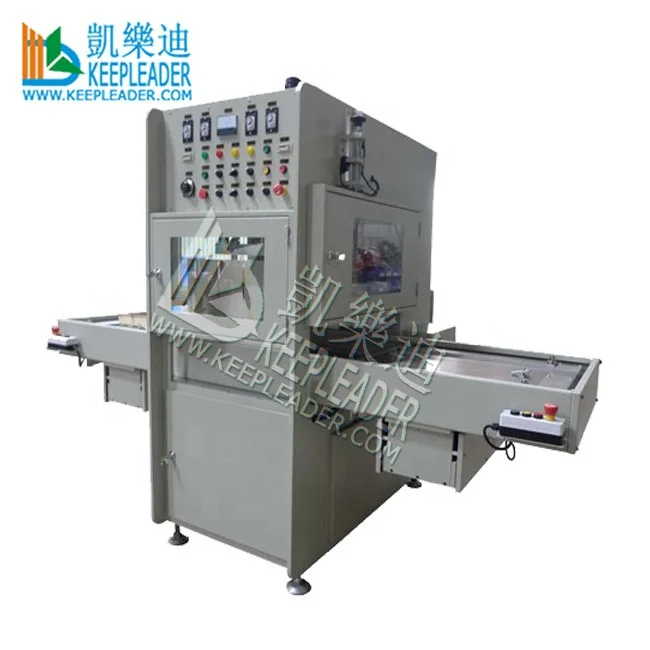

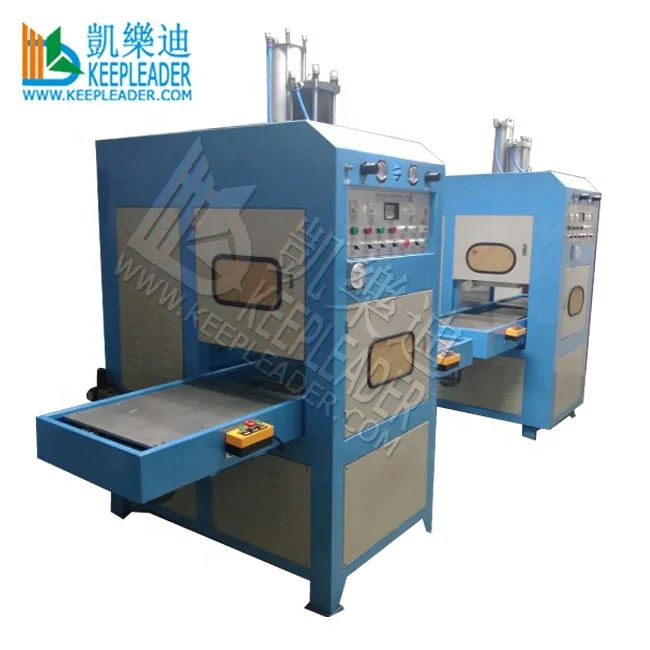

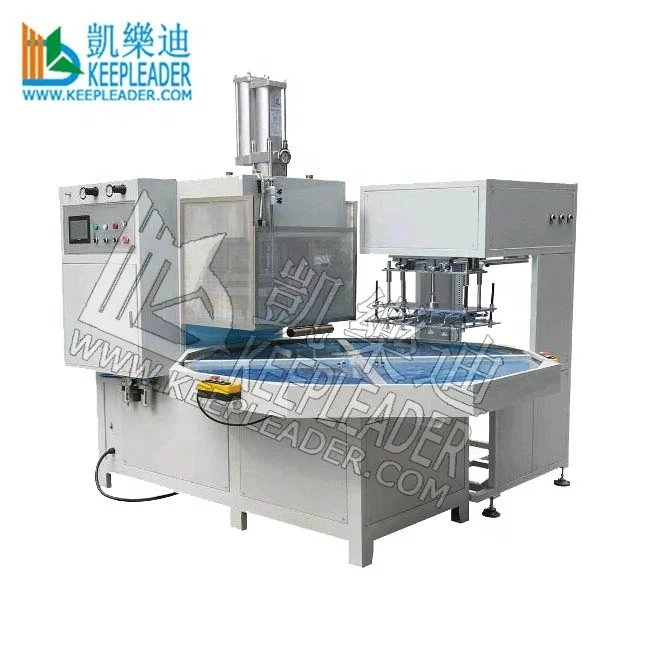

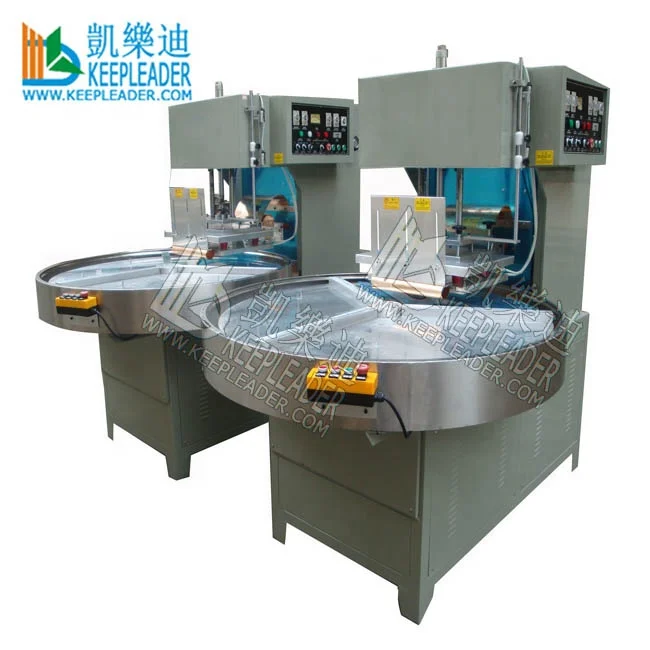

High Frequency Blister Packing Machine takes prominent features in #1: High Automation degree: auto turntable indexing with high frequency alternation; automatic robotic unloading device, auto loading paper card is available to combine a whole automatic production in blister packaging #2:Flexible operation: quick shift in auto and manual mode, close the automatic turntable, the working model also set manual stationary status as a free-standing model, touch screen is convenient accessed in setting, operation, reading with programmable logic control system #3: customized solution: support quick-changeover upper electrodes and bottom nests among different blisters/clamshell in shape and size, automatic feeding paper card and loading parts are acceptable in construction as per demands

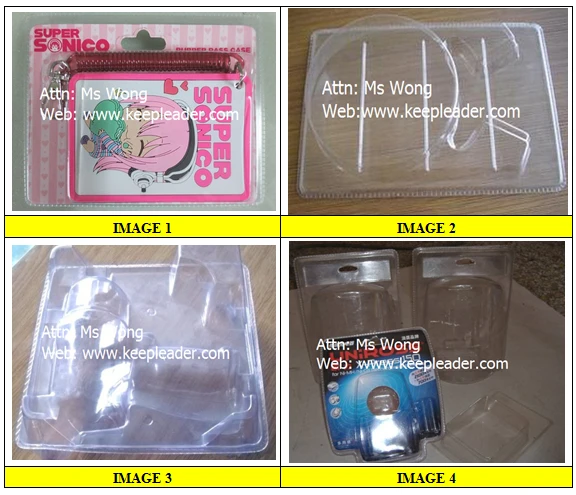

Finished Products
High Frequency Blister Packing Machine is profesional packaging fo paper + bsliter sealing with automatic loading and unloading, its workable size is cutomized
Our Services
KEEPLEADER™ SERVICE
ABOUT PRODUCT
Customized design; Safe and convenient operation
ABOUT FACTORY
Comprehensive management process, leading technology and service team
EXPERIENCE
Internationalization of business process; Rich experience of Non-standard design
AFTERSERVICE
Uniform standard with special difference for each, Professional and Experienced service
MARKET
Yearly 30% Market share increased, One-to-one service
SERVICE PROCESS AT KEEPLEADER™
the clients offer information of the workpieces being welded (eg: picture, materials, sizes, requirements, etc) if have samples, it’s better to send KEEPLEADER™ some sample to perform the welding test, if can be welded, we provide offer sheet, once confirmed, sign a contract, the clients paid the deposit, KEEPLEADER™ start equipment building, after passing the acceptance, and receive the balance payment, KEEPLEADER™ delivery the device to clients
After-Sales Service
AFTER SALES SERVICE AT KEEPLEADER™
After purchasing at KEEPLEADER™ is first step of our after-service, all of machines at KEEPLEADER™ has one year guarantee, we provide free samples for defected parts to do replacement except for human damage, under information for your notice
01: KEEPLEADER™ always posts the new technical file in our homepage that can help our client in new technical information of machines’ design, character, application, operation, maintenance,
and related, KEEPLEADER™ also welcome our clients feed back the machines’ working condition that can get one to one service
02: If the machine you purchased has any defects, please contact sales representative at KEEPLEADER™, we will assign our experienced engineer analyze your case and provide technical support, in case of damaged parts that cannot repair, KEEPLEADER™ will provide a new parts to replace the defect
03: For any replacement and maintenance, KEEPLEADER™ has user manual and training video
04: KEEPLEADER™ can go to oversea for on-site training
05: KEEPLEADER™ can provide electric diagram if in need
06: High Frequency Blister Packing Machine has one year guarantee, will provide spare parts during warranty period and life-span technic support by paper work and train video
